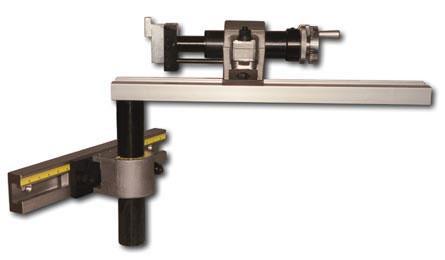

ATEK Pro-Gage Micrometer Press Brake Gag

Featrues:

  • Rapid Set-up
  • 4 Axes of Control
  • Rotating Gauge Unit
  • Rigid Mount to Bed
with brass pointer, revolving handle and knurled locking ring. 0.001 inch graduations and 0.050 inch per dial revolution
Pro-Gage's exclusie rotating feature makes odd shape set-ups easy
The heavy duty adapter block solidly accommodates Pro-Gage fingers or specials you develop.
Only Pro-Gage offers the rigidity of the direct mount rail available in stock lengths of 3, 4, 6 and 8 ft.



Specifications
Axis Travel X = 21 inches std. X1 = 4 inches (precision screw)
Z = mount rail lenght
R = 9 inches std. R1 = 4 inches
Resolution A = 180 degrees (L to R)
Repeatability 0.001 inch
Shipping Weight 30 pounds approx. (Less mount rail)

Click on part number in chart and you will be directed below for pricing

Pro Gauge
PG24568 Pro-Gage Micrometer Back Gauge, Two Units (Add $100 for Field Add-On)
PG1224 Pro-Gage Micrometer Front Gauge, One Unit
PG24568
Mfg. item #: PG24568
ATEPG24568
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,598.00

640
PG1224
ONE(1) PRO-GAGE MICROMETER FRONT GAUGE WITH BED MOUNT, ROTARY & VERT ADJUST, NO BED T-RAIL
Mfg. item #: PG1224
ATEPG1224
FREE shipping when ordered with a machine from this manufacturer.20
$893.00

640
