ATEK Smart-gage CNC Press Brake Gauging

At a Glance
12 ton
24 ton
cnc back gauge
Pro Gauge
Atek Models & Options

12 Ton Models

2 Foot Bed - B212
4 Foot Bed - B412
5 Foot Bed - B512

24 Ton Models

2 Foot Bed - B224
4 Foot Bed - B424
6 Foot Bed - B624
8 Foot Bed - B824

12 Ton Models

2 Foot Bed - B212
4 Foot Bed - B412
5 Foot Bed - B512

12 Ton Model Specifications

Rated @ 90 PSI
Note: Maximum back gauge depth is reduced by 2 inches when equipped with micro-adjustable gauge option.
*12 ton, 100 lbs less without floor stand.
Note: Width between housings, add 1/4".

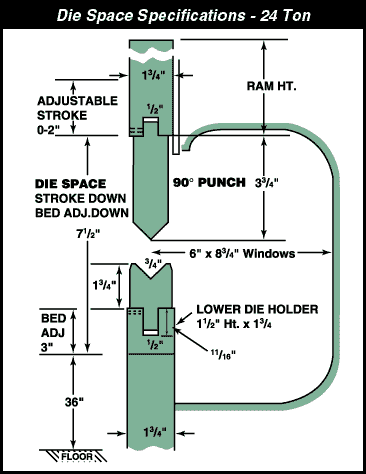

24 Ton Models

2 Foot Bed - B224
4 Foot Bed - B424
6 Foot Bed - B624
8 Foot Bed - B824

s-h alt

Rated @ 90 PSI
Note: Full 21-1/2" back gauge depth possible only on sheets 7" narrower than maximum width. Maximum back gauge depth is reduced by 2 inches when equipped with micro-adjustable gauge option.
*24 ton, 150 to 250 lbs less without floor stand.
Note: Width between housings, add 1/4".

The Affordable CNC Back Gauge for Your Atek Bantam Press Brake...

So Smart, Because It Gives Your Brake...

Rapid CNC Set-up
Programmable "X" Axis
New Level of Precision Gauging
Solid Repeatability and Performance
Simple Retrofit to Existing Atek Bantam Press Brakes


Mechanical: Maximum "X" Axis Travel (Distance from bend line).................................. Vertical Finger Adjustment...... Total L to R Finger Adjustment............................... Maximum Speed...................... Accuracy.................................. Resolution................................ Repeatability............................ Braking Load............................	12 inches 2 inches - 12 ton 2.5 inches - 24 ton Bed Width* 500 ipm +/- 0.002 inches 0.001 inches +/- 0.002 inches 400 lbs	Standard Equipment: Pedestal Mounted Control Gauge Assembly Two Flip Finger Assemblies (removable) Ram Micro Switch One Calibration Tool Installation/Owner's Manual
Control: Display...................................... Data Entry................................. Retract Delay............................. Memory..................................... Mains Voltage...........................	4 Lines x 20 Characters, LED - Backlit Via 16 Key Keypad 0-9 Second Programmable Non-Volatile with Internal Battery Backup 115 VAC, 60 Hz 1Ph 2A
*For actual adjustment deduct 4-7/8 from 12 ton bed width and 10-1/4 from 24 ton bed width.

Slash Set-ups and Boost Productivity...

A Full Line of Benefits

Rapid Set-up
4 Axes of Control
Rotating Gauge Unit
Rigid Mount to Bed


Axis:......................................... Resolution:............................... Repeatability:........................... Shipping Weight:..................... UPS Shippable	Travel X = 21 inches std. X1 = 4.000 inches (precision screw) Z = mount rail length) R = 9 inches std. R1 = 4 inches A = 180 degrees (L to R) 0.001 inch 0.001 inch 30 pounds approx. (less mount rail)

Click on part number in chart and you will be directed below for pricing

ATEK 12 Ton & 24 Ton Bantam Press Brakes & Accessories
B212	Atek Bantam Press Brake: 12 Ton x 2 Foot Bed
B412	Atek Bantam Press Brake: 12 Ton x 4 Foot Bed.
B512	Atek Bantam Press Brake: 12 Ton x 5 Foot Bed
B1024	Atek Bantam Press Brake: 24 Ton X 10 Foot Bed
B224	Atek Bantam Press Brake: 24 Ton X 2 Foot Bed
B424	Atek Bantam Press Brake: 24 Ton X 4 Foot Bed
B624	Atek Bantam Press Brake: 24 Ton X 6 Foot Bed
B824	Atek Bantam Press Brake: 24 Ton X 8 Foot Bed
Floor Stands
BST200	Floor Stand: 2 ft For 12 ton
BST224	Floor Stand: 2 ft for 24 ton
BST400	Floor Stand: 4 ft for 12 ton
BST424	Floor Stand: 4 ft for 24 ton
BST500	Floor Stand: 5 ft for 12 ton
BST624	Floor Stand: 6 ft for 24 ton
BST824	Floor Stand: 8 ft for 24 ton
BST1024	Floor Stand: 10 ft for 24 ton
CNC Back Gauge
SG12	Smart-Gage CNC Back Gauge For 12 Ton Press Brakes
SG2442	Smart-Gage CNC Back Gauge For 24 Ton Press Brakes
Pro Gauge
PG24568	Pro-Gage Micrometer Back Gauge, Two Units (Add $100 for Field Add-On)
PG1224	Pro-Gage Micrometer Front Gauge, One Unit
DRO - Factory Installed
YDRO	Digital Readout for standard read adjust Y-Axis ram stroke control
Front Adjust Back Gauge
FABGDRO	Front Adjust Back Gauge With Digital Readout
FABG	Front Adjust Back Gauge, 12Ton Ã¢â¬â 0 to 18Ã¢â¬ÃÃ¹, 24 Ton Ã¢â¬â 0 to 19/21Ã¢â¬ÃÃ¹ Between Housings/Cylinders
YFA	Front Adjust Y-Axis Ram Stroke Control
YFADRO	Front Adjust Y-Axis Ram Stroke Control with Digital Readout
Front Workpiece Support
FT200	Front Workpiece Support Table Only: 2 ft
FT400	Front Workpiece Support Table Only: 4 ft
FT500	Front Workpiece Support Table Only: 5 ft
FT600	Front Workpiece Support Table Only: 6 ft
FT800	Front Workpiece Support Table Only: 8 ft
FT1000	Front Workpiece Support Table Only: 10 ft
Large Sheet Support
LLS200	Large Sheet Support, (2) 3Ã¢â¬ÃÃ¹ x 30Ã¢â¬ÃÃ¹ Units & 2 Ft Bed T-Rail, 0 to 2 Ft Spread
LLS400	Large Sheet Support, (2) 3Ã¢â¬ÃÃ¹ x 30Ã¢â¬ÃÃ¹ Units & 4 Ft Bed T-Rail, 0 to 4 Ft Spread
LLS500	Large Sheet Support, (2) 3Ã¢â¬ÃÃ¹ x 30Ã¢â¬ÃÃ¹ Units & 5 Ft Bed T-Rail, 0 to 5 Ft Spread
LLS600	Large Sheet Support, (2) 3Ã¢â¬ÃÃ¹ x 30Ã¢â¬ÃÃ¹ Units & 6 Ft Bed T-Rail, 0 to 6 Ft Spread
LLS800	Large Sheet Support, (2) 3Ã¢â¬ÃÃ¹ x 30Ã¢â¬ÃÃ¹ Units & 8 Ft Bed T-Rail, 0 to 8 Ft Spread
LLS1000	Large Sheet Support, (2) 3Ã¢â¬ÃÃ¹ x 30Ã¢â¬ÃÃ¹ Units & 10 Ft Bed T-Rail, 0 to 10 Ft Spread
Safety Clamp Ram
CH10	Segmented, Safety Clamp Ram: 10 ft
CR2	Segmented, Safety Clamp Ram: 2 ft
CR4	Segmented, Safety Clamp Ram: 4 ft
CR5	Segmented, Safety Clamp Ram: 5 ft
CR6	Segmented, Safety Clamp Ram: 6 ft
CR8	Segmented, Safety Clamp Ram: 8 ft
Safety Control
SA10	Two Hand Safety Control with Front Workpiece Support Table: 10 ft
SA2	Two Hand Safety Control with Front Workpiece Support Table: 2 ft
SA4	Two Hand Safety Control with Front Workpiece Support Table: 4 ft
SA5	Two Hand Safety Control with Front Workpiece Support Table: 5 ft
SA6	Two Hand Safety Control with Front Workpiece Support Table: 6 ft
SA8	Two Hand Safety Control with Front Workpiece Support Table: 8 ft
Misc
LLS	Large Sheet Support, (1) 3Ã¢â¬ÃÃ¹ x 30Ã¢â¬ÃÃ¹ Unit & Bed Mount, Rotary & Vertical Adjust, No Bed T-Rail
PPC	Production Parts Counter

ATEK Bantam Metal Brakes

Rated @ 90 PSI Note: Full 21-1/2" back gauge depth possible only on sheets 7" narrower than maximum width. Maximum back gauge depth is reduced by 2 inches when equipped with micro-adjustable gauge option. *24 ton, 150 to 250 lbs less without floor stand. Note: Width between housings, add 1/4".

The Affordable CNC Back Gauge for Your Atek Bantam Press Brake...

So Smart, Because It Gives Your Brake...

12 inches 2 inches - 12 ton 2.5 inches - 24 ton Bed Width* 500 ipm +/- 0.002 inches 0.001 inches +/- 0.002 inches 400 lbs

*For actual adjustment deduct 4-7/8 from 12 ton bed width and 10-1/4 from 24 ton bed width.

Slash Set-ups and Boost Productivity...

A Full Line of Benefits

Axis:......................................... Resolution:............................... Repeatability:........................... Shipping Weight:..................... UPS Shippable

Travel X = 21 inches std. X1 = 4.000 inches (precision screw) Z = mount rail length) R = 9 inches std. R1 = 4 inches A = 180 degrees (L to R) 0.001 inch 0.001 inch 30 pounds approx. (less mount rail)

Rated @ 90 PSI
Note: Full 21-1/2" back gauge depth possible only on sheets 7" narrower than maximum width. Maximum back gauge depth is reduced by 2 inches when equipped with micro-adjustable gauge option.
*24 ton, 150 to 250 lbs less without floor stand.
Note: Width between housings, add 1/4".

12 inches
2 inches - 12 ton
2.5 inches - 24 ton

Bed Width*
500 ipm
+/- 0.002 inches
0.001 inches
+/- 0.002 inches
400 lbs

Axis:.........................................

Resolution:...............................
Repeatability:...........................
Shipping Weight:.....................
UPS Shippable

Travel X = 21 inches std.
X1 = 4.000 inches (precision screw)
Z = mount rail length)
R = 9 inches std.
R1 = 4 inches
A = 180 degrees (L to R)
0.001 inch
0.001 inch
30 pounds approx. (less mount rail)
