ATEK Bantam Metal Brakes

All Machines Include a 90 degree Punch, Vee Die and Standard Back Gauge
An Extra Value Worth Hundreds!!

Call 1-800-458-3687 for Pricing on ATEK Tooling

s-h alt

12 Ton Models

  • 2 Foot Bed - B212
  • 4 Foot Bed - B412
  • 5 Foot Bed - B512

24 Ton Models

  • 2 Foot Bed - B224
  • 4 Foot Bed - B424
  • 6 Foot Bed - B624
  • 8 Foot Bed - B824

Features at a Glance:

  • Adjustable Stroke Depth Control
  • Adjustable Die Space
  • Ram Speed Control
  • Safety Hooded Foot Pedal
  • Modular FRL Unit
  • Variable Tonnage Control
  • World Recognition
  • Fully Pneumatic
  • Critical Details

12 Ton Models

  • 2 Foot Bed - B212
  • 4 Foot Bed - B412
  • 5 Foot Bed - B512


12 Ton Model Specifications

Rated @ 90 PSI
Note: Maximum back gauge depth is reduced by 2 inches when equipped with micro-adjustable gauge option.
*12 ton, 100 lbs less without floor stand.
Note: Width between housings, add 1/4".

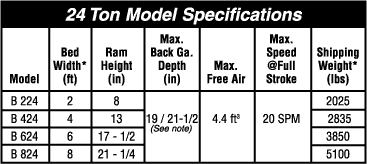

24 Ton Models

  • 2 Foot Bed - B224
  • 4 Foot Bed - B424
  • 6 Foot Bed - B624
  • 8 Foot Bed - B824




s-h alt

Rated @ 90 PSI
Note: Full 21-1/2" back gauge depth possible only on sheets 7" narrower than maximum width. Maximum back gauge depth is reduced by 2 inches when equipped with micro-adjustable gauge option.
*24 ton, 150 to 250 lbs less without floor stand.
Note: Width between housings, add 1/4".

The Affordable CNC Back Gauge for Your Atek Bantam Press Brake...

So Smart, Because It Gives Your Brake...

  • Rapid CNC Set-up
  • Programmable "X" Axis
  • New Level of Precision Gauging
  • Solid Repeatability and Performance
  • Simple Retrofit to Existing Atek Bantam Press Brakes

Features at a Glance:

  1. New Smart-Vue Panel
  2. Acu-Rite Linear Encoder Technology
  3. Rugged, Flip Finger Assemblies with Quick Clamp Feature
  4. Gauge Freames Mount to Press Brake Housings

Mechanical:
Maximum "X" Axis
Travel (Distance from
bend line
)..................................
Vertical Finger Adjustment......

Total L to R Finger
Adjustment...............................
Maximum Speed......................
Accuracy..................................
Resolution................................
Repeatability............................
Braking Load............................



12 inches
2 inches - 12 ton
2.5 inches - 24 ton

Bed Width*
500 ipm
+/- 0.002 inches
0.001 inches
+/- 0.002 inches
400 lbs


Standard Equipment:

Pedestal Mounted Control
Gauge Assembly
Two Flip Finger Assemblies (removable)
Ram Micro Switch
One Calibration Tool
Installation/Owner's Manual

Control:
Display......................................

Data Entry.................................
Retract Delay.............................
Memory.....................................
Mains Voltage...........................



4 Lines x 20 Characters,
LED - Backlit
Via 16 Key Keypad
0-9 Second Programmable
Non-Volatile with Internal Battery Backup
115 VAC, 60 Hz 1Ph 2A

*For actual adjustment deduct 4-7/8 from 12 ton bed width and 10-1/4 from 24 ton bed width.



Slash Set-ups and Boost Productivity...

A Full Line of Benefits

  • Rapid Set-up
  • 4 Axes of Control
  • Rotating Gauge Unit
  • Rigid Mount to Bed

Features at a Glance:

  • Precision Adjustable Dial
  • Exclusive Rotating Feature
  • Heavy Duty Adapter Block
  • Direct Mount Rail

Axis:.........................................





Resolution:...............................
Repeatability:...........................
Shipping Weight:.....................
UPS Shippable
Travel X = 21 inches std.
X1 = 4.000 inches (precision screw)
Z = mount rail length)
R = 9 inches std.
R1 = 4 inches
A = 180 degrees (L to R)
0.001 inch
0.001 inch
30 pounds approx. (less mount rail)
Atek Pro-Gage CNC Press Brake Gauging



Click on part number in chart and you will be directed below for pricing

ATEK 12 Ton & 24 Ton Bantam Press Brakes & Accessories
B212 Atek Bantam Press Brake:  12 Ton x 2 Foot Bed
B412 Atek Bantam Press Brake:  12 Ton x 4 Foot Bed.
B512 Atek Bantam Press Brake:  12 Ton x 5 Foot Bed
B1024 Atek Bantam Press Brake:  24 Ton X 10 Foot Bed
B224 Atek Bantam Press Brake:  24 Ton X 2 Foot Bed
B424 Atek Bantam Press Brake:  24 Ton X 4 Foot Bed
B624 Atek Bantam Press Brake:  24 Ton X 6 Foot Bed
B824 Atek Bantam Press Brake:  24 Ton X 8 Foot Bed
Floor Stands
BST200 Floor Stand:  2 ft For 12 ton
BST224 Floor Stand:  2 ft for 24 ton
BST400 Floor Stand:  4 ft for 12 ton
BST424 Floor Stand:  4 ft for 24 ton
BST500 Floor Stand:  5 ft for 12 ton
BST624 Floor Stand:  6 ft for 24 ton
BST824 Floor Stand:  8 ft for 24 ton
BST1024 Floor Stand:  10 ft for 24 ton
CNC Back Gauge
SG12 Smart-Gage CNC Back Gauge For 12 Ton Press Brakes
SG2442 Smart-Gage CNC Back Gauge For 24 Ton Press Brakes
Pro Gauge
PG24568 Pro-Gage Micrometer Back Gauge, Two Units (Add $100 for Field Add-On)
PG1224 Pro-Gage Micrometer Front Gauge, One Unit
DRO - Factory Installed
YDRO Digital Readout for standard read adjust Y-Axis ram stroke control
Front Adjust Back Gauge
FABGDRO Front Adjust Back Gauge With Digital Readout
FABG Front Adjust Back Gauge, 12Ton – 0 to 18â€Âù, 24 Ton – 0 to 19/21â€Âù Between Housings/Cylinders
YFA Front Adjust Y-Axis Ram Stroke Control
YFADRO Front Adjust Y-Axis Ram Stroke Control with Digital Readout
Front Workpiece Support
FT200 Front Workpiece Support Table Only:  2 ft
FT400 Front Workpiece Support Table Only:  4 ft
FT500 Front Workpiece Support Table Only:  5 ft
FT600 Front Workpiece Support Table Only:  6 ft
FT800 Front Workpiece Support Table Only:  8 ft
FT1000 Front Workpiece Support Table Only:  10 ft
Large Sheet Support
LLS200 Large Sheet Support, (2) 3â€Âù x 30â€Âù Units & 2 Ft Bed T-Rail, 0 to 2 Ft Spread
LLS400 Large Sheet Support, (2) 3â€Âù x 30â€Âù Units & 4 Ft Bed T-Rail, 0 to 4 Ft Spread
LLS500 Large Sheet Support, (2) 3â€Âù x 30â€Âù Units & 5 Ft Bed T-Rail, 0 to 5 Ft Spread
LLS600 Large Sheet Support, (2) 3â€Âù x 30â€Âù Units & 6 Ft Bed T-Rail, 0 to 6 Ft Spread
LLS800 Large Sheet Support, (2) 3â€Âù x 30â€Âù Units & 8 Ft Bed T-Rail, 0 to 8 Ft Spread
LLS1000 Large Sheet Support, (2) 3â€Âù x 30â€Âù Units & 10 Ft Bed T-Rail, 0 to 10 Ft Spread
Safety Clamp Ram
CH10 Segmented, Safety Clamp Ram:  10 ft
CR2 Segmented, Safety Clamp Ram:  2 ft
CR4 Segmented, Safety Clamp Ram:  4 ft
CR5 Segmented, Safety Clamp Ram:  5 ft
CR6 Segmented, Safety Clamp Ram:  6 ft
CR8 Segmented, Safety Clamp Ram:  8 ft
Safety Control
SA10 Two Hand Safety Control with Front Workpiece Support Table: 10 ft
SA2 Two Hand Safety Control with Front Workpiece Support Table: 2 ft
SA4 Two Hand Safety Control with Front Workpiece Support Table: 4 ft
SA5 Two Hand Safety Control with Front Workpiece Support Table: 5 ft
SA6 Two Hand Safety Control with Front Workpiece Support Table: 6 ft
SA8 Two Hand Safety Control with Front Workpiece Support Table: 8 ft
Misc
LLS Large Sheet Support, (1) 3â€Âù x 30â€Âù Unit & Bed Mount, Rotary & Vertical Adjust, No Bed T-Rail
PPC Production Parts Counter
B212
ATEK BANTAM PRESS BRAKE: 12 TON X 2 FOOT BED **STILL MANUFACTURED THE USA**
THIS PRICE INCLUDES A MANUFACTURER IMPOSED STEEL SURCHARGE OF $940.00
Mfg. item #: B212
ATEB212
lease to own for as little as:$145 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,256.00

96
B412
ATEK BANTAM PRESS BRAKE: 12 TON X 4 FOOT BED **STILL MANUFACTURED THE USA**
THIS PRICE INCLUDES A MANUFACTURER IMPOSED STEEL SURCHARGE OF $1340.00
Mfg. item #: B412
ATEB412
lease to own for as little as:$189 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,427.00

96
B512
ATEK BANTAM PRESS BRAKE: 12 TON X 5 FOOT BED **STILL MANUFACTURED THE USA**
THIS PRICE INCLUDES A MANUFACTURER IMPOSED STEEL SURCHARGE OF $1705.00
Mfg. item #: B512
ATEB512
lease to own for as little as:$224 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$11,197.00

96
B1024
ATEK BANTAM PRESS BRAKE: 24 TON X 10 FOOT BED **STILL MANUFACTURED THE USA**
THIS PRICE INCLUDES A MANUFACTURER IMPOSED STEEL SURCHARGE OF $6600.00
Mfg. item #: B1024
ATEB1024
lease to own for as little as:$661 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$33,025.00

96
B224
Mfg. item #: B224
ATEB224
lease to own for as little as:$286 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$14,301.00

96
B424
Mfg. item #: B424
ATEB424
lease to own for as little as:$338 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$16,918.00

96
B624
Mfg. item #: B624
ATEB624
lease to own for as little as:$403 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$20,141.00

96
B824
Mfg. item #: B824
ATEB824
lease to own for as little as:$531 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$26,545.00

96
BST200
FLOOR STAND FOR MODEL B212: 2 FT.
Mfg. item #: BST200
ATEBST200
Call for freight quote on this item or we will confirm freight charges before shipping.1
$602.11

96
BST224
Mfg. item #: BST224
ATEBST224
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,119.55

96
BST400
FLOOR STAND FOR MODEL B412: 4 FT.
Mfg. item #: BST400
ATEBST400
Call for freight quote on this item or we will confirm freight charges before shipping.1
$696.19

96
BST424
Mfg. item #: BST424
ATEBST424
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,223.04

96
BST500
FLOOR STAND FOR MODEL B512: 5 FT.
Mfg. item #: BST500
ATEBST500
Call for freight quote on this item or we will confirm freight charges before shipping.1
$790.27

96
BST624
Mfg. item #: BST624
ATEBST624
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,420.61

96
BST824
Mfg. item #: BST824
ATEBST824
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,702.85

96
BST1024
FLOOR STAND FOR MODEL B1024: 10 FT.
Mfg. item #: BST1024
ATEBST1024
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,872.19

96
SG12
SMARTGAGE CNC BACK GAUGE FOR 12 TON PRESS BRAKES, 0 TO 12
Mfg. item #: SG12
ATESG12
lease to own for as little as:$167 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,373.12

96
SG2442
Mfg. item #: SG2442
ATESG2442
lease to own for as little as:$174 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,692.99

96
PG24568
Mfg. item #: PG24568
ATEPG24568
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,759.30

96
PG1224
ONE(1) PRO-GAGE MICROMETER FRONT GAUGE WITH BED MOUNT, ROTARY & VERT ADJUST, NO BED T-RAIL
Mfg. item #: PG1224
ATEPG1224
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,157.18

96
YDRO
DIGITAL READOUT FOR STANDARD REAR ADJUST Y-AXIS RAM STROKE CONTROL
Mfg. item #: YDRO
ATEYDRO
Call for freight quote on this item or we will confirm freight charges before shipping.1
$771.46

96
FABGDRO
FRONT ADJUST BACK GAUGE WITH DIGITAL READOUT, RANGE: 12T _ 0 TO 18, 24/42T _ 0 TO19/21
Mfg. item #: FABGDRO
ATEFABGDRO
lease to own for as little as:$53 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,662.46

96
FABG
Front Adjust Back Gauge, 12Ton ? 0
Mfg. item #: FABG
ATEFABG
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,740.58

4836
YFA
Front Adjust Y-Axis Ram Stroke Cont
Mfg. item #: YFA
ATEYFA
Call for freight quote on this item or we will confirm freight charges before shipping.1
$580.48

4836
YFADRO
FRONT ADJUST Y-AXIS RAM STROKE CONTROL WITH DIGITAL READOUT
Mfg. item #: YFADRO
ATEYFADRO
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,411.20

96
FT200
FRONT WORKPIECE SUPPORT TABLE, 2 FT
Mfg. item #: FT200
ATEFT200
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,201.47

96
FT400
FRONT WORKPIECE SUPPORT TABLE, 4 FT
Mfg. item #: FT400
ATEFT400
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,304.96

96
FT500
FRONT WORKPIECE SUPPORT TABLE, 5 FT
Mfg. item #: FT500
ATEFT500
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,399.04

96
FT600
FRONT WORKPIECE SUPPORT TABLE, 6 FT
Mfg. item #: FT600
ATEFT600
lease to own for as little as:$50 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,511.94

96
FT800
FRONT WORKPIECE SUPPORT TABLES, (2) 4 FT TABLES SIDE-BY-SIDE, 8 FT OVERALL WIDTH
Mfg. item #: FT800
ATEFT800
lease to own for as little as:$58 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,907.07

96
FT1000
FRONT WORKPIECE SUPPORT TABLES, (2) 5 FT TABLES SIDE-BY-SIDE, 10 FT OVERALL WIDTH
Mfg. item #: FT1000
ATEFT1000
lease to own for as little as:$62 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,114.05

96
LLS200
Large Sheet Support, (2) 3? x 30? U
Mfg. item #: LLS200
ATELLS200
Call for freight quote on this item or we will confirm freight charges before shipping.1
$580.48

4836
LLS400
Large Sheet Support, (2) 3? x 30? U
Mfg. item #: LLS400
ATELLS400
Call for freight quote on this item or we will confirm freight charges before shipping.1
$678.04

4836
LLS500
Large Sheet Support, (2) 3? x 30? U
Mfg. item #: LLS500
ATELLS500
Call for freight quote on this item or we will confirm freight charges before shipping.1
$726.82

4836
LLS600
Large Sheet Support, (2) 3" x 30" U
Mfg. item #: LLS600
ATELLS600
Call for freight quote on this item or we will confirm freight charges before shipping.1
$775.60

4836
LLS800
Large Sheet Support, (2) 3? x 30? U
Mfg. item #: LLS800
ATELLS800
Call for freight quote on this item or we will confirm freight charges before shipping.1
$873.16

4836
LLS1000
Large Sheet Support, (2) 3? x 30? U
Mfg. item #: LLS1000
ATELLS1000
Call for freight quote on this item or we will confirm freight charges before shipping.1
$970.72

4836
CH10
Segmented, Safety Clamp Ram: 10 ft
Mfg. item #: CH10
ATECH10
lease to own for as little as:$54 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,710.26

4836
CR2
SEGMENTED SAFETY CLAMP RAM, 2 FT
Mfg. item #: CR2
ATECR2
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,382.98

96
CR4
SEGMENTED SAFETY CLAMP RAM, 4 FT
Mfg. item #: CR4
ATECR4
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,928.64

96
CR5
SEGMENTED SAFETY CLAMP RAM, 5 FT
Mfg. item #: CR5
ATECR5
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,248.51

96
CR6
SEGMENTED SAFETY CLAMP RAM, 6 FT
Mfg. item #: CR6
ATECR6
lease to own for as little as:$54 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,681.28

96
CR8
SEGMENTED SAFETY CLAMP RAM, 8 FT
Mfg. item #: CR8
ATECR8
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,010.56

96
SA10
TWO HAND SAFETY CONTROL WITH (2) 5 FT FRONT WORKPIECE SUPPORT TABLES, 10 FT WIDTH
Mfg. item #: SA10
ATESA10
lease to own for as little as:$62 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,114.05

96
SA2
TWO HAND SAFETY CONTROL WITH FRONT WORKPIECE SUPPORT TABLE, 2 FT
Mfg. item #: SA2
ATESA2
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,201.47

96
SA4
TWO HAND SAFETY CONTROL WITH FRONT WORKPIECE SUPPORT TABLE, 4 FT
Mfg. item #: SA4
ATESA4
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,304.96

96
SA5
TWO HAND SAFETY CONTROL WITH FRONT WORKPIECE SUPPORT TABLE, 5 FT
Mfg. item #: SA5
ATESA5
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,399.04

96
SA6
TWO HAND SAFETY CONTROL WITH FRONT WORKPIECE SUPPORT TABLE, 6 FT
Mfg. item #: SA6
ATESA6
lease to own for as little as:$50 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,511.94

96
SA8
TWO HAND SAFETY CONTROL WITH (2) 4 FT FRONT WORKPIECE SUPPORT TABLES, 8 FT WIDTH
Mfg. item #: SA8
ATESA8
lease to own for as little as:$58 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,907.07

96
LLS
Large Sheet Support, (1) 3? x 30? U
Mfg. item #: LLS
ATELLS
Call for freight quote on this item or we will confirm freight charges before shipping.1
$239.02

4836
PPC
PRODUCTION PARTS COUNTER
Mfg. item #: PPC
ATEPPC
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

96
Copyright © 2022 Smith-Hamilton, Inc
0.036 220701 12:00
