Auto Dolly Repiar Tools

FOLD UP ENGINE STAND ENGINE STAND AXLE ADAPTER HOOD PULLER
Fold n' Tilt Engine Stand Many engine rebuild procedures become much easier with the engine in a vertical position. Rear End Axle Adapter Convert an ordinary engine stand into an axle workstation with the Engine Stand Axle Adapter Hood Picker The Hood Picker converts your engine hoist into a painless labor-saving way for one person to remove and install vehicle hoods.
AXLE /DIFFERENTIAL LIFT AUTO ENGINE STAND (FOR ROTISSERIE) AUTO BODY CART
Axle Lift Use this multi-use to lower differentials, transmission, and much more with the simple use a drill. Engine Stand Adapter Take your rotisserie and turn it into an Engine stand with this rotisserie attachment. Merrick Auto Body Cart Easily move your auto body around with this adjustable body cart.



Folding Engine Stand Fold Tilt Engine Stand tips up Fold & Tilt Engine Stand folded
The engine stand has heavy duty, easy rolling casters attached to it for easy control of the stand It tips-up to make post-crankshaft installation operations much easier. The engine stand folds-up to save you valuable floor space in your shop or garage



Fold and Tilt Engine Stand

We wanted an engine stand that would do two things: Fold-up into a small, easily transportable unit AND tilt-up to make many engine rebuilding and painting operations easier. A logical desire, except for one thing: Nobody made one. So we made one for ourselves. It worked so well, and offered so many advantages that when a racing friend saw it, he had to have one.

Features:

  • Folds-up for space-saving storage and portability
  • Can hold the engine: vertically, horizontally, and at a 45 degree angle
  • 5 ball detent pins: 2 for the folding legs, 1 for the fold-down/up mast, 1 for the engine mount tip back, 1 for the engine mount rotation angle
  • Heavy duty, easy rolling casters
  • Fold out radius of legs: 32 inch
  • Fold up distance tot op of engine stand plat: 40 inch
  • Folded Down dimensions: 14 X 40 x 18 inch
  • Approximately 125 lbs.

The Fold-up Engine Stand is a tremendous improvement over traditional engine stands in two important ways:

  1. It tips-up to make post-crankshaft installation operations much easier. Installing the pistons and connecting rods and engine painting are just a few of the operations that you will find become so much easier in the tip-up position.
  2. When not in use, it folds-up to save you valuable floor space in your shop or garage. Two of the support legs fold up against the third leg (with casters still in contact with the ground for easy rolling. Then fold the support stalk down and the entire engine stand can be hung on a wall, or leaned up against a wall out of your way.

"I've never seen an engine stand where it has an option to raise it vertically. It's great to be able to look at the whole engine without having to bend over. Plus, you can rotate the engine to get access to any area."

Folding Engine Stand:  M998088

Rear Axle Adapter

Rear Axle Adapter

The Rear End Axle Adapter allows you to convert any ordinary engine stand into a powerful and versatile axle workstation. Get double duty from your engine stand! The Engine Stand Axle Adapter allows you to securely hold an axle or transaxle at a comfortable height. Pivot the axle or rotate it within it's holder to facilitate easy access to the part on which you are working or painting. Fits virtually every engine stand available. Just bolt it on and go to work!

Attach to any standard engine stand to have a fully functional axle workstation

Jaws adjust to hold almost any axle configuration

Features:

  • Holds work securely at comfortable working levels and angles
  • Jaws adjust to hold almost any axle configuration
  • Takes advantage of the flexibility and manuverability of your engine stand
  • Allows you to inspect and service rear gears, wheel bearings, brakes and replace components without getting down on the shop floor.

Specifications:

  • Includes all necessary hardware
  • Made of rugged 1/4 inch plate steel

"This axle adapter is well made, simple solution for all your rear end rebuilding needs. Before I purchased this product, I was using a home made wooden stand which was stationary. Now, with this adapter, I can get every angle of the axle and move it around the garage with ease."

Rear Axle Adapter:  M998084

Hood Picker

folded hood picker merrick hood picker cherry picker
Attach the Hood Picker to any Cherry Picker for one-person installation of a car hood. Folds up for easy storage when not in use. Hood Picker will attach easily to your cherry picker (cherry picker not included).

Hood Picker

Attach the Hood Picker to your engine hoist and one person can easily remove (and install) vehicle hoods and trunk decks. Position the "fingers" and adjust the pivoting tilt and then remove the bolts. The hood or trunk is now held securely by the Hood Picker. Roll it out of your way. Reinstall by reversing the steps. Your life just got easier!

Features:

  • Universal design: installs on most cherry pickers
  • Easy installation
  • One-man operation
  • Heavy Duty construction
  • Adjusts to nearly any hood
  • Useful for both hood removal and installation

Specifications

  • Length (open): 60 inch
  • Length (closed): 35-7/8 inch
  • Maximum width (open): 36 inch
  • Weight: 12 lbs

Hood Picker:  M998090

axle lift

Axle Lift

Tired of trying to balance a differential on your chest or a jack because there is nothing made to hold it. The new Axle Lift can take a load off for you!

Position the Axle Lift under any differential with a weight less than 350lbs and using a regular drill or impact, run the lift up to the differential and drop the differential onto the lift.

The Axle Lift has adjustability for offset pumpkins and variable height adjustment. Work Smarter Not Harder with our Axle Lift. Sits on 3 heavy duty 2 inch casters with an adjustable height of 5 to 19 inch for the Axle Lift and an additional 6 - 10 inch of adjustment on the V cups.

As always all of our products are made in the U.S.A.

Features:

  • Holds up to 300 lbs.
  • Use any standard drill or impact to raise or lower quickly
  • American Made
  • Holds most sizes of axles

Axle Lift:  M998068

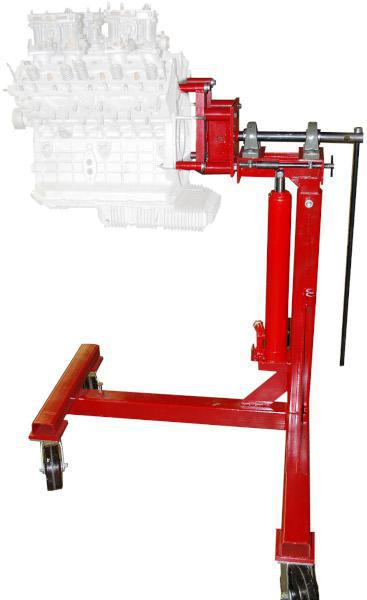

Engine Stand Adapter (for rotisserie)

Engine Stand Adapter for Rotisserie

The Engine Stand attaches to a Base Stand Assembly to hold virtually any engine out there. The 4 arms are independently adjustable for virtually any bolt hole configurations. Takes advantage of all of the features our our E-Z Spin system. Rotate your work to the easiest angle. Makes painting engines a breeze!

Two Base Stand Assemblies are included in our Auto Rotisserie, but if you do not own an Auto Rotisserie or do not want to break it down in order use one of the other accessories.

Features:

  • Mounts easily on the E-Z Spin Auto Rotisserie
  • Full 360 degree angle capability
  • 12 Multi-Angle Positioning Stops - 30 degree intervals

Engine Stand Adapter (for rotisserie):  M998082



Merrick Body Cart

Merrick Body Cart

The Merrick Auto Body Cart allows you to easily move your auto body around your shop, garage, or anywhere else. The cart is specifically made to keep the bodies square and secure while you move it.

The Merrick Auto Body Cart works well with the E-Z Spin Auto Rotisserie. Easily lower your car from the
rotisserie to the Body Cart.

Features:

  • Adjustable width: 0 to 7 feet
  • Adjustable length: 0 to 8 feet
  • Adjustable height: 18 to 24 inch
  • 4, 6 inch Phenolic Casters
  • 1800 lb. weight capacity
  • Painted red

Body Cart:  M998091

s-h alt The Auto Dolly products and Specialty Tools are made right here in the USA. That means that we can make our products from the rugged materials necessary, without worrying about how much it will cost to move those materials across an ocean. This allows us to deliver a far more durable product and get it into your hands faster.

Models and Accessories
M998088 Folding Engine Stand
M998084 Rear Axle Adapter
M998090 Hood Picker
M998068 Axle Lift
M998082 Engine Stand Adapter (for rotisserie)
M998091 Body Cart



M998088
FOLDING ENGINE STAND - ATTACHMENTS FOR AUTO DOLLY, SHIPPING WEIGHT = 120 LBS
Mfg. item #: M998088
MEMM998088
Call for freight quote on this item or we will confirm freight charges before shipping.1
$816.88

81
M998084
ENGINE STAND AXLE ADAPTER - ATTACHMENTS FOR AUTO DOLLY, SHIPPING WEIGHT = 15 LBS
Mfg. item #: M998084
MEMM998084
Call for freight quote on this item or we will confirm freight charges before shipping.1
$113.61

81
M998090
HOOD PULLER - ATTACHMENTS FOR AUTO DOLLY, SHIPPING WEIGHT = 16 LBS
Mfg. item #: M998090
MEMM998090
Call for freight quote on this item or we will confirm freight charges before shipping.1
$145.83

81
M998068
AXLE /DIFFERENTIAL LIFT - ATTACHMENTS FOR AUTO DOLLY, SHIPPING WEIGHT = 70 LBS
Mfg. item #: M998068
MEMM998068
Call for freight quote on this item or we will confirm freight charges before shipping.1
$751.88

81
M998082
AUTO ENGINE STAND (FOR ROTISSERIE), SHIPPING WEIGHT = 14 LBS
Mfg. item #: M998082
MEMM998082
Call for freight quote on this item or we will confirm freight charges before shipping.1
$141.11

81
M998091
AUTO BODY CART ADJUSTABLE HEIGHT
Mfg. item #: M998091
MEMM998091
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

94
