Avani Environmental Downdraft Tables

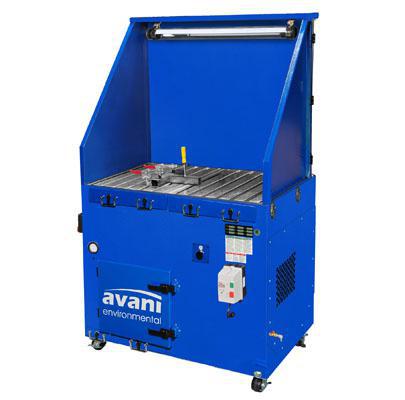

downdraft table

The SDT 1.5  downdraft table shows versatility through design featuring available table accessories. This table features a 1.5 hp motor, reverse jet pulse cleaning and a differential pressure gauge. This table is a great choice for plasma processes with heavy smoke. It with the fume arm addition it utilizes a two-phase filtration system.

Standard Features:

  • High Efficiency Re-usable Filter Cartridge
  • Heavy Gauge Powder Coated Steel
  • Accepts 5/8 inch Jig Fixtures
  • Manual Reverse Jet Pulse Cleaning
  • UL Approved Control Panel
  • Easy Access Filter Doors
  • 2 Electrical Outlets
  • Differential Pressure Gauges

Optional Features:

  • Explosion Proof Light
  • Exhaust 80% back draft and 20 percent downdraft
  • Explosion Proof Vents
  • Different Filter Media
  • Silencers: inlet and outlet
  • Rotary Air Lock
  • Welding machine shelf
  • Gas tank shelf
  • Fume arm addition
  • Customized Colors
Specifications
Nominal Air Flow: 1100 CFM
Motor: 1.5 HP TEFC NEMA, Aluminum Impeller / 60 HZ / 1 Ph
Compressed Air Requirement: 90 PSI
Dimensions: 32x51x78 in
Weight: 882 lbs

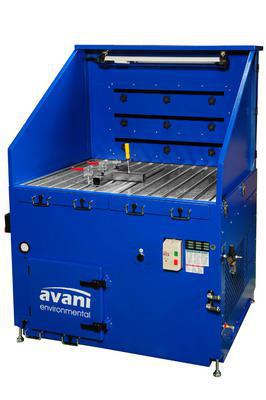

sDt-3 downdraft table


The  SDT-3 / SDT-5  downdraft table is Avanis newest design with the welder in mind, featuring backdraft and downdraft exhaust and explosion proof lighting. This table is a great choice for plasma processes with heavy smoke. It utilizes a two-phase filtration system.

Standard Features:

  • High Efficiency Re-usable Filter Cartridge
  • Heave Gauge Powder Coated Steel
  • Accepts 5/8 inch Jig Fixtures
  • Manual Reverse Jet Pulse Cleaning
  • UL Approved Control Panel
  • Easy Access Filter Doors
  • 2 Electrical Outlets
  • Differential Pressure Gauges

Optional Features:

  • Explosion Proof Light
  • Exhaust 80 percent back draft and 20 percent downdraft
  • Explosion Proof Vents
  • Different Filter Media
  • Silencers: inlet and outlet
  • Rotary Air Lock
  • Welding machine shelf
  • Gas tank shelf
  • Fume arm addition
  • Customized Colors
Specifications
Model SDT-3 SDT-5
Nominal Air Flow: 1500 cfm 2340 cfm
Motor: 3 HP NEMA, Aluminum Impeller 5 HP NEMA, Aluminum Impeller
Compressed Air Requirement: 90 PSI 90 PSI
Dimensions: 58x47x71 inch 58x47x71 inch
Weight: 1100 1200



down draft table

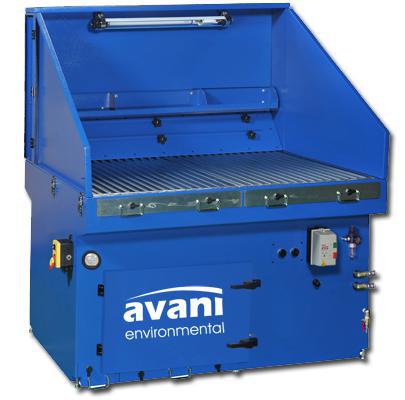

The SDT-7.5 features a removable grated table top and reverse jet pulse cleaning. It comes standard with a direct drive, backward inclined blower with an output of 2500 CFM and can be customized to fit your application's needs.

Features:

  • Heavy Gauge powder coated steel
  • Reverse Jet Pulse Cleaning
  • UL approved control panel
  • Easy access filter doors
  • Venturis for high efficiency cleaning
  • Differential pressure gauges

Options

  • Back draft & side walls
  • Explosion proof vents
  • Stainless steel construction
  • Silencers: inlet and outlet
  • Rotary air lock
  • Power tool outlets
  • Assembly with lights
Specifications
Nominal Air Flow: 2500 CFM
Motor: 7.5 HP TEFC NEMA
Motor Power Supply: 460V / 60 Hz / 3 Ph
# of cartiridges: 6 teflon-coated polyester cartridge at 99.9 percent at 1 micron

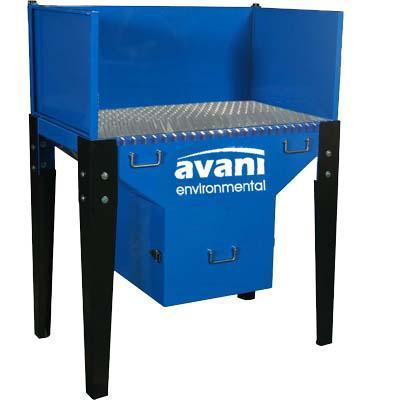

The SDT-180 is a versatile filter-less downdraft table that can be ducted to any filtration unit.  The biggest benefit of ducting a table to a dust collector vs. using a self-contained (units with fan and filters built in) table is you can properly size a fan as well as your air to media ratio.  Self-contained units are limited in space which limits the fan size as well as the amount of media that can be put in the unit.

Features:

  • Internal Stainless Filter Drawer
  • Connects to all Avani's portable filtration units
  • Removable Steel Curtain to prevent flying sparks
  • Built-in stainless filter drawer to collect steel chips
  • Powder Coated Steel
Specifications
Inlet Dimension: 5 inch
Dimensions: 40 x 28 x 51 inch
Weight: 170 lbs

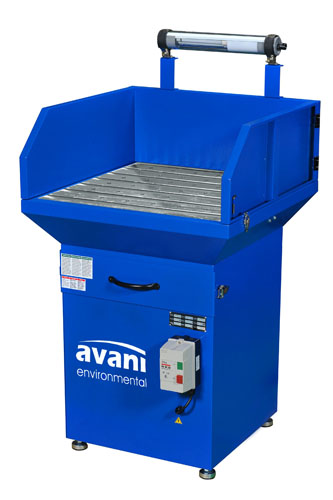

The SDT-1400X is equipped with a 3 stage filtration system. Serves as an economical dual purpose work bench and extraction unit, designed for the removal of welding fumes at the source. It can also be used to remove particulate and dust from metal grinding applications.

Features:

  • Welded Steel Construction
  • Removable Side and Back Walls
  • Grated Table Top
  • Explosion Proof Light
  • Controls
  • Differential Pressure Gauge
  • Three Stage Filtration

Option:

  • Motor Power Supply: 230V
Specifications
Nominal Air Flow: 1400 CFM
Motor 2 HP TEFC NEMA
Motor Power Supply: 460V / 60 Hz / 3 Phase
Dimensions: 33.5 L x 37 D x 60.4 H inch
Weight: 227 lbs

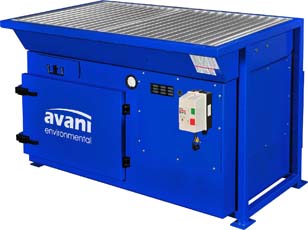

The SDT-1500 down draft table features a removable grated top and has a 5/8” fixture holding top. Used both as a work bench or extraction table for the removal of welding fume, grinding particulate and dust at the source.

Features:

  • Welded Steel Construction
  • Grated Table Top
  • Explosion Proof Light
  • Adjustable Feet
  • Controls
  • Differential Pressure Gauge
  • Three Stage Filtration
Specifications
Nominal Air Flow: 1500 CFM
Motor 2 HP TEFC NEMA
Motor Power Supply: 460V / 60 Hz / 3 Phase
Dimensions: 354 L x 39.6 D x 35 H inch
Weight: 370 lbs



Models & Accessories
SDT-1.5 1100CFM 1.5HP filtered downdraft table
FM-20233 Metal Pre-filter (spark trap)
FM-20335 80/20FR cartridge -- 11.2inch diameter x 13inch length
FM-20235 Poly spun bond cartridge -- 11.2inch diameter x 13inch length
FM-20200 HEPA frame and Filter -- 99 percent at .3 microns
FM-20150 Replacement HEPA filter -- 99 percent at .3 microns
XA-SDT-1005 Fume arm attachment. 6inch diameter inlet (Option for SDT-1.5 only)
XA-SDT-1010 Welding cabinet, 3 drawers (Option for SDT-1.5 only)
XA-SDT-1020 Welding machine bracket (Option for SDT-1.5 only)
XA-SDT-1030 CO2 gas tank shelf, includes base and stainless steel chain

SDT-3 1500CFM 3HP filtered downdraft table
FM-20233 Metal Pre-filter (spark trap)
FM-20335 80/20FR cartridge -- 11.2inch diameter x 13inch length
FM-20235 Poly spun bond cartridge -- 11.2inch diameter x 13inch length
FM-20100 HEPA frame and Filter -- 99 percent at .3 microns
FM-30242 Replacement HEPA filter -- 99 percent at .3 microns
SDT-35PL 3 solid panels with light
SDT-35-80200 80/20% backdraft panel with light

SDT-5 2340CFM filtered 5HP downdraft table
FM-20233 Metal Pre-filter (spark trap)
FM-20335 80/20FR cartridge -- 11.2inch diameter x 13inch length
FM-20235 Poly spun bond cartridge -- 11.2inch diameter x 13inch length
FM-20100 HEPA frame and Filter -- 99 percent at .3 microns
FM-30242 Replacement HEPA filter -- 99 percent at .3 microns
SDT-35PL 3 solid panels with light
SDT-35-80200 80/20% backdraft panel with light

SDT-7.5 2500CFM filtered 7.5HP downdraft table
FM-20233 Metal Pre-filter (spark trap)
FM-20335 80/20FR cartridge -- 11.2inch diameter x 13inch length
FM-20235 Poly spun bond cartridge -- 11.2inch diameter x 13inch length

SDT-180 Ducted downdraft table

SDT-1400X 1400CFM 2HP filtered downdraft table
FM-23230A-H-07 Metal Pre-filter (spark trap)
FM-23231A-H-07 Metal Mesh 2
FM-23232A-X-01 Poly spun bond panel filter

SDT-1500 2340CFM 5HP filtered downdraft table
FM-23000 Metal Pre-filter (spark trap)
FM-20115 Pre-Pleated Filter 60 percent at 1-2 microns
FM-23060 95% ASHRAE
FM-23050 Optional HEPA filter -- 99 percent at .3 microns (Replaces ASHRAE)



SDT-1.5
1100CFM 1.5HP FILTERED DOWNDRAFT TABLE
Mfg. item #: SDT-1.5
AVASDT-1.5
lease to own for as little as:$147 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,359.66

2482
FM-20233
METAL PRE-FILTER (SPARK TRAP) ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-20233
AVAFM-20233
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-20335
80/20FR CARTRIDGE -- 11.2 DIAMETER X 13 LENGTH
Mfg. item #: FM-20335
AVAFM-20335
Call for freight quote on this item or we will confirm freight charges before shipping.1
$283.75

3019
FM-20235
POLY SPUN BOND CARTRIDGE -- 11.2" DIAMETER X 13" LENGTH ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-20235
AVAFM-20235
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-20200
HEPA FRAME AND FILTER -- 99% @ .3 MICRONS ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-20200
AVAFM-20200
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-20150
REPLACEMENT HEPA FILTER -- 99% @ .3 MICRONS
Mfg. item #: FM-20150
AVAFM-20150
Call for freight quote on this item or we will confirm freight charges before shipping.1
$312.50

3019
XA-SDT-1005
FUME ARM ATTACHMENT. 6 DIAMETER INLET (OPTION FOR SDT-1.5 ONLY)
Mfg. item #: XA-SDT-1005
AVAXA-SDT-1005
Call for freight quote on this item or we will confirm freight charges before shipping.1
$643.75

3019
XA-SDT-1010
WELDING CABINET, 3 DRAWERS (OPTION FOR SDT-1.5 ONLY)
Mfg. item #: XA-SDT-1010
AVAXA-SDT-1010
Call for freight quote on this item or we will confirm freight charges before shipping.1
$811.25

3019
XA-SDT-1020
WELDING MACHINE BRACKET (OPTION FOR SDT-1.5 ONLY)
Mfg. item #: XA-SDT-1020
AVAXA-SDT-1020
Call for freight quote on this item or we will confirm freight charges before shipping.1
$302.50

3019
XA-SDT-1030
CO2 GAS TANK SHELF, INCLUDES BASE AND STAINLESS STEEL CHAIN
Mfg. item #: XA-SDT-1030
AVAXA-SDT-1030
Call for freight quote on this item or we will confirm freight charges before shipping.1
$411.25

3019
SDT-3
1500CFM 3HP FILTERED DOWNDRAFT TABLE
Mfg. item #: SDT-3
AVASDT-3
lease to own for as little as:$202 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,085.04

2482
FM-20100
EXTERNALLY MOUNTED HEPA FILTER WITH CAGE FOR ECO-2000/ECO-3000D
Mfg. item #: FM-20100
AVAFM-20100
Call for freight quote on this item or we will confirm freight charges before shipping.1
$405.00

3019
FM-30242
REPLACEMENT HEPA FILTER -- 99% @ .3 MICRONS
Mfg. item #: FM-30242
AVAFM-30242
Call for freight quote on this item or we will confirm freight charges before shipping.1
$361.25

3019
SDT-35PL
3 SOLID PANELS WITH LIGHT
Mfg. item #: SDT-35PL
AVASDT-35PL
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,480.50

2482
SDT-35-80200
80/20% BACKDRAFT PANEL WITH LIGHT
Mfg. item #: SDT-35-80200
AVASDT-35-80200
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,962.00

3019
SDT-5
2340CFM FILTERED 5HP DOWNDRAFT TABLE
Mfg. item #: SDT-5
AVASDT-5
lease to own for as little as:$223 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$11,151.00

2482
SDT-7.5
2500CFM FILTERED 7.5HP DOWNDRAFT TABLE
Mfg. item #: SDT-7.5
AVASDT-7.5
lease to own for as little as:$281 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$14,031.36

2482
SDT-180
DUCTED DOWNDRAFT TABLE
Mfg. item #: SDT-180
AVASDT-180
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,998.36

2482
SDT-1400X
1400CFM 2HP FILTERED DOWNDRAFT TABLE ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: SDT-1400X
AVASDT-1400X
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-23230A-H-07
METAL PRE-FILTER (SPARK TRAP) ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-23230A-H-07
AVAFM-23230A{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-23231A-H-07
METAL MESH 2 ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-23231A-H-07
AVAFM-23231A{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-23232A-X-01
POLY SPUN BOND PANEL FILTER ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-23232A-X-01
AVAFM-23232A{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
SDT-1500
2340CFM 5HP FILTERED DOWNDRAFT TABLE
Mfg. item #: SDT-1500
AVASDT-1500
lease to own for as little as:$106 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,315.94

2482
FM-23000
METAL PRE-FILTER (SPARK TRAP) ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-23000
AVAFM-23000
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-20115
PRE-PLEATED FILTER 60% AT 1-2 MICRON ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-20115
AVAFM-20115
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-23060
95% ASHRAE ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-23060
AVAFM-23060
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
FM-23050
OPTIONAL HEPA FILTER (REPLACES THE ASHRAE FILTER) ** CALL 800-458-3687 EXT 1 FOR PRICING AND AVAILABILITY
Mfg. item #: FM-23050
AVAFM-23050
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

2482
Copyright © 2023 Smith-Hamilton, Inc
0.020 230623 07:09
