Avani self-supporting fume arms provide the most economical and effective methods for the capture of fumes. Contaminants are removed at their source by the use
of self-supporting joints, flexible hoses and smooth bore tubing allow for easy placement of the arms hood near the source of problem. Our fume arm tubes are fabricated of steel with cast
aluminum joints which includes a friction disc and are fully adjustable to the workers desired tension. The arms include a handle which completely encircles the hood in order to facilitate
easy repositioning from all sides.
Each of our fume extraction arms have optional accessories such as a light fixture, wall/ceiling mounts, custom colors, and extension hoods.
|

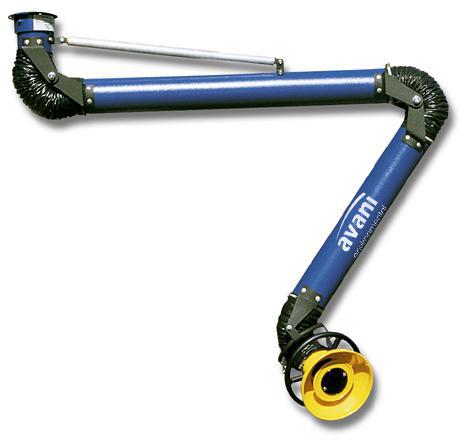

Hanging Fume ArmAvani's hanging fume arms provide the most economical and effective methods for the capture of fumes. The use of self-supporting joints, flexible hoses, and smooth bore tubing allow for easy placement of the arm's hood near the source of the particulate and smoke. Fume arm tubes are fabricated of steel with cast aluminum joints and are fully adjustable to the workers desired tension. The arms include a handle in order to facilitate easy re-positioning. Standard Features:
Available Sizes:
|
|

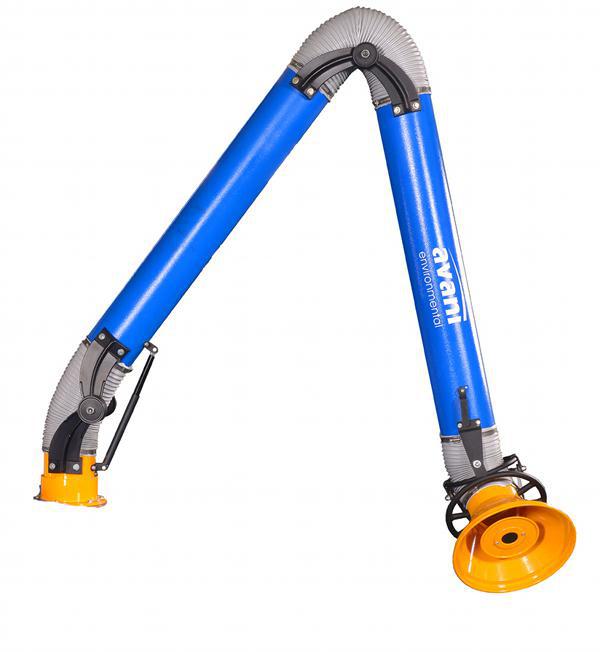

Standing Fume ArmAvani's portable fume arms provide the most economical and effective methods for the capture of fumes. The use of self-supporting joints, flexible hoses, and smooth bore tubing allow for easy placement of the arms hood near the source of the particulate and smoke. Fume arm tubes are fabricated of steel with cast aluminum joints and are fully adjustable to the workers desired tension. The arms include a handle in order to facilitate easy re-positioning. Standard Features:
Available Sizes:
|
![]() |

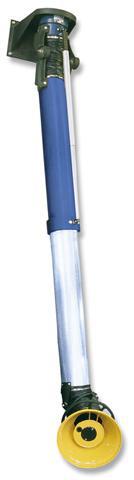

Telescoping Fume ArmAvani's telescoping fume arms provide an easy way to change the length of a fume arm. This telescoping arm can be combined with our hanging or standing fume arms. The hood includes a handle in order to facilitate easy re-positioning. Standard Features:
Available Sizes:
|
![]() |
![]() |

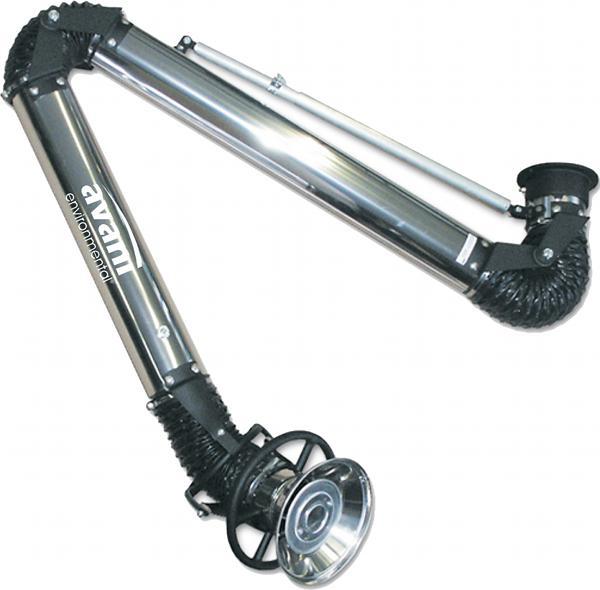

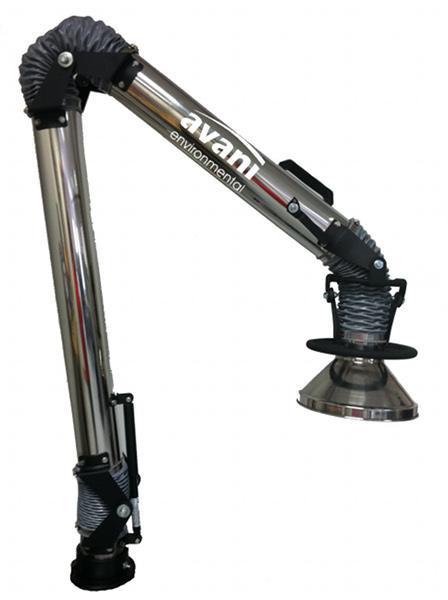

Stainless Hanging Fume Arm | Stainless Standing Fume Arm |
Avani's stainless steel fume arms provide an effective method for the capture of fumes, dust, vapor and smoke.
Designed for Pharmaceutical, Food Processing and Chemical Industry
Standard Features:
Available Sizes:
Options:
Models and Accessories | |
---|---|
Fume Arm - Powder Coated | |
3 inch | |
ARM710 | Fume Arm - 3 inch dia x 3' - Powder Coated |
ARM715 | Fume Arm - 3 inch dia x 5' - Powder Coated |
ARM710P | Fume Arm - 3 inch dia x 3' Portable - Powder Coated |
ARM715P | Fume Arm - 3 inch dia x 5' Portable - Powder Coated |
BR003 | Fume Arm - 3 inch dia brackets - Powder Coated |
4 inch | |
ARM1015 | Fume Arm - 4 inch dia x 5' - Powder Coated |
ARM1020 | Fume Arm - 4 inch dia x 7' - Powder Coated |
ARM1025 | Fume Arm - 4 inch dia x 8.5' - Powder Coated |
ARM1015P | Fume Arm - 4 inch dia x 5' Portable - Powder Coated |
ARM1020P | Fume Arm - 4 inch dia x 7' Portable - Powder Coated |
ARM1025P | Fume Arm - 4 inch dia x 8.5' Portable - Powder Coated |
BR004 | Fume Arm - 4 inch dia brackets - Powder Coated |
5 inch | |
ARM1220 | Fume Arm - 5 inch dia x 7' - Powder Coated |
ARM1230 | Fume Arm - 5 inch dia x 10' - Powder Coated |
ARM1220P | Fume Arm - 5 inch dia x 7' Portable - Powder Coated |
ARM1230P | Fume Arm - 5 inch dia x 10' Portable - Powder Coated |
BR005 | Fume Arm - 5 inch dia brackets - Powder Coated |
6 inch | |
ARM1620 | Fume Arm - 6 inch dia x 7' - Powder Coated |
ARM1630 | Fume Arm - 6 inch dia x 10' - Powder Coated |
ARM1640 | Fume Arm - 6 inch dia x 14' - Powder Coated |
ARM1620P | Fume Arm - 6 inch dia x 7' Portable - Powder Coated |
ARM1630P | Fume Arm - 6 inch dia x 10' Portable - Powder Coated |
ARM1640P | Fume Arm - 6 inch dia x 14' Portable - Powder Coated |
BR006 | Fume Arm - 6 inch dia brackets - Powder Coated |
8 inch | |
ARM2020 | Fume Arm - 8 inch dia x 7' - Powder Coated |
ARM2030 | Fume Arm - 8 inch dia x 10' - Powder Coated |
ARM2040 | Fume Arm - 8 inch dia x 14' - Powder Coated |
ARM2020P | Fume Arm - 8 inch dia x 7' Portable - Powder Coated |
ARM2030P | Fume Arm - 8 inch dia x 10' Portable - Powder Coated |
ARM2040P | Fume Arm - 8 inch dia x 14' Portable - Powder Coated |
BR008 | Fume Arm - 8 inch dia brackets - Powder Coated |
Fume Arm - Stainless Steel | |
3 inch | |
SS710 | Fume Arm - 3 inch dia x 3' - Stainless Steel |
SS715 | Fume Arm - 3 inch dia x 5' - Stainless Steel |
SS710P | Fume Arm - 3 inch dia x 3' Portable - Stainless Steel |
SS715P | Fume Arm - 3 inch dia x 5' Portable - Stainless Steel |
BR-SS003 | Fume Arm - 3 inch dia bracket - SS - Stainless Steel |
4 inch | |
SS1015 | Fume Arm - 4 inch dia x 5' - Stainless Steel |
SS1020 | Fume Arm - 4 inch dia x 7' - Stainless Steel |
SS1025 | Fume Arm - 4 inch dia x 8.5' - Stainless Steel |
SS1015P | Fume Arm - 4 inch dia x 5' Portable - Stainless Steel |
SS1020P | Fume Arm - 4 inch dia x 7' Portable - Stainless Steel |
SS1025P | Fume Arm - 4 inch dia x 8.5' Portable - Stainless Steel |
BR-SS004 | Fume Arm - 4 inch dia bracket - SS - Stainless Steel |
5 inch | |
SS1220 | Fume Arm - 5 inch dia x 7' - Stainless Steel |
SS1230 | Fume Arm - 5 inch dia x 10' - Stainless Steel |
SS1220P | Fume Arm - 5 inch dia x 7' Portable - Stainless Steel |
SS1230P | Fume Arm - 5 inch dia x 10' Portable - Stainless Steel |
BR-SS005 | Fume Arm - 5 inch dia bracket - SS - Stainless Steel |
6 inch | |
SS1620 | Fume Arm - 6 inch dia x 7' - Stainless Steel |
SS1630 | Fume Arm - 6 inch dia x 10' - Stainless Steel |
SS1640 | Fume Arm - 6 inch dia x 14' - Stainless Steel |
SS1620P | Fume Arm - 6 inch dia x 7' Portable - Stainless Steel |
SS1630P | Fume Arm - 6 inch dia x 10' Portable - Stainless Steel |
SS1640P | Fume Arm - 6 inch dia x 14' Portable - Stainless Steel |
BR-SS006 | Fume Arm - 6 inch dia bracket - SS - Stainless Steel |
8 inch | |
SS2020 | Fume Arm - 8 inch dia x 7' - Stainless Steel |
SS2030 | Fume Arm - 8 inch dia x 10' - Stainless Steel |
SS2040 | Fume Arm - 8 inch dia x 14' - Stainless Steel |
SS2020P | Fume Arm - 8 inch dia x 7' Portable - Stainless Steel |
SS2030P | Fume Arm - 8 inch dia x 10' Portable - Stainless Steel |
SS2040P | Fume Arm - 8 inch dia x 14' Portable - Stainless Steel |
Telescoping FUME Arms | |
T616 | Telescoping FUME Arms - 6 inch dia - 5' |
T618 | Telescoping FUME Arms - 6 inch dia - 6' |
T626 | Telescoping FUME Arms - 6 inch dia - 8' |
T822 | Telescoping FUME Arms - 8 inch dia - 7' |
Fume Arm Accessory | |
3 inch Arms | |
BR-003 | Bracket for 3 inch diameter arm - Fime Arm Accessory |
BR-SS003 | Bracket for 3 inch diameter arm (stainless steel) - Fime Arm Accessory |
4 inch Arms | |
BR-004 | Bracket for 4 inch diameter arm - Fime Arm Accessory |
BR-SS004 | Bracket for 4 inch diameter arm (stainless steel) - Fime Arm Accessory |
XA-ARMP-10-9 | Replacement hood for 4 inch diameter fume arm with circular handle - Fime Arm Accessory |
XA-ARMP-SS-10-9 | Replacement SS hood for 4 inch diameter fume arm with circular handle - Fime Arm Accessory |
5 inch Arms | |
BR-005 | Bracket for 5 inch diameter arm - Fime Arm Accessory |
BR-SS005 | Bracket for 5 inch diameter arm (stainless steel) - Fime Arm Accessory |
XA-ARMP-12-9 | Replacement hood for 5 inch diameter fume arm with circular handle - Fime Arm Accessory |
XA-ARMP-SS-12-9 | Replacement SS hood for 5 inch diameter fume arm with circular handle - Fime Arm Accessory |
6 inch Arms | |
XA-6250 | 20 inch diameter extension hood for 6 inch fume arm - Fime Arm Accessory |
XA-S6250 | 20 inch diameter Stainless Steel extension hood for 6 inch fume arm - Fime Arm Accessory |
BR-006 | Bracket for 6 inch diameter arm - Fime Arm Accessory |
BR-SS006 | Bracket for 6 inch diameter arm (stainless steel) - Fime Arm Accessory |
XA-ARMP-16-9 | Replacement hood for 6 inch diameter fume arm with circular handle - Fime Arm Accessory |
XA-ARMP-SS-16-9 | Replacement SS hood for 6 inch diameter fume arm with circular handle - Fime Arm Accessory |
8 inch Arms | |
XA-8250 | 20 inch diameter extension hood for 8 inch fume arm - Fime Arm Accessory |
XA-S8250 | 20 inch diameter Stainless Steel extension hood for 8 inch fume arm - Fime Arm Accessory |
BR-008 | Bracket for 8 inch diameter arm - Fime Arm Accessory |
BR-SS008 | Bracket for 8 inch diameter arm (stainless steel) - Fime Arm Accessory |
XA-ARMP-20-9 | Replacement hood for 8 inch diameter fume arm with circular handle - Fime Arm Accessory |
XA-ARMP-SS-20-9 | Replacement SS hood for 8 inch diameter fume arm with circular handle - Fime Arm Accessory |
FOR ALL ARMS | |
LK-100X | 110v halogen light with switch for fume hood, mounted in air diverter - Fime Arm Accessory |
LK-100-RB | Replacement Bulb for LK-100 - Fime Arm Accessory |
LK-200 | LED touch light, battery operated for fume hood, mounted in air diverter - Fime Arm Accessory |
LK-200-RB10 | Replacement Bulb for LK-200 - Fime Arm Accessory |
XA-HO1 | Magnetic Hood Assembly - Fime Arm Accessory |
XA-C25 | Custom C-Shaped Hood: 10-25 inch, 6 inch diameter - Fime Arm Accessory |
XA-C35 | Custom C-Shaped Hood: 26-35 inch, 6 inch diameter - Fime Arm Accessory |
XA-C45 | Custom C-Shaped Hood: 36-45 inch, 6 inch diameter - Fime Arm Accessory |
