Avani Environmental Portable Fume Collec

s-h alt s-h alt
Model SPC-230 Model SPC-MINI
Limited quantities avaliable, please call for avaliability, This model has been replaced by the SPC-230X

Note: Fume Arms Sold Separately

avani spc-230x Portable Fume Collector

SPC-230X

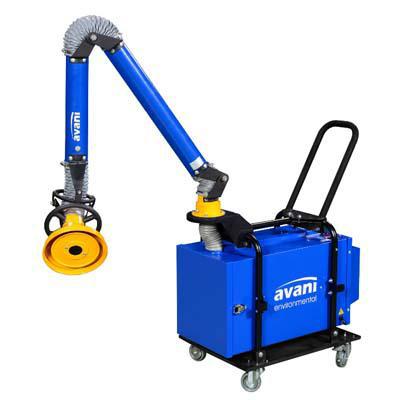

The SPC-230 is Avani's handheld portable extraction unit. At only 44 lbs, this device can be transported with ease around your workplace.

Features:

  • 5 layers of high efficiency filtration
  • Powder coated finish
  • Lightweight and portable
  • All accessories are included
  • Pleated and HEPA filter can be reused

5 Stage Filtration:

1st stage - stainless filter captures up to 95 percent or sparks and steel chips
2nd stage - pre filter captures 35 percent small particles and absorbs oils to extend life of pleated and HEPA filter
3rd stage - pre filter captures 85 percent of small particles and absorbs oil to extend life of pleated and HEPA filter
4th stage - Pleated filter for fine dusts
5th stage - Pleated HEPA filter captures 95 percent of .3 micron noxious fumes

Specifications
Fume Arm:  2.5 inch dia. x 10ft hose
Dimensions:  12.6L x 18.9W x 24.7H (in)
Packing dimensions:  18.9L x 20.5W x 31.1H (in)
Air Flow:  230 CFM
Weight: 64 lbs



Avanis SPC-MINI is a portable userfriendly fume extraction filtration unit, designed for point of origin extraction at any work area. It combines a high efficiency motor with an aggressive aluminum impeller, for increased air flow (CFM) at the point of extraction. This product with its highly efficient two stage filtering system makes it a perfect choice for welding, grinding, polishing, metal cutting, plastic production, soldering and many other fume extraction applications.

Features:

  • Two Stage Filtration System
  • Powder coated (custom colors available)
  • Reverse Jet Pulse Cleaning w/ Cartridge Filter
  • Variable Speed Control
  • 2.5 inch Hose Diameter
  • 10 ft Hose Length
  • 4 inch Diameter Hood
Specifications
Motor Power:  800W x 2Pcs
Noise Level:  79 dBa @ 3ft
Dimensions:  20.3 w x 17.6 d x 44.4 h (in)
Packing dimensions:  22.6 w x 18.9 d x 30 h  (in)
Air Flow:  230 CFM
Net Weight: 90.4 lbs



Specifications
SPC-230 Portable Filtration Units -  Handheld Unit, 230 CFM, filters, hose, hose stand, and indicator light
SPC-MINI Portable Filtration Units -  Mni Rollout, 230 CFM, pulse cleaning , cartridge, hose and hose stand

SPC-230
HANDHELD UNIT, 230 CFM
Mfg. item #: SPC-230
AVASPC-230
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,485.54

884
SPC-Mini
MNI ROLLOUT, 230 CFM, PULSE CLEANING
Mfg. item #: SPC-Mini
AVASPC-MINI
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,416.68

884
