Baileigh BB-4012F Box And Pan (Finger) B

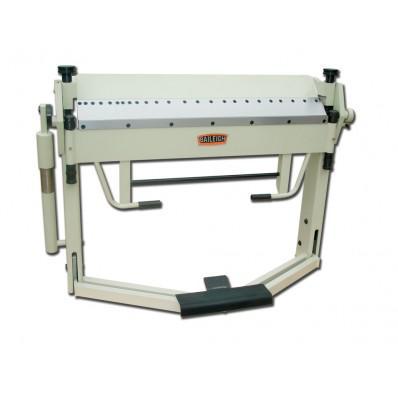

Sheet Metal Finger Brake BB-4012F

Ever wonder what it would be like to have an extra hand when working on a sheet metal brake, two to hold the material and the other to clamp it in place.  Well the Baileigh Industrial BB-4012F box and pan brake can help with this dilemma. Baileigh Industrials BB-4012F finger brake allows the operator to clamp the material with his/her foot, so both hands are free for perfect positioning of the sheet metal before clamping the material in place.

Although different from other sheet metal brakes on the market, the BB-4012F is definatly a Baileigh Industrial machine built form the best possible components.  The BB-4012F finger brake comes standard with hardened fingers in an assortment of different widths to accommodate bending various sizes and shapes of tanks, pans, boxes and much more. Another nice feature of the BB-4012F box and pan brake is an easy to adjust gap adjustment, this is important to get a correct bend when braking various gauges of sheet metal.  A spring loaded cylinder assists lifting the apron which gives assistance to the operator when bending at full capacity, which is an impressive 12 gauge mild steel at a full 40 inches.  The BB-4012F sheet metal brake also features hardened fingers and bending die for long life and years for use.  An adjustable stop rod rounds out the list of features for the BB-4012F.

The BB-4012F like all of Baileigh Industrials box and pan brakes are typically in stock for fast shipment.



Specifications
Model BB-4012F
Thickness (SS) 12 ga. (16 ga.)
Box Depth 2.5 inch
Bend Angle 0 – 135 degree
Max. Clamping Bar Lift Foot Operated 1.85 inch
Power Manual
Shipping Weight 705 lbs.
Length 40 inch
Shipping Dimensions 58 x 25 x 50 inch



There are no listed accessories.

BB-4012F
MANUALLY OPERATED BOX AND PAN (HARDENED FINGER) BRAKE, 40 LENGTH, 12 GAUGE MILD STEEL CAPACITY,
Mfg. item #: BB-4012F
BAIBB-4012F
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,180.25
