Baileigh Woodworking Planers

 IP-156 Industrial Planer, IP-156-HH - Spiral Head Planer  IP-208 Industrial Planer  IP-2209-HD Heavy Duty Thickness Planer  IP-2509-HD Numerically Controlled Planer
 IP-156 Industrial Planer
IP-156-HH - Helical Head Planer
 IP-208 Industrial Planer
 IP-208-HH - Helical Head Planer
  IP-2209-HD
Heavy Duty Thickness Planer
 IP-2509-HD
Numerically Controlled Planer



planer

Industrial Planer IP-156

1004935

Made in Taiwan

The IP-156 planer form Baileigh Industrial combines the best features with an economical price.  This standout planer has a 15 inch wide planning capacity with a 6 inch maximum cutting height.  The IP-156 runs on a 3hp 220 volt single phase motor with allows it to be set up and run almost anywhere.  The 3 inch cutter head turns at 5000 rpm and has a maximum cutting depth of 1/8 inch.  This combined with two cutting speeds of 16 and 20 feet per minute make the IP-156 a versatile machine.

The main table on this planer/molder is 15 x 20 inch and has front and back cast iron wing extensions that expand the size to 15 x 48 inch.  The stand is fully enclosed and equipped with integrated casters for shop mobility.  A 4 inch dust port is also included to keep the shop clean.

Specifications IP-156
Model IP-156
Dust Collection Port 4 inch
Number of Outlets 1
Table Size (Length) 48 inch
Table Size (Width) 15 inch
Rpm 5000
Maximum Depth of Cut (Resaw) 1/8 inch
Cutter Head Diameter 3 inch
Max Stock Width 15 inch
Number of Knives 3
Maximum Stock Height 6 inch
Minimum Stock Thickness 3/16 inch
Minimum Stock Length 6 inch
Feed Speed 16/20 FPM
Table Elevation Manual
Power 220V Single Phase
Horse Power 3
Weight (lbs) 520

specifications subject to change without notice.

planer

IP-156-HH - Spiral Head Planer

Even our most economical planer offers 2 speeds, a large cast iron table, and the best safety features. Built to last, this 15 inch-wide planer is perfect for hobbyists and shops on a budget.

  • Robust 3 hp motor turns the cutter head at 5,000 rpm.
  • Straight 4 row spiral cutter head comes standard.
  • 6 inch maximum cutting height.
  • Up to 1/8 inch cut depth.
  • Runs on 220-volt single-phase power. You can use this planer almost anywhere.
  • Switch between 2 infeed speeds:
    • 20 feet per minute to remove a lot of material quickly.
    • 16 feet per minute to give you a smoother finish (or to handle harder or chip-prone material more cautiously).
  • 15 x 20 inch main table includes front and back cast iron wing extensions that can expand to 15 x 48 inch.
  • Large table keeps the board flat and straight for dependably true cuts.
  • Anti-kickback fingers help prevent accidents by gripping a piece of wood if it jams the machine.
  • Magnetic starter switch automatically shuts down the planer if there’s a problem with current, like a power surge.
  • Fully-enclosed steel stand reduces vibrations and maintains accuracy over many years of daily use.
  • Integrated wheels on the base allow you to move the planer easily.
  • 4 inch dust port can hook up to your dust collection system so your shop stays neat and clean.
  • Covered by a 1-year parts warranty.
  • We stock replacement parts, so we can get them to you quickly.
  • You can rely on lifetime technical support by phone. Call our team of experienced woodworkers when you need help or project advice.
Specifications IP-156-HH
Item Number IP-156-HH
Shipping Weight 600lbs
Table Size (Length) 48 inch
Table Size (Width) 15 inch
RPM 5000
Maximum Depth of Cut (Resaw) 1/8 inch
Cutter Head Diameter 3 inch
Max Stock Width 15'
Maximum Stock Height 6 inch
Minimum Stock Thickness 3/16 inch
Minimum Stock Length 6 inch
Feed Speed 16/20 FPM
Table Elevation Manual
Power 220V Single Phase
Horse Power 3
Weight (lbs) 520
Number of Inserts 68
Insert Rows 4
Shipping Dimensions (Inches) 60x44x52







planer

Industrial Planer IP-208

1004940

Made in Taiwan

Looking for a good industrial planer with 20 inch capacity, then look at the IP-208 from Baileigh Industrial.  The IP-208 planer quickly and quietly takes rough lumber and turns it into smooth boards, with its full 20 inch planning width. It uses heavy-duty cast iron and steel construction to keep the material steady and supported during the cut.  A 220 volt single phase 5hp motor turns 4 blades at a whopping 5000rpm.  That is enough RPM to take a maximum cut of 1/8 inch deep.

The IP-208 has a maximum cutting height of 8 inch and can plane material down to 1/4 inch.  In order to keep material straight and true the IP-208 has a fully cast iron 20 x 25-3/4 inch table with 15 inch extensions.  Table size with extension is an impressive 20 x 55-3/4 inch.  Unlike other planers the IP-208 has 2 speeds that allow you to pick what’s right for your project, either 16 or 20 feet per minute.   Built in casters and a 4 inch dust port round out the IP-208 industrial planer.

Specifications
Model IP-208
IP-208-HH
Dust Collection Port 5 inch
Number of Outlets 1
Table Size (Length) 55-3/4 inch
Table Size (Width) 20 inch
Rpm 5000
Maximum Depth of Cut (Resaw) 1/8 inch
Cutter Head Diameter 3-1/4 inch
Max Stock Width 20 inch
Number of Knives 4
Maximum Stock Height 8 inch
Minimum Stock Thickness 1/4 inch
Minimum Stock Length 8 inch
Feed Speed 16/20 FPM
Table Elevation Manual
Power 220V Single Phase
Horse Power 5
Weight (lbs) 880

specifications subject to change without notice.



Heavy Duty Thickness Planer IP-2209-HD

Heavy Duty Thickness Planer IP-2209-HD

With a 22 inch width and a segmented infeed roll, this industrial wood planer lets you smooth multiple boards with different heights at once. A cast iron table and columns help a wood thickness planer last for years.

  • Massive 10 hp motor spins the cutter at 5,000 rpm.
  • Comes standard with a 5-row spiral cutter head with rotatable carbide blades that last much longer than a straight-knife blade.
  • .25 inch maximum depth of cut.
  • Runs on 220-volt 3-phase power.
  • Spring-loaded segmented steel infeed roll automatically adjusts to different board heights side by side.
  • Switch between 2 feeding speedsfor better results on different types of wood:
    • 30 feet per minute for softer materials (or jobs where a refined surface is less important).
    • 20 feet per minute for hardwoods or materials prone to chipping. This speed gives you a smoother finish.
  • 32 x 22 inch cast iron table supports the material, reduces vibrations, and ensures accuracy.
  • 2 heavy columns raise or lower the table and stabilize the machine.
  • Handwheel lets you adjust the table elevation. Digital readout shows the changes for easy repeatability.
  • Segmented chip breaker stops debris from clogging the industrial wood planer (or your dust collector).
  • Chip breaker also prevents wood from chipping by holding the material down right in front of the cutter head.
  • Solid iron pressure bar maintains even force across the planed stock.
  • Steel outfeed roll moves the material consistently and reliably for fast production.
  • Quick-adjust bed rolls reduce friction.
  • You can set the bed rolls high to keep rough-sawn stock from getting stuck, or set them lower to produce the straightest, smoothest boards possible.
  • Anti-kickback fingers safely grip the material so that it’s less likely to shoot backwards if the cutter jams.
  • Covered by a 1-year parts warranty.
  • If you ever need replacement parts, we keep them in stock so we can ship them without delay.
  • We offer lifetime technical support by phone from a team of woodworking specialists, all with hands-on machine experience.

Heavy duty thickness planer recommended for: Cabinet shops, lumber yards, or anyone who needs to process wide boards.

Specifications
Item Number IP-2209-HD
Country of Manufacture Taiwan
Shipping Weight 1630lbs
Table Size (Length) 32 inch
Table Size (Width) 22 inch
RPM 5000
Maximum Depth of Cut (Resaw) 1/4 inch
Cutter Head Diameter 3-1/4 inch
Max Stock Width 22 inch
Number of Knives 5 Row Spiral
Maximum Stock Height 9 inch
Minimum Stock Thickness 1/2 inch
Minimum Stock Length 9 inch
Feed Speed 2 Speed 20 and 30 fpm
Table Elevation Manual with Digital Readout
Power 220V Three Phase
Horse Power 10
Weight (lbs) 1760
Shipping Dimensions (Inches) 60x44x66

specifications subject to change without notice.



planer

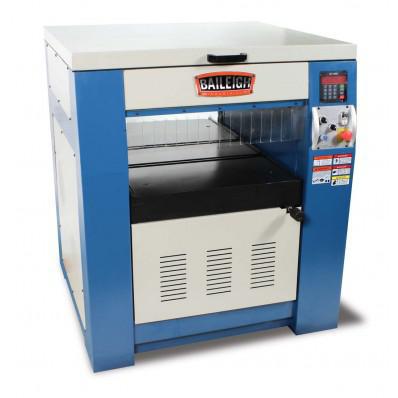

Numerically Controlled Planer IP-2509-HD

1004942

The IP-2509-HD is the ultimate in numerically controlled planers.  This industrial 25 inch planer has a 10 hp single phase motor makes sure you never run out of power even when planeing full 25 inch boards.  Another advantage of the single phase power it that is will run in almost any shop without much problem.  Because of the 10 hp motor the IP-2509-HD can take 1/4 inch of material at one time by spinning it spiral head cutter at 5000 rpm.  The table of the IP-2509-HD is 25 x 32 inch, but also has cast iron excretions that make the overall table size a large 25 x 57 inch.

Many special features help make this the best on the market in its size.  Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Instead of only two speeds like most of the other planers on the market, the IP-2509-HD variable speed of 20 to 30 feet per minute meaning you will have the exact speed required.  Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness.  The controller on the IP-2509-HD planer also has automatic backlash compensation ensuring exact thicknesses.  Contact a representitive for more information.


Specifications
Model IP-2509-HD
Dust Collection Port 5 inch
Number of Outlets 1
Table Size (Length) 57 inch
Table Size (Width) 25 inch
Rpm 5000
Maximum Depth of Cut (Resaw) 1/4 inch
Cutter Head Diameter 3-3/8 inch
Max Stock Width 25 inch
Number of Knives 5 Row Spiral
Maximum Stock Height 9 inch
Minimum Stock Thickness 1/2 inch
Minimum Stock Length 9 inch
Feed Speed 20 to 30 FPM
Table Elevation Digitally Controlled
Power 220V Single Phase
Horse Power 10
Weight (lbs) 1760

specifications subject to change without notice.



There are no listed accessories.

BA9-1004935
ON SALE - IP-156-3HP 15 INDUSTRIAL PLANER
OVERSTOCK SALE LIMITED QUANTITY AVAILABLE, WHILE SUPPLIES LAST
PRICE REFLECTS A $798 SAVINGS ON THIS ITEM
Mfg. item #: BA9-1004935
BAIIP-156
lease to own for as little as:$52 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,192.00

27
BA9-1021086
220V 1 PHASE 3HP 15 INDUSTRIAL PLANER W/ HELICAL INSERT HEAD, 6 MAXIMUM CUTTING HEIGHT / MADE IN TAIWAN / WGT = 590 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1021086)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1021086
BAIIP-156-HH
lease to own for as little as:$81 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$4,140.00

37
BA9-1004940
220V 1 PHASE 5HP 20 INDUSTRIAL PLANER, 8 MAXIMUM CUTTING HEIGHT, / MADE IN TAIWAN / WGT = 920 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1004940)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1004940
BAIIP-208
lease to own for as little as:$91 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$4,716.00

37
BA9-1021087
ON SALE - IP-208-HH-5HP 20PLANER W/HELICAL HEAD
OVERSTOCK SALE LIMITED QUANTITY AVAILABLE, WHILE SUPPLIES LAST
PRICE REFLECTS A $1511.25 SAVINGS ON THIS ITEM
Mfg. item #: BA9-1021087
BAIIP-208-HH
lease to own for as little as:$98 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,045.00

27
BA9-1014767
220V 3 PHASE 10HP 22 HEAVY DUTY PLANER, 9 MAXIMUM CUTTING HEIGHT DRO / MADE IN TAIWAN / WGT = 1600 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1014767)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1014767
BAIIP-2209-HD
lease to own for as little as:$184 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$9,681.00

37
BA9-1004942
220V 1 PHASE 10HP 25 NC CONTROLLED HEAVY DUTY PLANER, 9 MAXIMUM CUTTING HEIGHT, / MADE IN TAIWAN / WGT = 2070 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1004942)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1004942
BAIIP-2509-HD
lease to own for as little as:$328 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$17,519.00

37
