Baileigh Woodworking Shapers

220V 2 HP SPINDLE SHAPER, 24 X 21 WORKING TABLE 220V 1PH 3 HP 2-SPEED SPINDLE SHAPER, 27 X 25 WORKING TABLE 220V 1PH 3 HP 3-SPEED SPINDLE SHAPER, 28 X 22 WORKING TABLE 220V 1PH 5 HP SPINDLE SHAPER, 35 X 28 WORKING TABLE
 SS-2421 Wood Shaper  SS-2725 Wood Shaper SS-2822 Spindle Shaper SS-3528 Spindle Shaper

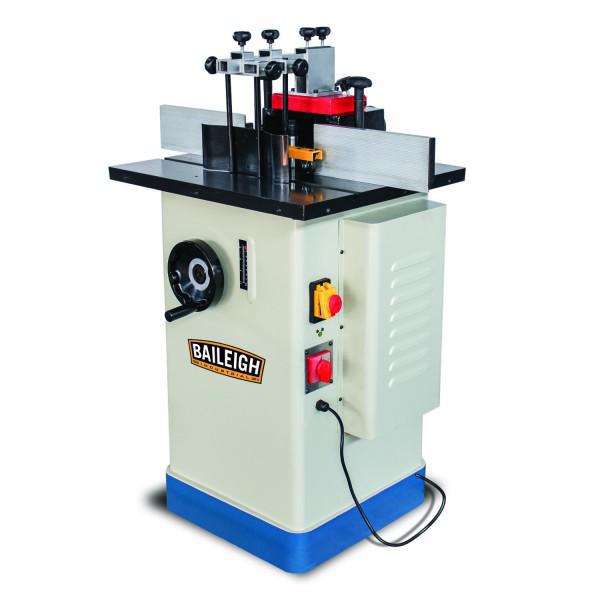

Wood Shaper SS-2421

Wood Shaper SS-2421

SKU: 1014745

The SS-2421 wood shaper from Baileigh Industrial offer many great features at an even better price.  Running on a 2 hp 220 volt single phase motor the SS-2421 has a two speed pulley system.  This shaper woodworking system allows the operator to choose the best speed for the application; either 6900 or 9900 rpm.  The spindle is 3/4 inch.  It also has a wrench slot for quick cutter set up and removal.

The fully machined cast iron table on the SS-2421 measures, 24 x 21 inch. The included fence system is independent from left to right for fast and easy set up and includes a safety guard

Specifications
Item Number SS-2421
Shipping Weight 350lbs
Number of Outlets 1
Table Size (Length) 24 inch
Table Size (Width) 21 inch
Spindle 3/4 inch
Spindle Travel 3 inch
Fence Size 23 x 4.75 inch
Shaper RPM 6900 and 9900
Power 220V Single Phase
Horse Power 2
Weight (lbs) 350
Insert Opening 2-1/8, 3-1/8, 5 inch
Shipping Dimensions (Inches) 48x45x49



 SS-2725 Wood Shaper

SS-2725 Wood Shaper

SKU: 1019407

A must have for any serious woodworker, the Baileigh Industrial SS-2725 spindle shaper arrives to you with everything you need to start making chips.  The included 3/4 inch arbor 1 inch arbor, 1/4 inch router collet, and 1/2 inch router collet are powered by a 3hp, 220V single phase motor which drives the spindle at either 8,000 or 10,000rpm.  The cutter protrudes from a 25 x 20 inch cast iron table with 3 spindle plate inserts; a 25 x 7 inch cast iron table extension is included.

The on/off, spindle direction, and spindle height controls are all mounted on the front of the machine, with the spindle lock located to the side for ergonomic access.  Atop the table lies independently adjustable fences, 2-way adjustable cutter guard w/ window, 4 inch dust port and vertical/lateral hold downs, everything needed to start working on custom molding, trim, panels, and many other wood projects.

Specifications
Item Number SS-2725
Shipping Weight 400lbs
Dust Collection Port 4 inch
Number of Outlets 1
Table Size (Length) 27 inch with extension
Table Size (Width) 25 inch
Speeds 2 with reverse
Spindle 3/4 and 1 inch
Spindle Travel 3-1/8 inch
Fence Size 11 x 3 inch (2) with micrometer adjustment
Shaper RPM 8,000 and 10,000
Power 220V Single Phase
Horse Power 3
Weight (lbs) 353
Insert Opening 1-5/8, 3, 3-1/2, 7 inch
Notes Includes 1/4 and 1/2 inch router bit collets
AMP Draw 16
Shipping Dimensions (Inches) 48x45x45



 Spindle Shaper SS-2822

Spindle Shaper SS-2822
SKU: 1007608

Spindle shapers are an essential part of any wood working shop.  The SS-2822 from Baileigh Industrial is a great combination of features and price.  This three speed spindle shaper turns 3600, 8500, and 11000 rpms with its 3 hp 220 volt single phase motor.  All controls are front mounted and are thermal overload protected.  The SS-2822 is equipped with 3/4 inch and 1-1/4 inch spindles and 1/4 inch and 1/2 inch RC-3 collets.

The table of the SS-2822 is precision ground cast iron and includes a t-slot and miter gauge.  The overall size of the table including extension wing is 31 x 28-1/2 inch.  A massive industrial fence is also included for accurate positioning of material.  The table also includes multiple insert rings for the different spindles.  An integrated 4 inch dust collector is incorporated into the fence as well as a cutting safety guard.

Specifications
Item Number SS-2822
Shipping Weight 450lbs
Table Size (Length) 22 inch
Table Size (Width) 28.5 inch
RPM 3600/8500/11000
Spindle Travel 4 inch
Fence Size 28.5 x 4-1/4 inch
Power 220V Single Phase
Horse Power 3
Weight (lbs) 450
Shipping Dimensions (Inches) 48x45x44



 Spindle Shaper SS-3528

 Spindle Shaper SS-3528

SKU: 1007609

The SS-3528 3 spindle shaper from Baileigh Industrial is a great addition to any shop.  This is the first in the 3528 series and is the most economical in the series.  This spindle shaper is powered by a 5 hp 220 volt single phase motor that offers four spindle speeds.  Speeds are changed by selecting the appropriate belt for the speed desired.  Speeds offered are 3600, 5100, 8000, and 10000 rpm.  The SS-3528 includes 3 spindles, 3/4, 1 and 1-1/4 inch all with corresponding inserts.

The precision machined 28 x 35 inch table has a working height of 35 inch, making it very comfortable to work on.  The SS-3528 also comes with all table hardware and fences for accurate placement of material.  A 4 inch dust port is also standard on this 5 hp shaper.

Specifications
Item Number SS-3528
Shipping Weight 660lbs
Table Size (Length) 35.5 inch
Table Size (Width) 28 inch
RPM 3600/5100/8000/10000
Spindle Travel 3 inch
Power 220V Single Phase
Horse Power 5
Weight (lbs) 660
Shipping Dimensions (Inches) 48x45x48



Accessories
SSRBT-0250 1/4 inch Router Bit Adapter for 1/2 inch Spindle Shapers Chuck for SS-35 Series Spindle Shapers
B-MEASURE-DMG 3 in 1 Digital Multi depth gauge, height gauge and thickness gauge
B-MEASURE-SC+ Multi-Purpose DRO Gauge
UMB-900 Universal Mobile Base
SSRBT-0375 Router Chuck
SSRBT-0500 Router Chuck
B-MEASURE-DHP Digital Height Pre-setting Gauge



1014745
220V 1PH 2 HP SPINDLE SHAPER, 24 X 21 WORKING TABLE ** WEIGHT = 350 LBS / MADE IN CHINA - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1014745
BAISS-2421
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,744.02

8
1019407
220V 1PH 3 HP 2-SPEED SPINDLE SHAPER, 27 X 25 WORKING TABLE ** WEIGHT = 400 LBS / MADE IN TAIWAN - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1019407
BAISS-2725
lease to own for as little as:$51 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,834.21

8
1007608
220V 1PH 3 HP 3-SPEED SPINDLE SHAPER, 28 X 22 WORKING TABLE ** WEIGHT = 450 LBS / MADE IN CHINA - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1007608
BAISS-2822
lease to own for as little as:$86 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,714.68

8
1007609
220V 1PH 5 HP SPINDLE SHAPER, 35 X 28 WORKING TABLE ** WEIGHT = 660 LBS / MADE IN TAIWAN - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1007609
BAISS-3528
lease to own for as little as:$95 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,193.44

8
1007614
1/4 ROUTER BIT ADAPTER FOR 1/2 FOR 3528 SERIES SPINDLE SHAPERS
Mfg. item #: 1007614
BAISSRBT-0250
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$24.29

54
1225322
6 3 IN 1 DIGITAL MULTI GAUGE, HEIGHT/DEPTH/WELDING THICKNESS
Mfg. item #: 1225322
BAIB-MEASURE{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$28.26

54
1225321
2 SNAP CHECK DIGITAL READ-OUT GAUGE FOR LEFT OR RIGHT HAND USE
Mfg. item #: 1225321
BAIB-MEASURE{05
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$33.19

54
1021650
HEAVY DUTY UNIVERSAL MOBILE BASE, 600 LB CAPACITY
Mfg. item #: 1021650
BAIUMB-900
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$76.89

54
1007615
3/8 ROUTER BIT CHUCK FOR 3528 SERIES SPINDLE SHAPERS
Mfg. item #: 1007615
BAISSRBT-0375
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$100.11

54
1007616
1/2 ROUTER BIT CHUCK FOR 3528 SERIES SPINDLE SHAPERS
Mfg. item #: 1007616
BAISSRBT-0500
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$100.11

54
1228223
DIGITAL HEIGHT PRESETTER SETTING GAUGE - 3MM RANGE
Mfg. item #: 1228223
BAIB-MEASURE{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$103.67

54
