Baileigh TS-1040C Contractor Table Saw

 TS-1044H Hybrid Table Saw  TS-1040E-30 Entry Level Cabinet Saw  TS-1040E-50 Entry Level Cabinet Saw TS-1040P-30 Riving Knife Table Saw  TS-1040P-50 Riving Knife Table Saw
 TS-1044H
Hybrid Table Saw
 TS-1040E-30 Entry Level Cabinet Saw  TS-1040E-50 Entry Level Cabinet Saw TS-1040P-30 Riving Knife Table Saw TS-1040P-50 Riving Knife Table Saw



Models
TS-1044H 110/220V SINGLE PHASE, (PREWIRED 110V) 10 HYBRID STYLE TABLE SAW
TS-1040E-30 220V SINGLE PHASE, 10 ENTRY LEVEL CABINET STYLE TABLE SAW, 40 X 27 TABLE
TS-1040E-50 220V 1PH, 10 ENTRY LEVEL CABINET STYLE TABLE SAW, 40 X 27 TABLE 2.5 HP, BLADE GUARD
TS-1040P-30 C3HP 220V SINGLE PHASE, 10 PROFESSIONAL CABINET STYLE TABLE SAW, 40 X 27 TABLE, 30 MAX RIP CUT
TS-1040P-50 3HP 220V SINGLE PHASE, 10 PROFESSIONAL CABINET STYLE TABLE SAW, 40 X 27 TABLE, 50 MAX RIP CUT



wood working tablesaw

Hybrid Table Saw TS-1044H

1008077

Made in Taiwan

Trying to figure out if you need a cabinet saw or just a contractor style saw?  Well Baileigh Industrial might just have the answer for you, the TS-1044H 10 inch hybrid table saw is the best of both worlds. The voltage and mobility of a contractor saw, with the structure and accuracy of a good cabinet saw.  The TS-1044H has a 1.75 hp motor that can be run on either 110 or 220 volt single phase power and turns at 4000 rpm.  Since the voltage is selectable the TS-1044H hybrid saw will work in just about any shop home or professional.

The TS-1044H has an enormous 44 x 27 inch all machined cast iron table.  Another unique feature of the TS-1044H is the heavy duty rip fence that incorporates a digital readout for rip capacity.  Just zero the DRO at the blade and away you go.  No second guessing the length of cut.  Other standard features to the TS-1044H are; miter gauge, zero clearance table inserts, deluxe rip fence and 4 inch dust collection port.


Specifications
Model TS-1044H
Dust Collection Port 4 inch
Table Size (Length) 20 inch
Table Size (Width) 27 inch
Table Saw Working Table 44 x 27 inch
Table Saw Blade Diameter 10 inch
Table Saw RPM 4000
Table Saw Arbor 5/8 inch
Table Saw Cutting Height at 90 degree 3-1/8 inch
Table Saw Cutting Height at 45 degree 2-1/8 inch
Maximum Dado Diameter 8 inch
Maximum Dado Width 13/16 inch
Maximum Rip Cut (Right) 36 inch
Power 110/220V Single Phase(Prewired 110V)
Length 48 inch
Width 29 inch
Height 37 inch
Horse Power 1.75
Weight (lbs) 260

specifications subject to change without notice.

wood working tablesaw

Entry Level Cabinet Saw TS-1040E-30

This excellent starter cabinet-style table saw includes features typically found only on more expensive tables, like a Leeson motor, UHMW rip fence, and massive trunnion.

  • 30 inch right-side rip capacity.
  • 2 hp Leeson motor turns the blade at 3,850 rpm.
  • Runs on 220-volt single-phase power.
  • Uses standard 10 inch blades with 5/8 inch arbor.
  • Comes with both standard and dado inserts.
  • 40 x 27 inch table and extensions made from precision-ground cast iron.
  • Table is webbed into the base with a crisscross pattern that prevents warping or shrinkage. The cast iron surface will remain true.
  • Extension boards help you cut materials that are big and tough to handle.
  • Heavy-duty hardened UHMW plastic rip fence makes it easy to slide material towards the blade.
  • You can cheaply replace the rip fence if you drill into it (convenient if you use unusually-shaped jigs).
  • Designed with a trunnion attached to the the base to keep the machine wobble-free and accurate.
  • Attached trunnion also dampens noise to a safe decibel range.
  • Robust welded steel framework minimizes vibrations, so you dont have to worry about the blade shifting back and forth with the table.
  • 2 steel handwheels on the cabinet allow you to change the blade height and the miter angle.
  • Miter gauge located on base.
  • 4 inch dust collection port lets you hook up an extraction system.
  • Slanted surface inside cabinet directs sawdust towards the port to eliminate build-up.
  • CSA approved.
  • Safety guard on the blade has reverse teeth to prevent kickback.
  • Riving knife spreads the wood as you’re cutting to avoid twisting or pinching.
  • We keep this saw and replacement parts in stock for fast shipping.
  • Protected by a 1-year parts warranty.
  • You can depend on lifetime technical support by phone. Whenever you need help or have questions, you can call up a team of reps with hands-on machine experience.

Recommended for: Small woodworking businesses that need a high-quality saw to use for a few hours a day.

Specifications
Item Number TS-1040E-30
Shipping Weight 370 lbs.
Table Size (Length) 20 inch
Table Size (Width) 27 inch
Table Saw Working Table 40 x 27 inch
Table Saw Blade Diameter 10 inch
Table Saw RPM 3850
Table Saw Arbor 5/8 inch
Table Saw Cutting Height at 90° 3-1/8 inch
Table Saw Cutting Height at 45° 2-3/16 inch
Maximum Dado Diameter 8 inch
Maximum Dado Width 13/16 inch
Maximum Rip Cut (Right) 30 inch
Power 220V Single Phase
Horse Power 2

specifications subject to change without notice.



wood working tablesaw

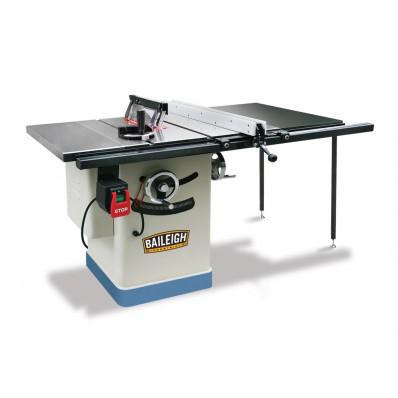

Entry Level Cabinet Saw TS-1040E-50

1008074

If you are looking for a great entry level cabinet maker table saw, take a look at the TS-1040E series from Baileigh Industrial.  This saw has many features only found on more expensive saws.  Available with 30 inch and 50 inch right side rip capacities, this 10 inch table saw will be at home in any shop.  The TS-1040E has a 2 hp motor 220 volt single phase power and turns at 3850 rpm.

The table and extensions for the TS-1040E are made from precision ground cast iron.  The TS-1040E-30 has a 30 inch extension board and the TS-1040E-50 has a 50 inch extension board.  Extension boards are great for those materials that are really big and tough to handle.  Other standard features to the TS-1040E series are; miter gauge, standard and dado inserts, deluxe rip fence and 4 inch dust collection port.

Specifications
Model TS-1040E-50
Dust Collection Port 4 inch
Number of Outlets 1
Table Size (Length) 20 inch
Table Size (Width) 27 inch
Table Saw Working Table 60 x 27 inch
Table Saw Blade Diameter 10 inch
Table Saw RPM 3850
Table Saw Arbor 5/8 inch
Table Saw Cutting Height at 90 degree 3-1/8 inch
Table Saw Cutting Height at 45 degree 2-3/16 inch
Maximum Dado Diameter 8 inch
Maximum Dado Width 13/16 inch
Maximum Rip Cut (Right) 50 inch
Power 220V Single Phase
Length 60 inch
Width 38 inch
Height 62 inch
Horse Power 2
Weight (lbs) 390

specifications subject to change without notice.



wood working tablesaw

Riving Knife Table Saw TS-1040P-30  SKU: 1008075

We designed this 550-pound cabinet saw for professional accuracy. The steel base and cast-iron table reduce vibrations and keep correct alignment, so you can make perfect joints.

  • 30 inch right-side rip capacity.
  • 3 hp Leeson motor turns at 4,300 rpm and cuts maple like it was pine.
  • The motor gets up to full speed in seconds.
  • Runs on 220-volt single-phase power, so it will work in almost any shop.
  • Uses standard 10 inch blades with 5/8 inch arbor.
  • Includes standard and dado inserts.
  • 40 x 27 inch table, made of cast iron, with 30 inch extension boards, made of impregnated poly, help you handle large, awkward pieces.
  • Tabletop is webbed into the base to stay square and true. Heat and moisture in your shop won’t warp it.
  • Wood glides across the ground and polished cast iron table surface. You can bring back the original smooth shine even after years of use.
  • Rip fence made of heavy UHMW plastic makes it easy for you to slide wood.
  • You can inexpensively replace the rip fence plastic—convenient if you drill into it while using a unusually-shaped jig.
  • Steel handwheels with locks on the base let you adjust the blade height and miter angle.
  • Comes standard with a miter gauge for repeatability.
  • Trunnion attached to the base prevents the machine from wobbling and keeps noise within a safe decibel range.
  • Rigid all-steel base keeps the saw stable and aligned, so the blade will cut correctly (without unintended movement or mitering).
  • 4 inch dust collection port to hook up an extraction system and suck out sawdust.
  • CSA approved, with safety features like an anti-kickback blade guard and a quick-release riving knife.
  • Covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone. Call up our team of reps (all with hands-on machine experience) whenever you have questions or problems.
  • We typically keep all replacement parts in stock for fast deliveries.

Recommended for: Cabinetry, kitchen build-ins and shelving, furniture, live edge, or reclaimed lumber.

Specifications
Model TS-1040P-30
Table Size (Length) 20 inch
Table Size (Width) 27 inch
Table Saw Working Table 40 x 27 inch
Table Saw Blade Diameter 10 inch
Table Saw RPM 4300
Table Saw Arbor 5/8 inch
Table Saw Cutting Height at 90 degree 3-1/8 inch
Table Saw Cutting Height at 45 degree 2-3/16 inch
Maximum Dado Diameter 8 inch
Maximum Dado Width 13/16 inch
Maximum Rip Cut (Right) 30 inch
Power 220V Single Phase
Horse Power 3
Weight (lbs) 550

specifications subject to change without notice.



wood working tablesaw

Riving Knife Table Saw TS-1040P-50

1008076

Professional cabinet table saws are a must for any woodworking shop.  The TS-1040P riving knife table saw is a great saw for making perfect joints in cabinets and other projects.  Available in two versions the TS-1040P-30 and the TS-1040P-50, the last number refer to the length of the right side rip capacities. This 10 inch table saw will be at home in any shop. Because of the 3hp Leeson motor that can be run on 220 volt single phase power and turns at 4300 rpm.

The table and extensions for the TS-1040P are made from precision ground cast iron.  These tables are placed upon a super rigid all steel base for accurate alignment.  The TS-1040P-30 has a 30 inch extension board and the TS-1040P-50 has a 50 inch extension board.  Extension boards are great for those materials that are really big and tough to handle.  Other standard features to the TS-1040E series are; miter gauge, standard and dado inserts, deluxe rip fence and 4 inch dust collection port.  For more information contact a representative today.

Specifications
Model TS-1040P-50
Dust Collection Port 4 inch
Number of Outlets 1
Table Size (Length) 20 inch
Table Size (Width) 27 inch
Table Saw Working Table 60 x 27 inch
Table Saw Blade Diameter 10 inch
Table Saw RPM 4300
Table Saw Arbor 5/8 inch
Table Saw Cutting Height at 90 degree 3-1/8 inch
Table Saw Cutting Height at 45 degree 2-3/16 inch
Maximum Dado Diameter 8 inch
Maximum Dado Width 13/16 inch
Maximum Rip Cut (Right) 50 inch
Power 220V Single Phase
Length 60 inch
Width 38 inch
Height 62 inch
Horse Power 3
Weight (lbs) 590

specifications subject to change without notice.

oliver 0812 Circular blade sharpener

Finally, a sharpener for every home shop that will make your cutting job more efficient and easier at anytime and anywhere. All you need is the 0812 Circular Blade

Sharpener and a hand grinder with our included diamond grinding wheel, and you can save your workshop upkeep and have your blades in prime condition for efficiency and safety assurance.

Easy to use and almost hands free grinding allows you to
configure the sharpener to work with blades from 7.5 to 12 inch in diameter with 5/8 or 1 inch arbor.

Packaging Size

  • NW/GW: 24lbs/26.5lbs
  • 10 x 20 x 18.5 inch
  • 4 inch Angle grinder required for use
    (Not Included)

Features:

  • Sharpens circular saw blades from 7.5 to 12 inch diameter.
  • Portable compact design.
  • Sturdy die casting iron base.
  • 4 inch diamond blade included
  • Suitable for regular blades and carbide tip blades.
  • 2 Year Limited Warranty

Oliver cicular saw blade sharpener
812 Circular Saw Blade Sharpener



1020029
110V 1PHASE, 10 HYBRID STYLE TABLE SAW ** SHIPPING WEIGHT = 410LBS & MADE IN TAIWAN - SHIPS LTL - COMMERCIAL TRUCK - SHIPS - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE - COMMERCIAL TRUCK
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1020029
BAITS-1044H
lease to own for as little as:$58 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,902.64

2
1229612
220V 1PHASE, 10 ENTRY LEVEL CABINET STYLE TABLE SAW, 40 X 27 TABLE ** WEIGHT = 510 LBS / MADE IN TAIWAN - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1229612
BAITS-1040E-30
lease to own for as little as:$64 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,492.88

2
1229613
2HP 220V 1PHASE, 10 ENTRY LEVEL CABINET STYLE TABLE SAW, 40 X 27, BLADE GUARD ** WEIGHT = 550 LBS / MADE IN TAIWAN - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1229613
BAITS-1040E-50
lease to own for as little as:$68 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,687.06

2
1229614
3HP 220V 1PHASE, 10 PROFESSIONAL CABINET STYLE TABLE SAW, 40 X 27 TABLE, 30 MAX RIP CUT ** WEIGHT = 620 LBS / MADE IN TAIWAN - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1229614
BAITS-1040P-30
lease to own for as little as:$72 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,950.22

2
1229615
3HP 220V 1PHASE, 10 PROFESSIONAL CABINET STYLE TABLE SAW, 40 X 27 TABLE, 50 MAX RIP CUT ** WEIGHT = 670 LBS / MADE IN TAIWAN - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1229615
BAITS-1040P-50
lease to own for as little as:$74 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,061.82

2
812
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - SAW BLADE SHARPENER
Mfg. item #: 812
OLV812
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

27
