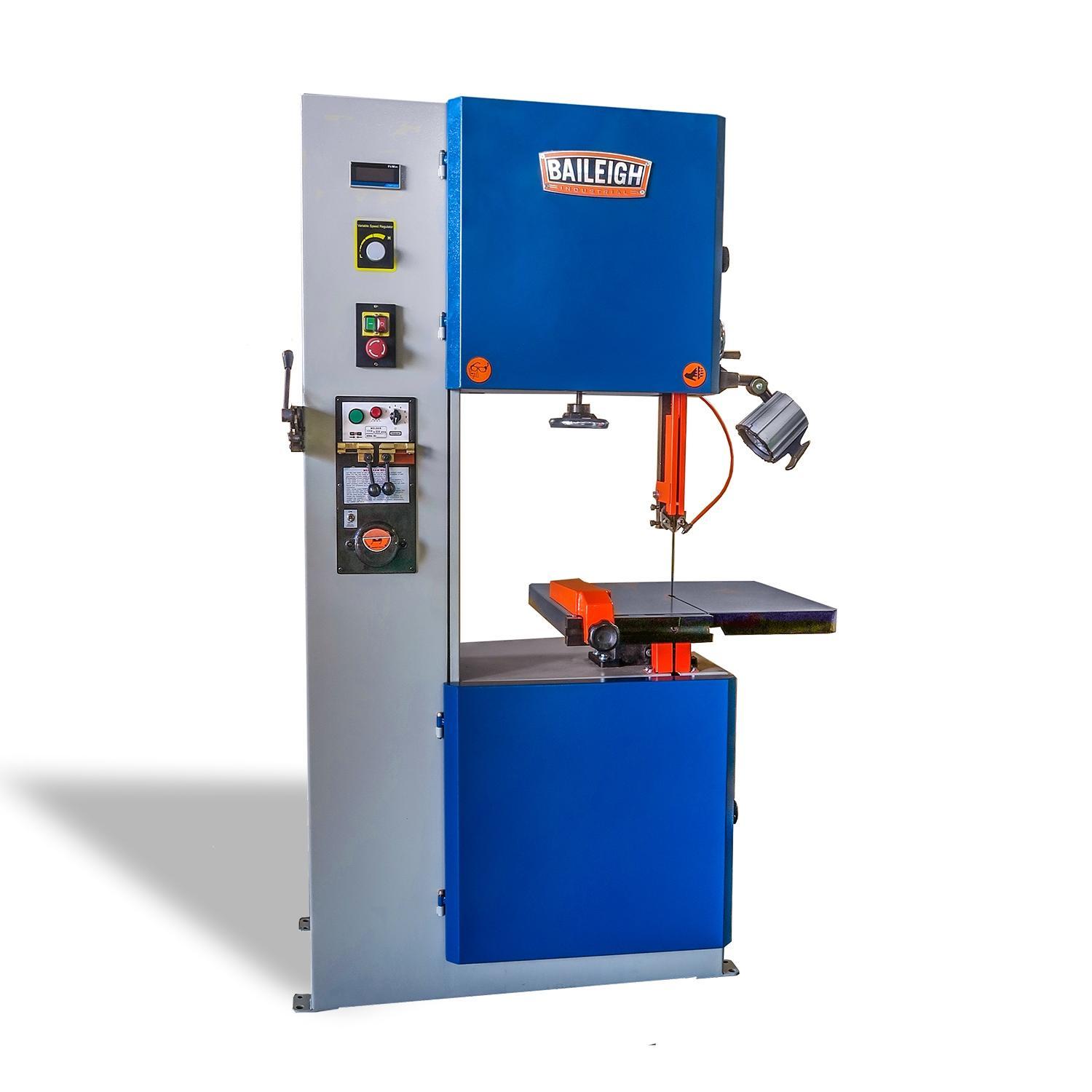

Baileigh BSV-18VS-V2 Vertical Bandsaw

BSV-18VS-V2 - Vertical Band Saw

Within our lineup of vertical bandsaws, the BSV-18VS-V2 metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.

Features:

  • 1 hp motor runs on 120-volt power.
  • Wide 18 inch throat depth.
  • 12.9 inch maximum cutting thickness.
  • Accepts standard 1/8 to 5/8 inch blades.
  • Cast iron table can pivot front to back and left to right.
  • Includes a cast iron rip fence to make sure your cuts are straight and repeatable.
  • Variable speed from 90 to 1400 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
  • Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
  • This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
  • Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
  • Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
  • Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
  • Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
  • LED work light lets you see what you’re cutting more clearly.
  • Covered by a 1-year parts warranty.
  • Both the saw and its replacement parts are typically in stock for fast deliveries.
  • Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.
Specifications
Item Number BSV-18VS
Item Number BSV-18VS-220
Speed Control Inverter
Table Size 19.68 x 21.25 inch
Butt-Welder Capacity (Blade Width) .125 - .625 inch
Slant of Table 15 Left, 45 deg Right
Motor 1 hp
Speeds Variable
Maximum Thickness 12.9 inch
Included Accesories Included Accesories
Throat Depth 18 inch
Working Height 33.26 inch
Blade Length Range 146.45 - 147 inch
Blade Speed 95 - 1400 fpm
Blade Thickness .032 inch
Power 120 volt
Shipping Weight 807 lbs
Included Blade Size 14 TPI, 1/4 inch wide blade included
Shipping Dimensions (Inches) 45.67 x 30.7 x 78.7 inch (2000 x 1160 x 780mm)
Machine Dimensions (L x W x H) 43.3 x 32.28 x 71.65 inch (1100 x 820 x 1820mm)



There are no listed accessories.

BA9-1230389
120V VERTICAL BAND SAW 17-4/8 THROAT DEPTH, 1HP / MADE IN TAIWAN / WGT = 807 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1230389)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1230389
BAIBSV-18VS
lease to own for as little as:$130 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,779.00

90
BA9-1230401
220V SINGLE PHASE VERTICAL BAND SAW 18 THROAT DEPTH, 1HP / MADE IN TAIWAN / WGT = 807 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1230401)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1230401
BAIBSV-18VS-220
lease to own for as little as:$136 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$7,109.00

90
