Baileigh English Wheels

English Wheel 28 inch 18ga Manual english Wheel 40 inch, 18Ga manual english wheel 30 inch, 14 ga MANUALLY ENGLISH WHEEL, 37 inch, 16ga
EW-28 Manual English Wheel 28 inch 18ga EW-40 Manual English Wheel 40 inch, 18Ga EW-21 Manual English Wheel 30 inch, 14Ga EW-37HD Manual English Wheel 37 inch, 16ga



Models and Accessories
EW-28 Manual English Wheel 28 inch 18ga
EW-40 Manual English Wheel 40 inch, 18Ga
EW-21 Manual English Wheel 30 inch, 16Ga
EW-30 Manual English Wheel 30 inch, 14Ga
EW-37HD Manual English Wheel 37 inch, 16ga



Bead Former BF-035

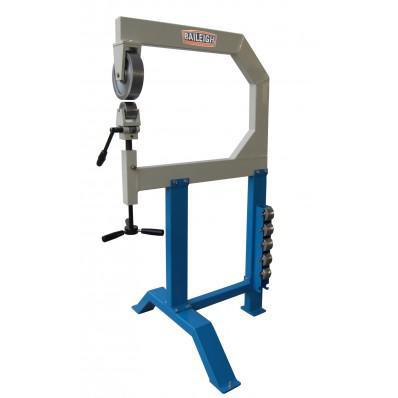

English Wheel EW-28

The EW-28 english wheel is perfect for the fabrication shop that is small on space but need a high quality tool to shape and finish sheet metal.  This quality english wheel is a standalone unit that features a heavy duty stand that is built to handle the smoothing of compound curves into mild steel and aluminum sheet metal for restoration or bodywork on autos, planes, cycles and much more. This machine has an 18-gauge mild steel capacity and has an ample 28 inch throat depth.

The EW-28 English wheel comes standard with an 8 X 2 inch upper roll and includes six lower anvil rolls with varying crowns. The radius included for the six lower rolls are 2, 3, 4, 6, 8, and 12 inch.
Like other Baileigh English wheels, the machine comes intact with only minor assembly required (no welding required). The frame members are constructed of heavy walled square tubing that is fully welded to help eliminate flex when forming at maximum capacity.

If youre interested in the EW-28 english wheel, call your Southern-Tool representative.

Specifications
Model EW-28
Mild Steel Capacity 18 ga.
Throat Depth 28 inch
Aluminum Capacity 14 ga.
Lower Die Radius 2, 3, 4, 6, 8, 12 inch
Power Manual
Shipping Weight 191 lbs.
Shipping Dimensions 36 x 34 x 15 inch
Top Wheel Dimensions 8 x 2 inch



English Wheel EW-40 - Manually Operated

English Wheel EW-40

Made in Taiwan

Every fabrication shop has to have a good quality english wheel to help in the correct forming of sheet metal.  But not all wheels are made the same; strength, rigidity, and throat depth are the most important things when looking at an english wheel.
The EW-40 is as ridged as an english wheel with a throat depth of 37-3/4 inch can be. It uses 5x 5 x .250 inch box tubing for the frame work.  This frame is fully welded for even less flex when rolling at full capacity.  The EW-40 is rated to form up to 16 gauge mild steel, giving the fabricating shop years of quality shaping and forming metal.

The EW-40 ships complete with nine bottom anvils and three 6 inch upper wheels allowing the user to roll beads as well as form metal.  Anvils come in 1/8, 1/2 inch, and 3/4 inch edge radius as well as a 6 inch crown radius.  The EW-40 also comes with two flat rolls, a 5/16 x 1/4 inch step roll as well as 1-1/2 inch and 5/8 inch round bead rolls.  Another great feature of the EW-40 English wheel is the ability to rotate the head allowing the user to either push into the throat or at a 90 degree to it.  A real rubber kick tensioner rounds out the package. This is one complete English wheel!

Call a customer service representatives for more information.


Specifications
Model EW-40
Mild Steel Capacity 18 ga.
Throat Depth 40 inch
Aluminum Capacity 14 ga.
Lower Die Radius 1.85, 2.165, 4.85,40 inch
Power Manual
Shipping Weight 388 lbs.
Shipping Dimensions 72 x 36 x 15 inch
Top Wheel Dimensions 7 x 3 inch



 EW-21 - Bench Top English Wheel

EW-21 - Bench Top English Wheel

Made from twin 3/8 inch thick steel plates, the EW-21 benchtop english wheel is just what the metal shaping doctor ordered for small shops.  But don't let the small size fool you, it is one of the most rigid English wheels on the market with feature that other wheels can only dream about. It includes 4 anvils,  to handle almost any application.

Features

  • 16 gauge mild steel capacity.
  • 21 inch throat depth with a large lower opening for curved panels.
  • Upper wheel is 8 inch diameter x 2 inch wide.
  • Comes with 4 bottom anvils (all 2 inch wide) in the following radii: flat, 2, 8, and 24 inch.
  • Everything on this wheel is adjustable, including the caster and camber of the bottom anvil.
  • The wheel even rotates to work parallel with the frame for those long projects.
  • Incorporates quick-release lower anvil support with locking cam for easy panel removal.
  • You can conveniently store your anvils on the integrated roll holder.
  • For those with extra space a sturdy floor stand is available.
  • Optional lower anvils are available, as well as a rubber top roll.
  • Covered by a 1-year parts warranty.
  • We offer lifetime technical support by phone from a team of service reps with hands-on machine experience.

Recommended for: Restoration or bodywork on autos, planes, cycles, and much more.


Specifications
Item Number EW-21
Country of Manufacture United States
Top Roll Dia. 8 inch
Bottom Roll Dia. 2.5 inch
Head Style Rotating
Mild Steel Capacity 16 ga.
Throat Depth 21 inch
Aluminum Capacity 14 ga.
Contact Wheel Dia x Width 8 x 2 inch
Lower Die Radius FLAT, 24, 8, 2 inch
Power Manual
Shipping Weight 600lbs
Things to Know Before Purchase This is a bench top machine, but an optional stand is available
Shipping Dimensions (Inches) 60x48x80



English Wheel EW-37HD - Manually Operated

Heavy Duty English Wheel EW-37HD

Made in United States

If professional metal shaping is what you do, then you know the importance of a good quality english wheel.  Bailegih industrial has come up with what we feel is the best wheel on the market, the EW-37HD.  It has a massive 37 inch throat depth and a super large opening for even the most extreme curved panels.  Made from twin 5/8 inch thick steel plates, the EW-37HD is one of the most rigid english wheels on the market not to mention one of the heaviest.  The EW-37HD weighs in at just less than 1600 pounds

Everything on this wheel is adjustable, including the caster and camber of the bottom anvil.  The EW-37HD comes with eight 3 inch wide bottom anvils in the following radii; flat, 36, 24, 12, 8, 6, 4, and 2 inch.  The upper wheel is a robust 10 diameter x 3 inch wide.  These sizes will handle almost any wheeling application you can think of.  It also incorporates a quick release with internal locking cam for easy panel removal.

Contact a representative for more information on the EW-37HD english wheel.

Specifications
Model EW-37HD
Mild Steel Capacity 16 ga.
Throat Depth 37 inch
Aluminum Capacity .125 inch Soft
Lower Die Radius 2, 3, 4, 6, 8, 12 inch
Power Manual
Shipping Weight 1600 lbs.
Shipping Dimensions 48 x 48 x 84 inch
Top Wheel Dimensions 10 x 3 inch



No additional accessories

BA9-1004166
EW-28; 28 THROAT DEPTH ENGLISH WHEEL **SHIPS LTL FREIGHT TRUCK, WGT = 240 LBS & MADE IN CHINA
Mfg. item #: BA9-1004166
BAIEW-28
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$1,543.48

14
BA9-1004189
EW-40; MANUALLY OPERATED ENGLISH WHEEL, 16 GAUGE MILD STEEL CAPACITY **SHIPS LTL FREIGHT TURCK, WGT = 510 LBS & MADE IN CHINA

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOITMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-1004189
BAIEW-40
lease to own for as little as:$58 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$2,969.00

14
BA9-EW21
EW-21; EW-21 ENGLISH WHEEL **SHIPS LTL FREIGHT TURCK, WGT = 305 LBS & MADE IN U.S.A

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOITMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-EW21
BAIEW-21
lease to own for as little as:$59 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$3,049.00

14
BA9-EW30
EW-30; MANUALLY OPERATED ENGLISH WHEEL, 30 THROAT DEPTH, 10X3 TOP WHEEL & 8 - 3X3 ANVILS **SHIPS LTL FREIGHT TURCK, WGT = 1350 LBS & MADE IN U.S.A

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOITMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-EW30
BAIEW-30
lease to own for as little as:$150 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$7,769.00

14
BA9-EW37
EW-37HD; MANUALLY OPERATED ENGLISH WHEEL, 37 THROAT DEPTH, 10X3 TOP WHEEL & 8 - 3X3 ANVILS **SHIPS LTL FREIGHT TURCK, WGT = 1975 LBS & MADE IN U.S.A

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOITMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-EW37
BAIEW-37HD
lease to own for as little as:$196 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$10,169.00

14
