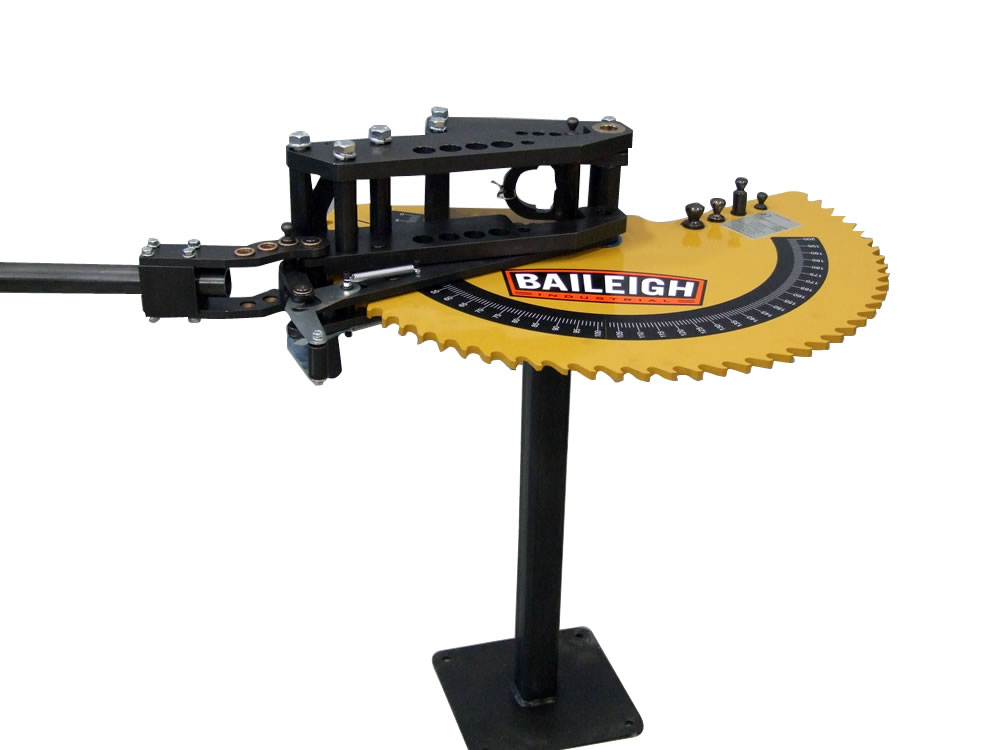

Baileigh RDB-050 Manual Tubing Bender

Click image to enlarge

0 0

Click image to enlarge

Youve been asking Baileigh for years to offer a reasonable racing chassis builder with a revolutionary design. Thus, we went to our head design engineer and in a few days he dreamed up this new machine that will make chassis frame bending a pleasure for those who cant justify one of our larger hydraulic or programmable benders.

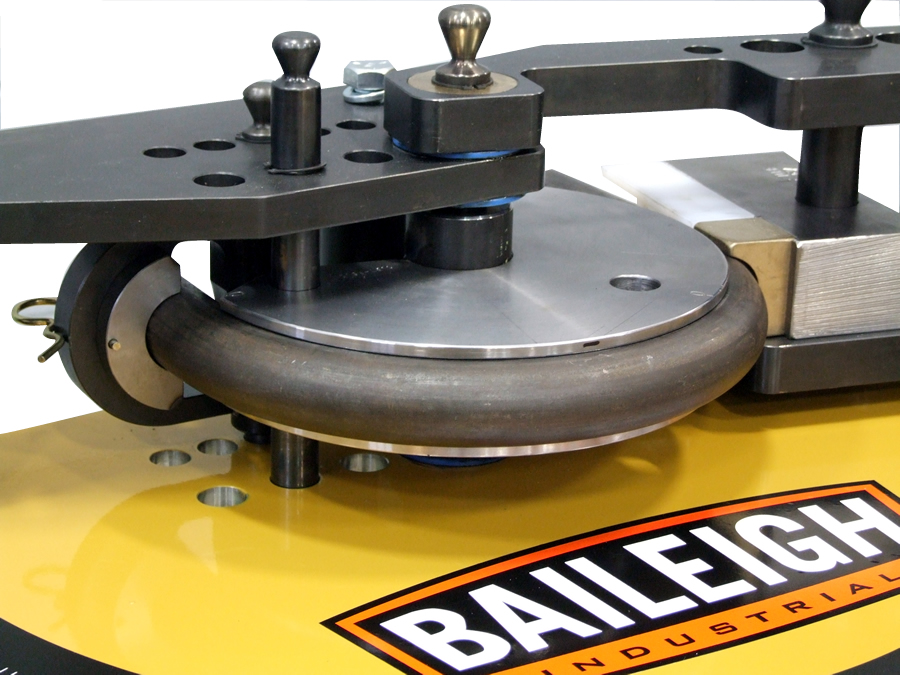

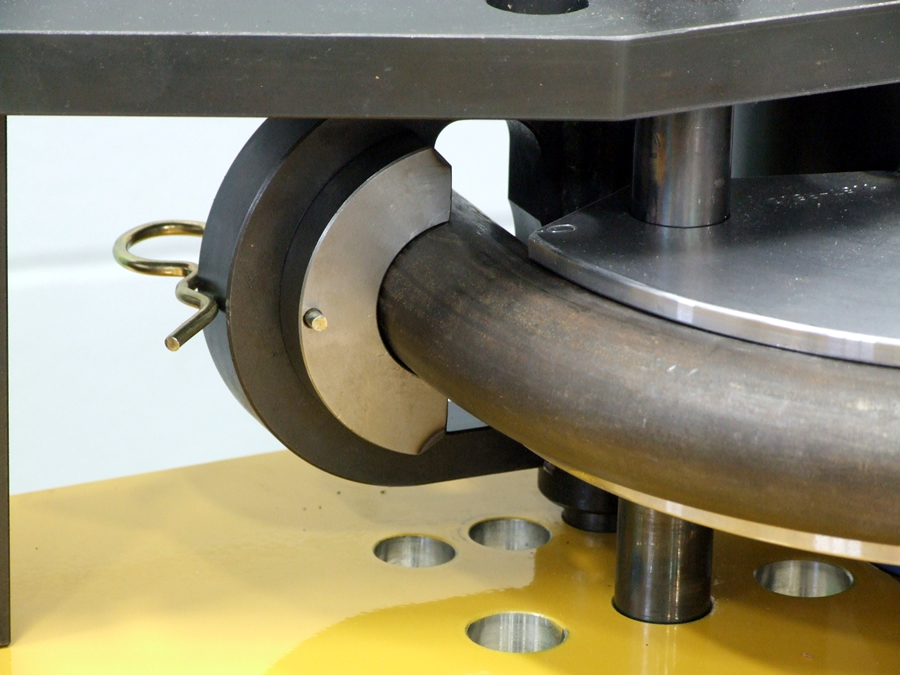

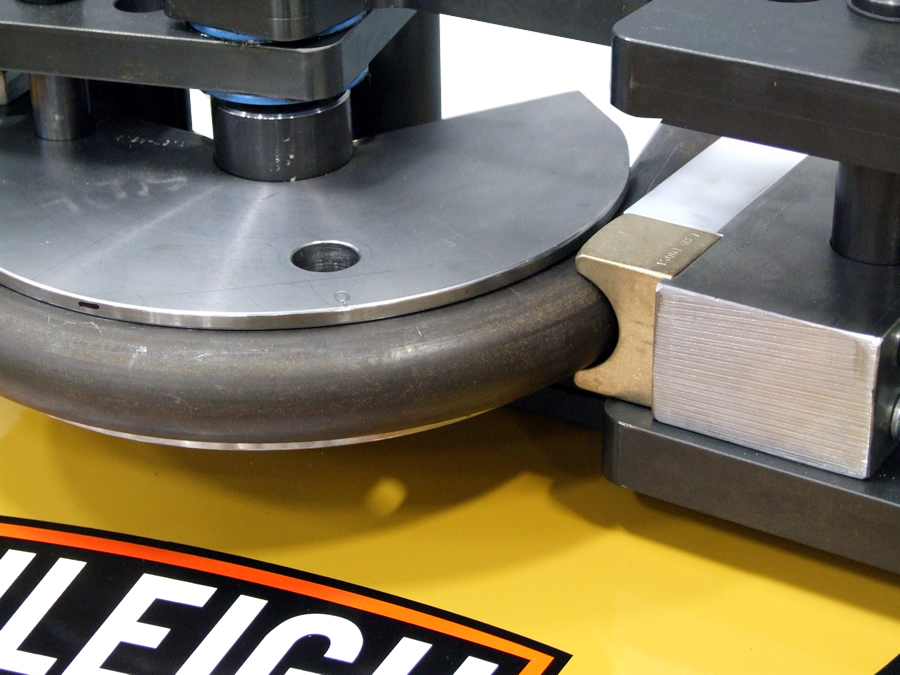

The RDB-050 manual tubing bender is revolutionary in design, function and capacity. There is no other manual tube bender on the market with this unique and ingenious design. This bending machine is extremely powerful and can bend up to 2-1/2 in OD mild steel with a wall thickness of .120 in and 2 in OD chromoly with a wall thickness of .120 in

Besides the extreme power of this manual tubing bender, it also has three unique speeds. The proper speed for each application depends on the material type, OD and wall thickness. Speed one (4 degrees per pull) has the most torque and would be used for bending 2 in OD Chromoly or 2-1/2 in OD mild steel. Speed two produces 8 degrees (for intermediate materials), while speed three produces 12 degrees (for lighter gauge materials) with each pull. The operator can continue to bend in one shot without having to stop and reset the machine (operator can bend to 200 degrees without re-pinning).

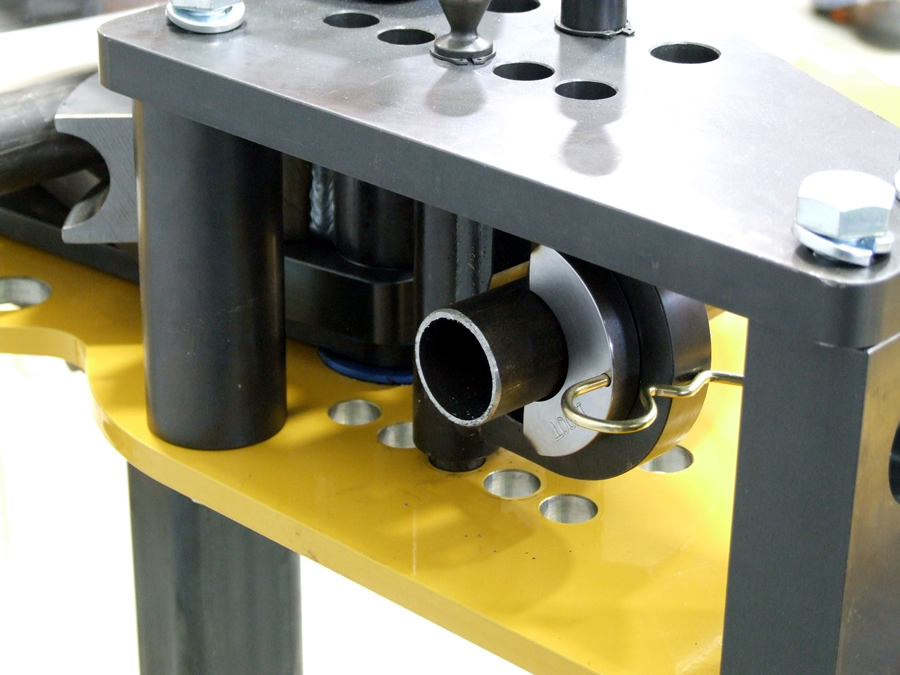

This manual tube bender has no disassembly or assembly needed to produce a bend. Simply walk up to the tube bending machine and put your tubing into the hook arm insert and begin bending. When the bend is complete, return the machine to the home position and pull your bend out, or position it for the next bend. The RDB-050 manual tubing bender can bend up to 200 degrees and an anti spring back mechanism holds each bend in place as the operator ratchets forward. Note: There isn’t a dangerous back lash when releasing the anti spring back mechanism (very important when bending the likes of Chromoly material). When bending, the operator simply pulls the ratchet arm back and forth without having to touch or hold anything in place on the machine.

This manual tubing bender has been so well thought out that when you change over the tooling the machine stays intact. All pivot points utilize aluminum bronze bushings and thrust washers, so there is no metal on metal. The hook arm has quick release inserts to assist when changing over the machine to a different size of tubing. A complete changeover should take no more than one minute.

This manual tube bender has been designed for the small racing chassis builders, off road crowd, rock crawlers, monster trucks, dragsters, dirt circle track, ATV accessories and much more. Solid steel tooling available for this bending machine is specific to chassis building sizes at this time. Our counter die system uses replaceable aluminum bronze inserts which provide the best quality bend on the market.

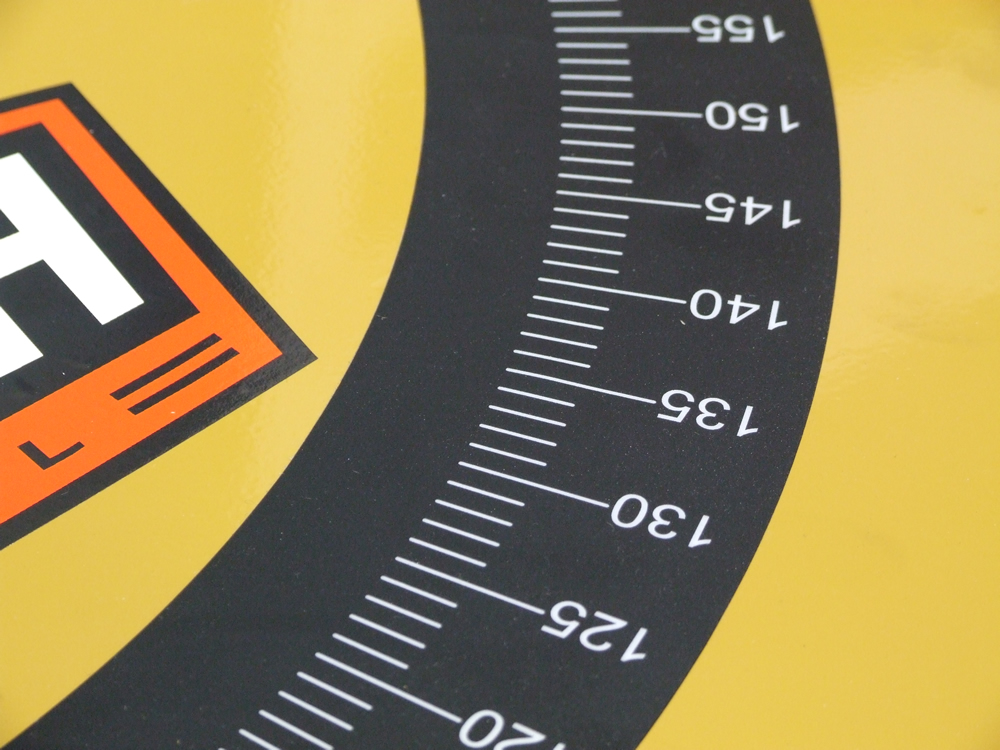

This manual tube bender can come complete with the stand, bend handle and degree dial, or you can get the machine minus either the stand or handle to fit the tighter budget. It ships via UPS in four separate boxes to keep freight rates reasonable. Some assembly is required.

Specifications
Model RDB-050
Mild Steel Round Tube (Wall)
2 1/2 in (.120)
Chromolly Round Tube (Wall)
2 in (.120)
Minimum OD
3/4 in
Maximum Speed to 180 Degrees
1 Minute
Maximum Center Line Radius (CLR)
7 in
Minimum CLR
3 in
Power Requirements
Manual
Weight (Lbs.)
270
Length 42 in
Width 22 in
Height 42 in

RDB-050 Die Set List
Part Number PartDescription
180 Degree Die Sets
DS-180-0750T-R300 3/4 in Round Tube, 3 in CLR, 180 Degree Die Set for RDB-050
DS-180-0875T-R300 7/8 in Round Tube, 3 in CLR, 180 Degree Die Set for RDB-050
DS-180-1000T-R300 1 in Round Tube, 3 in CLR, 180 Degree Die Set for RDB-050
DS-180-1000T-R350 1 in Round Tube, 3.5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1000T-R400 1 in Round Tube, 4 in CLR, 180 Degree Die Set for RDB-050
DS-180-1250T-R400 1-1/4 in Round Tube, 4 in CLR, 180 Degree Die Set for RDB-050
DS-180-1250T-R450 1-1/4 in Round Tube, 4.5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1250T-R500 1-1/4 in Round Tube, 5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1375T-R400 1-3/8 in Round Tube, 4 in CLR, 180 Degree Die Set for RDB-050
DS-180-1375T-R450 1-3/8 in Round Tube, 4.5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1375T-R500 1-3/8 in Round Tube, 5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1500T-R500 1-1/2 in Round Tube, 5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1500T-R550 1-1/2 in Round Tube, 5.5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1500T-R600 1-1/2 in Round Tube, 6 in CLR, 180 Degree Die Set for RDB-050
DS-180-1625T-R600 1-5/8 in Round Tube, 6 in CLR, 180 Degree Die Set for RDB-050
DS-180-1625T-R650 1-5/8 in Round Tube, 6.5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1750T-R600 1-3/4 in Round Tube, 6 in CLR, 180 Degree Die Set for RDB-050
DS-180-1750T-R650 1-3/4 in Round Tube, 6.5 in CLR, 180 Degree Die Set for RDB-050
DS-180-1750T-R700 1-3/4 in Round Tube, 7 in CLR, 180 Degree Die Set for RDB-050
DS-180-2000T-R600 2 in Round Tube, 6 in CLR, 180 Degree Die Set for RDB-050
DS-180-2000T-R650 2 in Round Tube, 6.5 in CLR, 180 Degree Die Set for RDB-050
DS-180-2000T-R700 2 in Round Tube, 7 in CLR, 180 Degree Die Set for RDB-050
DS-180-2500T-R700 2-1/2 in Round Tube, 7 in CLR, 180 Degree Die Set for RDB-050
90 Degree Die Sets
DS-90-0750T-R300 3/4 in Round Tube, 3 in CLR, 90 Degree Die Set for RDB-050
DS-90-0875T-R300 7/8 in Round Tube, 3 in CLR, 90 Degree Die Set for RDB-050
DS-90-1000T-R300 1 in Round Tube, 3 in CLR, 90 Degree Die Set for RDB-050
DS-90-1000T-R350 1 in Round Tube, 3.5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1000T-R400 1 in Round Tube, 4 in CLR, 90 Degree Die Set for RDB-050
DS-90-1250T-R400 1-1/4" Round Tube, 4 in CLR, 90 Degree Die Set for RDB-050
DS-90-1250T-R450 1-1/4 in Round Tube, 4.5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1250T-R500 1-1/4 in Round Tube, 5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1375T-R400 1-3/8 in Round Tube, 4 in CLR, 90 Degree Die Set for RDB-050
DS-90-1375T-R450 1-3/8 in Round Tube, 4.5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1375T-R500 1-3/8 in Round Tube, 5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1500T-R500 1-1/2 in Round Tube, 5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1500T-R550 1-1/2 in Round Tube, 5.5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1500T-R600 1-1/2 in Round Tube, 6 in CLR, 90 Degree Die Set for RDB-050
DS-90-1625T-R600 1-5/8 in Round Tube, 6 in CLR, 90 Degree Die Set for RDB-050
DS-90-1625T-R650 1-5/8 in Round Tube, 6.5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1750T-R600 1-3/4 in Round Tube, 6 in CLR, 90 Degree Die Set for RDB-050
DS-90-1750T-R650 1-3/4 in Round Tube, 6.5 in CLR, 90 Degree Die Set for RDB-050
DS-90-1750T-R700 1-3/4 in Round Tube, 7 in CLR, 90 Degree Die Set for RDB-050
DS-90-2000T-R600 2 in Round Tube, 6 in CLR, 90 Degree Die Set for RDB-050
DS-90-2000T-R650 2 in Round Tube, 6.5 in CLR, 90 Degree Die Set for RDB-050
DS-90-2000T-R700 2 in Round Tube, 7 in CLR, 90 Degree Die Set for RDB-050
DS-90-2500T-R700 2-1/2 in Round Tube, 7 in CLR, 90 Degree Die Set for RDB-050

1006768
MANUALLY OPERATED TUBE AND PIPE BENDER, 2-1/2 TUBE CAPACITY, INCLUDES STAND, HANDLE ** WEIGHT = 310 LBS / MADE IN CHINA
Mfg. item #: 1006768
BAIRDB-050
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,693.03

19
1003649
DIE SET 3/4IN (19MM) OD 180 DEG 3IN (76MM) CLR
Mfg. item #: 1003649
BAIDS-180-07{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$435.19

11
1003650
DIE SET 7/8IN (22MM) OD 180 DEG 3IN (76MM) CLR
Mfg. item #: 1003650
BAIDS-180-08{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$435.19

11
1003652
DIE SET 1IN (25MM) OD 180 DEG 3IN (76MM) CLR
Mfg. item #: 1003652
BAIDS-180-10{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$435.19

11
1003653
DIE SET 1IN (25MM) OD 180 DEG 3 1/2IN (89MM) CLR
Mfg. item #: 1003653
BAIDS-180-10{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$410.94

11
1003654
DIE SET 1IN (25MM) OD 180 DEG 4IN (102MM) CLR
Mfg. item #: 1003654
BAIDS-180-10{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$521.18

11
1003658
DIE SET 1 1/4IN (32MM) OD 180 DEG 4IN (102MM) CLR
Mfg. item #: 1003658
BAIDS-180-12{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$549.84

11
1003659
DIE SET 1 1/4IN (32MM) OD 180 DEG 4.5IN (114MM) CLR
Mfg. item #: 1003659
BAIDS-180-12{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$534.98

11
1003660
1-1/4 ROUND TUBE, 5 CLR, 180 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003660
BAIDS-180-12{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$536.82

11
1003661
DIE SET 1 3/8IN (35MM) OD 180 DEG 4IN (102MM) CLR
Mfg. item #: 1003661
BAIDS-180-13{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$549.84

11
1003662
1-3/8 ROUND TUBE DIE SET, 4.5 CLR (RDB-050, 180 DEGREE )
Mfg. item #: 1003662
BAIDS-180-13{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$534.98

11
1003663
1-3/8 ROUND TUBE, 5 CLR, 180 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003663
BAIDS-180-13{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$490.57

11
1003665
DIE SET 1 1/2IN (38MM) OD 180 DEG 5IN (127MM) CLR
Mfg. item #: 1003665
BAIDS-180-15{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$490.57

11
1003666
1-1/2 ROUND TUBE, 5.5 CLR, 180 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003666
BAIDS-180-15{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$580.00

11
1003667
DIE SET 1 1/2IN (38MM) OD 180 DEG 6IN (152MM) CLR
Mfg. item #: 1003667
BAIDS-180-15{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$718.14

11   1
1003668
DIE SET 1 5/8IN (41MM) OD 180 DEG 6IN (152MM) CLR
Mfg. item #: 1003668
BAIDS-180-16{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$718.14

11
1003669
1-5/8 ROUND TUBE, 6.5 CLR, 180 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003669
BAIDS-180-16{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$737.28

11
1003670
DIE SET 1 3/4IN (45MM) OD 180 DEG 6IN (152MM) CLR
Mfg. item #: 1003670
BAIDS-180-17{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$608.74

11
1003671
1-3/4 ROUND TUBE, 6.5 CLR, 180 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003671
BAIDS-180-17{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$651.11

11
1003672
DIE SET 1 3/4IN (45MM) OD 180 DEG 7IN (178MM) CLR
Mfg. item #: 1003672
BAIDS-180-17{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$758.35

11
1003673
DIE SET 2IN (51MM) OD 180 DEG 6IN (152MM) CLR
Mfg. item #: 1003673
BAIDS-180-20{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$609.00

11
1003674
DIE SET 2IN (51MM) OD 180 DEG 6 1/2IN (165MM) CLR
Mfg. item #: 1003674
BAIDS-180-20{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$651.11

11
1003675
DIE SET 2IN (51MM) OD 180 DEG 7IN (178MM) CLR
Mfg. item #: 1003675
BAIDS-180-20{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$758.35

11
1003676
2-1/2 ROUND TUBE, 7 CLR, 180 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003676
BAIDS-180-25{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,005.52

11
1003861
3/4 ROUND TUBE, 3 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003861
BAIDS-90-075{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$325.74

11
1003862
7/8 ROUND TUBE, 3 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003862
BAIDS-90-087{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$325.74

11
1003864
1 ROUND TUBE, 3 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003864
BAIDS-90-100{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$325.74

11
1003865
1 ROUND TUBE, 3.5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003865
BAIDS-90-100{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$350.00

11
1003866
1 ROUND TUBE, 4 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003866
BAIDS-90-100{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$383.07

11
1003869
1-1/4 ROUND TUBE, 4 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003869
BAIDS-90-125{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$411.73

11
1003870
1-1/4 ROUND TUBE, 4.5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003870
BAIDS-90-125{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$518.57

11
1003871
1-1/4 ROUND TUBE, 5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003871
BAIDS-90-125{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$469.06

11
1003872
1-3/8 ROUND TUBE, 4 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003872
BAIDS-90-137{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$411.73

11
1003873
1-3/8 ROUND TUBE, 4.5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003873
BAIDS-90-137{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$518.57

11
1003874
1-3/8 ROUND TUBE, 5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003874
BAIDS-90-137{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$474.27

11
1003875
1-1/2 ROUND TUBE, 5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003875
BAIDS-90-150{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$474.27

11
1003876
1-1/2 ROUND TUBE, 5.5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003876
BAIDS-90-150{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$435.19

11
1003877
1-1/2 ROUND TUBE, 6 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003877
BAIDS-90-150{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$567.28

11
1003878
1-5/8 ROUND TUBE, 6 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003878
BAIDS-90-162{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$567.28

11
1003879
1-5/8 ROUND TUBE, 6.5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003879
BAIDS-90-162{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$581.12

11
1003880
1-3/4 ROUND TUBE, 6 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003880
BAIDS-90-175{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$588.93

11
1003881
1-3/4 ROUND TUBE, 6.5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003881
BAIDS-90-175{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$514.79

11
1003882
1-3/4 ROUND TUBE, 7 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003882
BAIDS-90-175{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$599.58

11
1003883
2 ROUND TUBE, 6 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003883
BAIDS-90-200{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$588.93

11
1003884
2 ROUND TUBE, 6.5 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003884
BAIDS-90-200{01
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$590.00

11
1003885
2 ROUND TUBE, 7 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003885
BAIDS-90-200{02
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$609.00

11
1003886
2-1/2 ROUND TUBE, 7 CLR, 90 DEGREE DIE SET FOR RDB-050
Mfg. item #: 1003886
BAIDS-90-250{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$754.52

11
Freight policies for items on this page:
4: FREE expedited shipping Plus FREE residential, liftgate and call ahead service.
20: FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.
Free freight offers apply only to deliveries to the lower 48 states by truck freight or ground UPS. Liftgate and non-commercial delivery charges may be extra.
Copyright © 2021 Smith-Hamilton, Inc
0.045 150419 18:39
