Baileigh WBS-14 14 inch Woodworking Band

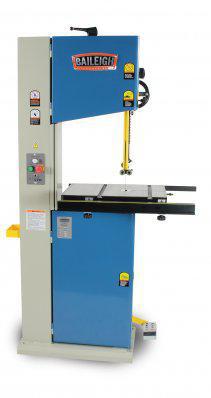

14 inch Wood Working Band Saw WBS-14

1008297

Made in Taiwan

The vertical band saw is a must in any wood working shop and the WBS-14 is the first in the Baileigh Industrial line of industrial wood working saws.  This 110 volt 1.5hp bandsaw has a large 13-5/8 inch throat depth and operates on two speeds 2300 or 3250 rpm.   A patented blade guide system helps keep the blade perfectly aligned for precise cuts.  A foot brake and quick release blade system round out the running gear of the WBS-14.

The 16 x 20 inch all cast iron table on the WBS-14, has the ability to tilt to 45 degrees.  Many accessories such as a heavy duty rip fence and miter gauge are also included.  Contact a Baileigh Industrial representative for more information.



Specifications
Model WBS-14-S
Dust Collection Port 4 inch
Number of Outlets 2
Table Size (Length) 16 inch
Table Size (Width) 20 inch
Belt/Blade Size 112 inch Long x 1/8 inch to 3/4 inch Wide
Maximum Depth of Cut (Resaw) 12 inch
Max Stock Width 13-5/8 inch
Power 110/220V Single Phase(Prewired 110V)
Length 36 inch
Width 24 inch
Height 60 inch
Horse Power 1.5
Weight (lbs) 300

specifications subject to change without notice.

There are no listed accessories.

BA9-1014217
WBS-14-S; 1.5HP 110V 14 VERTICAL WITH S-TYPE GUIDE, 16 X 20 TABLE SIZE **SHIPS LTL FREIGHT TURCK, WGT = 350 LBS & MADE IN TAIWAN

FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOINTMENT SERVICES AND NO HANDLING CHARGES
Mfg. item #: BA9-1014217
BAIWBS-14-S
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$2,244.00
