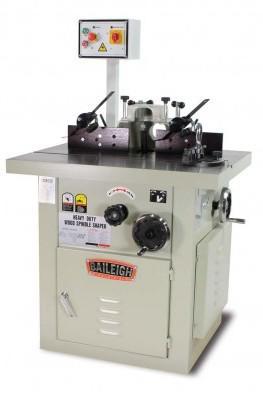

220V Single Phase 5 hp Tiltiing Spindle Shaper, 4 Speed 3600, 5100, 8000 and 10000 rpm, 35 x 28 inch Working Table, Includes 1/2, 3/4. and 1-1/4 inch Spindles, Miter Gauge, and Fence Assembly

220V Single Phase 5 hp Spindle Shape with Sliding Table, 4 Speed 3600, 5100, 8000 and 10000 rpm, 35 x 28 inch Working Table, Includes 1/2, 3/4. and 1-1/4 inch Spindles, Miter Gauge, and Fence Assembly

220V Single Phase 5 hp Tilting Spindle Shape with Sliding Table, 4 Speed 3600, 5100, 8000 and 10000 rpm, 35 x 28 inch Working Table, Includes 1/2, 3/4. and 1-1/4 inch Spindles, Miter Gauge, and Fence Assembly

22 inch Wood Working Band Saw WBS-22

1008299

Made in Taiwan

The WBS-22 vertical bandsaw is the largest in the Baileigh industrial line of woodworking bandsaws.  It has a 21-5/8 inch throat depth that incorporates a patented blade guide system helps keep the blade perfectly aligned for precise cuts.  A foot brake is also included as well as a quick change blade system.

The WBS-22 runs on 220 volt single phase power and has a 5 hp motor that operates at 4900 rpm.  The WBS-22 is built to last with its fully welded steel frame. The enormous 23 x 30 inch all cast iron table, has the ability to tilt to 45 degrees.  Many accessories such as a heavy duty rip fence and miter gauge are also included.  Contact a Baileigh Industrial representative for more information.



Specifications
Model
Dust Collection Port 4 inch
Number of Outlets 2
Table Size (Length) 23 inch
Table Size (Width) 30 inch
Belt/Blade Size 172 inch Long x 1/8 inch to 1-1/2 inch Wide
Table Tilt (degrees) 45
Maximum Depth of Cut (Resaw) 16 inch
Max Stock Width 21-5/8 inch
Power 220V Single Phase
Length 50 inch
Width 36 inch
Height 84 inch
Horse Power 5
Weight (lbs) 950

specifications subject to change without notice.
