Baileigh Welding Positioner



Welding Positioner WP-450 Welding Positioner WP-750 Welding Positioner WP-1100 Welding Rotary Table WP-11000
Welding Positioner WP-450 Welding Positioner WP-750 Welding Positioner WP-1100 Welding Rotary Table WP-11000








 Welding Positioner WP-450

Almost every fabrication shop should have an industrial welding positioner.  These simple to use machines add an element to precision to any weld job.  The WP-450 from Baileigh Industrial is no exception.  This 110v positioner will fit in any shop and help increase production by reducing the handling and maneuvering of the parts.

The Baileigh WP-450 Industrial Welding positioner has many great features, including solid state variable speed control, foot switch activation, forward/off/reverse switch control, and a durable DC permanent magnet gear head motor with easily accessible fuse for motor overload protection.

Specifications
Item Number WP-450
Country of Manufacture Taiwan
Vertical Capacity 484 lbs
Horizontal Capacity 242 lbs
Range of Movement 0-135 deg
Turntable Size 13 inch
Speed 0.4 to 4 rpm
Maximum Current 300 Amps
Drive Foot Pedal
Power 110V
Shipping Weight 150lbs
Max. Burst Current 500 Amp.
Shipping Dimensions (Inches) 22x21x21



 Welding Positioner WP-750

The WP-750 welding positioner from Baileigh Industrial is built to last using only the best components.  This 110 volt powered pipe welding machine has a 770lb capacity in the vertical position and a 385lb capacity in the horizontal position.  It is very easy to use with its foot pedal control and variable speed.

Welding positioners are great for any fabrication shop as it helps save time and money by reducing the handling of parts and almost eliminating the waste caused by inaccurate welds.  For more information contact a Baileigh Industrial representative.

  • Table capacity 770 lbs
  • Variable speed
  • 110Vu Foot pedal operated
  • Easy to use manual tilt
  • 135 deg of tilt
  • 13 inch turn table
Specifications
Item Number WP-750
Country of Manufacture Taiwan
Vertical Capacity 770 lbs.
Horizontal Capacity 385 lbs.
Range of Movement 0 to 135 Degrees
Turntable Size 13 inch
Speed 0.3 to 4 rpm
Maximum Current 300 Amps
Drive Foot Pedal
Power 110V
Shipping Weight 175lbs
Max. Burst Current 500 Amp.
Shipping Dimensions (Inches) 23x23x23



 Welding Positioner WP-1100

If you are in the need for perfect welds on parts that need a lot of handling, then a welding positioner is what you need.  Turntable positioners feature a large table on the top that rotates at a slow pace to help create accurate welds, which in turn creates less waste.

The largest of the turntable style positioners from Baileigh Industrial is the WP-1100.  This heavy duty rotating positioner has a vertical capacity of 1100lbs.  Even though it is a robust heavy duty this great machine operates on only 110 volts making it perfect for any shop.

  • Table capacity 1100 lbs
  • Variable speed 110V
  • Foot pedal operated
  • Easy to use manual tilt
  • 135 deg of tilt
  • 19.5 inch turn table
Specifications
Item Number WP-1100
Country of Manufacture Taiwan
Vertical Capacity 1,100 lbs.
Horizontal Capacity 550 lbs.
Range of Movement 0 to 135 Degrees
Turntable Size 19 inch
Maximum Current 300 Amps
Drive Foot Pedal
Power 110V
Shipping Weight 370lbs
Max. Burst Current 500 Amp.
Shipping Dimensions (Inches) 28x29x25

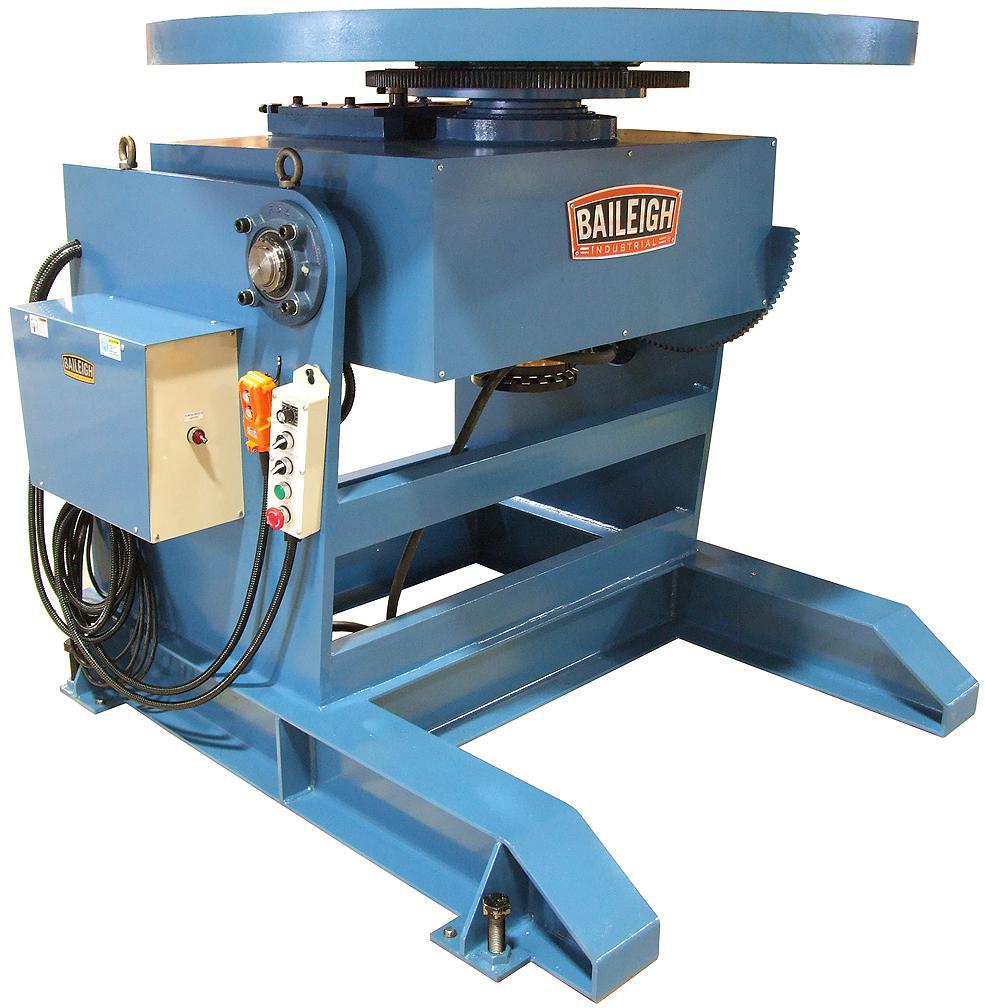

Welding Rotary Table WP-11000

Have a need for perfect welds on extra heavy parts?  Then the WP-11000 welding positioner is perfect for you.  This turntable positioner features a large table on the top that rotates at a slow pace that is variable from .02 to .2 rpm to help create accurate welds, which in turn creates less waste.

Operating on 440 Volt three phase power the WP-11000 is one of the largest of the turntable style positioners from Baileigh Industrial.  This heavy duty rotating positioner has a vertical capacity of 11000 lbs or 5.5 tons.

  • Table capacity 11000 lbs
  • Variable speed 440V Three Phase
  • Foot pedal operated
  • Easy to use automatic tilt
  • 135 deg of tilt
  • 51 inch turn table
Specifications
Item Number WP-11000
Country of Manufacture Taiwan
Vertical Capacity 11,000 lbs.
Horizontal Capacity 5000 lbs.
Range of Movement 0 to 135 Degrees
Turntable Size 51 inch
Maximum Current 300 Amps
Drive Foot Pedal
Power 440 Volt 3 Phase
Shipping Weight 5000lbs
Max. Burst Current 500 Amp.
Special Notes Contact Baileigh for information if to be used with TIG welding processes
Shipping Dimensions (Inches) 96x96x60



Welding Equipment Options

  • 12" turntable adapter plate
  • 16" turntable adapter plate

BA9-1008396
110V 13 WELDING POSITIONER, 450 LBS CAPACITY AND 90 DEGREES / MADE IN TAIWAN / WGT = 150 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1008396)ADD TO CART NOW FOR FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1008396
BAIWP-450
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,239.00

4
BA9-1008397
110V 13 WELDING POSITIONER, 770 LBS CAPACITY AND 90 DEGREES / MADE IN TAIWAN / WGT = 175 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1008397)ADD TO CART NOW FOR FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1008397
BAIWP-750
lease to own for as little as:$56 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,819.00

4
BA9-1008392
110V 19.5 WELDING POSITIONER, 1100 LBS CAPACITY AND 90 DEGREES / MADE IN TAIWAN / WGT = 370 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1008392) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1008392
BAIWP-1100
lease to own for as little as:$100 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$5,169.00

4
BA9-1013569
NEW - WP-11000; 440V THREE PHASE 54 WELDING POSITIONER, 11000 LBS CAPACITY (SKU1013569)ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1013569
BAIWP-11000
lease to own for as little as:$983 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$53,019.00

4
