Baileigh RDB-150 and RDB-150AS Rotary Draw Bender

Tube Bender - RDB-150usa.jpg

s-h alt

s-h alt        s-h alt

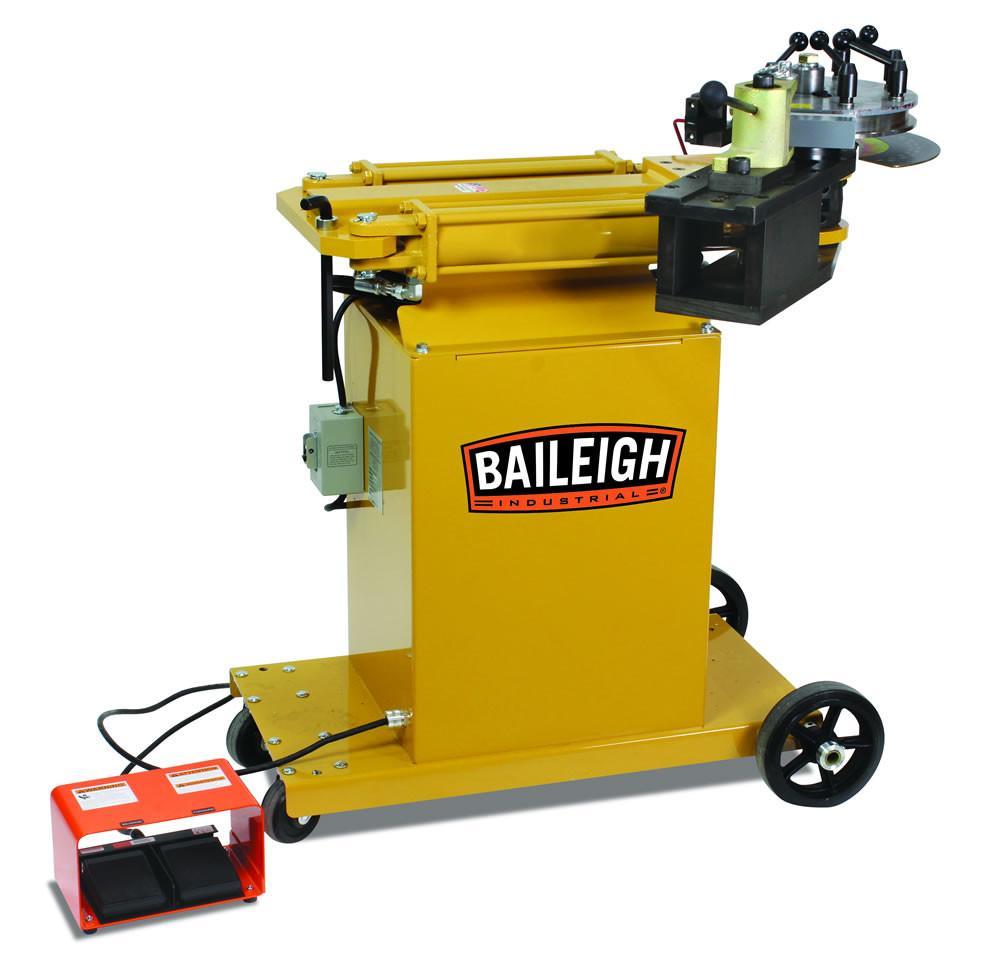

Tube Bender - RDB-150

Made in United States

  • RDB-150 Tube Bender Tooling Options
  • Die Sets and Packages
  • Rotary Draw Benders RDB-Series

The RDB-150 tube bender from Baileigh Industrial broke new ground in 2002 when it became the first hydraulic tube bender to consistently and accurately bend tube and pipe to 180 degrees in one shot.  Since then we now have thousands in the field working as well today as they did the day they were made.  The RDB-150 is the perfect bender for small to medium fabrication shops looking to save time and money.

The RDB-150 uses a low pressure industrial grade hydraulic system that operated on 110 volts.  This industrial grade system allows the RDB-150 to bend 2 inch Schedule 40 pipe and up to 2-1/2 inch tubing with a wall thickness of .120" mild steel.  The RDB-150 has an 8 inch centerline radius maximum, depending on the outside diameter of the material being bent.  The RDB-150 accepts all Baileigh Industrial drop on tooling, giving you thousands of choices for your application.  Baileigh Industrial will also make custom tooling sets if the need arises.

Other features of the RDB-150 are an easy to read degree indicator and quick release counter die system, which allows the pipe bender to be loaded and unloaded quickly.  The base of the RDB-150 tube bender also includes wheels, this help with shops that are especially small and allows the bender to be pushed out of the way when not in use.

For more information on the RDB-150 contact a Southern-Tool representative.





Pipe Bender RDB-150-AS

Made in United States

  • RDB-150AS Tube Bender Tooling Options
  • Die Sets and Packages
  • Rotary Draw Benders RDB-Series

The RDB-150-AS pipe bender is quite frankly the best buy in hydraulic pipe benders today.  The machine is based from the popular RDB-150 which broke new ground in 2002 when it became the first hydraulic tube bender to consistently and accurately bend tube and pipe to 180 degrees in one shot.  The RDB-150-AS takes the hydraulic pipe bender to the next level by adding an accurate auto stop feature that allows the operator to set a desired bend degree and the machine will stop at that degree every time, without worry.  This will allow fabrication shops to save time and money by being as efficient as they can be

The RDB-150-AS uses a low pressure hydraulic system that operates on 110 volts, but many other configurations of electrical requirements are available upon request.  This hydraulic system allows the RDB-150-AS to bend 2 inch Schedule 40 pipe and up to 2-1/2 inch tubing with a wall thickness of .120 inch mild steel.  The RDB-150-AS accepts all Baileigh Industrial drop on tooling, giving you thousands of choices for your application.  This style of tooling is preferred because the finished product possibilities are far greater then with conventional sandwiched bending die designs. Another added bonus is that If we don’t have something you need in stock, Baileigh Industrial will make custom tooling sets.

Other features of the RDB-150-AS are an easy to read degree indicator and quick release counter die system, which allows the pipe bender to be loaded and unloaded quickly.  Like the RDB-150 the base of the RDB-150-AS tube bender also includes wheels, this help with shops that are especially small and allows the bender to be pushed out of the way when not in use.

For more information on the RDB-150-AS or any other pipe bender in our line, contact a Southern-Tool representative.





Rotary Draw Die Packages
RT-1B Round Tube Die Package
RT-2B Round Tube Die Package
RT-3B Round Tube Die Package
RT-4B Round Tube Die Package
RT-5B Round Tube Die Package
RP-1B Round Pipe Die Package
RP-2B Round Pipe Die Package
RP-3B Round Pipe Die Package
ST-1B Square Tube Die Package
ST-2B Square Tube Die Package
Please Call for Individual Die Pricing and Application Information
Universal Bend Plate
UBP-1200-150 Bend Plate for RDB-150
Bend Tech Software
BT-PRO Bend Tech Pro
BT-SE Bend Tech SE
Angle Finder / Radius Gauges
ORG-3600 Outside Radius Gauge
IRG-3600 Inside Radius Gauge
AF-360D 360 deg. Digital Angle Finder (must be purchased with AF-360D-Holder)
AF-360D-HOLDER Clamp and Holder for AF-360D Angle Finder
Specifications
Model RDB-150 RDB-150-AS
Minimum CLR .5 inch
Minimum OD .25 inch
Mild Steel Solid Rod 1.25 inch
Mild Steel Pipe Schedule 40 2 inch
Mild Steel Round Tube Wall 2.5 inch (.125)
Mild Steel Square Tube (Wall) 2 inch (.125)
Stainless Steel Pipe Schedule 40 1.5 inch
Stainless Steel Round Tube Wall 2.375 inch (.125)
Chromolly Round Tube Wall 2 inch (.125)
Aluminum Round Tube Wall 2.5 inch (.156)
Maximum Center Line Radius Clr 9.5 inch 7-8 inch
Power 110V
Shipping Weight 600 Lbs
Shipping Dimensions 44 x 28 x 42 inch
specifications subject to change without notice



Please call 800-458-3687 or e-mail sales@southern-tool.com
to verify work application in order to get Tubing and Pipe Die Pricing.

Tubing Die Packages

s-h alt

RT-1B Round Tubing Die Package
DS-0750T-R250  3/4" Round Tube Die Set 0.058 OD 2.5 clr
DS-0875T-R300 7/8" Round Tube Die Set 0.058 OD 3.0 clr
DS-1000T-R300 1" Round Tube Die Set 0.063 OD 3.0 clr
DS-1250T-R400 11/4" Round Tube Die Set 0.083 OD 4.0 clr
DS-1500T-R500 11/2" Round Tube Die Set 0.083 OD 5.0 clr
RT-2B Round Tubing Die Package
DS-0750T-R250 3/4" Round Tube Die Set 0.058 OD 2.5 clr
DS-0875T-R300 7/8" Round Tube Die Set 0.058 OD 3.0 clr
DS-1000T-R300 1" Round Tube Die Set 0.063 OD 3.0 clr
DS-1250T-R400 14" Round Tube Die Set 0.083 OD 4.0 clr
DS-1500T-R500 11/2" Round Tube Die Set 0.083 OD 5.0 clr
DS-2000T-R650 2" Round Tube Die Set   6.5 clr
RT-3B Racing Round Tubing Die Package
DS-1000T-R300 1" Round Tube Die Set 0.063 OD 3.0 clr
DS-1250T-R400 1 1/4" Round Tube Die Set 0.083 OD 4.0 clr
DS-1500T-R500 1 1/2" Round Tube Die Set 0.095 OD 5.0 clr
DS-1625T-R600 1 5/8" Round Tube Die Set 0.083 OD 6.0 clr
DS-1750T-R700 1 3/4" Round Tube Die Set 0.083 OD 7.0 clr

Square Tubing Die Packages
ST-1B Square Tubing Die Package
DS-0500S-R300 1/2" Square Tube Die Set 3.0 clr
DS-0750S-R350 3/4" Square Tube Die Set 3.5 clr
DS-1000S-R450 1" Square Tube Die Set 4.5 clr
DS-1250S-R550 1 1/4" Square Tube Die Set 5.5 clr
DS-1500S-R650 1 1/2" Square Tube Die Set 6.5 clr
ST-2B Square Tubing Die Package
DS-0500S-R300 1/2" Square Tube Die Set 3.0 clr
DS-0750S-R350 3/4" Square Tube Die Set 3.5 clr
DS-1000S-R450 1" Square Tube Die Set 4.5 clr
DS-1250S-R550 1 1/4" Square Tube Die 5.5 clr
DS-1500S-R650 1 1/2" Square Tube Die 6.5 clr
DS-2000S-R700 2" Square Tube Die Set 7.0 cir
ST-3B Square Tubing Die Package
DS-0500S-R300 1/2" Square Tube Die Set  3.0 clr
DS-0750S-R350 3/4" Square Tube Die Set 3.5 clr
DS-1000S-R450 1" Square Tube Die Set 4.5 clr
DS-1250S-R550 1 1/4" Square Tube Die Set 5.5 clr
DS-1500S-R650 1 1/2" Square Tube Die Set  6.5 clr
DS-2000S-R700 2" Square Tube Die Set 7.0 clr

HUNDREDS OF SIZES AVAILABLE. These are some of the common die packages with separate part numbers for your convenience. To ensure proper tooling for your application, consult a Southern Tool representative. All pipe packages based on Schedule 40 pipe.



Please call 800-458-3687 or e-mail sales@southern-tool.com
to verify work application in order to get Tubing and Pipe Die Pricing.

Sch 40 Pipe Die Packages

s-h alt

RP-1B Round Pipe Die Package
DS-0500P-R250 1/2" Pipe Die Set .840 OD 2.5 clr
DS-0750P-R300 3/4" Pipe Die Set 1.050 OD 3.0 clr
DS-1000P-R300 1" Pipe Die Set  1.315 OD 3.0 clr
DS-1250P-R400 1 1/4" Pipe Die Set  1.660 OD 4.0 clr
DS-1500P-R500 1 1/2" Pipe Die Set  1.900 OD 5.0 clr
RP-2B Round Pipe Die Package
DS-0500P-R250 1/2" Pipe Die Set 0.840" OD 2.5 clr
DS-0750P-R300 3/4" Pipe Die Set 1.050" OD 3.0 clr
DS-1000P-R300 1" Pipe Die Set 1.315" OD 3.0 clr
DS-1250P-R400 1 1/4" Pipe Die Set 1.660" OD 4.0 clr
DS-1500P-R500 1 1/2" Pipe Die Set 1.900" OD 5.0 clr
DS-2000P-R600 2" Pipe Die Set 3.375" OD 6.0 clr
RP-3B Round Pipe Hand Rail Die Package
DS-1250P-R300 1 1/4" Pipe Die Set 1.660" OD 3.0 clr
DS-1500P-R375 1 1/2" Pipe Die Set 1.900" OD 3.75 clr

HUNDREDS OF SIZES AVAILABLE. These are some of the common die packages with separate part numbers for your convenience. To ensure proper tooling for your application, consult a Southern Tool representative. All pipe packages based on Schedule 40 pipe.





RDB-150
Mfg. item #: RDB-150
BAIRDB-150
lease to own for as little as:$113 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,790.25

109
RDB-150-AS
Mfg. item #: RDB-150-AS
BAIRDB-150-AS
lease to own for as little as:$125 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,360.25

109
RT-1B
ROUND TUBING DIE PACKAGE - 3/4 @ 2.5CLR - 7/8 @ 3CLR 1 @ 3CLR 1.25 @ 4CLR - 1.5@ 5CLR
Mfg. item #: RT-1B
BAIRT-1B
FREE shipping when ordered with a machine from this manufacturer.20
$2,231.00

1457
RT-2B
ROUND TUBING DIE PACKAGE - 3/4@2.5CLR -7/8@ 3CLR 1@3CLR- 1.25@4CLR -1.5@5CLR- 2@7CLR
Mfg. item #: RT-2B
BAIRT-2B
lease to own for as little as:$63 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$3,174.00

1457
RT-3B
ROUND TUBING RACING DIE PACKAGE - 1@3CLR - 1.25@4CLR - 1.5@5CLR - 1.625@6CLR - 1.75@7CLR
Mfg. item #: RT-3B
BAIRT-3B
lease to own for as little as:$62 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$3,105.00

1457
RT-4B
OFF ROAD STARTER PACKAGE, INCLUDES DS-1000T-R300 AND DS-1750T-R600
Mfg. item #: RT-4B
BAIRT-4B
FREE shipping when ordered with a machine from this manufacturer.20
$1,123.32

1457
RT-5B
ROUND TUBE DIE PACKAGE - ROTARY DRAW BENDERS
Mfg. item #: RT-5B
BAIRT-5B
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,020.16

1953
RP-1B
Mfg. item #: RP-1B
BAIRP-1B
FREE shipping when ordered with a machine from this manufacturer.20
$2,279.76

1457
RP-2B
Mfg. item #: RP-2B
BAIRP-2B
lease to own for as little as:$61 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$3,031.40

1457
RP-3B
Mfg. item #: RP-3B
BAIRP-3B
FREE shipping when ordered with a machine from this manufacturer.20
$890.56

1457
ST-1B
Mfg. item #: ST-1B
BAIST-1B
lease to own for as little as:$79 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$3,960.60

1457
ST-2B
Mfg. item #: ST-2B
BAIST-2B
lease to own for as little as:$104 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$5,175.00

1457
UBP-1200-150
BEND PLATE FOR RDB-150 - UNIVERSAL BEND PLATE
Mfg. item #: UBP-1200-150
BAIUBP-1200-150
FREE shipping when ordered with a machine from this manufacturer.20
$1,317.35

1265
BT-PRO
BEND-TECH PRO TUBE AND PIPE BENDING SOFTWARE IS A LOWER COST ALTERNATIVE TO SE.
Mfg. item #: BT-PRO
BAIBT-PRO
Ships FREE via UPS to lower 48 states.5
$296.00

155
BT-SE
Mfg. item #: BT-SE
BAIBT-SE
FREE shipping when ordered with a machine from this manufacturer.20
$565.66

1265
ORG-3600
ARC MASTER OUTSIDE RADIUS GAUGE
Mfg. item #: ORG-3600
BAIORG-3600
Ships FREE via UPS to lower 48 states.5
$175.00

155
IRG-3600
ARC MASTER INSIDE RADIUS GAUGE
Mfg. item #: IRG-3600
BAIIRG-3600
Ships FREE via UPS to lower 48 states.5
$175.00

155
AF-360D
DIGITAL ANGLE FINDER ACCURACY TO .02 DEGREES
Mfg. item #: AF-360D
BAIAF-360D
Ships FREE via UPS to lower 48 states.5
$44.00

155
AF-360D-HOLDER
CLAMP AND HOLDER FOR AF-360D ANGLE FINDER, WILL ACCEPT UP TO 3 SCHEDULE 40 PIPE
Mfg. item #: AF-360D-HOLDER
BAIAF-360D-H{00
Ships FREE via UPS to lower 48 states.5
$105.00

155
