Baileigh BB-4816 Box & Pan Brake

Heavy Duty Box and Pan Brake BB-4816

Made in Taiwan

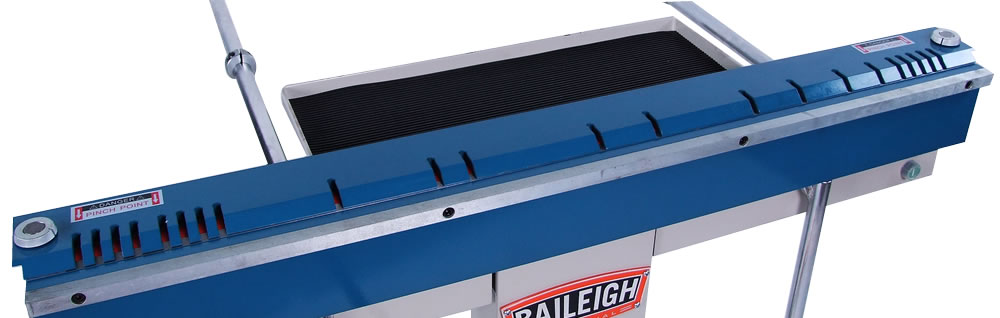

When looking for a high quality 4ft box and pan brake, look no further than the BB-4816 from Baileigh Industrial.  The BB-4816 is the perfect brake for any fabrication shop looking for a top of the line high quality light gauge sheet metal brake.  The BB-4816 sheet metal brake uses a fully welded main beam and apron for maximum rigidity and lessens the chances of deformation to the material being bent.  The BB-4816 was designed to accept 48 inch wide sheets of 16 gauge mild steel sheet metal and bend them to perfect angles every time.   To assist with bending at full capacity the BB-4816 box and pan brake includes a heavy duty counter balance weight; this weight will save time and energy for the operator.

The BB-4816 can be bench mounted or can be permanently place upon the included heavy duty stand.  16 hardened fingers of different lengths are also included to assist in fabricating as many different sizes of boxes and pans imaginable.

The BB-4816 box and pan brake is typically in stock for quick shipments.  Call and talk to a representative for more information.

Specifications
Model BB-4816
Thickness (SS) 16 ga. (20 ga.)
Stand Yes
Beam Adjustment .625 inch
Beam Lift Max 1.75 inch
Bend Angle 0 - 135 degree
Finger Sizes 2, 3, 4 inch
Power Manual
Shipping Weight 550 lbs.
Length 48 inch
Shipping Dimensions 64 x 27 x 32 inch



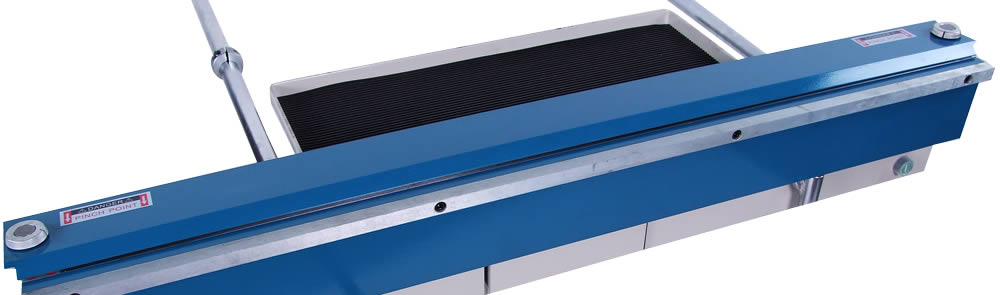

Magnetic Sheet Metal Brake BB-4816M

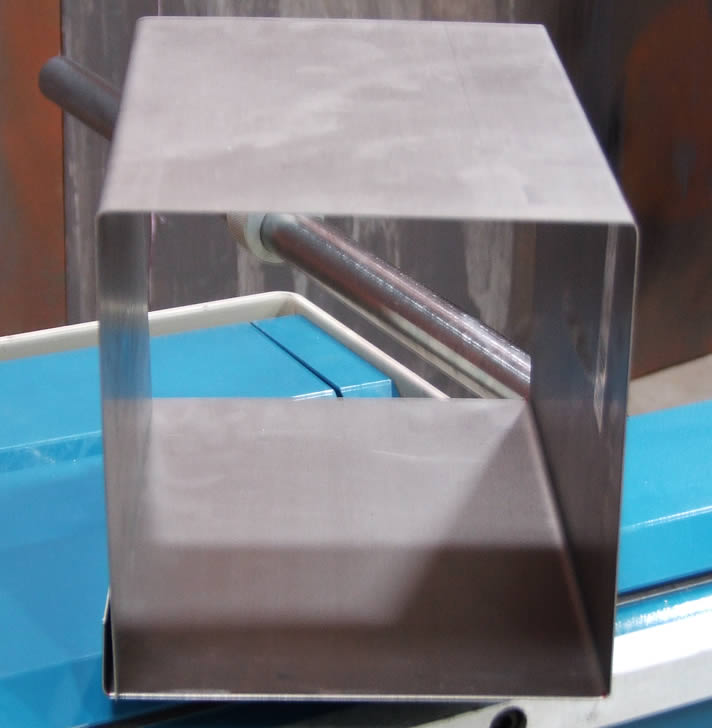

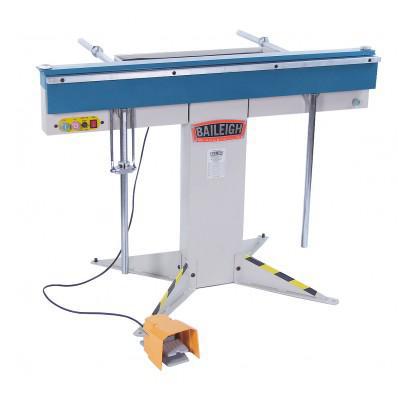

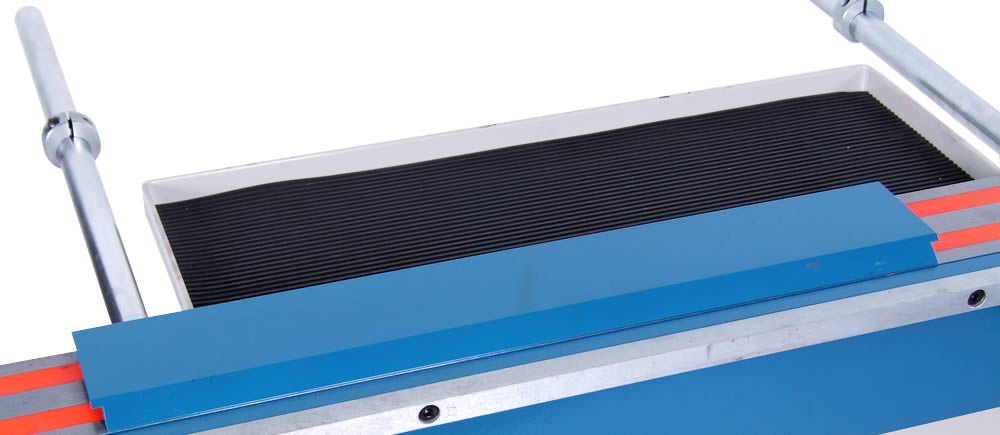

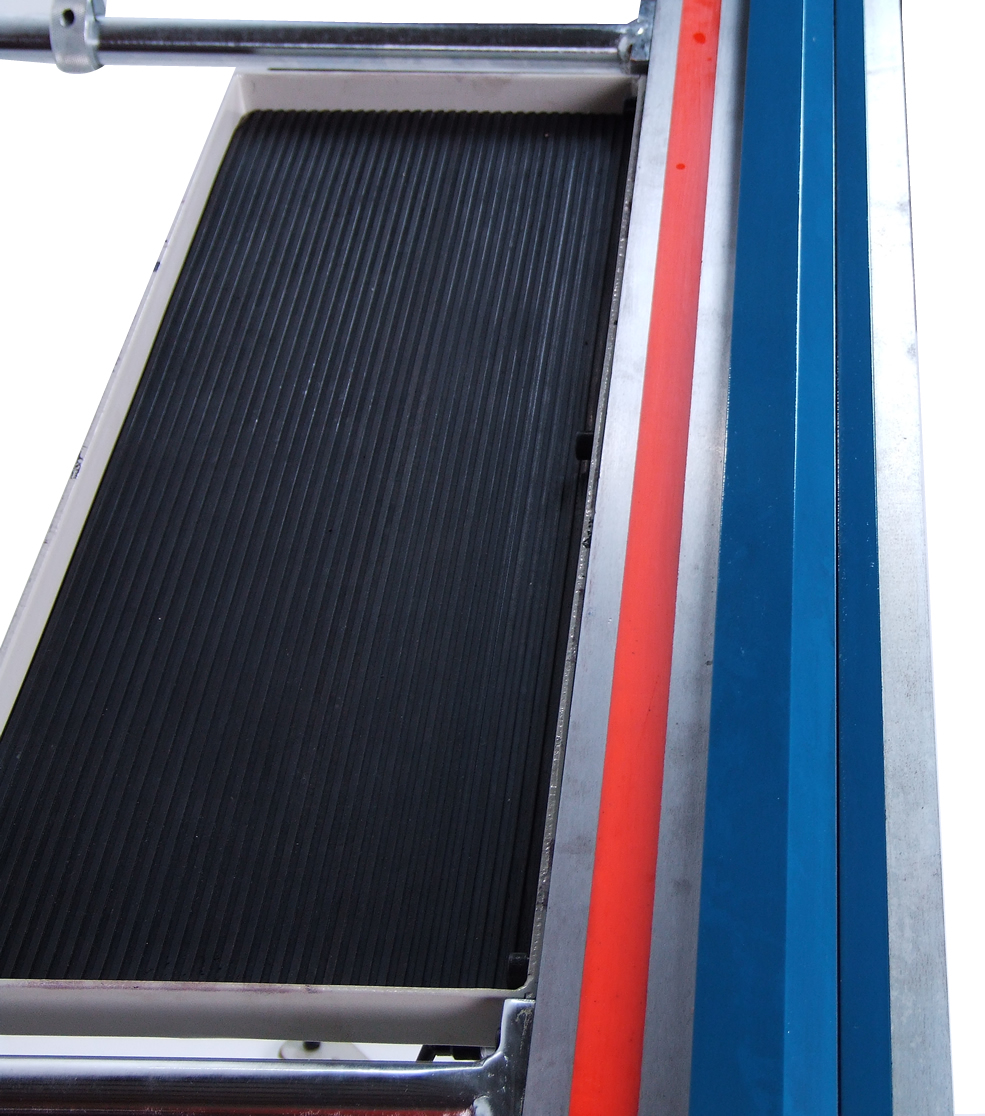

The BB-4816M magnetic sheet metal brake is a unique box and pan brake that has endless bending possibilities when compared to conventional sheet metal brakes.  Requiring a common 220 volt, single phase power supply this folding machine can bend boxes or pans to almost any depth since it isn't reliant on conventional finger depths.  A powerful magnet in the bending bed can be engaged by foot pedal or push button control to hold down a mild steel clamping bar of almost any configuration across the bed width or bed length.  The sheet metal is pinned between the magnetic mild steel clamping bar, at this point the bottom bending leaf can be lifted to complete the bend.

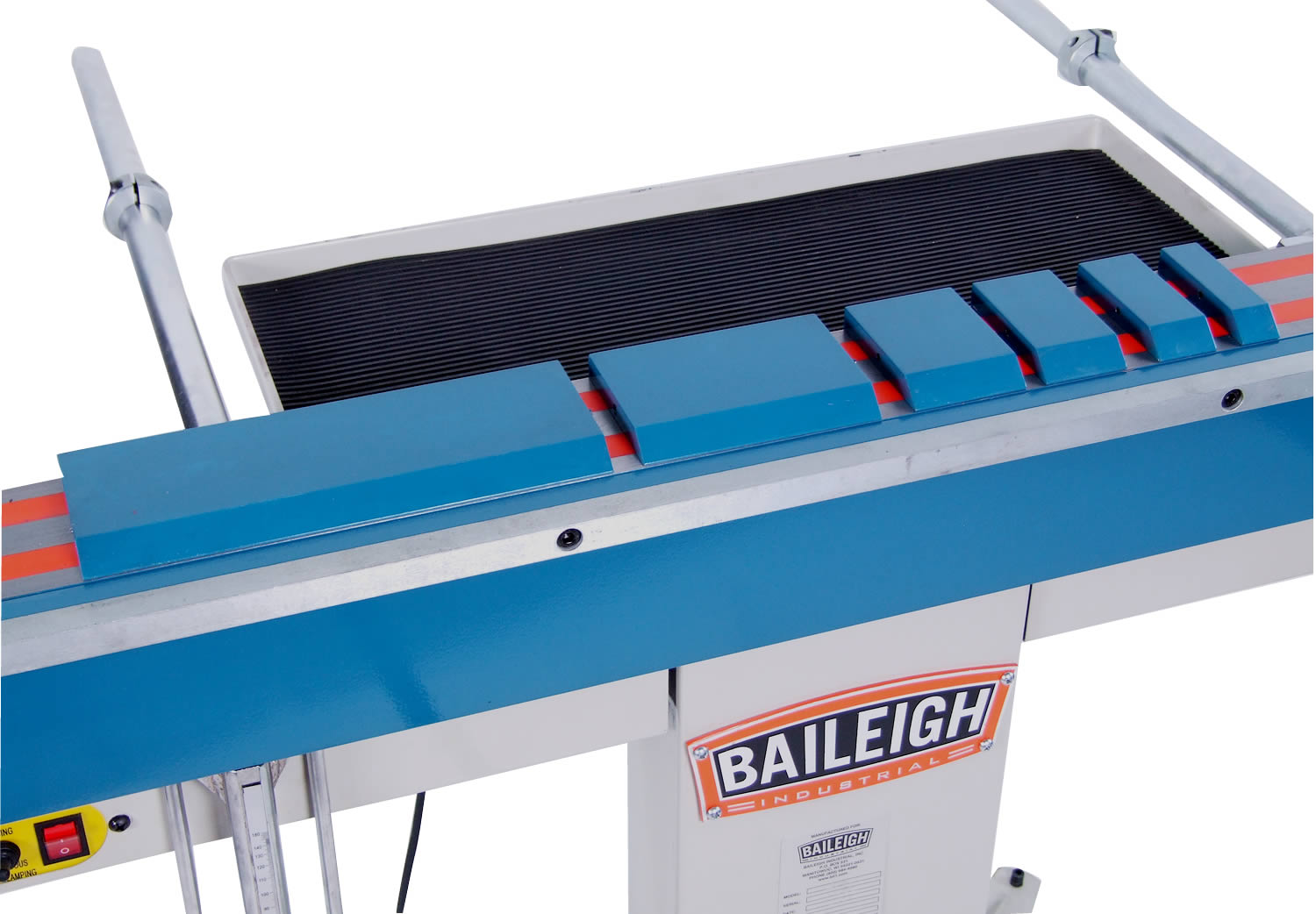

The mild steel clamping bar can be made of straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications of any other configuration. Again, because of the unique design the operator is not limited to the depth of the item since you are no longer limited by finger length.

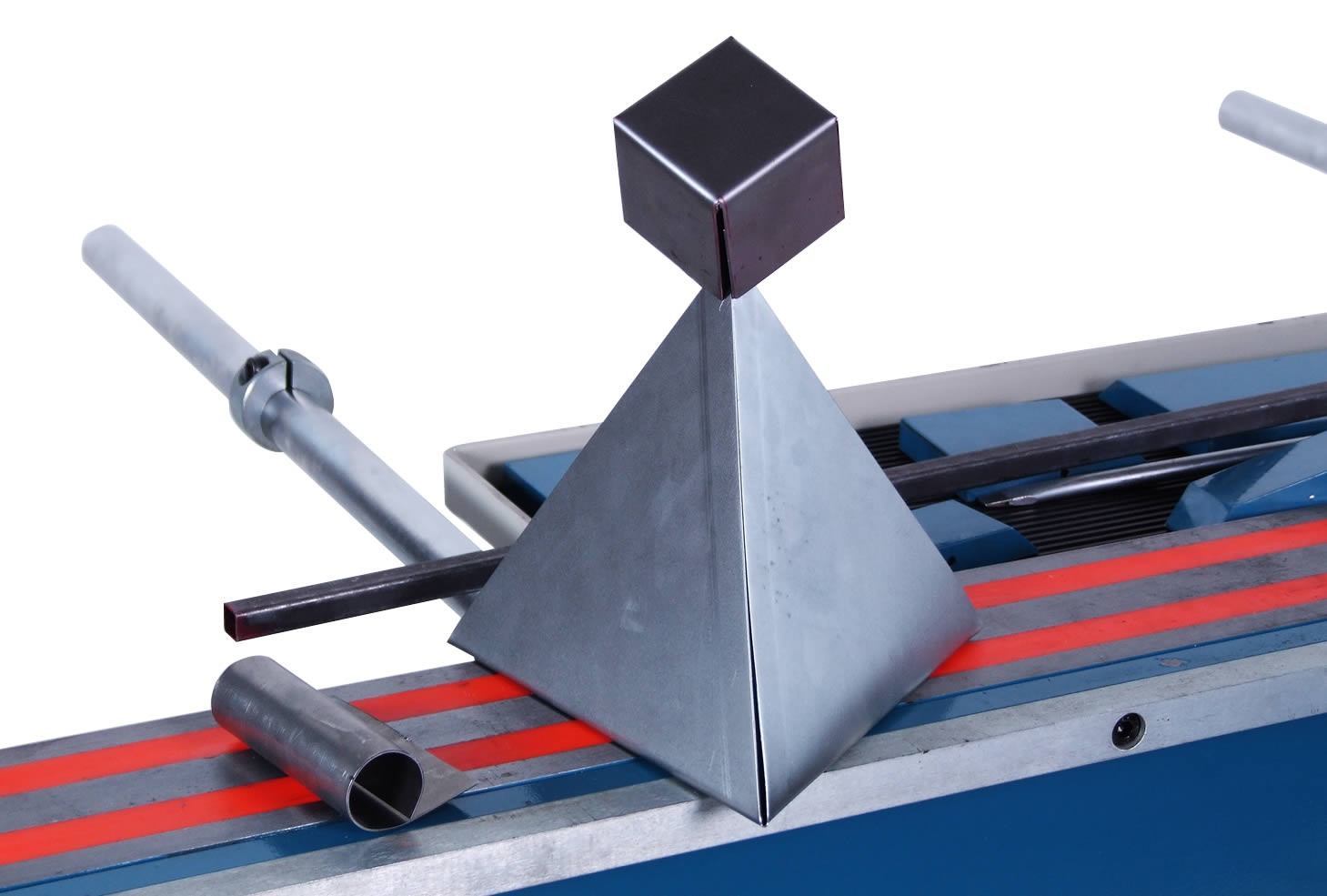

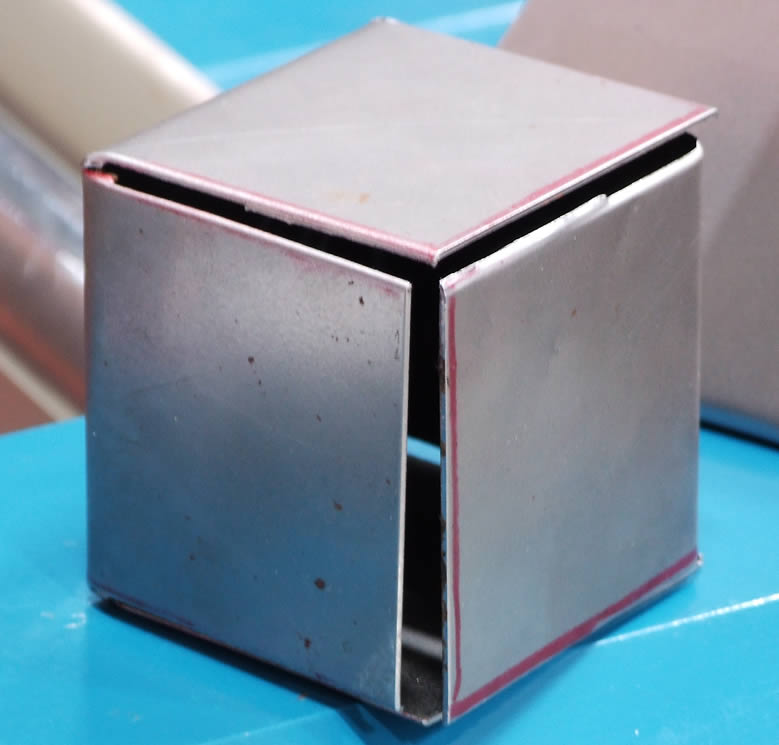

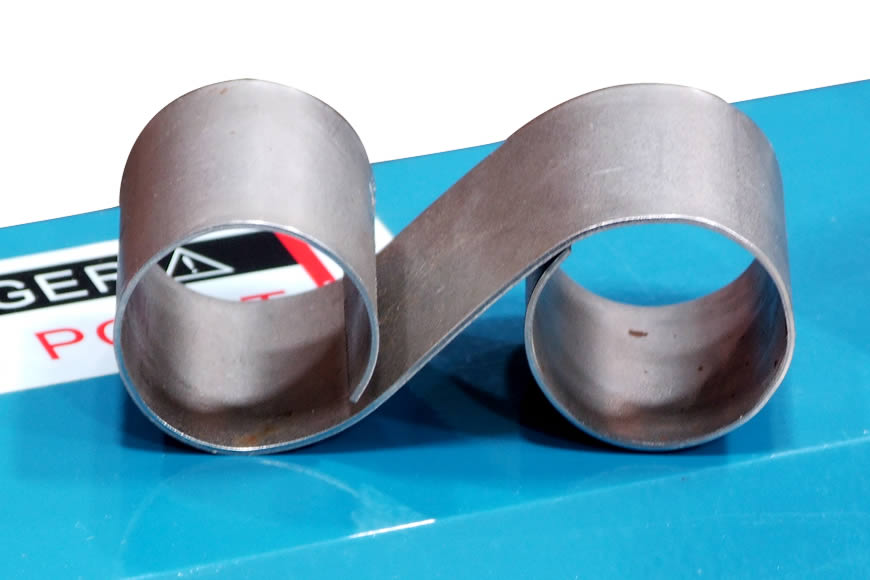

Our BB-4816M magnetic sheet metal brake can bend (items impossible for traditional box and pan brakes) totally enclosed boxes, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more.  This bending machine is perfect for bending sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and much more.

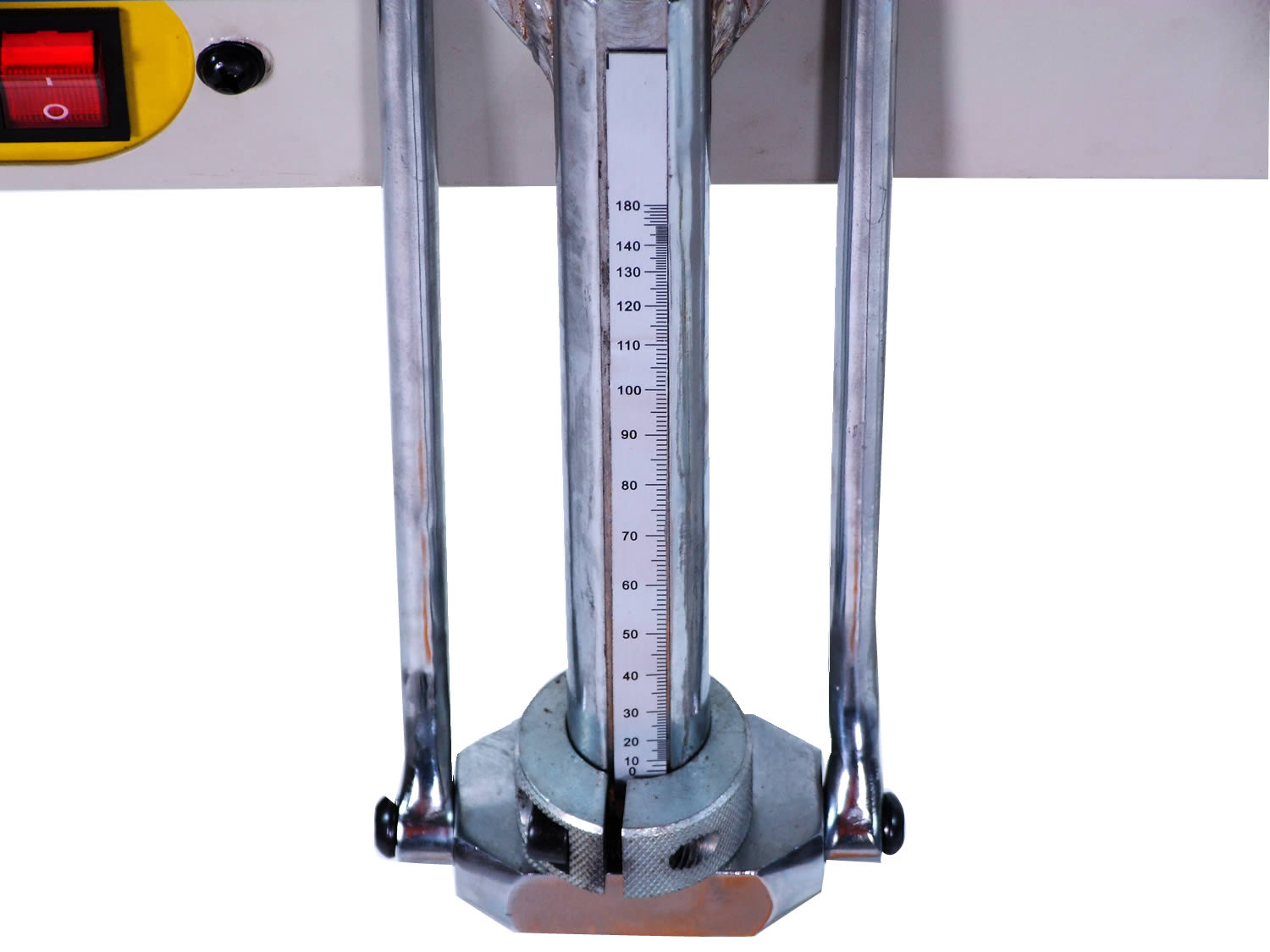

The bottom leaf's bending extension can be removed for the tightest bend dimension between bends of 5/8 inch.  A scaled stroke angle control can be set for repeatable bends time after time.  This magnetic box and pan brake comes with product supports and adjustable back gauges for production runs, as well as a simple to use gap adjustments on the standard clamping bars for different sheet metal thicknesses.

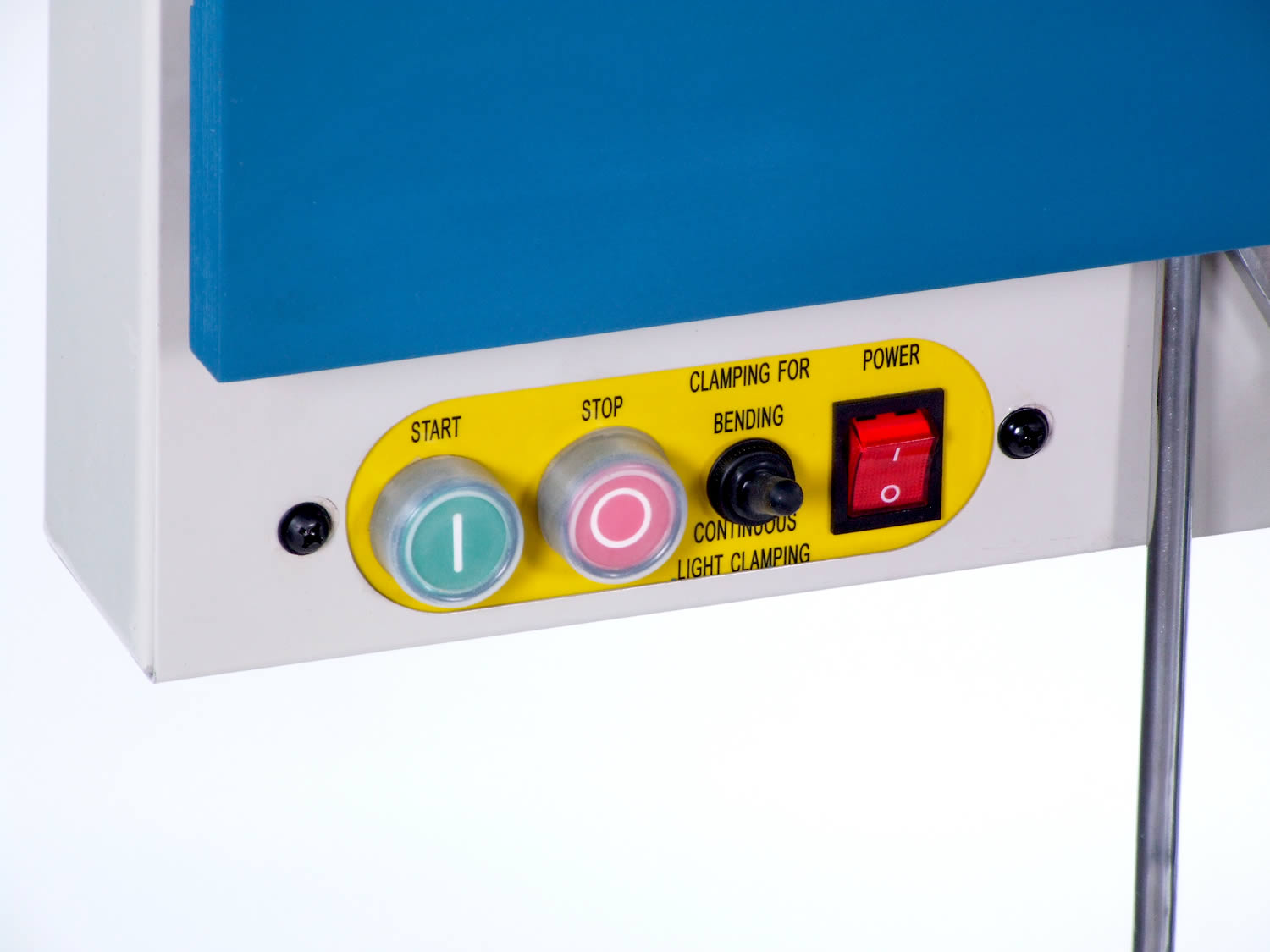

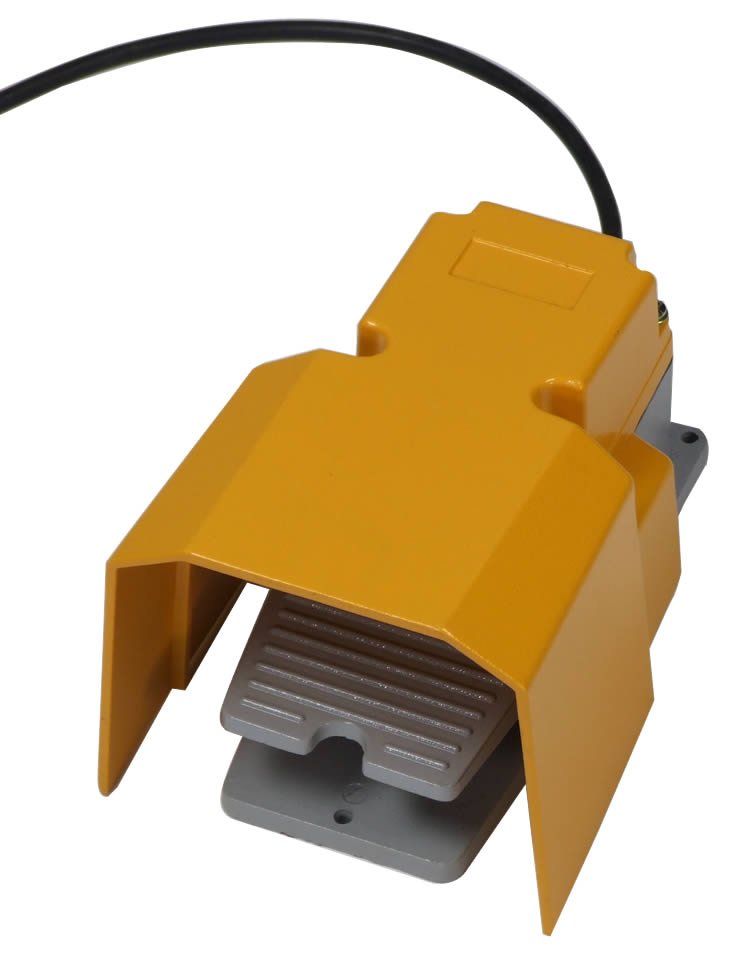

To initiate a bend on the BB-4816M simply put a piece of material between the clamping bar to the depth required, hit the foot pedal control that softly clamps the material (this is done for operator safety so fingers are safely out of the machine) allowing for any repositioning, once ready, lifting the leaf arms engages full magnetic power (6 tons) holding the material in place as the leaf arm makes the appropriate bend.One of the biggest advantages of this type of box and pan brake is that the magnetic power of 6 tons is consistent across the entire beam allowing for very crisp bends even in the middle of the machine.

The BB-4816M magnetic box and pan brake is truly a breakthrough from the limits of traditional metal brakes.  It is the perfect folding machine for HVAC shops, industrial art shops, and general sheet metal fabrication shops.  For further information on this unique sheet metal brake, please contact your Baileigh Industrial representative.  This piece of fabrication machinery is typically in stock for quick shipments.

Specifications
Model BB-4816M
Thickness (SS) 16 ga. (20 ga.)
Box Depth Unlimited
Clamping Force 6 ton
Bend Angle 0 - 180 degree
Max. Clamping Bar Lift Magnet Unlimited
Power 220V / 1-phase
Shipping Weight 462 lbs.
Length 48 inch
Shipping Dimensions 57 x 44 x 34 inch



There are no listed accessories.

BA9-1000460
Mfg. item #: BA9-1000460
BAIBB-4816
lease to own for as little as:$54 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,709.00

5
BA9-1000490
Mfg. item #: BA9-1000490
BAIBB-4816M
lease to own for as little as:$72 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,599.00

5
