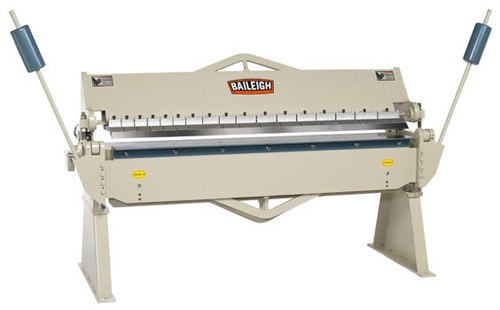

Baileigh BB-7212 Sheetmetal Brake

Manually Operated Box and Pan (Finger) Brake BB-7212

Made in Taiwan

The BB-7212 box and pan brake from Baileigh Industrial give an option to the fabrication shop when size and space is an issue.  The 72 inch length is a great compromise between the small BB-4812 and the oversized BB-9612.  It has all the same great features of those models but in a more manageable size that is perfect for the smaller HVAC or fabrication shops.

Like all Baileigh Industrial box and pan brakes, the BB-7212 has hardened fingers of varying sizes that allows the operator to choose whether they want one long straight brake or the possibility of using one of the 17 different segments to make boxes or pans of any size they want.  The unique design of the three piece fingers also allow for almost a full 6 inch box depth.

The fully welded and trussed supported frame, of the BB-7212, allows for bending of 12 gauge mild steel sheet metal over the entire 72 inch length without distortion or twisting.  Less distortion equals better quality bends.  The BB-7212 box and pan brake also includes a heavy duty stand that set the beam at optimal working height.  The stand along with the two heavy duty counter balance weights makes it very easy to bend at maximum capacity.

The BB-7212 is built to offer years of service with no hassles and is typically in stock for quick deliveries.  For more information contact a customer service representative





Specifications
Model BB-7212
Min Reverse Bend .625 inch
Thickness (SS) 12 ga. (16 ga.)
Box Depth 6 inch
Beam Adjustment 1 inch
Bend Angle 0 - 135 degree
Finger Sizes 3, 4, 5, 6 inch
Power Manual
Shipping Weight 2,420 lbs.
Length 72 inch
Shipping Dimensions 97 x 34 x 44 inch



There are no listed accessories.

BB-7212
Mfg. item #: BB-7212
BAIBB-7212
lease to own for as little as:$143 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,310.25
