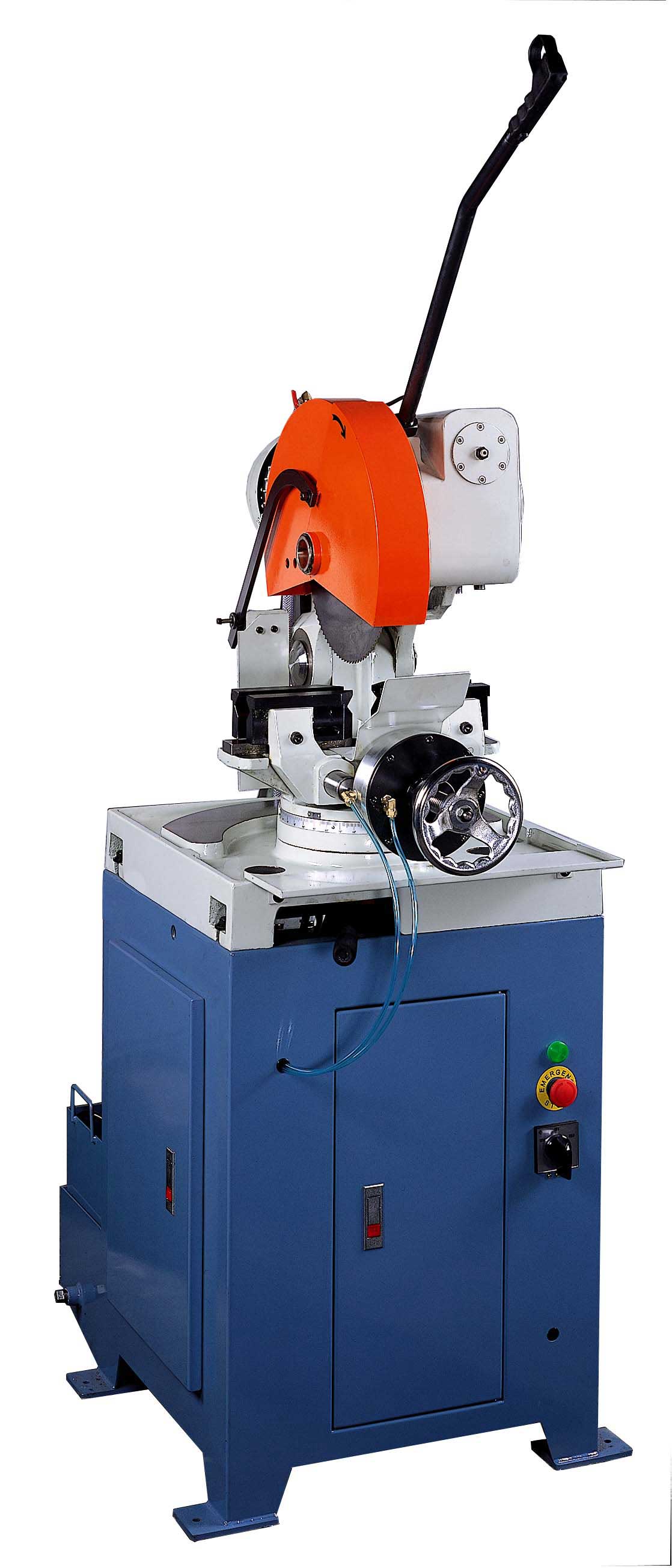

Baileigh CS-350P Cold Saw

Manual Cold Saw CS-350P

Made in Taiwan

pdf logo  Cold Saw Catalog

Ever dream of having an extra hand to hold large awkward material when trying to close the vise on your cold saw?  Well the CS-350P from Baileigh Industrial has taken care of that problem!  The CS-350P is based from the CS-350M but adds a pneumatic closing vise to the equation.  Tap the included foot pedal and the material is clamped and there is no need to worry if it is clamped tight enough, because the vise stays under pressure until the foot pedal is tapped again.

The CS-350P cold cutting saw will fit well in any industrial environment and is designed to give years of trouble free use.  Baileigh Industrial only uses the best component when building our cold saws.  The CS-350P runs on 220 volt three phase power that allows the motor to spin at speeds of either 26 or 52 rpm.  The choice of RPM is good because different types of material require different speeds for the best possible cut.  The CS-350P also comes standard with the movable safety guard and a flood blade cooling system, ensuring safety and long cold saw blade life.

The capacity on the CS-350P cold cutting saw is also impressive and can cut 4.25 inch round at 90 degrees.  This machine can miter saw a total of 135 degrees - 45 degrees to the left and 90 degrees to the right for those jobs that might require slotting. The CS-350P is the perfect choice for all fabrication cutting jobs like marine rails, playground equipment, hand railing, and various chassis applications.

For more information on the CS-350P cold cutting saw contact a representative.



Specifications
Model CS-350P
Max. Blade Diameter 14 inch
Operation Manual with Pneumatic Vice
Round Solid at 45 degree 1.575 inch
Square Tube at 45 degree 2.953 x 2.953 inch
Round Tube at 45 degree 2.953 inch
Rectangle Tube at 45 degree 2.953 x 2.362 inch
Round Solid at 90 degree 2.362
Rectangle Tube at 90 degree 4.25 x 3.5 inch
Square Tube at 90 degree 4.25 x 4.25 inch
Round Tube at 90 degree 4.331 inch
Coolant System Yes
Slotting Capable Yes, Left and Right
Vice Style Dual Action, Self Centering
Max. Vice Opening 6.5 inch
Head Style Pivot
Arbor Size 1.26 inch
Motor 4.0 / 3.0 hp
Power 220V / 3-phase
Shipping Weight 834 lbs.
Shipping Dimensions 60 x 44 x 48 inch



Cutting Capacity - Model: CS-350P

Head Swivel

90 deg

45 deg

s-h alt

60 mm (2.362 in)

40 mm (2.575 in)



110 mm x 110 mm (4.331 in x 4.331 in)

85 mm x 85 mm (3.346 in x 3.346 in)


75mm x 75mm (2.953 in x 2.953 in)


75mm x 75mm (2.953 in x 2.953 in)


75mm x 60mm (2.953 in x 2.362 in)

There are no listed accessories.

CS-350P
220 VOLT THREE PHASE HEAVY DUTY MANUALLY OPERATED COLD SAW WITH PNEUMATIC VISE. 14 BLADE DIAMETER
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: CS-350P
BAICS-350P
lease to own for as little as:$104 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,315.25
