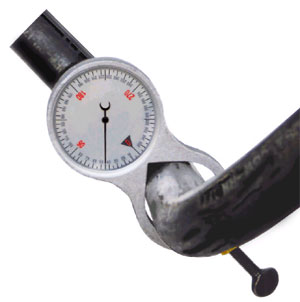

Baileigh Degree Indicator


The tubing bender plane of bend indicator is a must for the pipe bender. Tube bending without an angle indicator requires a positioning table.
WORKS WITH ANY BRAND OF BENDER

The tubing bender plane of bend degree indicator is a must for any pipe bender who is working with hand railing, auto chassis, etc., anything that requires an accurate rotation of the previous bend completed, before performing the next bend.  A pipe bender that has a positioning table is complimented with the attachment of a tubing bender plane of bend degree indicator.  When bending complex exhaust with multiple bends on varying planes (if you can imaging rotating the tube up into the air and then down again to clear a drive shaft or suspension).  There is also a benefit when bending hand railing to rotate pipe 32 degrees for the stairwell pitch.  Knowing where the plane of bend is exactly saves time and materials, and increases profit to the tubing bender.

INSTANTLY IMPROVE ACCURACY
WHEN TUBE BENDING ON VARYING PLANES!

Attach to the following end of tube or
pipe before bending, complete a bend
and rotate material accurately to desired
degree and before next bend.

Indicator accurately detects where plane
of bend is within total 360 degree rotation.

Fits 1" OD, up to 3" OD

Ensures that pipe or tube stays on a level plane.

Immediate payback due to material savings when tube bending.

Perfect for all applications that require
more than one bend in material

There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
AF-996
Mfg. item #: AF-996
BAIAF-996
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
