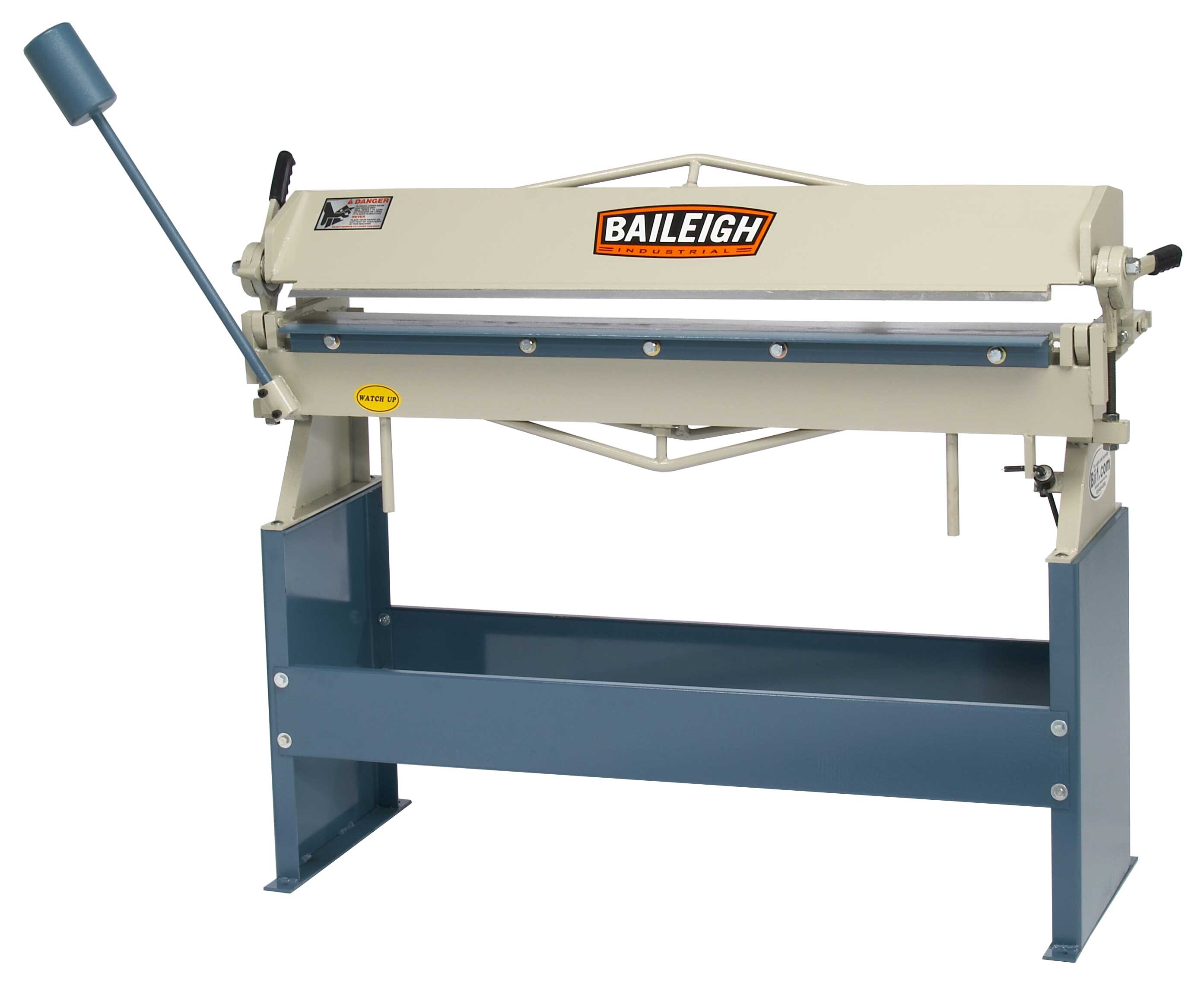

Baileigh HB-4816 Hand Brake

Baileigh HB-4816 Hand Brake

The HB-4816 Hand Brake has a maximum bend capacity of 16 gauge mild steel bending a 48" piece of sheet metal. This straight metal brake is great for small width applications (48" or smaller) and will offer decades of operation. It is made of all steel and electro-weld construction using heavy duty truss rods and braces for long life and less deflection across the apron when bending at maximum capacity. To ease with lifting the bottom leaf of this qualtiy hand brake, we have employed a counter weight to take some of the effort off the operator when bending close to capacity. The HP-4816 comes standard with a rugged floor stand allowing for easier operation over a bench mount unit. An apron stop is standard on this model for repeatable bends which increases productivity and improved accuracy. The bending rails are hardened for years of quality operation and operator satisfaction

Baileigh's sheet metal brakes are built to the highest quality specifications in the industry, and backed by the Baileigh Brand Name assuring that we will stand proudly behind the claims of our product. This sheet metal tool is excellent for sheet metal forming of mild steel and aluminum.

HB-4816 Hand Brake

Mild Steel Capacity 48-1/2" x 16GA
Max Lift of Beam 1¾"
Beam Adjustment 5/8"
Weight 506 lbs
Packing Size 63" x 26" x 32"
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
