Cantek Bandsaws

Models
SBW14	14 inch Bandsaw
SBW17	17 inch Bandsaw
SBW20	20 inch Bandsaw
SBW24	24 inch Bandsaw
HB500R	20 inch Bandsaw
HB600R	24 inch Bandsaw
HB600A	24 inch 2-in-1 Bandsaw Resaw
HB950A	37 inch 2-in-1 Bandsaw Resaw

Cantek TAT10 and TAT10-5 Industrial 10 inch cabinet table

Compact saw for the home or occasional woodworker.

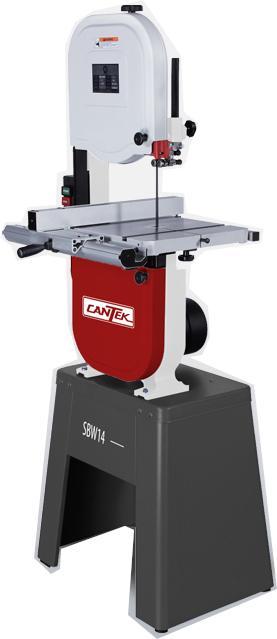

The Cantek SBW14 14 inch Bandsaw is just the right compact bandsaw for the home or occasional woodworker. With its versatile features there is no compromising with this saw. The aluminum rip fence adjusts easily and accurately for repeatable cuts. The tilting table allows you the ability to cut tapers and bevels with ease. Capable of running blades from 1/8 to 3/4 inch provides you the versatility to doing fine scroll work to precise straight cutting.

Why Cantek SBW14 14 inch Bandsaw?

Adjustable upper and fixed lower blade guides to ensure the maximum blade stability when needed.
Micro-adjustable upper blade guide and safety device.
Standard aluminum rip fence and mitre gauge.
Precise ground cast iron table can be tilted 10 deg to the left and 45 deg to the right.
Fully balanced cast aluminum saw wheels with rubber tires.
Standard deluxe heavy-duty stand.

Specifications
Motor	3/4 HP 0.55 kW
Wheel Diameter	14 inch 356mm
Maximum cutting height	6 inch 150mm
Maximum rip cutting	11 7/8 inch 301mm
Table Size (L X W)	14 inch x 14 inch 356mm x 356mm
Table height from floor	43 5/16 inch 1100mm
Table Tilting	Left 10 deg, Right 45 deg
Saw blade length	93.5 inch 2374mm
Saw blade width	1/8 inch to 3/4 inch (3/8 inch standard) 3mm to 19mm
Saw blade speed	3100 SFPM 945 m/min
Dust chute diameter	(1) 4 inch (1) 100mm
Machine Size (L X W X H)	20.5 inch x 26-3/8 inch x 66.5 inch 520 x 670 x 1690mm
Machine weight	167 lbs 76 kgs
Shipping weight	176 lbs 80 kgs
Shipping dimensions	43.5 inch x 20-11/16 inch x 17-5/16 inch 1105 x 525 x 440mm
Machine electrics	110V/220V Single Phase

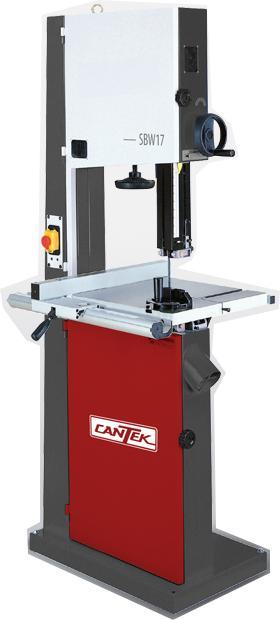

Cantek SBW17 17 inch Bandsaw

Compact and affordable bandsaw.

The Cantek SBW17 17â³ Bandsaw is a good step up from the smaller 14â SBW14 with bigger cutting capacity and extra features. The ball bearing guides ensure optimal stability with reduced friction and the upper guide system can be conveniently adjusted by a handwheel / rack & pinion system. The quick action lever tensioning system makes blade changes a snap. The aluminum rip fence adjusts easily and accurately for repeatable cuts. The tilting table allows you the ability to cut tapers & bevels with ease. Capable of running blades from 3/8â to 1â provides you the versatility to cut radius shapers and also perform precise straight cutting.

Why Cantek SBW17 17â³ Bandsaw?

Cast iron saw wheels which are machined and dynamically balanced.
Upper and lower ball bearing blade guide system to ensure the maximum blade stability.
Micro-adjustable upper blade guide and safety device.
Accurate aluminum rip fence & mitre gauge.
Precise ground cast iron table can be tilted 10^o to the left and 45^o to the right.
User friendly quick-release lever handle for convenient blade changes.
Robust machine frame.
Dual blade speeds provide added flexibility for cutting various products.

Specifications
Motor	2 HP 1.55 kW
Wheel Diameter	17 inch 430mm
Maximum cutting height	12 inch 300mm
Distance: blade to column	16-1/4 inch 410mm
Maximum rip cutting	14-5/8 inch 410mm
Table Size (L X W)	17 inch x 17 inch 430mm x 430mm
Table height from floor	37-1/2 inch 950mm
Table Tilting	Left 10 deg, Right 45 deg
Saw blade length	131.5 inch 3340mm
Saw blade width	3/8 to 1 inch (1/2 inch standard) 9.5mm to 25.4 inch
Saw blade speed	3300/1600 SFPM 1000/490 m/min
Dust chute diameter	(2) 4 inch (2) 100mm
Machine Size (L X W X H)	32 x 26 x 74 inch 820 x 670 x 1880mm
Machine weight	266 lbs 121 kgs
Shipping weight	321 lbs 146 kgs
Shipping dimensions	30 x 20 x 80 inch 780 x 520 x 2040mm
Machine electrics	110V/220V Single Phase

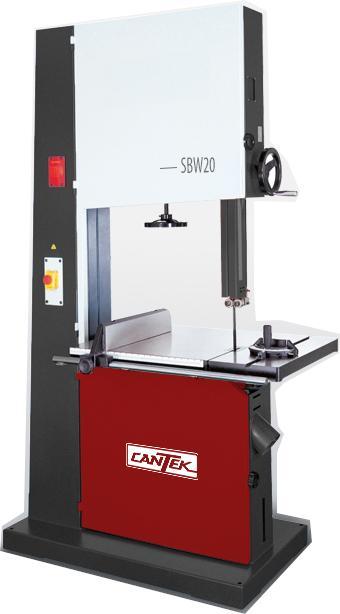

Cantek SBW20 20 inch Bandsaw

Compact and affordable bandsaw.

The Cantek SBW20 20 inch Bandsaw incorporates a robust design with economical price point. With its industrial cast iron wheels and table assembly it can handle any job. With its powerful 3HP motor and capacity to run from a Â¼ inch to 1 3/8 inch blade it can hand a wide range of cutting requirements. The upper and lower blade guides provide maximum stability no matter the blade you are cutting with. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

Why Cantek SBW20 20 inch Bandsaw?

Cast iron saw wheels are machined and dynamically balanced.
Upper and lower ball bearing blade guide system to ensure the maximum stability.
Micro-adjustable upper blade guide and safety device.
Cast iron rip fence.
Mitre gauge runs in a t-slot on the cast iron table.
Precise ground cast iron table can be conveniently tilted 45 deg to the right by user friendly handwheel.
User friendly quick-release handle for convenient blade changes.
Heavy duty welded steel machine frame.
Foot brake for stopping the blade.
Microswitch on the access doors will shut down power to the machine when opened.

Specifications
Motor	3 HP 2.25 kW
Wheel Diameter	20.9 inch 530mm
Maximum cutting height	14 inch 350mm
Distance: blade to column	20 inch 510mm
Maximum rip cutting w/ fence	18-1/4 inch 465mm
Table Size (L X W)	29.6 inch x 20.8 inch 750 x 530mm
Table height from floor	35-1/2 inch 950mm
Table Tilting	Right 45 deg
Saw blade length	165 inch 4190mm
Saw blade width	1/4 inch to 1 3/8 inch (1 inch standard) 6mm to 35 inch
Saw blade speeds (2)	4500 SFPM 1370 m/min
Dust chute diameter	(2) 4 inch (2) 100mm
Machine Size (L X W X H)	39.4 inch x 28.3 inch x 78 inch 1002 x 727 x 1982mm
Machine weight	580 lbs 264 kgs
Shipping weight	678 lbs 308 kgs
Shipping dimensions	40 inch x 29 inch x 95 inch 1006 x 740 x 2210mm
Machine base dimensions	33-1-2 inch x 21 5/8 inch x 3 1/8 inch 850 x 550 x 80mm
Machine electrics	230/3/60

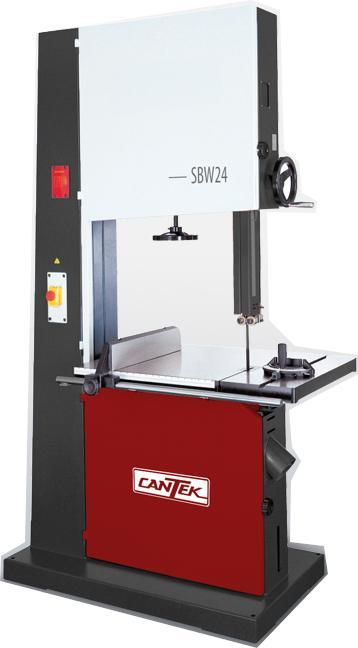

Cantek SBW24 24 inch Bandsaw

Compact and affordable bandsaw.

The Cantek SBW24 24 inch Bandsaw incorporates a robust design with economical price point. With its industrial cast iron wheels and table assembly it can handle any job. With its powerful 3HP motor and capacity to run from a 1/4 to 1-1/2 inch blade it can hand a wide range of cutting requirements. The upper and lower blade guides provide maximum stability no matter the blade you are cutting with. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

Why Cantek SBW24 24 inch Bandsaw?

Cast iron saw wheels are machined and dynamically balanced.
Upper and lower ball bearing blade guide system to ensure the maximum stability.
Micro-adjustable upper blade guide and safety device.
Cast iron rip fence.
Mitre gauge runs in a t-slot on the cast iron table.
Precise ground cast iron table can be conveniently tilted 45 deg to the right by user friendly handwheel.
User friendly quick-release handle for convenient blade changes.
Heavy duty welded steel machine frame.
Foot brake for stopping the blade.
Microswitch on the access doors will shut down power to the machine when opened.

Specifications
Motor	5 HP 3.75 kW
Wheel Diameter	24.8 inch 630mm
Maximum cutting height	16 inch 400mm
Distance: blade to column	24-1/2 inch 622mm
Maximum rip cutting w/ fence	22-1/2 inch 570mm
Table Size (L X W)	33.5 inch x 23.6 inch 850 x 600mm
Table height from floor	33 inch 830mm
Table Tilting	Right 45 deg
Saw blade length	181 inch 4600mm
Saw blade width	1/4 inch to 1-1/2 inch (1 inch standard) 6mm to 38 inch
Saw blade speeds (2)	5300 SFPM 1615 m/min
Dust chute diameter	(2) 4 inch (2) 100mm
Machine Size (L X W X H)	47 x 29.5 inch x 81 inch 1190 x 750 x 2060mm
Machine weight	836 lbs 380 kgs
Shipping weight	957 lbs 438 kgs
Shipping dimensions	45-1/4 inch x 29-1/2 inch x 87 inch 1150 x 750 x 2210mm
Machine base dimensions	41 3/8 inch x 23 5/8 inch x 3 1/8 inch 1050 x 600 x 80mm
Machine electrics	230/3/60

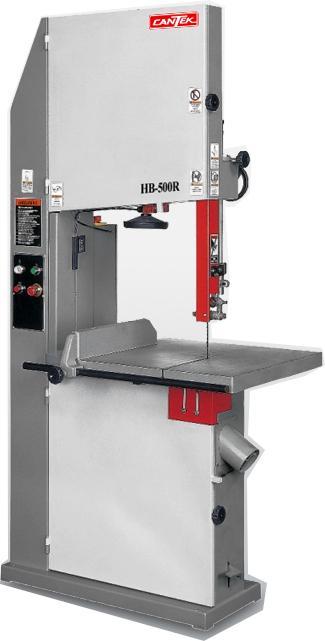

Cantek HB500R 20 inch Bandsaw

Industrial design for every day bandsawing.

The Cantek HB500R 20 inch Bandsaw incorporates a robust design with economical price point. With its industrial cast iron wheels and table assembly it can handle any job. With its powerful 3HP motor and capacity to run from a 1/4 inch to 1-1/4 inch blade it can hand a wide range of cutting requirements. The upper and lower blade guides provide maximum stability no matter the blade you are cutting with. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

Why Cantek HB500R 20 inch Bandsaw?

Heavy gauge steel frame ensures stable and vibration free cutting
Cast iron top and bottom wheels are precision machined and dynamically balanced
Saw wheels are laminated with rubber for accurate blade tracking
Table tilts to 45 deg for bevel cuts
Upper and lower bearing guide assemblies for optimum blade control
Standard equipment includes: Rip Fence, and Mitre Gauge

Features:

Rack and pinion guide adjustment
Table is made of cast iron and surface is precision machines for flatness
Convenient blade tension adjustment by a handwheel
Foot brake for quick stopping of the blade

Specifications
Saw wheel diameter	20 inch
Motor	3HP
Table size	26-3/4 inch x 20-1/2 inch
Table tilting	0 - 45 deg
Throat capacity	18-3/4 inch
Height capacity under guide	11-7/8 inch
Width of wheel	1.38 inch (35mm)
Blade speed	4450 FPM
Blade length	156-1/4 inch - 157-1/2 inch
Blade width	1/4 inch - 1-1/4 inch
Dust hood dia.	4 inch
Net weight	616 lbs
Shipping weight	770 lbs
Machine dimensions	38.2 inch x 27-1/2 inch x 74 inch
Shipping dimensions	77-1/2 inch x 22.8 inch x 39-3/4 inch
Electrical	230/1/60 = 17 Full Load Amps 230/3/60 = 9.6 Full Load Amp

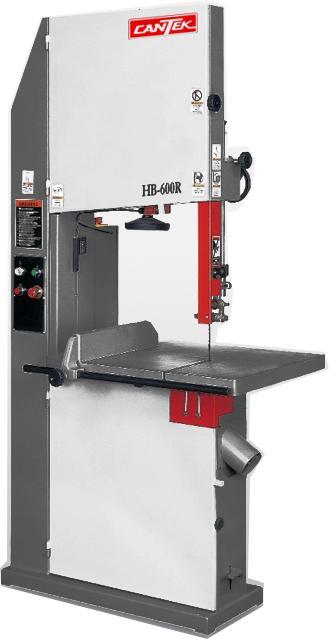

Cantek HB600R 24 inch Bandsaw

Industrial design for every day bandsawing.

The Cantek HB600R 24 inch Bandsaw incorporates a robust design with economical price point. With its industrial cast iron wheels and table assembly it can handle any job. With its powerful 3HP motor and capacity to run from a 1/4 inch to 1-1/4 inch blade it can hand a wide range of cutting requirements. The upper and lower blade guides provide maximum stability no matter the blade you are cutting with. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

Why Cantek HB600R 24 inch Bandsaw?

Heavy gauge steel frame ensures stable and vibration free cutting
Cast iron top and bottom wheels are precision machined and dynamically balanced
Saw wheels are laminated with rubber for accurate blade tracking
Table tilts to 45 deg for bevel cuts
Upper and lower bearing guide assemblies for optimum blade control
Standard equipment includes: Rip Fence, and Mitre Gauge

Features:

Rack and pinion guide adjustment
Table is made of cast iron and surface is precision machines for flatness
Convenient blade tension adjustment by a handwheel
Foot brake for quick stopping of the blade

Specifications
Saw wheel diameter	24 inch
Motor	3HP
Table size	31-1/2 x 23 7/8 inch
Table tilting	0 - 45 deg
Throat capacity	22-7/8 inch
Height capacity under guide	13-3/4 inch
Width of wheel	1.38 inch (35mm)
Blade speed	4458 FPM
Blade length	173-5/8 inch - 176-3/8 inch
Blade width	1/4 inch - 1-1/4 inch
Dust hood dia.	4 inch
Net weight	693 lbs
Shipping weight	990 lbs
Machine dimensions	41-3/4 inch x 31-1/2 inch x 81-1/2 inch
Shipping dimensions	85 inch x 24.8 inch x 43.3 inch
Electrical	230/1/60 = 17 Full Load Amps 230/3/60 = 9.6 Full Load Amp

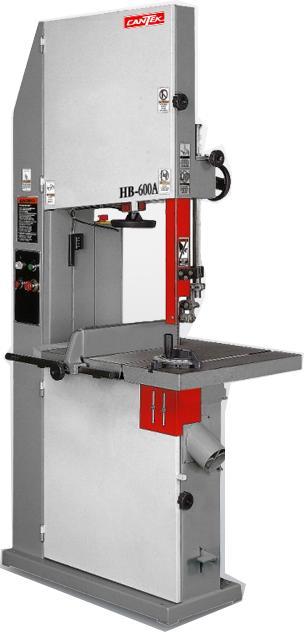

Cantek HB600A 24 inch 2-in-1 Bandsaw Resaw

Industrial design for every day bandsawing.

The Cantek HB600A 24 inch Bandsaw incorporates a robust design with economical price point. With its industrial cast iron wheels and table assembly it can handle any job. With its powerful 5HP motor and capacity to run from a 1/4 inch to 2 inch blade it can hand a wide range of cutting requirements. The upper and lower blade guides provide maximum stability no matter the blade you are cutting with. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

Why Cantek HB600A 24 inch Bandsaw?

Heavy gauge steel frame ensures stable and vibration free cutting
Cast iron top and bottom wheels are precision machined and dynamically balanced
Saw wheels are laminated with rubber for accurate blade tracking
Table tilts to 45 deg for bevel cuts
Upper and lower bearing guide assemblies for optimum blade control
Standard equipment includes: Rip Fence, and Mitre Gauge

Features:

Upper and lower guide assemblies with Bakelite side guides to ensure cool running of the saw blade and a back guide thrust bearing
Micrometric adjustment to upper guide by rack and pinion
Foot brake for quick stopping of the blade

Specifications
Saw wheel diameter	23-1/2 inch
Table size	31-1/2 x 23 7/8 inch
Table tilting	0 - 45 deg
Throat capacity	22-7/8 inch
Height capacity under guide	13-3/4 inch
Width of wheel	2 inch
Blade speed	710 RPM 4458 FPM
Blade length	173-5/8 inch - 176-3/8 inch
Blade width	1/4 inch - 2 inch
Dust hood dia.	4 inch x 2
Net weight	748 lbs
Shipping weight	990 lbs
Machine dimensions	42 inch x 31 inch x 81 inch
Shipping dimensions	85 inch x 25 inch x 43 inch
Electrical	230/3/60 = 12.4 Full Load Amps 575/3/60 = 4.5 Full Load Amps

Cantek HB950A 37 inch 2-in-1 Bandsaw Resaw

Cut with confidence and accuracy.

The Cantek HB950A 37 inch 2-in-1 Bandsaw Resaw is a heavy duty bandsaw that is built to last. With its industrial cast iron wheel and table assembly it can handle any job. What makes the HB950A unique is the capacity to run from 1/4 inch to 2 inch wide blade allowing you to do intricate curve work as well as resaw timbers to size. The saw wheels are driven by a powerful 10HP motor allowing you to make your cuts with ease. With a large cutting height capacity under the guide of up to 22 inch it can also be ideal for cutting materials such as foam. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

Why Cantek HB950A 37 inch 2-in-1 Bandsaw Resaw?

2-in-1 bandsaw can run up to a 2 inch wide blade for resawing and down to a 1/4 inch for curve cutting
22” maximum cutting heigh under the guide
Large capacity of 36-1/2 inch from the blade to the throat
Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention
Cast iron worktable is precision ground and can tilt to 45deg
Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
Heavy gauge steel frame ensures vibration free cutting

Features:

Upper and lower guide assemblies with Bakelite side guides to ensure cool running of the saw blade and a back guide thrust bearing
Micrometric adjustment to upper guide by rack and pinion
Foot brake for quick stopping of the blade

Specifications
Saw wheel diameter	37 inch
Table size	45-1/4 x 31-1/2 inch
Table tilting	0 - 45 deg
Throat capacity	36-1/2 inch
Height capacity	22 inch
Width of wheel	2 inch
Blade speed	5500 FPM
Blade length	259 inch - 261 inch
Blade width	1/4 inch - 2 inch
Motor	10 HP
Dust hood dia.	4 inch x 2
Net weight	1584 lbs
Shipping weight	2046 lbs
Machine dimensions	63.75 inch x 32.7 inch x 113.4 inch
Shipping dimensions	117 inch x 30 inch x 61 inch
Electrical	230/3/60 = 28 amps 460/3/60 = 14 amps


Cantek SBW14 14 inch Bandsaw	Cantek SBW17 17 inch Bandsaw	Cantek SBW20 20 inch Bandsaw	Cantek SBW24 24 inch Bandsaw

Cantek HB500R 20 inch Bandsaw	Cantek HB600R 24 inch Bandsaw	Cantek HB600A 24 inch 2-in-1 Bandsaw Resaw	Cantek HB950A 37 inch 2-in-1 Bandsaw Resaw

Cantek Bandsaws

Why Cantek SBW14 14 inch Bandsaw?

Why Cantek SBW17 17â³ Bandsaw?

Why Cantek SBW20 20 inch Bandsaw?

Why Cantek SBW24 24 inch Bandsaw?

Industrial design for every day bandsawing.

Why Cantek HB500R 20 inch Bandsaw?

Industrial design for every day bandsawing.

Why Cantek HB600R 24 inch Bandsaw?

Industrial design for every day bandsawing.

Why Cantek HB600A 24 inch Bandsaw?

Cut with confidence and accuracy.

Why Cantek HB950A 37 inch 2-in-1 Bandsaw Resaw?

Why Cantek SBW17 17â³ Bandsaw?
