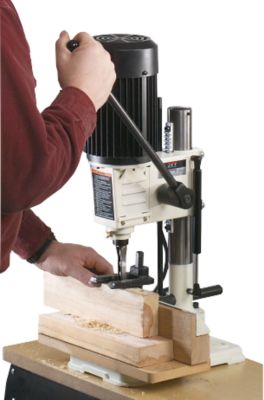

JET JBM-5, 1/2Hp Benchtop Mortise Machin

The Jet JBM-5, 1/2Hp Benchtop Mortise Machine, 1/2" Capacity, 1725 RPM
has a 5 Year warranty

  • Heavy-duty cast iron and steel construction provides durability and stability during use
  • Dependable rack-and-pinion head adjustment gives you accurate drilling control
  • Long, multi-position mortising handle let you reposition the feed handle for easier operation and optimum handle position
  • Three-jaw drill chuck keeps a positive grip on mortising bits for chisels up to 3/4" in size
  • Two hinged side doors allow easy access to the drill chuck
  • Quick adjust depth stop for uniform mortise depths
  • Column is reversible for mortising larger stock
  • Removable On/Off toggle switch prevents accidental or unauthorized use of the tool
  • Powerful 1/2HP motor provides consistently smooth performance




Part Number 708580
Spindle Speed 1725 RPM
Chuck Size 3/8 "
Chisel Shank Capacity 5/8, 3/4 "
Head Stroke 4¾ "
Chisel Center to Fence 3½ "
Under Hold-Down 4 "
Fence Size (L x H) 1 9/16 x 13 3/4 "
Base Size 7 5/8 x 12 3/16 "
Bushing Size 5/8, 3/4 "
Motor Power ½ HP
Motor Voltage 115 V
Prewired Voltage 115
Motor Current 6 A
Motor Phase 1 Ph
Family Description BENCHTOP MORTISER
Model Number JBM-5
Brand Jet
Height 11 inch
Width 14.4 inch
Length 22.8 inch
Net Weight 52.45 pound
s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.





JET® MORTISERS and Accessories
708580 JBM-5, Benchtop Mortiser, 1/2HP 1PH 115V
708594 Mortise Chisel and Bit 3/4"
708585 Mortise Chisel and Bit Kit, set of 5, (1/4", 5/16", 3/8", 1/2", 3/4")
More Informationshow more
708580
JBM-5, BENCHTOP MORTISER, 1/2HP 1PH 115V
Mfg. item #: 708580
WMH708580
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on this and other JET, POWERMATIC, WILTON and PERFORMAX products ordered together.1020
$412.25

11
More Informationshow more
708594
Mfg. item #: 708594
WMH708594
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$56.28

11
More Informationshow more
708585
Mfg. item #: 708585
WMH708585
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$151.51

11
