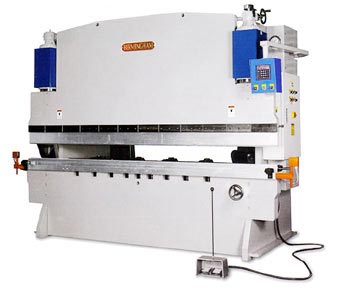

Birmingham Hydraulic Press Brake

FEATURES

  • CONSTRUCTION - The Frame is made of high tension strength stress relieved steel plate and rigidly bolted/welded to manufacture strong/u-transform machine body. 2.
  • WIDE GUIDEWAY - To ensure the movement of the guideblock more smoothly and stable for high accuracy.
  • MECHANICAL PARALLEL DEVICE - The compulsory synchronization of the mechanical structure to ensure the top die and bottom die fully parallel at any position of stroke movement.
  • HYDRAULIC OIL TANK and PUMP - A large tank allows the ail to run smoothly and efficiently. The high-efficiency, low-noise pump improves the quality of the working environment.
  • STROKE - Depth positioning by accurate mechanical stops inside the cylinder t ensure every bending to the same angle. Adjustable strokes shorten machine time.
  • SAFETY FOOT CONTROL - Removable foot control pedal with safety protection. The upper die beam is raised back to the top position immediately upon the operator removing his foot from the pedal.
  • HYDRAULIC SYSTEM - High-efficient hydraulic circulation system, quality solenoids and two powerful cylinders provide maximum and stable output to execute excellent performance. Ram downward by two=step speed, fast-speed approaching and slow -speed press bending to shorten the circulation time. Easy setting work pressure by stepless regulator with overload protection device to provide a proper pressure.
  • SINGLE-SIDE MICRO ADJUSTMENT - Two micro-fine adjusting bending angles, this device provides two directional adjustments, increase or decrease bending angle(s), to achieve uniform angle on both ends of the bent workpeice.
  • DIES - One-piece upper forming punch. One-piece 4-way bottom lower die. Multi-size V-slot design to meet most bending applications.
  • POWER BACK GAUGE - Motorized precision ballscrew type back gauge with readout display and micro adjustor. Resolution 0.004".
  • Hydraulic bottom die angle compensation.
  • Power bending angle setup.
  • Jog, single and auto bending modes.

STANDARD EQUIPMENT

  • 24 in or 32 in ballscrew back gauge with digital counter display and front control (optional for 22/33/38/50 ton model).
  • 24 in front operated manual ballscrew back gauge with digital counter and micro adjustor (22/33/38/50 ton models).
  • 24 in (2) front support arms
  • Powered benging angle setting device (opt: 22/33/38/50 ton models).
  • Hydraulic bottom-die angle compensation (opt: 22/33/38/50 ton models).
  • One top die and one 4-way bottom die (6Vs for 66ton and over, single V for 50tons and lower).
  • Control panel with all switch low voltage wired
  • Removable foot pedal with safety protection housing.
  • Safety sensor protection system.
  • Tool box with maintenance tools and leveling pads.
Specifications
Model HB-2250 HB-2262 HB-2280 HB-3850 HB-3862 HB-3880
Bending Length Capacity (in) 50 62 80 50 62 80
Max Press (tons) 22 38
Distance between uprights (in) 41 1/2 50 65 41 1/2 50 65
Ram Stroke 6
Table Width (in) 1 1/2 Bottom Die Holder Width
Distance Between Table/Ram (in) 10
Oil Tank (gal) 20 24
Main Motor (hp) 3 5
Approach Speed (in/sec) 4
Bending Speed (in/sec 1/4
Return Speed (in/sec) 2.5
Power back Gauge (in) 24 (OPT)
Back Gauge Motor (hp) 1/4 (OPT)
Throat Depth (in) 8
Net Weight (lbs) 2,500 3,000 3,600 4,400 5,000 6,000
Packing Size (in) 59x47x81 73x47x81 91x47x81 59x51x85 73x51x85 91x51x85
Specifications
Model HB-3350 HB-3361 HB-3380 HB-5059 HB-6680 HB-66102 HB-66126
Bending Length Capacity (in) 50 61 80 59 80 102 126
Max Press (tons) 33 50 66
Distance between uprights (in) 38 49 61 49 61 83 102
Ram Stroke 6
Table Width (in) 1 1/2 Bottom Die Holder Width 6 1/4
Distance Between Table/Ram (in) 10 12
Oil Tank (gal) 20 24 28 35
Main Motor (hp) 3 5 7 1/2
Approach Speed (in/sec) 4
Bending Speed (in/sec .27
Return Speed (in/sec) 2.36
Power back Gauge (in) 24 (OPT) 24
Back Gauge Motor (hp) 1/4 1/2
Throat Depth (in) 8
Net Weight (lbs) 2,800 3,500 5,500 6,500 8,000 9,200 10,000
Packing Size (in) 55x47x81 67x47x81 91x47x81 75x51x87 91x61x95 114x61x96 138x61x97
Specifications
Model HB-8880 HB-88102 HB-88126 HB-120102 HB-120126 HB-120157
Bending Length Capacity (in) 80 102 126 102 126 157
Max Press (tons) 88 120
Distance between uprights (in) 61 83 102 83 120 134
Ram Stroke 6 8
Table Width (in) 6 1/4 8
Distance Between Table/Ram (in) 12 14
Oil Tank (gal) 45 55
Main Motor (hp) 7.5 10
Approach Speed (in/sec) 4
Bending Speed (in/sec .23
Return Speed (in/sec) 2.36
Power back Gauge (in) 42
Back Gauge Motor (hp) 1/2 1
Throat Depth (in) 8 10
Net Weight (lbs) 9,200 11,500 12,500 14,000 16,000 20,000
Packing Size (in) 95x63x95 118x63x96 142x63x97 120x65x97 144x65x100 175x71x102
Specifications
Model HB-175102 HB-175126 HB-175157 HB-240102 HB-240126 HB-240157
Bending Length Capacity (in) 102 126 157 102 126 157
Max Press (tons) 175 240
Distance between uprights (in) 83 100 132 83 98 130
Ram Stroke 8
Table Width (in) 8
Distance Between Table/Ram (in) 16
Oil Tank (gal) 80 100
Main Motor (hp) 15 20
Approach Speed (in/sec) 4
Bending Speed (in/sec .23
Return Speed (in/sec) 2.36
Power back Gauge (in) 32
Back Gauge Motor (hp) 1
Throat Depth (in) 10
Net Weight (lbs) 18,000 22,300 29,000 24,500 27,000 33,500
Packing Size (in) 120x71x104 144x71x106 177x71x110 122x77x114 146x79x116 177x71x126

OPTIONAL ACCESSORIES

  • 24 in Power ballscrew back gauge with digital counter display and front control (optional for 22/33/38/50 ton models only).
  • Powered bending angle setting device (22/33/38/50 ton models).
  • Hydraulic bottom-die angle compensation (opt: 22/33/38/50 ton models).
  • Power grease injecting system.
  • Large throat depth per customer's request.
  • Special custom die.
  • 2 axis NC back gauge with German ELGO #P8822
HB-2250
22 TONS X 50 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-2250
CPTHB-2250
lease to own for as little as:$394 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$19,719.32

2186
HB-3350
33 TONS X 50 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-3350
CPTHB-3350
lease to own for as little as:$442 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$22,109.54

2186
HB-3361
33 TONS X 61 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-3361
CPTHB-3361
lease to own for as little as:$490 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$24,499.76

2186
HB-3380
33 TONS X 80 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-3380
CPTHB-3380
lease to own for as little as:$538 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$26,889.98

2186
HB-5059
50 TONS X 59 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-5059
CPTHB-5059
lease to own for as little as:$533 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$26,650.95

2186
HB-6680
66 TONS X 80 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-6680
CPTHB-6680
lease to own for as little as:$681 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$34,060.64

2186
HB-66102
66 TONS X 102 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-66102
CPTHB-66102
lease to own for as little as:$729 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$36,450.86

2186
HB-66126
66 TONS X 126 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-66126
CPTHB-66126
lease to own for as little as:$825 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$41,231.30

2186
HB-8880
88 TONS X 80 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-8880
CPTHB-8880
lease to own for as little as:$789 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$39,438.63

2186
HB-88102
88 TONS X 102 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-88102
CPTHB-88102
lease to own for as little as:$860 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$43,023.96

2186
HB-88126
88 TONS X 126 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-88126
CPTHB-88126
lease to own for as little as:$939 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$46,967.82

2186
HB-120102
120 TONS X 102 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-120102
CPTHB-120102
lease to own for as little as:$1,004 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$50,194.62

2186
HB-120126
120 TONS X 126 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-120126
CPTHB-120126
lease to own for as little as:$1,100 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$54,975.06

2186
HB-120157
120 TONS X 157 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-120157
CPTHB-120157
lease to own for as little as:$1,291 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$64,535.94

2186
HB-175102
175 TONS X 102 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-175102
CPTHB-175102
lease to own for as little as:$1,279 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$63,938.39

2186
HB-175126
175 TONS X 126 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-175126
CPTHB-175126
lease to own for as little as:$1,279 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$63,938.39

2186
HB-175157
175 TONS X 157 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-175157
CPTHB-175157
lease to own for as little as:$1,410 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$70,511.49

2186
HB-240102
240 TONS X 102 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-240102
CPTHB-240102
lease to own for as little as:$1,417 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$70,870.02

2186
HB-240126
240 TONS X 126 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-240126
CPTHB-240126
lease to own for as little as:$1,417 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$70,870.02

2186
HB-240157
240 TONS X 157 HYDRAULIC PRESS BARKE **MADE IN TAIWAN
Mfg. item #: HB-240157
CPTHB-240157
lease to own for as little as:$1,793 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$89,633.25

2186
24PBSBG
24 POWER BALL SCREW BACK GAUGE W / DIGITAL READOUT DISPLAY AND FRONT CONTROL FOR 22/33/38/50 TONS MODELS ONLY
Mfg. item #: 24PBSBG
CPT24PBSBG
FREE shipping when ordered with a machine from this manufacturer.20
$1,837.50

2186
PBASD
POWER BENDING ANGLE SETTING DEVICE FOR 22/33/38/50 TONS MODELS ?????????????????????????.
Mfg. item #: PBASD
CPTPBASD
FREE shipping when ordered with a machine from this manufacturer.20
$980.00

2186
HBAD
HYDRAULIC BOTTOM-DIE ANGLE COMPASATION FOR 22/33/38/50 TONS MODELS ?????????????????????????
Mfg. item #: HBAD
CPTHBAD
lease to own for as little as:$54 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$2,695.00

2186
