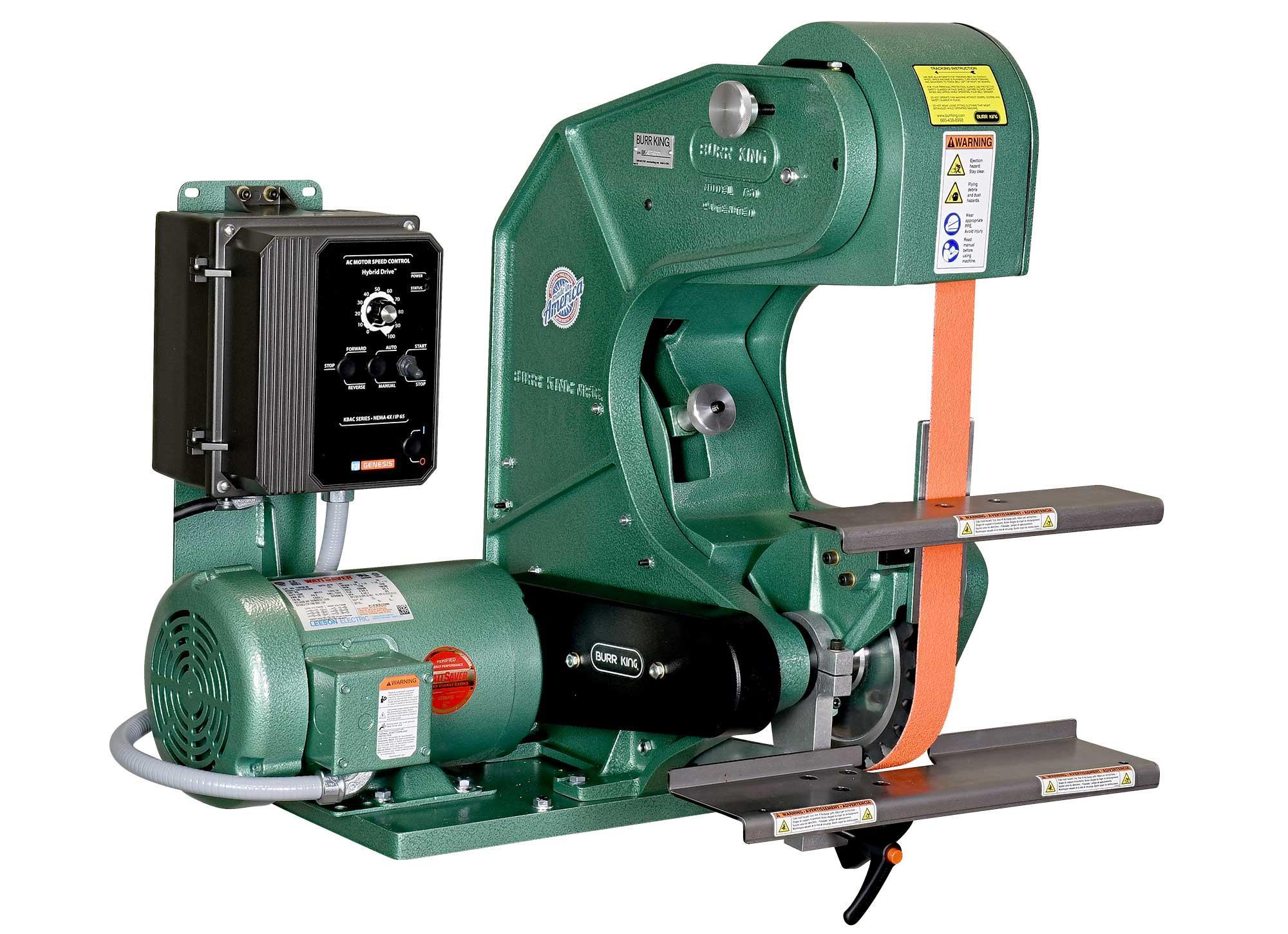

BurrKing Model 760 Mower Blade Sharpener

Mower Blade Sharpener Model 760





Model 760 Mower Blade Sharpener

As early as the 1920’s people began experimenting with rotary mowers, it took decades for the technology of small engines to catch up with the design. It wasn’t until the 1950’s that the first rotary push mowers started showing up cutting yards across America. From there mowers became bigger, added more blades and the blades were made out of more steel.

With the new technology came another hurdle, sharpening the mower’s cutting blades. Many companies began to modify ordinary pedestal grinders to sharpen blades. Something else happened in the 1950’s, Burr King Manufacturing started using coated abrasive grinding belts instead of stones.

Even back in the 1950’s the inventor of the Burr King grinder realized there must be a better way to remove metal, the use of a stone just seemed barbaric. The Minnesota Mining and Manufacturing Company (today known as 3M) had found ways to join the ends of pieces of sand paper to make an endless loop. Now a machine was needed to run these “endless loop” abrasives at high speeds.

Burr King Manufacturing was there with an answer. It wasn’t until just the last 30 years that coated abrasive technologies became superior to bonded abrasive wheels. With the invention of ceramic abrasives, such as 3M’s Cubitron and Norton Abrasive’s Blaze belts, bonded wheels have a limited future.

Ceramic abrasive grain is a chemically engineered ceramic aluminum oxide mineral that has a unique “stay sharp” crystalline structure, which continually reveals fresh cutting edges on the surface of the work piece ensuring a sustained cut and longer product life. This durable, cost-effective abrasive solution

delivers real productivity benefits across an operation without the premature dulling associated with traditional abrasives. The secret not only lies in the belt it also lies is the machine. For over 70 years Burr King has manufactured belt grinders

that utilize coated abrasives to their fullest.

Preformance:

The invention of the internet and the advent of Youtube has allowed videos to be posted on line. But take a closer look at those videos of others sharpening lawn mower blades. The truth is a stone grinder can’t remove the same amount of material that a Burr King can.

Deceptive at best, these others claim to sharpen a blade in less than a minute, but look close and you’ll see the truth, they are  not sharpening a dull blade

The Facts

Only Burr King blade sharpeners use coated abrasive belts. Get out of the Stone Age, stop wasting your time and money with old technology. Join professionals worldwide that have chosen Burr King for their grinding needs.

Features:

  • 1-1/2 hp, variable speed, 120 volt motor increases versatility and flexibility
  • Up to 8,000 surface feet per minute offers fast sharpening
  • 90 durometer serrated contact wheel provides long belt life with fast stock removal
  • 1-1/2 x 60 inch ceramic coated abrasive belt designed for durable sharpening throughout life of the belt. Ceramic cuts faster, reduces heat and creates less mess than stone wheels
  • Fixed angle workrest support for consistant sharpening every time. Angle remains fixed for life of the abrasive belt.
  • 3-wheel design provides longer belt for more sharpenings per belt
  • Removable vertical platen allows for
  • sharpening irregular mulching blades
  • Pedestal or bench mount Rugged cast aluminum frame for increased stability and durability
  • Chain saw guide bare allows for dressing chain saw guide bar rails quickly and easily and provides a fixed 90° grinding surface
  • Sealed, long life bearings
  • Precision machined and fabricated
  • Optional dust collection scoops available(DS7)
  • Burr King performance
  • Made in the USA
Specifications
Abrasive Belt Size    1-1/2 x 60 inch
Horsepower/Voltage 1.5 HP - 120 volt single phase
Abrasive Belt Speed 800-8,000 SFPM - Variable Speed
Contact Wheel Specs 7 x 1.5 inch Serrated, 90 durometer
Quick Change Belt Tension Yes
Positive Belt Tracking Adjustment Yes
Overall Height x Width x Depth 26 x 24 x 23 inch approximate
Base Area 10 x 13 inch
Dust Scoop Optional DS7 - 4 inch Exhaust Port
Construction Cast Aluminum, Steel Dust Collectors
Pedestal Yes - Optional - Fixed or Adjustable



No listed accessories
