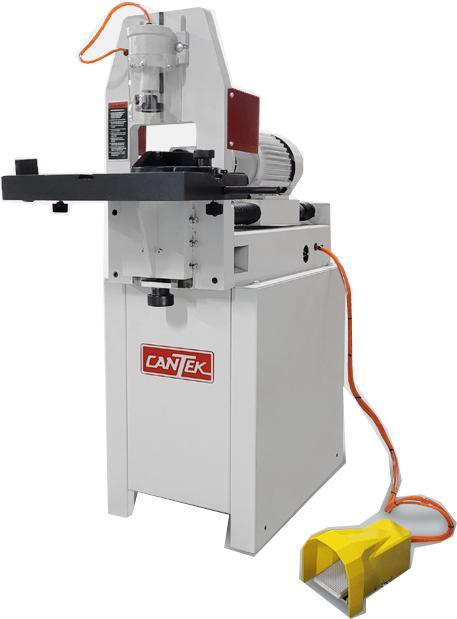

CANTEK BM301 HORIZONTAL BORING MACHINE
Whether you are drilling horizontal holes for door or furniture components the Cantek BM301 Horizontal Boring Machine is a great choice. With its two spindle drilling head with adjustable
drill centers from 0.71”~3.93” centers (18~100mm), you can conveniently drill dowel hoes with ease. The drilling assembly and table are made from cast iron for maximum rigidity and
durability. The unit is mounted to a fabricated steel base for optimal functionality. The drilling cycle is controlled by a pneumatic cylinder and is actuated by a foot pedal for operator
convenience. The drilling speed is adjustable for optimal cycle speeds. The drilling head is driven by a powerful 2HP direct drive motor. A pneumatic clamp ensures the work piece is held firmly
during drilling operations.
Why Cantek BM301 Horizontal Boring Machine?
- Automatic pneumatic drilling cycle actuated by convenient foot pedal
- Pneumatic clamp holds material firmly in place during drilling cycle
- Adjustable drilling bit center to center spacing from: 71”~3.93” centers (18~100mm)
- Industrial cast iron drilling assembly & table, with fabricated steel base
Featrures:
- Cast iron worktable with miter gauge for angled holes
- Worktable is conveniently adjusted up & down for varying workpiece thicknesses by an adjustment knob and threaded rod
- Adjustable drilling depth with maximum stroke of 4” (100mm)
- Drilling speed can be conveniently adjusted by a speed adjustment knob.
- Powerful 2HP direct drive motor for effortless drilling
|
SPECIFICATIONS
|
|
Number of drills
|
2 spindles
|
|
Adjustable drill spacing
|
0.71”~3.93” centers 18~100mm centers
|
|
Maximum drill stroke
|
4” 100mm
|
|
Drill bit shank
|
7/16”-14 Threaded Shank (Both Right Hand Only)
|
|
Table size
|
15.75” x 10” 400 x 250mm
|
|
Motor
|
2HP (230/3/60 = 6.3 amps)
|
|
Spindle speed
|
3450 RPM
|
CANTEK HS21T 21-SPINDLE CONSTRUCTION BORING MACHINE
Flexible boring solution for construction drilling, line drilling, and more.
The Cantek HS21T 21-Spindle Construction Boring Machine is a versatile construction drilling machine which is capable of line boring, end drilling, & construction drilling functions.
The HS21T has a robust fabricated steel construction with precision machined cast iron table. The boring head is cycled pneumatically and runs on precision linear guide rails for smooth
drilling cycles. A 2 ½ HP motor powers the boring head with 21 gear driven drill bits and operates at 2800 RPM. Each spindle is equipped with a quick-change chuck to facilitate fast
changeovers between drilling operations. The machine comes equipped with fold away side fences which are positioned using a linear scale. The 118â (3 meter) back fence is equipped
with (4) flip tops which is ideal for positioning panels during line boring applications and more. The boring head is effortlessly tilted from 0-90o by a pneumatic
cylinder. It can also be locked in any position between 0o and 90o for angle drilling operations. Boring depth is quickly and precisely adjusted using a
6-position turret system. Workpieces are held firmly in place by (2) pneumatic clamps.
Why Cantek HS21T 21-Spindle Construction Boring Machine?
- Single line boring machine with 21 spindles (11 RH & 10 LH) at 32mm centers
- Tiltable boring unit can be changed from horizontal to vertical drilling by pneumatic setting
- Pneumatic drilling cycle by convenient foot pedal
- Quick 6-position boring depth selector for fast changeover
- 21 quick change chuck for fast changeover
Featrures:
- Boring unit can be tilted manually for angular drilling
- Adjustable drill feed speed
- Mechanical digital readouts are provided for precise setting of the boring head
- Two-fold away side fences for end boring or drilling smaller components
- Side fences provides convenient positioning of the workpiece using a linear scale for positioning
- 3-meter back fence with 4 adjustable stops for line boring or they can be set on the side fence for dowel drilling on the face of the gable
|
SPECIFICATIONS
|
|
Distance between center
|
32mm
|
|
Number of spindles
|
21
|
|
Max. drilling depth
|
3â (75mm)
|
|
Boring head adjustment
|
0°~90°
|
|
Table size
|
34.33â x 19.3â³ (872 x 490mm)
|
|
Spindle speed
|
2800 RPM
|
|
Motor
|
2.5HP
|
|
Electrics
|
230/3/60= 9 Full Load Amps
230/1/60 = 16.9 Full Load Amps
|
|
Machine weight
|
770 lbs (350kgs)
|
|
Shipping weight
|
946 lbs (430kgs)
|
|
Machine dimensions
|
38.11âx32 ¼â x 48â (968x820x1220mm)
|
|
Shipping dimensions
|
45âx35âx54â (1143x889x1372mm)
|
