Bosch Line Lasers (Layout Levels)

GLL3-80 (NEW) GLL2-80 GLL2-50 GLL2-40 (NEW)
GLL3-80 360-Degree 3-Plane Leveling and Alignment Line Laser GLL2-80 Dual Plane Leveling and Alignment Laser GLL2-50 Self-Leveling Cross-Line Laser GLL2-40 Self-Leveling Cross-Line Laser
360-Degree 3-Plane Leveling and Alignment Line Laser
Dual Plane Leveling and Alignment Laser Self-Leveling
Cross-Line Laser
Self-Leveling
Cross-Line Laser
GTL3 GLL2-10 GTL2 GPL5
GTL3 Wall/Floor Covering Laser GLL2-10 Self-Leveling Cross-Line Laser GTL2 Laser Level Square GPLL5 Line Laser Level
Wall/Floor Covering Laser
Self-Leveling
Cross-Line Laser
Laser Level Square
Line Laser Level



NEW! GSL 2 Surface Laser

GSL 2 Surface Laser
Benefits: GSL 2 Surface Laser
  • Projects Two Laser Lines that Meet on the Floor Surface To determine level and flatness
  • Bright, Clear Laser Line Projection Allows laser lines to come together when surface is flat and level and separate when surface is uneven and out of level
  • Motorized Rotary Base Offers continuous view of floor surface instead of spot checking
  • Versatile Battery Operation Can be used with either alkaline batteries (included) or Boach Lithium-Ion 12V Max battery pack (not included)
Includes
  • RC2 Remote Control
  • Target Plate
  • L - Boxx3 Carrying Case with Insert
  • (4) -- AA 1.5V Batteries
Specifications: GSL 2 Surface Laser
Accuracy Up to ±1/8-in at 30-ft (Horizontal and Vertical)
Battery 12V Lithium-ion Battery
Battery 4 AA 1.5V Batteries
Battery Voltage 1.2
Dimensions 8.3 x 7.7 x 8.1 inch
Laser Diode 630 - 670 nm Class 3R
Leveling Type Self-Leveling, Up to 4 deg
Operating Temperature 14 deg F / -10 deg C ~1 22 deg F / 50 deg C
Range Up to 30-ft. without Target Plate, Up to 60-ft. with Target Plate
Weight 3.3 lb



 360-Degree 3-Plane Leveling and Alignment Line Laser
NEW  GLL3-80

360-Degree 3-Plane Leveling and Alignment Line Laser GLL3-80
Benefits: GLL3-80 360-Degree 3-Plane Leveling and Alignment Line Laser
  • One 360 degree Horizontal Plane and Two 360 degree Vertical Planes  For level and align/plumb applications
  • Smart Pendulum System  Self levels and indicates out-of-level condition; locks when switched off
  • Pulse Laser Receiver Mode  For use with LR2 laser receiver at up to 265 ft. in bright-light conditions
  • Manual Mode  Locks lines for use at any angle
Includes
  • (1) -- WM1 Positioning Device for Line and Point Lasers
  • (1) - Hard Carrying Case
Attachments
  • BT300 HD Heavy duty aluminum elevator tripod
  • BT160 Aluminum contractors tripod
  • GR16 Aluminum telescoping leveling rod
  • GR500 Aluminum telescoping leveling rod
  • LR2 Line laser receiver
Specifications: GLL3-80 360-Degree 3-Plane Leveling and Alignment Line Laser
Accuracy Up to ± 1/4-in at 100-ft
Battery Voltage 1.5
Laser Diode Class II 630 - 670 nm
Leveling Type Self-Leveling, Up to 4 deg
Mount Threading 1/4-20, 5/8-11
Operating Temperature 14 deg F / -10 deg C up to 104 deg F / 40 deg C
Range Up to 65-ft. (Indoors)
Weight 1.7 lb



NEW! GLL 3-50 Three Line Laser with Layout Beam

GLL 3-50 Three Line Laser with Layout Beam
Benefits: GLL 3-50 Three Line Laser with Layout Beam
  • One Horizontal, Two Vertical Lines Plus Plumb Down Point - For level, align, plumb and square applications
  • 360-degree Rotational Mounting Base - Manual fine adjustment for one time setup and convenient viewing of laser point on the floor
  • Pulse Laser Receiver Mode - For use with optional LR2 laser receiver at up to 165 ft. and in bright light conditions
  • Smart Pendulum System - Self-levels and indicates out-of-level condition; locks when switched off.
Includes
  • (1) -- Turning Base
  • (1) - Belt Pouch
  • (1) - Laser Target
  • (1) - L-Boxx Inlay
  • (4) -- AA 1.5V Batteries

Attachments

  • DLA001 Laser view enhancing glasses
  • DLA002 Laser view enhancing target plate
  • BP350 Telescoping pole system for laser tools
  • WM1 Positioning Device for line and point lasers
  • LR2 Line laser receiver
Specifications: GLL 3-50 Three Line Laser with Layout Beam
Accuracy Up to ± 1/4-in at 100-ft
Battery 4 AA 1.5V Batteries
Battery Voltage 1.5
Laser Diode Class II 635 nm, = 1 mW
Length 4.6 inch
Leveling Type Self-Leveling, Up to 4 deg
Mount Threading 1/4-20
Operating Temperature 14 deg F / -10 deg C up to 104 deg F / 40 deg C
Range Up to 30-ft.
Range w/ Optional LR2 Receiver Up to 165 feet
Weight 2 lb
Width 5.7 inch

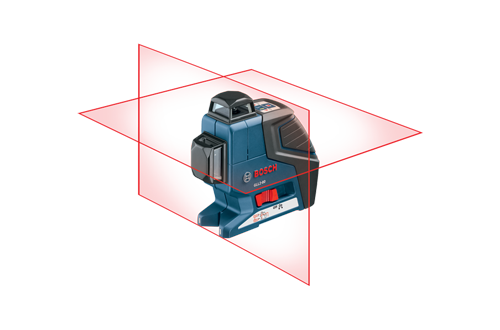

GLL2-80 Dual Plane Leveling and Alignment Laser

Dual Plane Leveling and Alignment Laser GLL2-80

Electronic copy of the owner's manual for this product.

Benefits: GLL2-80 Dual Plane Leveling and Alignment Laser
  • One 360 degree horizontal plane and one 360 degree vertical plane; with manual mode for all job site conditions
  • Smart Pendulum System  Self levels and indicates out-of-level condition; locks when switched off
  • Pulse Laser Receiver Mode  For use with LR2 laser receiver at up to 265 ft. in bright-light conditions
  • Manual Mode  Locks lines for use at any angle
Includes
  • (1) -- WM1 Positioning Device for Line and Point Lasers
  • (1) - Hard Carrying Case
Attachments
  • WM4 Wall mount
  • BT300 HD Heavy duty aluminum elevator tripod
  • BT160 HD Aluminum contractors tripod
  • GR16 Aluminum telescoping leveling rod
  • GR500 Aluminum telescoping tod
  • LR2 Line laser receiver
Specifications: GLL2-80 Dual Plane Leveling and Alignment Laser
Accuracy Up to ±1/4-in at 100-ft
Battery Voltage 1.5
Laser Diode Class II 635 - 650 nm
Leveling Type Self-Leveling, Up to 4 deg
Mount Threading 1/4-20, 5/8-11
Operating Temperature 14 deg F / -10 deg C up to 113 deg F / 45 deg C
Range Up to 65-ft.
Weight 1.3 lb



Self-Leveling Cross-Line Laser
GLL2-50

Self-Leveling Cross-Line Laser GLL2-50

Electronic copy of the owner's manual for this product.

Benefits: GLL2-50 Self-Leveling Cross-Line Laser
  • Vertical, Horizontal and Cross Line Modes - Projects two lines independently or together for a wide array level and/or plumb applications
  • Highly Visible Laser Lines  Wide 130 degree horizontal and 160 degree vertical fan angles
  • Smart Pendulum System  Self levels and indicates out-of-level condition; locks when switched off
  • Pulse Laser Receiver Mode  For use with LR2 laser receiver at up to 165 ft. in all bright-light conditions
  • Manual Mode  Locks lines for use at any angle

Includes

  • (1) -- WM1 Positioning Device for Line and Point Lasers
  • (1) - Belt Pouch
  • (3) -- AA 1.5V Batteries
  • (1) - Carrying Case

Attachments
  • DLA001 Laser view enhancing glasses
  • DLA002 Laser view enhancing target plate
  • BP350 Telescoping pole system for laser tools
  • WM1 Positioning device for line and point lasers
  • LR2 line laser receiver
Specifications: GLL2-50 Self-Leveling Cross-Line Laser
Accuracy Up to ±1/4-in at 100-ft
Battery Voltage 1.5
Dimensions 4.3 x 2.1 x 5.4 inch
Laser Diode Class II 635 nm, = 1 mW
Leveling Type Self-Leveling, Up to 4 deg
Mount Threading 1/4-20
Range Up to 65-ft.
Range w/ Optional LR2 Receiver Up to 165 feet
Weight 1 lb



NEW GLL2-40 Self-Leveling Cross-Line Laser

Self-Leveling Cross-Line Laser GLL2-40
Benefits: GLL2-40 Self-Leveling Cross-Line Laser
  • Vertical, Horizontal and Cross-Line Modes  Projects two lines independently or together for a wide array of level and/or plumb applications
  • Smart Pendulum System  Self levels and indicates out-of-level condition; locks when switched off
  • Manual Mode  Locks lines for use at any angle
  • Multipurpose Attachment  Position and mount with magnets, strap or threaded mounts (5/8 inch - 11, 1/4 inch - 20)
Includes
  • (1) - Laser Target
  • (1) - Magnetic Mounting Base
  • (1) - Soft Carrying Case Belt Pouch
  • (3) -- AAA Batteries
Attachments
  • WM4 Wall mount
  • DLA001 Laser view enhancing glasses
  • DLA002 Laser view enhancing target plate
  • BP350 Telescoping pole system for laser tools
  • WM1 Positioning device for line and point lasers
Specifications: GLL2-40 Self-Leveling Cross-Line Laser
Accuracy Up to ± 1/8-in at 30-ft (Horizontal and Vertical)
Battery Voltage 1.5
Dimensions 3.1 x 1.6 x 3.8 inch
Laser Diode 635 nm Class 2
Leveling Type Self-Leveling, Up to 4 degree
Mount Threading 1/4-20, 5/8-11
Operating Temperature 14 deg F / -10 deg C ~1 22 deg F / 50 deg C
Range Up to 30-ft.
Weight 0.5 lb



NEW! GLL 2-15 Self-Leveling Cross-Line Laser

GLL 2-15 Self-Leveling Cross-Line Laser

Benefits: GLL 2-15 Self-Leveling Cross-Line Laser
  • Robust over-molded construction - ensures water/ dust protection and sure grip for dependable operation
  • Easy access battery box - change batteries quickly
  • Automatic unit shut-off - saves battery life
  • Simple keypad operation  easily select between horizontal, vertical, and cross line modes
  • Floor and magnetic wall bracket provides easy setup and use
  • Smart pendulum leveling system self-levels, senses and indicated out-of level condition, locks when switched off
  • Vertical, horizontal, and cross-line modes - projects two lines independently or together for a wide array of level and/or alignment applications
  • Manual mode - locks line for use at any angle
  • Magnetic mounting base  position and mount with magnets, strap, or threaded mounts (5/8 - 11, 1/4 - 20)
Includes
  • (1) - Laser Target
  • (1) - BM3 Positioning Device
  • (1) - Hard Carrying Case
  • (3) -- AAA Batteries
Attachments
  • WM4 Wall mount
  • DLA001 Laser view enhancing glasses
  • DLA002 Laser view enhancing target plate
  • BP350 Telescoping pole system for laser tools
  • WM1 Positioning device for line and point lasers
Specifications: GLL 2-15 Self-Leveling Cross-Line Laser
Accuracy Up to ±1/8-in at 30-ft (Horizontal and Vertical)
Battery Voltage 1.5
Dimensions 3.1 x 1.6 x 3.8 inch
Laser Diode 635 nm Class 2
Leveling Type Self-Leveling, Up to 4 degree
Mount Threading 1/4-20
Operating Temperature 14 deg F / -10 deg C ~1 22 deg F / 50 deg C
Range Up tp 50-ft.
Weight 0.5 lb



Wall/Floor Covering Laser
GTL3

Wall/Floor Covering Laser GTL3
Benefits: GTL3 Wall/Floor Covering Laser
  • 0 and 90 degree Lines Plus Optional 45 degree Layout Line  Provides 0, 45, 90 and 135 degree layout from a single setup
  • Elevated Laser Beams — Allows laser line to travel past uneven surfaces or obstructions
  • Magnet Attachment — Strong magnets on bottom of tool provide secure and adjustable attachment on positioning plate and other ferrous-metal surfaces
  • Versatile Steel Positioning Plate — For versatile positioning of tool
Includes
  • (1) - Laser Target
  • (1) - Belt Pouch
  • (1) - Versatile Steel Positioning Plate
  • (4) -- AA 1.5V Batteries

Attachments
  • DLA001 Laser View Enchancing Glasses
  • DLA002 Laser View Enchancing Target Plate
Specifications: GTL3 Wall/Floor Covering Laser
Accuracy Up to ±1/16-in per 20-ft (±1/8-in per 20-ft between 45 and 90 deg lines)
Battery Voltage 1.5
Dimensions 6.125 x 4 x 3.875 inch
Laser Diode Class II 635 nm, = 1 mW
Range Up to 65-ft.



Self-Leveling Cross-Line Laser
GLL2-10

Self-Leveling Cross-Line Laser GLL2-10

Electronic copy of the owner's manual for this product.

Benefits: GLL2-10 Self-Leveling Cross-Line Laser
  • Vertical, Horizontal and Cross-Line Modes  Projects two lines independently or together for a wide array of level and/or plumb applications
  • Out-of-Level Indicator  With green LED for level and red LED for out-of-level condition
  • Smart Pendulum System  Self levels and indicates out-of-level condition; locks when switched off

Includes

  • (1) Carrying Case
  • (2) - AA Batteries

Attachments

  • DLA001 Laser View Enhancing Glasses
  • DLA002 Laser View Enhancing Target Plate
  • BP350 Telescoping Pole System for Laser Tools
  • WM1 Positioning Device for Line and Point Lasers
Specifications: GLL2-10 Self-Leveling Cross-Line Laser
Accuracy ± 7/32 inch at 30 ft
Battery Voltage 1.5
Dimensions 4.25 x 2.6 x 3.63 inch
Laser Diode Class II 635 nm, = 1 mW
Leveling Type Self-Leveling, Up to 4 deg
Mount Threading 1/4-20
Operating Temperature 41deg F / 5deg C - 104deg F / 40deg C
Range Up to 30-ft.

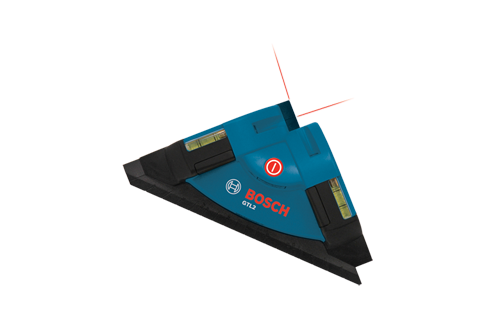

Laser Level Square - GTL2

Laser Level Square GTL2

Electronic copy of the owner's manual for this product.

Benefits: GTL2 Laser Level Square
  • Projects horizontal and vertical chalk lines on any surface
  • Alignment Guide for 90 degree Layout  Calculate and turn angles in 5 degree increments
  • Simple One-Button Operation  Powers two perpendicular laser lines (90 degree) on and off
  • Easy-to-Press Push Button  Secures unit to smooth surfaces using non-abrasive adhesive
Includes
  • (1) - Adhesive Mounting Strips
Attachments
  • DLA001 Laser View Enhancing Glasses
  • DLA002 Laser View Enhancing Target Plate

Specifications: GTL2 Laser Level Square
Accuracy Up to ±1/2-in at 30-ft
Battery Voltage 1.5
Dimensions 7.13 x 7.05 x 2.1 inch
Laser Diode Class IIM, = 1 mW at 650nm
Leveling Type Manual
Operating Temperature 32 deg F / 0 deg C - 104 deg F / 40 deg C
Range Up to 30-ft.



NEW! GLL 1P Line and Point Laser

GLL 1P Line and Point Laser



Benefits: GLL 1P Line and Point Laser
  • Projects Bright Single Laser Line and a Point - For leveling and alignment applications
  • Compact Design and One Button Operation - For quick and easy setup and use
  • Versitile Mounting Accessory - Mounts to walls, a compact tripod with 1/4 inch - 20 thread or can be placed on any flat surface
  • Built-in Vial Level - For greater accuracy

Includes

  • (1) - Mounting Plate
  • (1) - Adhesive Mounting Strips
  • (2) - Thumb Nail Mounts
  • (2) - AAA Batteries
Specifications: GLL 1P Line and Point Laser
Accuracy Up to ± 3/64-in at 3.3-ft
Battery Voltage 1.5
Dimensions 5.6 x 1.1 x 1.2 inch
Laser Diode Class II 635 nm, = 1 mW
Leveling Type Manual
Mount Threading 1/4-20
Operating Temperature 41 deg F / 5 deg C ~ 104 deg F / 40 deg C
Range Up to 16-ft.



Bosch Line Lasers (Layout Levels)
GSL2 GSL 2 Surface Laser
GLL3-80 GLL3-80 Tri Plane Line Laser W/Pulse
GLL3-50 GLL3-50 Three Line Laser with Layout Beam
GLL2-80 GLL2-80 Dual Plane Line Laser W/Pulse
GLL2-50 GLL2-50 Cross-Line Laser W/Pulse
GLL2-40 GLL2-40 Cross-Line Laser
GLL2-15 GLL 2-15 Self-leveling Cross-line Laser
GTL3 GTL3 Laser Square W/45 Degree 3rd Line
GLL2-10 GLL2-10 Cross-Line Laser
GTL2 GTL2 Laser Square
GLL1P GPLL5 Line and Point Laser
BP350 BP350 Laser Pole System 1/4-20
LR2 LR2 Line Laser Detector for Pulse Lasers
WM1 WM1 Multi Mount  W/1/4-20 Thread



GSL2
GSL 2 SURFACE LASER
Mfg. item #: GSL2
BERGSL2
"Ships by UPS, see freight calculator at checkout."2
$491.40

750
GLL3-80
GLL 3-80 SELF-LEVELING THREE PLANE LINE LASER WITH PULSE AND BM 1 POSITIONING DEVICE
Mfg. item #: GLL3-80
BERGLL3-80
"Ships by UPS, see freight calculator at checkout."2
$510.59

750
GLL3-50
GLL 3-50 SELF-LEVELING THREE-LINE LASER WITH 360-DEG ROTATIONAL BASE
Mfg. item #: GLL3-50
BERGLL3-50
"Ships by UPS, see freight calculator at checkout."2
$286.97

750
GLL2-80
GLL 2-80 SELF-LEVELING TWO PLANE LINE LASER WITH PULSE AND BM 1 POSITIONING DEVICE
Mfg. item #: GLL2-80
BERGLL2-80
"Ships by UPS, see freight calculator at checkout."2
$399.90

750
GLL2-50
DISCONTINUED AND NLA
Mfg. item #: GLL2-50
BERGLL2-50
"Ships by UPS, see freight calculator at checkout."2
$238.09

750
GLL2-40
GLL2-40 CROSS-LINE LASER ** LIMITED QUANITY AVAILABLE
Mfg. item #: GLL2-40
BERGLL2-40
Ships FREE via UPS to lower 48 states.5
$226.90

1218
GLL2-15
GLL 2-15 SELF-LEVELING CROSS LINE LASER WITH BM3 POSITIONING DEVICE
Mfg. item #: GLL2-15
BERGLL2-15
"Ships by UPS, see freight calculator at checkout."2
$181.44

750
GTL3
GTL3 LASER SQUARE W/45 DEGREE 3RD LINE
Mfg. item #: GTL3
BERGTL3
"Ships by UPS, see freight calculator at checkout."2
$173.60

750
GLL2-10
GLL2-10 SELF-LEVELING CROSS-LINE LASER ** LIMITED QUANITY AVAILABLE
Mfg. item #: GLL2-10
BERGLL2-10
Ships FREE via UPS to lower 48 states.5
$137.73

1218
GTL2
GTL2 LASER SQUARE
Mfg. item #: GTL2
BERGTL2
"Ships by UPS, see freight calculator at checkout."2
$46.76

750
GLL1P
GLL 1 P LINE AND POINT LASER LEVEL
Mfg. item #: GLL1P
BERGLL1P
"Ships by UPS, see freight calculator at checkout."2
$62.50

750
BP350
BP350 LASER POLE SYSTEM 1/4-20
Mfg. item #: BP350
BERBP350
"Ships by UPS, see freight calculator at checkout."2
$124.13

750
LR2
LR2 LINE LASER DETECTOR FOR GLL 2-50, GLL 3-50, GLL 2-80, GLL 3-80
Mfg. item #: LR2
BERLR2
"Ships by UPS, see freight calculator at checkout."2
$169.30

750
WM1
DISCONTINUED ITEM
Mfg. item #: WM1
BERWM1
Call for Price

1218
Copyright © 2018 Smith-Hamilton, Inc
0.011 160121 15:19
