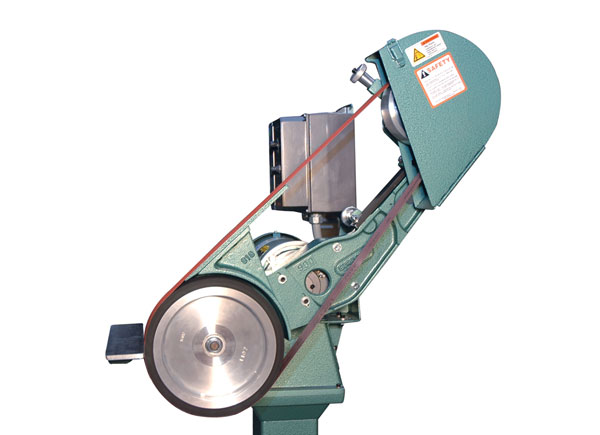

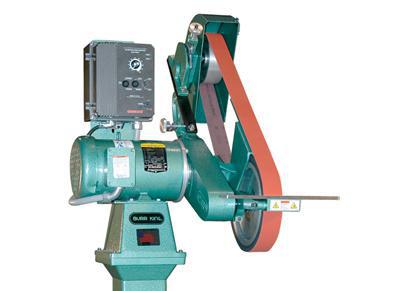

Velvet Touch Two Wheel Belt Grinders Model 960-272, Knifemakers Edge
The Knifemaker's Edge!
Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work
positions.
Features:
-
Grind, polish, buff with one machine!
-
Hollow grind, flat grind, contour, slack belt, vertical or horizontal platens
-
Fixed and Variable Speeds, smooth running
-
Small wheel attachment
-
Serrated contact wheels for rapid stock removal
-

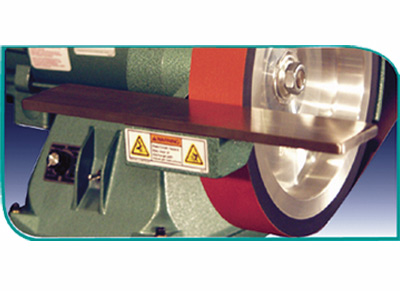

New Larger workrest (Standard)
-

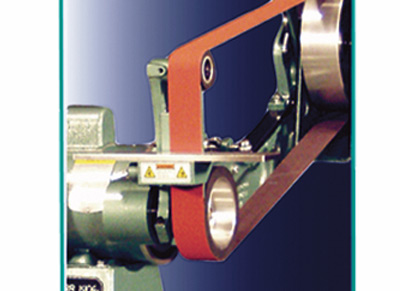

944 Optional Vertical Attachment
-

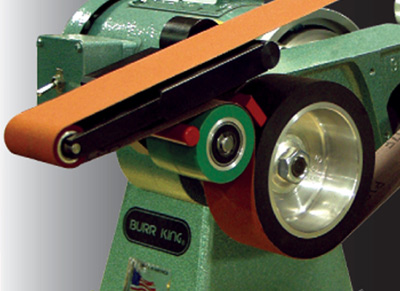

965 Small Wheel Attachment for 2 inch wide belts
-
Available 8 or 10 inch Contact wheel

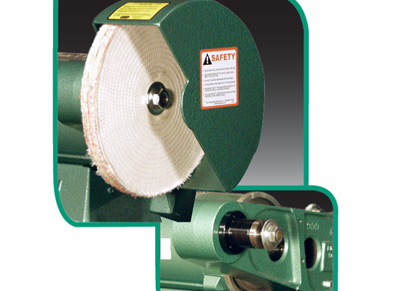

Turn your Model 960-272 into a finishing center. Run buffs, woven and convolute polishing wheels simply by using one of our versatile adapters. (See Flyer)
Available in easily adjusted variable speed and aggressive single speed, 2 x 72 inch Model 960-272 can be bench or pedestal mounted.
-
Contact wheel, platen and work rest support grinding
-
Adjustable belt tension
-
Positive belt tracking
-
Quick belt change
-
Up to 7000 SFPM belt speed
-
Variable speed 120/220-1 PH
-
Precision machined cast aluminum frame
-
Cord and Switch Included
-
Belt Guard
-
Includes magnetic starter (NEMA 12) and controls without power cord.
|
Item #
|
Belt Size
|
Speed
|
Frequency
|
Power
|
Volt / Phase
|
Ship WT.
|
|
98110
|
2 x 72
|
5400 SFPM
|
60 Hz
|
1 hp
|
120/1
|
90
|
|
98220
|
2 x 72
|
5400 SFPM
|
60 Hz
|
1 hp
|
220/1
|
90
|
|
98330
|
2 x 72
|
5400 SFPM
|
60 Hz
|
1.5 hp
|
120/1
|
90
|
|
98440
|
2 x 72
|
5400 SFPM
|
60 Hz
|
1.5 hp
|
220/1
|
90
|
|
99110
|
2 x 72
|
4400 SFPM
|
60 Hz
|
1 hp
|
120/1
|
90
|
|
99220
|
2 x 72
|
4400 SFPM
|
60 Hz
|
1 hp
|
220/1
|
90
|
|
99330
|
2 x 72
|
4400 SFPM
|
60 Hz
|
1.5 hp
|
120/1
|
90
|
|
99440
|
2 x 72
|
4400 SFPM
|
60 Hz
|
1.5 hp
|
220/1
|
90
|
|
99550
|
2 x 72
|
4400 SFPM
|
60 Hz
|
2 hp
|
220/1
|
95
|
|
98720
|
2 x 72
|
620-6200 SFPM
|
50-60 Hz
|
1 hp
|
120/1
|
97
|
|
98730
|
2 x 72
|
620-6200 SFPM
|
50-60 Hz
|
1.5 hp
|
120/1
|
97
|
|
98820
|
2 x 72
|
620-6200 SFPM
|
50-60 Hz
|
1 hp
|
220/1
|
97
|
|
98830
|
2 x 72
|
620-6200 SFPM
|
50-60 Hz
|
1.5 hp
|
220/1
|
97
|
|
99720
|
2 x 72
|
700-7000 SFPM
|
50-60 Hz
|
1 hp
|
120/1
|
97
|
|
99730
|
2 x 72
|
700-7000 SFPM
|
50-60 Hz
|
1.5 hp
|
120/1
|
97
|
|
99820
|
2 x 72
|
700-7000 SFPM
|
50-60 Hz
|
1 hp
|
220/1
|
97
|
|
99830
|
2 x 72
|
700-7000 SFPM
|
50-60 Hz
|
1.5 hp
|
220/1
|
97
|
*Includes magnetic starter (NEMA 12) and controls without power cord
Basic Specifications listed above may differ depending on selected model
|
|
|
SKU
|
Model
|
Adapter Plate
|
Adjustaable Height
|
For Use With
|
Height Inches
|
Ship WT
|
|
02
|
BK-746
|
No
|
No
|
720, 960, 1000, 1272
|
32
|
65
|
|
02-10
|
BK-746
|
No
|
Yes
|
720, 960, 1000, 1272
|
27 - 37
|
80
|
|
02-2
|
BK-746
|
No
|
No
|
720, 960, 1000, 1272
|
29
|
62
|
Click on Part Number in Chart Below to be Directed Below for Pricing
|
Burr King 960-272 The Knifemakers Edge 2 x 72 inch Belt Grinder
|
|
99110
|
960-272 GRDR,2X72X8/1HP/120V 1PH/60HZ/4400SFPM
|
|
99220
|
960-272 GRDR,2X72X8/1HP/220V 1PH/60HZ/4400SFPM
|
|
99330
|
960-272 GRDR,2X72X8/1.5HP/120V 1PH/60HZ/4400SFPM
|
|
99440
|
960-272 GRDR,2X72X8/1.5HP/220V 1PH/60HZ/4400SFPM
|
|
99550
|
960-272 GRD2X72X8/2HP/220V 1PH/60HZ/4400SFPM
|
|
99730
|
960-272 GRD, 2X72X8/1.5HP/VS 120V/1PH/50-60HZ/620-6200SFPM
|
|
99720
|
960-272 GRDR,2X72X8/1HP/VS/1PH 120V/50-60HZ/620-6200SFPM
|
|
99830
|
960-272 GRD 2X72X8/1.5HP/VS 220V/1PH/50-60HZ/620-6200SFPM
|
|
99820
|
960-272 GRDR,2X72X8/1HP/VS/1PH 220V/50-60HZ/620-6200SFPM
|
|
98110
|
960-272 GRD 2X72X10/1HP/120V 1PH/60HZ/5400SFPM
|
|
98220
|
960-272 GRD 2X72X10/1HP/220V 1PH/60HZ/5400SFPM
|
|
98330
|
960-272 GRD 2X72X10/1.5HP/120V 1PH/60HZ/5400SFPM
|
|
98440
|
960-272 GRDR,2X72X10/1.5H/220V 1PH/60HZ/5400SFPM
|
|
98550
|
960-272 GRD,2X72X10/2HP/1PH/ 220V/60HZ/5400SFPM
|
|
98730
|
960-272 GRD,2X72X10/1.5HP/120V 1PH/50-60HZ/700-7000SFPM
|
|
98720
|
960-272 GRDR,2X72X10/1HP/1PH 120V/50-60HZ/700-7000SFPM
|
|
98830
|
960-272 GRD 2X72X10/1.5HP/220V 1PH/50-60HZ/700-7000SFPM
|
|
98820
|
960-272 GRD 2X72X10/1HP/220V 1PH/50-60HZ/700-7000SFPM
|
|
02
|
PEDESTAL, BK-746 33 TALL SHIPPING WGT = 63 LBS
|
|
02-10
|
PEDESTAL, ADJUSTABLE 27-37 SHIPPING WGT = 78 LBS
|
|
02-2
|
PEDESTAL, 29 TALL, SPECIAL SHIPPING WGT = 2 LBS
|
