ChemGrout CG-30 Portable Grout Pump

CG030A - portable 3 inch piston pump with hopper
Model CG-30


s-h alt

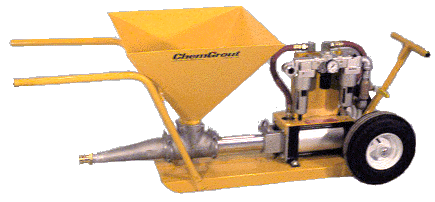

Model CG-30A Portable

ChemGrout CG30

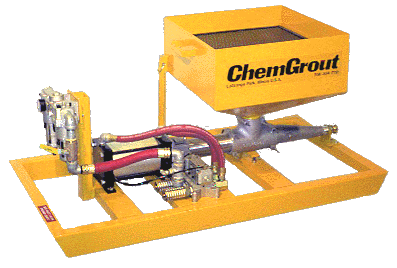

The ChemGrout CG-030 is a 3" piston grout pump.  This unit features a large 30-gallon (113 liters) holding hopper and the popular single-acting piston grout pump.  The large holding hopper is sized to provide ample capacity for continuous pumping.  The grout pump is a 3" positive displacement, pulsating piston pump that disassembles with only a hammer for fast and thorough cleaning.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production

Benefits Include:
  • Low maintenance costs
  • Easy operator controls
  • Laminated diagrams and parts lists
  • Quality and Rugged construction
  • Dependable people for parts and service
  • "ChemGrout" we've been here for 30 years and will be here supporting your equipment needs

Applications Civil Engineering - soil nails, tiebacks, earth anchors, cable bolts and rock bolts
Structural - building restoration, foundation stabilization, foundation raising, soil compaction grouting
Construction - post tensioning, pavement undersealing, block filling, slabjacking and slab raising
Marine - underwater foundations, piers, breakers, shoreline foundations
Mining - tunnel lining, contact grouting, shaft waterproofing
Utilities - encasements, waterproofing, sloip line grouting
Geotechnical - deep well casing, monitor wells, well sealing and abandonment

Specifications
Model Power Hopper Max Output Max Pressure Dimensions Weight
CG-30A Air 15-30 Gallons 16 GPM
(60 LPM)
400 PSI
(27.6 BAR)
60" L X 31" W X 31" H 310
CG-30H Hydraulic 15-30 Gallons 12 GPM
(45 LPM)
300 PSI
(20.7 BAR)
60" L X 31" W X 31" H 290
There is no further information.
There are no listed accessories.
Call for price. CHECG030/A
Call for price. CHECG030/H
EGM
Mfg. item #: EGM
CHEEGM
Call for freight quote on this item or we will confirm freight charges before shipping.1
$320.00

1605
