ChemGrout CG-3X8 Grout Pump

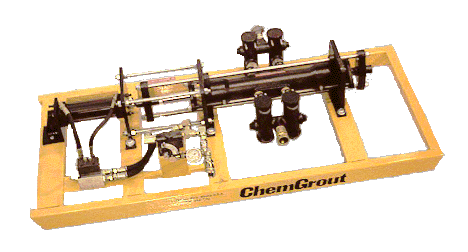

CG-3X8  Hydraulic Powered Shown

The ChemGrout High Pressure Pump series are skid mounted grout pumps.  These low maintenance pumps are designed to work with your grouting batch plant or mixing system.  The grout pump is a double acting, positive displacement plunger style that is available in three different sizes, 3x8, 2x8 and 1x8, offering discharge pressures of 1,000 psi, 1,600 psi and 2,000 psi respectively.  The plunger pump is designed so that conversion between the pressure outputs is quick, easy and cost effective.  Operator controls are centrally located for efficient production.The pump has patented fasteners that dramatically reduce disassembly time for cleaning and maintenance

Applications include: soil & rock, tie backs, foundation, soil & building stabilization, high pressure, post tensioning, undersealing and slab raising

There are no further details.
Pump Size
Maximum Output
Maximum Pressure
1" X  8"
10 GPM  (38 LPM)
2,000 PSI  (138 BAR)
2" X  8"
15 GPM  (58 LPM)
1,600 PSI  (110 BAR)
3" X  8"
20 GPM  (77 LPM)
1,000 PSI   (69 BAR)


Power Option
Std. Dimensions
Air & Electric/Hydraulic
91" L X 36" W X 38" H
500 - 650 lbs.
77" L X 34" W X 26" H
500 lbs.

Power Options = Air, Hydraulic, Electric/Hydraulic

Power units mounted on a separate skid are available in Electric/Hydraulic, Gas/Hydraulic or Diesel/Hydraulic

There is no further information.
There are no listed accessories.
Mfg. item #: EGM
