ChemGrout CG-500/3X8 Grout Pump

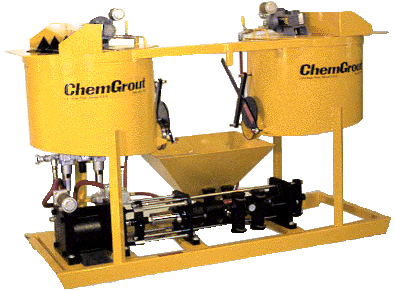

CG-500/3X8 Air Powered Shown

The ChemGrout CG-500HP series are skid mounted, high-pressure grout plants.  These units feature two 70-gallon (265 liters) mixing tanks, a 21-gallon (80 liters) holding hopper and a high-pressure plunger grout pump.  The unique double mix tank design permits continuous pumping as each mix tank alternates feeding the pump.  Each mixer is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing.  The tank outlets are large slide gates that allow viscous grouting materials to flow quickly into the removable holding hopper.  The holding hopper is connected directly to a double acting, positive displacement plunger pump that is available in three configurations, 3x8, 2x8 and 1x8, offering discharge pressures of 1,000 psi, 1,600 psi and 2,000 psi respectively.  The plunger pump is designed so that conversion between the pressure outputs is quick, easy and cost effective.  The pump has patented fasteners that dramatically reduce disassembly time for cleaning and maintenance.  Operator controls are centrally located for efficient production.


There are no further details.

Pump Specifications

Pump Size

Maximum Output

Maximum Pressure

1" x  8"

10 GPM  (38 LPM)

2,000 PSI  (138 BAR)

2" x  8"

15 GPM  (58 LPM)

1,600 PSI  (110 BAR)

3" x  8"

20 GPM  (77 LPM)

1,000 PSI    (69 BAR)



 Model Number

Description

Dimensions

Weight

CG500/3X8/A Skid Mounted Air Powered Grout Plant
Requires 250 CFM, 100 PSI

88" L X 34" W X 58" H

1300 lbs
CG500/3X8/H Skid Mounted Hydraulic Grout Plant
Requires 20 GPM,  2000 PSI

88" L X 34" W X 58" H

1100 lbs
CGPU15/EH3 Power Pack 15 HP Electric/Hydraulic
Requires 230/460 V, 38/19 A, 3 Phase

44" L X 32" W X 38" H

450 lbs
CGPU18/GHES Power Pack Gas/Hydraulic
18 HP gasoline engine with electric start

44" L X 32" W X 35" H

425 lbs
CGPU20/DHES Power Pack Diesel/Hydraulic
20 HP diesel engine with eletric start

44" L X 32" W X 38" H

525 lbs

Power units mounted on a separate skid are available in electric/hydraulic, gas/hydraulic or diesel/hydraulic



Call 1-800-458-3687 For Special Pricing On The
ChemGrout Pump For Your Specific Application

There is no further information.
