ChemGrout CG-Quattro Grout Pump


s-h alt

Model CG-Quattro

ChemGrout CG-Quattro

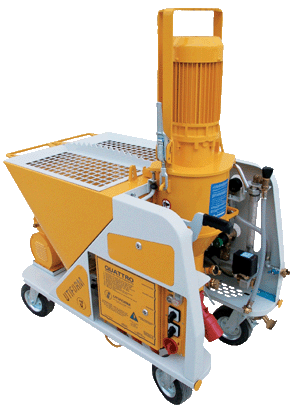

The ChemGrout model CGQUATTRO is a wheel mounted, electric powered, continuous mix grout machine that is designed to provide a continuous mixing and pumping operation.  This grout plant will pump or spray cementitous grout materials like self-leveling underlayments, plaster, EFIS, stuccos and fireproofing.  This compact design allows easy movement through doorways for access to the job site.  The Quattro includes a large hopper for dry material, a rotor/stator pump, water pump and air compressor.  The hopper holds up to 8 bags of dry material.  The rotor/stator pump deliver up to 13 GPM, 580 PSI.  The water pump delivers constant pressure to the mixing chamber for consistent quality.  The air compressor supplies the air for the spray wand and can be used as a remote control to shut the Quattro off from the end of the hose.  The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production.  The pumping components disassemble quickly for fast and efficient cleaning.  All components are easily accessible for operating, cleaning and maintenance.  This system requires 440V, 32 A, 3 phase electric power.  Pricing includes 100 foot of material discharge hose, 100 feet of air hose and the spray wand.

Applications self leveling floor underlayments, plastering, stucco, EFIS, fireproofing, resurfacing deteriorated concrete, waterproofing, mortar spraying, seal coating concrete and finishing concrete

Specifications
Model Bag Hopper Max Output Max Pressure Dimensions Weight
CGQUATTRO 4.5 Cubic Foot 2-13 GPM
580 PSI
44" x 26" x 58" 408 lbs
There is no further information.
There are no listed accessories.
EGM
Mfg. item #: EGM
CHEEGM
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

36
Freight policies for items on this page:
1: Call for freight quote on this item or we will confirm freight charges before shipping.
Free freight offers apply only to deliveries to the lower 48 states by truck freight or ground UPS. Liftgate and non-commercial delivery charges may be extra.
