ChemGrout CG-550/2L4/GHES Grout Pump

soil & rock, void filling, waterproofing, anchor, cable, rock bolts, encasements, marine/underwater, well casing, abondon shafts/holes, post tensioning, machine base, underlayments, undersealing, slab raising & brige rehab.

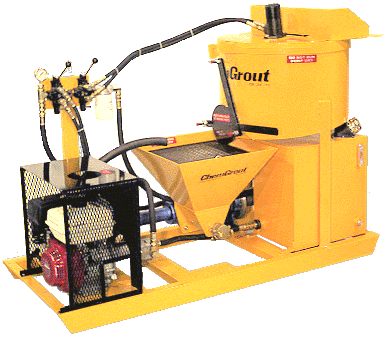

CG-550/2L4/GHES Skid Mounted Gasoline/Hydraulic Powered Shown

The ChemGrout CG-550 Thin Mix series includes both skid and trailer mounted grouting equipment.  The Thin Mix unit is designed to mix and pump neat cements, bentonites, cement/bentonites,  and lightly sanded grout mixes.  These units feature a 45 gallon (170 liters) mixing tank, a 10 gallon (38 liters) holding hopper and a 8 GPM (30 LPM) progressive cavity grout pump.  The balanced design of this grout plant allows continuous mixing and pumping, while the hopper is feeding the pump another batch can be mixed.  The mix tank is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing.  The tank outlet valve is a large slide gate that allows the materials to fall easily into the pump hopper.  The grout pump is a variable speed, positive displacement, progressive cavity, rotor-stator pump.  Operator controls are centrally located for efficient production.  All components are easily accessible for operating, cleaning, and maintenance.  The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.

  Applications include: soil & rock, void filling, waterproofing, anchor, cable, rock bolts, encasements, marine/underwater, well casing, abondon shafts/holes, post tensioning, machine base, underlayments, undersealing, slab raising & brige rehab.


Specifications

Model

Progressive Cavity Pump Model  Mixing Tank  Holding Hopper Max. Output

Max. Pressure

CG550/2L4
CG550/3L4
2 Stage, Size 4, Flanged Throat
3 Stage, Size 4, Flanged Throat

45 gallon

12 gallon

8 GPM

174 PSI

261 PSI



 Model Number

Description

Dimensions

Weight

CG550/2L4/A Skid Mounted Air Powered Grout Plant
Requires 150 CFM, 100 PSI

 76" L X 31" W X 51" H

550 lbs
CG550/2L4/H Skid Mounted Hydraulic Powered Grout Plant
Requires 12 GPM, 1200 PSI

76" L X 31" W X 51" H

550 lbs
CG550/2L4/EHT Skid Mounted Electric/Hydraulic Grout Plant
Requires 230/460 V, 36/18 A, 3 Phase

76" L X 31" W X 51" H

800 lbs
CG550/2L4/GHES Skid Mounted Gas/Hydraulic Grout Plant
Self-Contained  11 HP Honda Gas Engine

76" L X 31" W X 51" H

770 lbs
CG550/2L4/EHS Skid Mounted Electric/Hydraulic Grout Plant
Requires 230 V, 36 A, 1 Phase

76" L X 31" W X 51" H

800 lbs
CG555/2L4/GHES Trailer Mounted Gas/Hydraulic Grout Plant
Self-Contained  11 HP Honda Gas Engine

110" L X 60" W X 70" H

1020 lbs


Power Options = Air, Hydraulic, Electric/Hydraulic, Gas/Hydraulic or Diesel/Hydraulic


Call 1-800-458-3687 For Special Pricing On The
ChemGrout Pump For Your Specific Application

There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
