ChemGrout CG550P Mini Pump


CG050P - mini grout pump, 2 piston pump with mix tank

Model CG-550P

At a Glance
Details
Specifications
More Information
Accessories

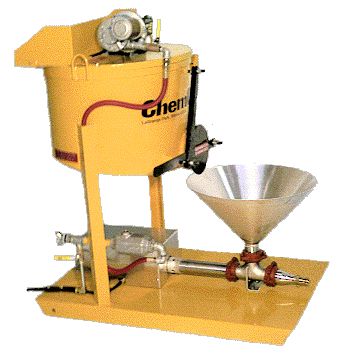

ChemGrout CG-550

The ChemGrout model CG-550P is a skid mounted, air powered grout machine. This system is designed to provide a continuous operation of mixing and pumping. This unit features a 34 gallon (129 liter) mixing tank and the field proven CG-050 grout pump. The mixer is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide a rapid mixing cycle. The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper. The holding hopper is connected directly to the suction of the grout pump to provide a continuous pumping operation. The grout pump is a 2" positive displacement, pulsating piston. The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production. The pumping components disassemble without any tools for a fast and efficient cleaning. All components are easily accessible for operating, cleaning and maintenance.

Applications Applications include: marine/underwater, hollow metal filling, windows/doors, precast, machine base, under sealing, slab raising, bridge rehab and encasements.

There are no further details.

Specifications
Model	Piston Pump Model	Mix Tank	Max Pressure	Hopper	Max Output
CG-550P	2" Piston Pump	34 Gallons	225 PSI	5 Gallon	5 GPM

There is no further information.

There are no listed accessories.

Compare

AIR POWERED GROUT MACHINE
CALL 800-458-3687 X1 FOR THE VERY BEST BROTHER-IN-LAW DEAL ON THIS CHEM GROUT PUMP

Mfg. item #: CG550P

CHECG550P

Call for freight quote on this item or we will confirm freight charges before shipping.¹

Call for Price

Compare

HAND HELD ELECTRIC GROUT MIXER 110V
CALL 800-458-3687 X1 FOR THE VERY BEST BROTHER-IN-LAW DEAL ON THIS CHEM GROUT PUMP

Mfg. item #: EGM

CHEEGM

Call for freight quote on this item or we will confirm freight charges before shipping.¹

Call for Price
