ChemGrout CG-570

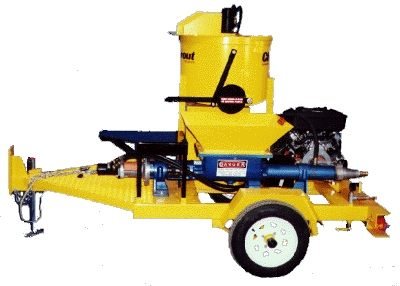

The CG570 trailer mounted grout plant comes with its own integral power system. This machine will continuously mix and pump the widest range of grouting materials from thin to thick consistencies. Materials that are used with this unit include Repair Mortars, Gel Mortars, Stucco, Fireproofing Plastering, EIFS, cement/masonry sand, cement/fly ash, flowable and non-flowable grouts and Bentonite waterproofing grouts. The optional air compressor allows the operator to continuously mix, pump and spray. The 45 gal mixing tank is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper. The holding hopper has an auger in it to keep the material thoroughly mixed while constantly supplying the grout pump with material for the continuous pumping operation. The grout pump is a Size 6, 3 stage, variable speed, positive displacement, progressive cavity, rotor-stator pump that delivers up to 8 GPM, 261 PSI. These units can be powered by compressed air or their own hydraulic power systems that feature 15 HP Electric motor, 18 HP Gasoline engine or 20 HP Diesel engine, both equipped with electric start. The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production. All components are easily accessible for operating, cleaning, and maintenance. The highway ready trailer comes complete with leaf springs, lights, a working platform and an adjustable trailer hitch for either ball or pintle.

Applications Applications include: marine/underwater, hollow metal filling, windows/doors, precast, machine base, under sealing, slab raising, bridge rehab and encasements.

There are no further details.

Specifications
Model	Mix Tank	Max Pressure	Hopper	Max Output
CG-570	45 Gallons	261 PSI	15 Gallon	2-8 GPM

There is no further information.

There are no listed accessories.
