ChemGrout CG542-6CM3-A Grout Pump

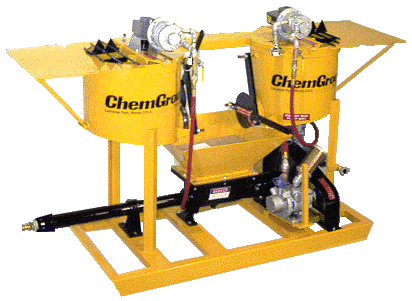

CG542/6CM3/A Air Powered Shown

The ChemGrout model CG-542 is a skid mounted air powered grout plant.  The unit is specially designed with a low profile for grouting rock bolts and cable stays in tight quarters such as tunnels and mines.  This system is designed to provide a mixing and pumping continuous operation.  This unit features two 22-gallon mixing tanks, a 10-gallon holding hopper and a progressing cavity grout pump. The mixing tanks are equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper.  The holding hopper is equipped with an auger to keep the material thoroughly mixed while waiting to be pumped and in connected directly to the suction of the grout to provide a continuous pumping operation.  The grout pump is available in either a 6 stage, size 3, positive displacement, progressing cavity, rotor-stator type that will deliver 5 GPM, 522 PSI, or a 3 stage, size 4, positive displacement, progressing cavity, rotor-stator type that will deliver 8 GPM, 261 PSI. The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  All components are easily accessible for operating, cleaning and maintenance.

Applications include: rock bolts, rock anchors, cable grouting, cable stays, waterproofing, rock and soil nails.

There are no further details.

Specifications

Model

Progressive Cavity Pump Mixing Tanks Hopper Max. Output

Max. Pressure

CG542/3C4 3 Stage, Size 4, Open Throat

2 @ 22 Gallon each

10 Gallon

5 GPM (19 LPM)

261 PSI (18 BAR)

CG542/6CM3 6 Stage, Size 3, Open Throat

2 @ 22 Gallon each

10 Gallon

3.5 GPM (13 LPM)

522 PSI (36 BAR)



 Model Number

Description

Dimensions

Weight

CG542/2C4/H Skid Mounted Hydraulic Powered Grout Plant
Requires 10 GPM, 1200 PSI

64" L X 31" W X 52" H

855 lbs
CG542/2C4/A Skid Mounted Air Powered Grout Plant
Requires 185 CFM, 100 PSI

64" L X 31" W X 52" H

800 lbs
CG542/6CM3/H Skid Mounted Hydraulic Powered Grout Plant
Requires 10 GPM, 1200 PSI

64" L X 31" W X 52" H

855 lbs
CG542/6CM3/A Skid Mounted Air Powered Grout Plant
Requires 185 CFM, 100 PSI

64" L X 31" W X 52" H

800 lbs

Hydraulic Power Packs Available (electric/hydraulic, gasoline/hydraulic, diesel/hydraulic)




Call 1-800-458-3687 For Special Pricing On The
ChemGrout Pump For Your Specific Application

There is no further information.
There are no listed accessories.
