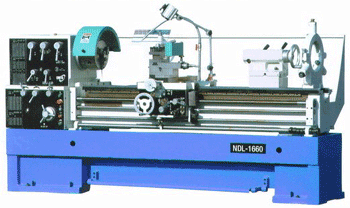

CP Tools NDL-1440 - 1660

Features:

  • Hardened and ground gears and shafts
  • Oil bath lubricated headstock and gear box for smooth, quiet operation
  • Induction Hardened and Ground Bedways
  • D1-6 Camlock spindle nose
  • 12 Spindle speeds, 32-2,000 RPM
  • Full length splash guard and foot brake
  • Wide range or feed and thread selections
  • Fully enclosed quick-change gear box
  • Large diameter leadscrew and feed rod
  • Equipped with chuck guard and tool post guard

Standard Equipment

  • 8" 3-jaw chuck with top reversible jaws
  • 10" 4-jaw chuck
  • 19" face plate
  • 8" back plate
  • Driving plate
  • Steady and follow rest
  • Live center, MT-4
  • Dead centers, MT-4
  • Center sleeve, MT-6 to MT-4
  • 4-way tool post
  • Threading dial
  • Change gears
  • Halogen work lamp
  • Leveling pads
  • Toolbox with tools

SPECIFICATIONS

ITEM MODEL
NDL-1440 / 1460 NDL-1640 / 1660
CAPACITIES Swing over bed (in) 14" 16"
Swing over Cross Slide (in) 7-1/4" 8-1/4"
Swing over gap (in) 23" 25"
Length of gap (in) 7-7/8" 7-7/8"
Distance between centers  (in) 40" / 60" 40" / 60"
HEADSTOCK Spindle bore (in) 2-1/16" 2-1/16"
Spindle nose type (Camlock) D1-6 D1-6
Spindle taper MT-6 MT-6
Spindle speeds 12 12
Spindle Speeds range (RPM) 32-2,000 RPM 32-2,000 RPM
Spindle center to bedway (in) 7-1/8" 7-1/8"
GEARBOX Threads per inch (No.) range (T.P.I.) (44) 2-56 (44) 2-56
Metric threads (No.) range (mm) (24) 0.5-14 (24) 0.5-14
Module threads (No.) range (mm) (24) 2-56 (24) 2-56
Diametral threads (No.) range (D.P.) (44) 0.5-14 (44) 0.5-14
Long. feeds (No.) range (in/rev) (18) 0.002-0.032 (18) 0.002-0.032
Cross feeds (No.) range (in/rev) (17) 0.0007-0.0095 (17) 0.0007-0.0095
Leadscrew diameter (in) 1-3/8" 1-3/8"
Leadscrew T.P.I. 4 4
Feed rod diameter (in) 1-3/4" 1-3/4"
CARRIAGE & APRON Tooling size (in) 1" x 1" 1" x 1"
Compound slide travel (in) 5" 5"
Cross slide travel (in) 9-1/2" 9-1/2"
TAILSTOCK Tailstock taper MT-4 MT-4
Quill travel (in) 5" 5"
Quill diameter (in) 2-3/8" 2-3/8"
MOTOR Main drive (HP) 6HP, 2-Speed,
220V 3 PH Only
6HP, 2-Speed,
220V 3 PH Only
MISCELLANEOUS Maximum work piece weight (Lbs) 900 Lbs 900 Lbs
Steady rest capacity Min/Max (in) 1-1/2" - 4" 1-1/2" - 4"
Follow rest capacity Min/Max (in) 3/4" - 1-3/8" 3/4" - 1-3/8"
Length of bed (in) 62 / 82 62 / 82
Width of bed (in) 11-3/4" 11-3/4"
Overall Dimensions (L x W x H /in.) 90 x 40 x 48 /
109 x 40 x 48
90 x 40 x 50 /
109 x 40 x 50
Net weight approx. (Lbs) 3,000 / 3,500 3,500 / 4,000

Optional Accessories

  • Quick-change tool post set
  • Taper Turning attachment
