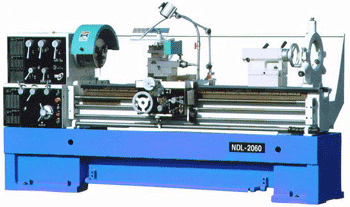

Features:
-
Full length cast iron base with easy exit chip removal
-
Hardened and ground gears, shafts, and bedways
-
D1-6 Camlock spindle nose
-
12 Spindle speeds, 16-1,600 RPM
-
Powerful 1-1/2" Horsepower drive motor
-
Full length splash guard and foot brake
-
Spindle jog button control
-
Oil bath lubricated headstock and gear box for smooth, quiet operation
-
One-shot lube system for apron and bedways
|
SPECIFICATIONS
|
|
ITEM
|
MODEL
|
|
NDL-1840 / 1860
|
NDL-2040 / 2060
|
|
CAPACITIES
|
Swing over bed (in)
|
18"
|
20"
|
|
Swing over Cross Slide (in)
|
10-1/2"
|
12-1/2"
|
|
Swing over gap (in)
|
27"
|
29"
|
|
Length of gap (in)
|
8"
|
8"
|
|
Distance between centers (in)
|
40" / 60"
|
40" / 60"
|
|
HEADSTOCK
|
Spindle bore (in)
|
3-1/4"
|
3-1/4"
|
|
Spindle nose type (Camlock)
|
D1-8
|
D1-8
|
|
Spindle taper
|
MT-6
|
MT-6
|
|
Spindle speeds
|
12
|
12
|
|
Spindle Speeds range (RPM)
|
16-1,600 RPM
|
16-1,600 RPM
|
|
Spindle center to bedway (in)
|
9"
|
10"
|
|
GEARBOX
|
Threads per inch (No.) range (T.P.I.)
|
(44) 2-56
|
(44) 2-56
|
|
Metric threads (No.) range (mm)
|
(24) 0.5-14
|
(24) 0.5-14
|
|
Module threads (No.) range (mm)
|
(24) 2-56
|
(24) 2-56
|
|
Diametral threads (No.) range (D.P.)
|
(44) 0.5-14
|
(44) 0.5-14
|
|
Long. feeds (No.) range (in/rev)
|
(18) 0.002-0.032
|
(18) 0.002-0.032
|
|
Cross feeds (No.) range (in/rev)
|
(17) 0.0007-0.0095
|
(17) 0.0007-0.0095
|
|
Leadscrew diameter (in)
|
1-3/8"
|
1-3/8"
|
|
Leadscrew T.P.I.
|
4
|
4
|
|
Feed rod diameter (in)
|
1-3/4"
|
1-3/4"
|
|
CARRIAGE & APRON
|
Tooling size (in)
|
1" x 1"
|
1" x 1"
|
|
Compound slide travel (in)
|
5"
|
5"
|
|
Cross slide travel (in)
|
9-1/2"
|
9-1/2"
|
|
TAILSTOCK
|
Tailstock taper
|
MT-4
|
MT-4
|
|
Quill travel (in)
|
5"
|
5"
|
|
Quill diameter (in)
|
2-3/8"
|
2-3/8"
|
|
MOTOR
|
Main drive (HP)
|
7-1/2HP,
220V/440V 3 PH
|
7-1/2HP,
220V/440V 3 PH
|
|
MISCELLANEOUS
|
Maximum work piece weight (Lbs)
|
880 Lbs
|
880 Lbs
|
|
Steady rest capacity Min/Max (in)
|
3-1/8" - 7-7/8"
|
3-1/8" - 7-7/8"
|
|
Follow rest capacity Min/Max (in)
|
3/4" - 3-9/16"
|
3/4" - 3-9/16"
|
|
Width of bed (in)
|
11-3/4"
|
11-3/4"
|
|
Net weight approx. (Lbs)
|
5,000 / 5,500
|
5,700 / 6,060
|
There is no further information.
There are no listed accessories.
Mfg. item #: NDL-1840
CPTNDL-1840
Call for freight quote on this item or we will confirm freight charges before shipping.1
|
Mfg. item #: NDL-1860
CPTNDL-1860
Call for freight quote on this item or we will confirm freight charges before shipping.1
|
Mfg. item #: NDL-2040
CPTNDL-2040
Call for freight quote on this item or we will confirm freight charges before shipping.1
|
Mfg. item #: NDL-2060
CPTNDL-2060
Call for freight quote on this item or we will confirm freight charges before shipping.1
|
