DAKE Air Operated Presses


Click image to enlarge

Takes all the physical effort out of hand pumping. Can double pressing speed.

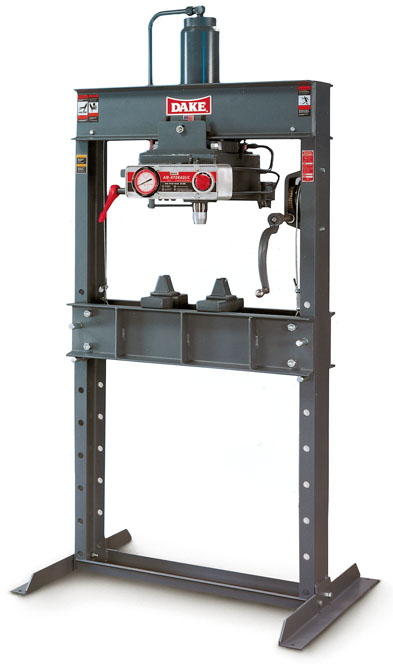

Model 6-250 shown.

Features

  • Air operation eliminates the need for hand pumping.
  • Safety valve protects against overloads.
  • Movable workhead is roller mounted on ball bearings for off-center work.
  • Dual air pumps, for faster pressing speeds, available on some models.
  • Rapid ram approach quickly moves ram to work to save production time.
  • Stroke indicator ensures accurate ram control.
  • By-pass hole eliminates excessive ram extension.
  • Adjustable table permits easy vertical movement by means of self-locking hoist.
Specifications
model
6-650
6-850
number 906650 906850
capacity (tons) 150 150
ram speed-advance 25 22
ram speed-press 1 2
number of pumps 1 2
air pressure (lbs)
90-125
90-125
A width between uprights 48 48
B width between table channels
12-1/4
12-1/4
C minimum ram to table 10 10
D maximum ram to table 30 30
E ram travel 16 16
F horizontal workhead travel
21-7/8
21-7/8
JxK base (inches)
66x42
66x42
L height (inches) 95 95
weight (lbs)
3,000
3,050

Standard Equipment

  • Frame
  • Two forged steel V-blocks
  • Flat ram nose
  • Stroke indicator
  • Safety relief valve
  • Workhead
  • Two forged steel table plates
  • V-ram nose (N/A on 25 ton model)
  • Pressure gauge
  • Self-locking table hoist
There are no listed accessories.
906225
Mfg. item #: 906225
DAKE906225
lease to own for as little as:$172 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,617.39

1
906425
Mfg. item #: 906425
DAKE906425
lease to own for as little as:$190 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,488.35

1
906250
Mfg. item #: 906250
DAKE906250
lease to own for as little as:$180 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,976.29

1
906450
Mfg. item #: 906450
DAKE906450
lease to own for as little as:$197 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,866.88

1
906275
Mfg. item #: 906275
DAKE906275
lease to own for as little as:$186 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,284.17

1
906475
Mfg. item #: 906475
DAKE906475
lease to own for as little as:$204 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,200.84

1
906650
Mfg. item #: 906650
DAKE906650
lease to own for as little as:$327 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$16,364.68

1
906850
Mfg. item #: 906850
DAKE906850
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

7
906900
Mfg. item #: 906900
DAKE906900
lease to own for as little as:$558 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$27,899.51

1
906226
Mfg. item #: 906226
DAKE906226
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

7
906426
Mfg. item #: 906426
DAKE906426
lease to own for as little as:$148 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,419.94

1
906251
Mfg. item #: 906251
DAKE906251
lease to own for as little as:$136 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,820.80

1
906451
Call for Price

7
906276
Mfg. item #: 906276
DAKE906276
lease to own for as little as:$137 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,863.14

1
906476
Call for Price

7
906651
Mfg. item #: 906651
DAKE906651
lease to own for as little as:$171 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,536.42

1
906851
Call for Price

7
906901
Mfg. item #: 906901
DAKE906901
lease to own for as little as:$403 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$20,160.76

1
