DAKE Bench Grinder

Features:

  • Pivots up and down on the base for easy ergonomic work height adjustments.
  • Advanced belt tracking with vented front wheel fixed in place for rigidity when grinding on the wheel radius.
  • Hinged top cover opens for access to grind large pieces using the entire length of the belt.
  • Adjustable parts rest and backing plate with Plexiglas shield to keep the part being ground steady and in place
Specifications
model
G-75
G-75 1PH
number 961002 961002
belt size
3x 79
3x 79
horsepower 4 4
electrics 220/440v - 3 ph 220-v - 1 ph

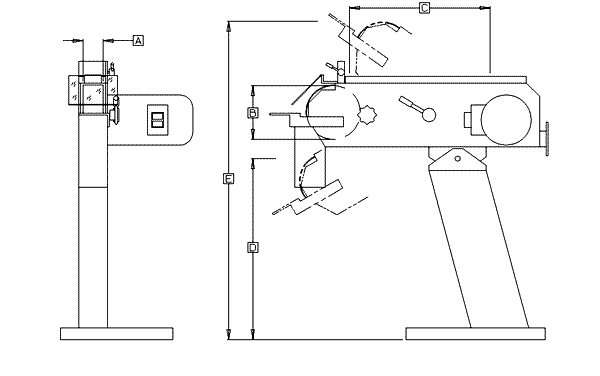

AxB contact wheel size
3x8
3x8
belt speed
6,600 fpm
6,600 fpm
C grinding plane (full)
3x21 inch
3x21 inch
D minimum plane 27 27
E maximum plane 47 47
weight 250 250
BELT GRINDER AND FOOT VISE
Model Part # Description
G-75 961001-2 3 x 79 inch Belt Grinder 220v-3 ph
G-75 961001-4 3 x 79 inch Belt Grinder 440v-3 ph
G-75 961002-2 3 x 79 inch Belt Grinder 220v-1 ph
Foot Vise IFV135 Foot activated vise

961001-2
3 X 79 BELT GRINDER SPECIFY 220V-3
Mfg. item #: 961001-2
DAKE961001-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

309
961001-4
3 X 79 BELT GRINDER SPECIFY 220V-3
Mfg. item #: 961001-4
DAKE961001-4
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

309
961002-2
MODEL-G-75 3 X 79 BELT GRINDER SPEC
Mfg. item #: 961002-2
DAKE961002-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

309
IFV135
FOOT ACTIVATED VISE
Mfg. item #: IFV135
DAKEIFV135
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

309
