Dake Dura Press Single Phase

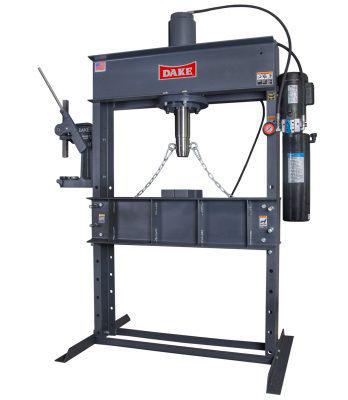

MODEL FORCE 50DA - DURA PRESSES - 50-TON ELECTRICALLY OPERATED H-FRAME, 110V-1PH ** WEIGHT - 1200LBS
Click image to enlarge

Click to download manual

Designed to work the way you work. These Single Phase Dura Presses feature an electric power unit, lever control ram advance, a double-acting cylinder, and one hand ram positioning.

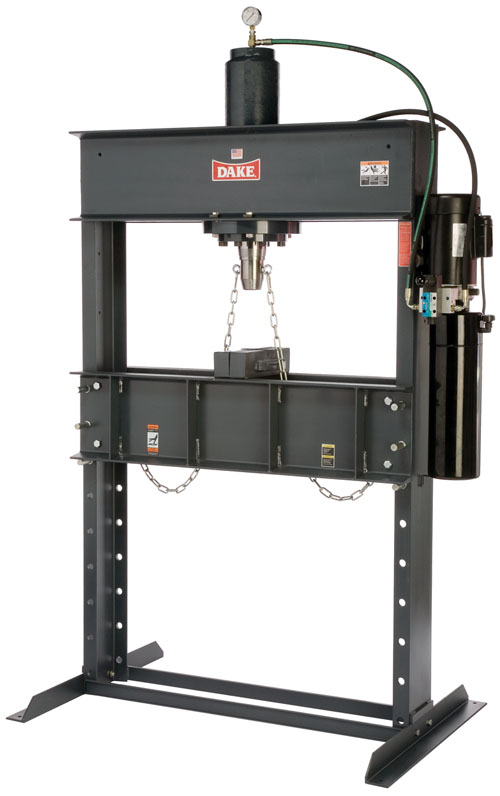

Force 50DA shown.

Features

  • Electric power unit has convenient single phase, 110 volt operation for greater portability.
  • Lever control ram advance for easy operation.
  • Double acting cylinder allows for convenient positioning of ram.
  • Sturdy, welded channel iron frame for durability.
  • Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
  • One hand ram positioning with 4-way valve hydraulic control.

Standard Equipment

  • Frame
  • Motor-1hp, 110 volt (on 10 and 25 ton models) 2hp, 110 volt (on 50 ton models)
  • Safety relief valve
  • Joystick operation (on 50 ton model)
  • Two combination table plate/V-blocks
  • Pressure gauge
  • Lifting chain (on 25 ton model)



DURA PRESSES 1Ph
909205 Force 10DA 10-ton Electrically Operated H-frame, 110v-1 ph
909215 Force 25DA 25-ton Electrically Operated H-frame, 110v-1 ph
909250 Force 50DA 50-ton Electrically Operated H-frame, 110v-1ph
301949   Remote Pressure Regulator Valve Kit  (DA presses only)



Specifications
model
Force 10DA
Force 25DA
Force 50DA
number 909205 909215 909250
capacity (tons) 10 25 50
horsepower 1 1 2
rpm
3,450
3,450
3,450
ram speed 20 10 11
A width between uprights 20 28 44
B width between table channels 4 7
8.25
C minimum ram to table
4
8 0
D maximum ram to table 40 44
41 3/4
E ram travel
10
10
16
JxK base
29-3/4x24
30x38
55x36
L height (inches) 80 88 88
weight (lbs) 300 570
1,550

909205
DAKE MODEL FORCE 10DA - 10-TON ELECTRICALLY OPERATED H-FRAME, 110V-1 PH
Mfg. item #: 909205
DAKE909205
lease to own for as little as:$76 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,820.86

17
909215
DAKE MODEL FORCE 25DA - 25-TON ELECTRICALLY OPERATED H-FRAME, 110V-1 PH
Mfg. item #: 909215
DAKE909215
lease to own for as little as:$99 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,931.86

17
909250
DAKE MODEL FORCE 50DA - 50-TON ELECTRICALLY OPERATED H-FRAME, 110V-1PH
Mfg. item #: 909250
DAKE909250
lease to own for as little as:$156 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,793.86

17
301949
DAKE REMOTE PRESSURE REGULATOR VALVE KIT (DA PRESSES ONLY)
Mfg. item #: 301949
DAKE301949
Call for freight quote on this item or we will confirm freight charges before shipping.1
$621.66

17
