DAKE Manual Technics & Supercut Coldsaws

Click here to download manual
Click here to download parts list

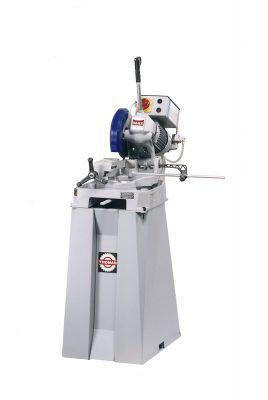

Model TECHNICS 250 10 inch blade

Manual cold saw with a head that will rotate 45 degree left and right for mitering. This saw is designed to cut without sparks and will leave the metal cool to the touch. A mechanical coolant pump with flow control is included.

TECHNICS 250

Features:

  • Head rotates 45 degrees right and left of center for mitering.
  • Dependable oversized spindle and gear assembly with steel spindle and bronze gear.
  • Reliable mechanical coolant pump with flow control adjustment.
  • Adjustable hinged pivot.
  • Additional ball bearing support of hardened and ground spindle shaft to prevent failure.

Standard Equipment:

  • Blade
  • Pedestal Base
  • Tool Kit
  • Gallon of Coolant
  • Adjustable Positive Stop
Specifications
  TECHNICS 250
Number 974250-1
Voltage 110V, Single Phase
Horsepower 1.2
Cutting Ability Ferrous/non-ferrous/plastics
Maximum blade diameter 10 inch
Maximum vise opening 4 inch
Maximum Angle 45 degree right/left
Slotting No
Phase 1
Speeds 44 rpm
Weight 378 lbs
Solid round 90 degree capacity 1-1/4 inch
Solid round 45 degree capacity 1 inch
Tube 90 degree capacity 2-3/4 inch
Tube 45 degree capacity 2-3/8 inch
Square 90 degree capacity 2-1/2 inch
Square 45 degree capacity 2-1/8 inch
Rectangle 90 degree capacity 3-7/8 x 1-3/4 inch
Rectangle 45 degree capacity 2-1/2 x 1-7/8 inch
Work height 37 inch
Height 61 inch
Width 21 inch
Depth 35 inch



Click here to download manual
Click here to download parts list

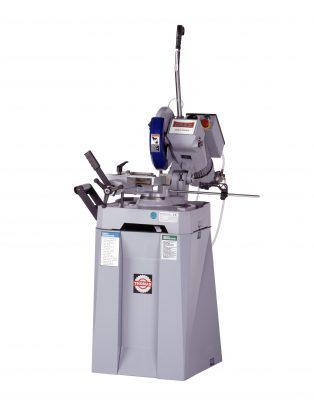

Model SUPER CUT 315 12.5 inch blade

Manual cold saw with a head that will rotate 45 degree left and right for mitering. This saw is designed to cut without sparks and will leave the metal cool to the touch. This model has 24V at controls, an e-stop, low voltage protection, and thermal overload protection. Available in 120V, 220V and 440V operation.

440V model requires step-down transformer for operation (part number: 300674)

supercut 315

Features:

  • Head rotates 45 degree right and left of center for mitering.
  • Dependable oversized spindle and gear assembly with steel spindle and bronze gear.
  • Bronze gear with tapered roller bearing support.
  • Reliable mechanical coolant pump with flow control adjustment.
  • Adjustable hinged pivot.
  • Additional ball bearing support of hardened and ground spindle shaft to prevent failure.
  • 24V at controls, E-Stop, low voltage protection, and thermal overload protection

Standard Equipment:

  • Blade
  • Pedestal Base
  • Tool Kit
  • Gallon of Coolant
  • Adjustable Positive Stop
Specifications
  SUPER CUT 315
Number 974315-2 974315-4 9743151PH-1
Voltage 220V/440V 3 Phase; 120V 1 Phase
Horsepower 1.6 HP - 2.35 HP
Cutting Ability Ferrous/non-ferrous/plastics
Maximum blade diameter 12-1/2 inch
Maximum vise opening 4-5/8 inch
Maximum Angle 45 degree right/left
Slotting No
Phase 3 Phase/1 Phase
Speeds 220/440V Speeds: 22/44 rpm 110V Speed: 44 rpm
Weight 450 lbs
Solid round 90 degree capacity 2-5/8 inch
Solid round 45 degree capacity 2-1/2 inch
Tube 90 degree capacity 5-3/8 inch
Tube 45 degree capacity 3-1/2 inch
Square 90 degree capacity 3-1/4 inch
Square 45 degree capacity 3-1/8 inch
Rectangle 90 degree capacity 4-1/4 x 2-3/4 inch
Rectangle 45 degree capacity 3-1/4 x 2-3/4 inch
Work height 38-1/2 inch
Height 59 inch
Width 26 inch
Depth 36 inch



Click here to download manual
Click here to download parts list

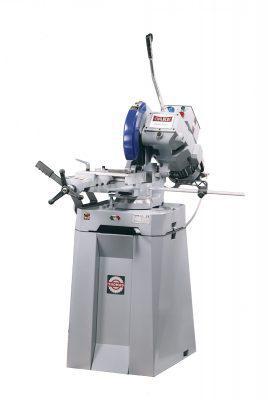

Model TECHNICS 350CE 14 inch blade

Manual cold saw that will rotate to 90º for slot cutting and offers variable speeds. A mechanical coolant pump with flow control is included. Available in 220V or 440V operation.

440V model requires step-down transformer for operation (part number: 300674)

TECHNICS 350CE

Features:

  • Head rotates 45 degree right and left of center for mitering.
  • Dependable oversized spindle and gear assembly with steel spindle and bronze gear.
  • Reliable mechanical coolant pump with flow control adjustment.
  • Adjustable hinged pivot.
  • Additional ball bearing support of hardened and ground spindle shaft to prevent failure.
  • 24V at controls, E-Stop, low voltage protection, and thermal overload protection.
  • 90 degree rotation for slot cutting operations

Standard Equipment:

  • Blade
  • Pedestal Base
  • Tool Kit
  • Gallon of Coolant
  • Adjustable Positive Stop
Specifications
  TECHNICS 350CE
Number 974029-2 974029-4
Voltage 220V/ 440V
Horsepower 3.5
Cutting Ability Ferrous/non-ferrous/plastics
Maximum blade diameter 14 inch
Maximum vise opening 6-5/8 inch
Maximum Angle 45 degree left/right; 90 degree right for slot cutting
Slotting yes
Phase 3
Speeds 22-88 rpm
Weight 650 lbs
Solid round 90 degree capacity 3-3/8 inch
Solid round 45 degree capacity 3 inch
Tube 90 degree capacity 4-3/4 inch
Tube 45 degree capacity 4 inchinch
Square 90 degree capacity 4-1/8 inch
Square 45 degree capacity 3-3/8 inch
Rectangle 90 degree capacity 6-1/4 x 3-1/2 inch
Rectangle 45 degree capacity 3-3/8 x 2-3/4 inch
Work height 40 inch
Height 75 inch
Width 24-3/4 inch
Depth 23 inch



There are no listed accessories.

974250-1
MODEL TECHNICS 250 - TECHNICS AND SUPER TECHNICS MANUAL COLD SAWS - 10 MANUAL COLD SAW, 110V-1 PH ** WEIGHT - 378LBS
Mfg. item #: 974250-1
DAKE974250-1
lease to own for as little as:$53 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,640.00

232
974315-2
MODEL SUPER CUT 315 - TECHNICS AND SUPER TECHNICS MANUAL COLD SAWS - 12-1/2 MANUAL COLD SAW, 220V-3 PH (ADD $675 FOR 440V) ** WEIGHT - 450LBS
Mfg. item #: 974315-2
DAKE974315-2
lease to own for as little as:$89 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,468.80

232
Call for price. DAKE974315-4
9743151PH-1
MODEL SUPER CUT 315 - TECHNICS AND SUPER TECHNICS MANUAL COLD SAWS - 12-1/2 MANUAL COLD SAW, 110V-1 PH ** WEIGHT - 450LBS
Mfg. item #: 9743151PH-1
DAKE9743151PH-1
lease to own for as little as:$89 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,468.80

232
974029-2
MODEL SUPER 350 CE - TECHNICS AND SUPER TECHNICS MANUAL COLD SAWS - 14 MANUAL COLD SAW, VARIABLE SPEED, 220V-3 PH (ADD $675 FOR 440V) ** WEIGHT - 650LBS
Mfg. item #: 974029-2
DAKE974029-2
lease to own for as little as:$121 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,044.64

232
Call for price. DAKE974029-4
