DAKE Dura Press Single Phase

dura press

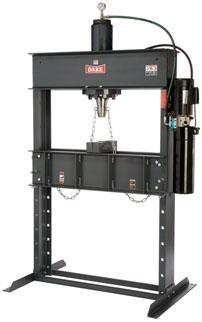

Force 50DA shown

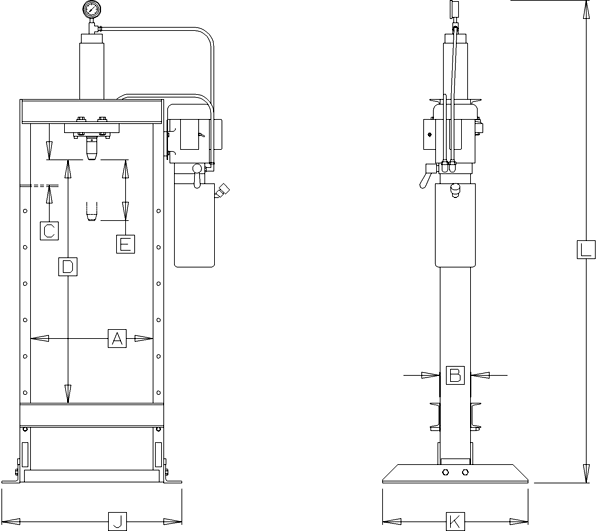

cad image

  Designed to work the way you work. These Single Phase Dura Presses feature an electric power unit, lever control ram advance, a double-acting cylinder, and one hand ram positioning.

Features:

  • Electric power unit has convenient single phase, 110 volt operation for greater portability.
  • Lever control ram advance for easy operation.
  • Double acting cylinder allows for convenient positioning of ram.
  • Sturdy, welded channel iron frame for durability.
  • Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
  • One hand ram positioning with 4-way valve hydraulic control.

Standard Equipment

  • Frame
  • Motor-1hp, 110 volt (on 10 and 25 ton models) 2hp, 110 volt (on 50 ton models)
  • Safety relief valve
  • Joystick operation (on 50 ton model)
  • Two combination table plate/V-blocks
  • Pressure gauge
  • Lifting chain (on 25 ton model)








Models / Specifications
model
Force 10DA
Force 25DA
Force 50DA
number 909205 909215 909250
capacity (tons) 10 25 50
horsepower 1 1 2
rpm
3,450
3,450
3,450
ram speed 20 10 11
A width between uprights 20 28 44
B width between table channels 4 7 8.25
C minimum ram to table 4 8 0
D maximum ram to table 40 44 41-3/4
E ram travel 10 10 16
JxK base
29-3/4x24
30x38
55x36
L height (inches) 80 88 88
weight (lbs) 300 570
1,550



Models and accessories
909205 Force 10DA  10-ton Electrically Operated H-frame, 110v-1 ph
909215 Force 25DA  25-ton Electrically Operated H-frame, 110v-1 ph
909250 Force 50DA  50-ton Electrically Operated H-frame, 110v-1ph



909205
MODEL: FORCE 10DA , 10-TON ELECTRICALLY OPERATED H-FRAME, 110V-1 PH
Mfg. item #: 909205
DAKE909205
lease to own for as little as:$77 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,835.40

53
909215
MODEL: FORCE 25DA , 25-TON ELECTRICALLY OPERATED H-FRAME, 110V-1 PH
Mfg. item #: 909215
DAKE909215
lease to own for as little as:$99 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,926.55

53
909250
MODEL: FORCE 50DA , 50-TON ELECTRICALLY OPERATED H-FRAME, 110V-1PH
Mfg. item #: 909250
DAKE909250
lease to own for as little as:$156 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,819.21

53
