DAKE Hand Operated Presses


Click image to enlarge

dake-make-in-the-usa-logo

Proudly Made in the USA

Our most popular selling hand operated hydraulic press model. These hand operated hydraulic presses feature rapid ram return, by-pass hole, and rapid screw traverse of ram, along with an adjustable table, and movable work head.

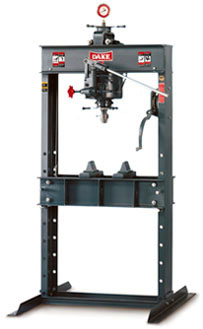

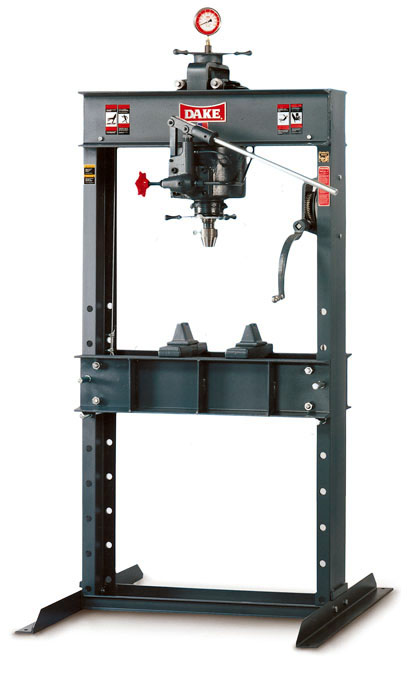

Model 50H shown.

Click to download manual

Features

  • Hand operation for economical performance.
  • By-pass hole prevents excessive ram extension.
  • Rapid screw traverse of ram permits quick, easy movement of the ram by means of a convenient handwheel.
  • Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
  • Adjustable table permits easy vertical movement by means of self-locking hoist.
  • Movable workhead is roller mounted on ball bearings for off-center positioning (except 25H)

Standard Equipment

  • Frame
  • Two forged steel V-blocks
  • Flat ram nose V-ram nose (N/A on 25 ton model) Pressure gauge Self-locking table hoist
  • Pressure gauge
  • Workhead
  • Two forged steel table plates (25 ton model has two combination table plates with V-blocks)
  • V-ram nose (N/A on 25 ton model)
  • Self-locking table hoist
HAND OPERATED
907001 Model: 25H - 25-ton Hand Hydraulic Press - HAND OPERATED Proudly Made in the USA
907002 Model: 50H - 50-ton Hand Hydraulic Press - HAND OPERATED Proudly Made in the USA
907003 Model: 75H - 75-ton Hand Hydraulic Press - HAND OPERATED Proudly Made in the USA
907005 Model: 150H - 150-ton Hand Hydraulic Press - HAND OPERATED Proudly Made in the USA
HAND OPERATED WORKHEADS
907006 Model: 25HW - 25-ton Hand Hydraulic Workhead with Gauge - HAND OPERATED WORKHEADS Proudly Made in the USA
907007 Model: 50HW - 50-ton Hand Hydraulic Workhead with Gauge - HAND OPERATED WORKHEADS Proudly Made in the USA
907008 Model: 75HW - 75-ton Hand Hydraulic Workhead with Gauge - HAND OPERATED WORKHEADS Proudly Made in the USA
907010 Model: 150HW - 150-ton Hand Hydraulic Workhead with Gauge - HAND OPERATED WORKHEADS Proudly Made in the USA



Specifications
model 25H 50H 75H 150H
number 907001 907002 907003 907005
capacity (tons) 25 50 75 150
A width between uprights
33-1/2
32-3/4
44 48
B width between table channels
5-3/16
7-1/4
8-1/4
12-1/8
C minimum ram to table 4 5 6 5
D maximum ram to table 39 40 36 25
E ram travel (inches) 5 4
4-1/2
8
F horizontal workhead travel
n/a
20-3/4
29-5/8
27-1/4
screw travel 5 7 7 8
JxK base (inches) 42-1/2 x 3
43-1/2 x 3
55 x 36
66 x 42
L height (inches) 76 85 87 95
weight (lbs) 460 810
1,245
2,750

907001
MODEL: 25H - 25-TON HAND HYDRAULIC PRESS - HAND OPERATED ** MADE IN THE USA - SUPPORT AMERICA
Mfg. item #: 907001
DAKE907001
lease to own for as little as:$68 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,419.81

21
907002
MODEL: 50H - 50-TON HAND HYDRAULIC PRESS - HAND OPERATED ** MADE IN THE USA - SUPPORT AMERICA
Mfg. item #: 907002
DAKE907002
lease to own for as little as:$88 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,417.06

21
907003
MODEL: 75H - 75-TON HAND HYDRAULIC PRESS - HAND OPERATED ** MADE IN THE USA - SUPPORT AMERICA
Mfg. item #: 907003
DAKE907003
lease to own for as little as:$111 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$5,569.54

21
907005
MODEL: 150H - 150-TON HAND HYDRAULIC PRESS - HAND OPERATED ** MADE IN THE USA - SUPPORT AMERICA
CALL 800-458-3687 X1 FOR LEAD TIMES AND THE BEST BROTHER-IN-LAW DELIVERED PRICE
Mfg. item #: 907005
DAKE907005
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

21
907006
MODEL: 25HW - 25-TON HAND HYDRAULIC WORKHEAD WITH GAUGE - HAND OPERATED WORKHEADS ** MADE IN THE USA - SUPPORT AMERICA
CALL 800-458-3687 X1 FOR LEAD TIMES AND THE BEST BROTHER-IN-LAW DELIVERED PRICE
Mfg. item #: 907006
DAKE907006
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

21
907007
MODEL: 50HW - 50-TON HAND HYDRAULIC WORKHEAD WITH GAUGE - HAND OPERATED WORKHEADS ** MADE IN THE USA - SUPPORT AMERICA
CALL 800-458-3687 X1 FOR LEAD TIMES AND THE BEST BROTHER-IN-LAW DELIVERED PRICE
Mfg. item #: 907007
DAKE907007
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

21
907008
MODEL: 75HW - 75-TON HAND HYDRAULIC WORKHEAD WITH GAUGE - HAND OPERATED WORKHEADS ** MADE IN THE USA - SUPPORT AMERICA
CALL 800-458-3687 X1 FOR LEAD TIMES AND THE BEST BROTHER-IN-LAW DELIVERED PRICE
Mfg. item #: 907008
DAKE907008
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

21
907010
MODEL: 150HW - 150-TON HAND HYDRAULIC WORKHEAD WITH GAUGE - HAND OPERATED WORKHEADS ** MADE IN THE USA - SUPPORT AMERICA
CALL 800-458-3687 X1 FOR LEAD TIMES AND THE BEST BROTHER-IN-LAW DELIVERED PRICE
Mfg. item #: 907010
DAKE907010
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

21
