DAKE SE712-912 Bandsaw

The medium duty saws that work harder because they're built better. These Utility Johnson horizontal bandsaws offer accurate cutting, a rugged gear box, hydraulic control, a chip brush blade cleaner, and can be used for wet or dry cutting.

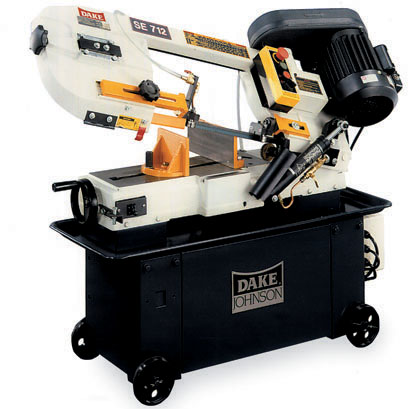

Model SE712 shown.

Click to download manual

Features:

  • Accurate cutting - vibration free cast/machined table bed, heavy steel base, horizontally mounted guide arms, and adjustable blade guides and rollers.
  • Operator safety - CE approved low voltage safety reset, thermo overload protection, auto shut off, blade guards, safety interlocks.
  • Quick release vise - hand wheel action for fast change of material sizes.
  • Wet/dry cutting - with coolant pump system.
  • Rugged gear box - bronze and steel gears, powering a fast-changed, 4-speed, v-belt drive.
  • Hydraulic control for feeding stock at variable rates and to lock head at any height.
  • Convenience chip brush blade cleaner, storage in base and wheels that roll easily.
  • Simple operation - clearly marked controls.

Standard Equipment

  • Recirculating coolant system
  • Sturdy steel base with wheels
  • Low voltage controls with thermo overload
  • Vertical cutting table on SE712
Specifications
model SE712 SE912
number
capacity
7 rounds, 7x12 flats
9 rounds, 9x12 flats
blade width
3/4
1
blade length (inches) 93
104-1/2
blade speed
85/130/180/235
98/164/246/328
bed work (area)
21x9
24-1/2x9
drive motor
3/4
1
electrics
120V 1ph
120V 1ph
coolant Yes Yes
ExA floor space
56x21
56x21
height (closed) 39 41
B height (open)
63-1/2
59
C floor to bed
21-3/4
21-3/4
weight 420 550
Accessories
20000-00 Casters (set of 3)
10560-00 Coolant Attachment
20200-00 Stock Stand
10590-00 24 inch Discharge Table
716545 60 ich Roller Table



983100-1
MODEL SE712 - DAKE JOHNSON HORIZONTAL BANDSAWS - 7 ROUNDS, 7X12 FLATS - 110V-1 PH ** WEIGHT - 355LBS
Mfg. item #: 983100-1
DAKE983100-1
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,680.00

13
983101-1
MODEL SE912 - DAKE JOHNSON HORIZONTAL BANDSAWS - 9 ROUNDS, 9X12 FLATS - 110V-1 PH ** WEIGHT - 500LBS
Mfg. item #: 983101-1
DAKE983101-1
lease to own for as little as:$53 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,640.00

13
20000-00
Mfg. item #: 20000-00
DAKE20000-00
FREE shipping when ordered with a machine from this manufacturer.20
$95.00

13
10560-00
Mfg. item #: 10560-00
DAKE10560-00
FREE shipping when ordered with a machine from this manufacturer.20
$686.40

13
20200-00
Mfg. item #: 20200-00
DAKE20200-00
FREE shipping when ordered with a machine from this manufacturer.20
$584.88

13
10590-00
Mfg. item #: 10590-00
DAKE10590-00
FREE shipping when ordered with a machine from this manufacturer.20
$285.00

13
716545
Mfg. item #: 716545
DAKE716545
FREE shipping when ordered with a machine from this manufacturer.20
$350.00
