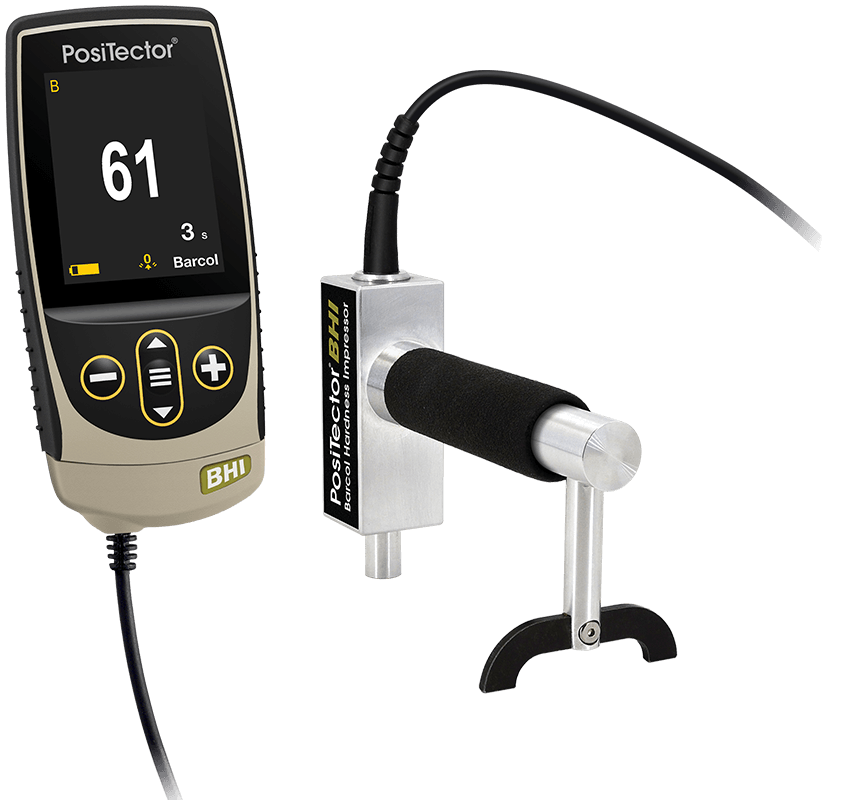

DeFelsko PosiTector BHI Barcol Hardness Impressor

PosiTector BHI Barcol Hardness Impressor

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • NEW Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant IP65-rated enclosure
  • PosiTector interchangeable platform attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration included
Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22



Simple

  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • User-adjustable measurement time with on-screen countdown
  • Includes spare, field replaceable indentor with replacement tool
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings



Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Hard-shell carrying case included
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration included
  • Hi-RES mode increases displayed resolution for precision applications
  • Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
  • Conforms to national and international standards including ASTM

Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • 1 and 2 point calibration options with Cal Reset to restore factory settings
  • Selectable display languages
  • NEW Auto rotating display with Flip Lock

Powerful

  • Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture - save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30 percent longer battery life
  • USB Port for fast, simple connection to a PC and to supply continuous power
  • PosiSoft USB Drive stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Software Updates via the internet keep your gage current
  • Includes PosiSoft suite of software for viewing, analyzing and reporting data

Standard Models

Includes ALL features as shown on left plus...

  • NEW Storage of 1,000 readings per probe stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

  • NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Auto Sub-Batch automatically create sub-batches after the required number of readings are taken
  • Live graphing of measurement data
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
  • Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches
Specifications
Measurement Range 20 – 100 Barcol
Resolution
0.1 Barcol
Accuracy
+ / - 2 Barcol
Size 127 x 66 x 25.4 mm (5 x 2.6 x 1 inch)
Weight
137 g (4.9 oz.) without batteries
Probe Size
145 x 97 x 64 mm (5.7" x 3.8" x 2.5")
Probe Headroom
140 mm (5.5")
Probe Weight
400 g (14.1 oz.)

Size and weight are for the PosiTector gage body only and do not include the probe

What is a Barcol Hardness Impressor?

  • A Barcol Hardness Impressor is an instrument that measures the indentation hardness of soft metals (aluminum, aluminum alloys, copper, brass, etc.), harder plastics and fiber-reinforced plastics.

What are some typical applications for Barcol hardness?

  • Aluminum production
  • Forgings, castings, raw stock inspection
  • FRP/GRP - fiber and glass reinforced plastics (both reinforced and non-reinforced rigid plastics)
  • Duro or hard thermo plastics
  • Degree of cure in composite materials

I currently use an analog (dial) type Barcol Impressor. What are the advantages of the digital PosiTector BHI?

The PosiTector BHI has numerous advantages over conventional analog instruments, and over many competitive digital instruments:

  • ‍Memory: The PosiTector BHI has the ability to save readings for archival or reporting, without the need for error-prone transcription. This greatly enhances the reliability and convenience of reporting.
  • ‍Reporting Software Options: The PosiTector BHI includes the PosiSoft suite of software for viewing and reporting data. Select from a powerful desktop version, built-in USB drive, web-based or mobile applications.
  • ‍Test Time: Some materials continue to deform while the measurement is being taken. To achieve consistent results, it is often recommended to record measurements after a set amount of time has elapsed. The PosiTector BHI allows users to set a test time, which begins counting down on the screen when the indentor is placed on the surface to be measured. After that period has elapsed, a measurement is recorded and displayed. This is vastly superior to existing methods of using a stopwatch, or more often, estimating when the required test time has elapsed.
  • ‍Auto Sub-Batch (Advanced models only): As with most measurement processes, it is advisable to take multiple measurements at each test location (spot), to ensure the user hasn’t taken an erroneous or outlying reading. With the Auto Sub-Batch feature, a new sub-batch is created after the desired number of measurements is taken, conveniently grouping readings from each location.
  • ‍Interchangeability: PosiTector body accepts all PosiTector BHI, SHD, 6000, 200, IRT, DPM, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage.

How should I store the PosiTector BHI when not in use?

  • The PosiTector BHI comes complete with a hard shell plastic case.

What is the life expectancy of the probe tip?

  • The durable probe tip is designed for long life and continuous accuracy. A glass zero plate and test disks are included for verifying accuracy. Replacement probe tips are available to replace worn, out of tolerance tips.

Why is a glass zero plate included?

  • The PosiTector BHI is factory calibrated and for most applications no calibration adjustment is required. However, there may be times when a zero adjustment is necessary including after indentor replacement or to compensate for indentor wear. For best accuracy, the Gage should be zeroed on the included glass plate.

Can I purchase a new PosiTector BHI probe for an existing PosiTector gage body?

  • Yes. PosiTector BHI probes are compatible with PosiTector Standard gage bodies with a color display and PosiTector Advanced gage bodies with serial numbers greater than 730,000. You can simply update your existing PosiTector gage body by following step-by-step instructions at www.defelsko.com/update.

Is the new PosiTector BHI probe compatible with PosiSoft solutions?

  • Yes. The NEW PosiTector BHI probes are compatible with PosiSoft Desktop v4, PosiSoft.net and the PosiTector App for Apple and Android. They are currently not compatible with the PosiTector SmartLink.

How are PosiTector BHI probes calibrated at DeFelsko?

  • Each PosiTector BHI probe is calibrated using certified materials referenced in ASTM B648-10. A Long Form Certificate of Calibration containing actual measured values is included with each probe.

How long is the warranty on the PosiTector BHI probe?

  • DeFelsko Corporation's standard 2 year warranty applies.



PosiTector SHD Shore Hardness Durometer
PosiTector BHI Standard
PosiTector BHI Advanced
PRBBHI PosiTector BHI Probe Only

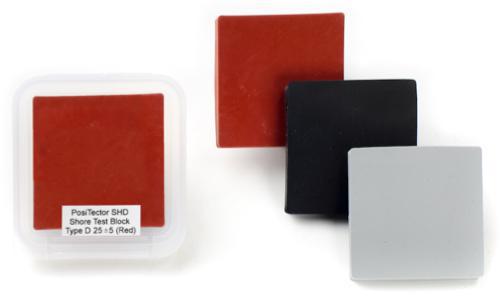

PosiTector SHD Test Blocks

PosiTector SHD Test Blocks

Ideal for checking the operation of durometers.

Model (Order Code) Hardness
Shore A 30
Shore A 50
Shore A 75
Shore D 25
Shore D 46
Shore D 75

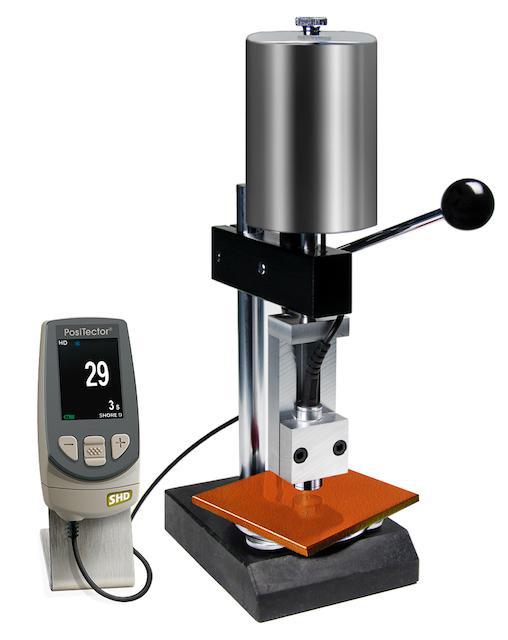

PosiTector SHD Test Stand

PosiTector SHD Test Stand

Helps reduce operator influence by ensuring the probe is placed perpendicular in a controlled, repeatable way.

Model (Order Code) For use with
Shore A
Shore D

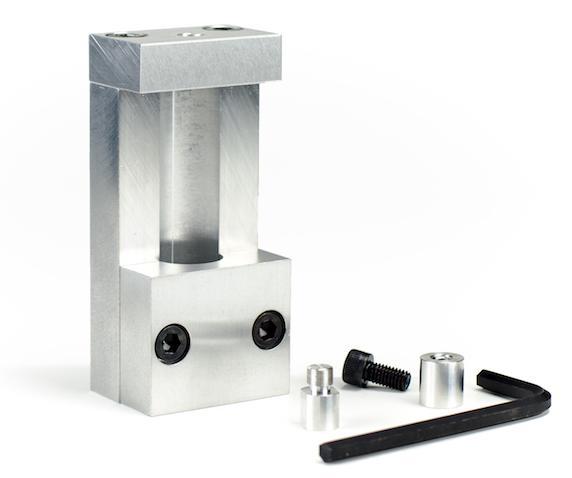

PosiTector SHD Universal Adapter

PosiTector SHD Universal Adapter
Order Code:
SHDPRBMNT

For use with threaded mounts in other test stands and calibrators.

ir printer

Bluetooth Printer receives data from Advanced models

  • Receives data via Bluetooth wireless technology.
  • Prints readings and statistical summary
  • Battery-operated
  • Light weight
  • One year Warranty
AC Power Cable AC Power Cable for continuous operation or battery charging

This kit supplies several alternate power solutions for your battery-operated PosiTector. They allow the gage to operate continuously without the need for batteries.

Use the cable alone to connect a PosiTector to your PCs built-in USB port that acts as a continuous power source. Or connect the cable to the included power adaptor which plugs into any AC wall electrical outlet, 110 or 220V.

A selection of electrical plugs is included which are capable of dealing with most countrys outlets.

PosiTector Case

PosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes - including any of the PosiTector 6000 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes.

Case has compartments for Certificates of Calibration, instruction manuals and other accessories.

Protective Lens Shield

Protective Lens Shield

  • Pack of five thin plastic lens shields
  • Ideal for protecting the PosiTector display from paint overspray.

One lens shield is included with every PosiTector instrument



BHI1
POSITECTOR BHI 1 STANDARD - BARCOL HARDNESS IMPRESSOR
Mfg. item #: BHI1
DEFBHI1
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,245.00

14
BHI3
POSITECTOR BHI 3 ADVANCED - BARCOL HARDNESS IMPRESSOR
Mfg. item #: BHI3
DEFBHI3
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,695.00

14
PRBBHI
BARCOL HARDNESS IMPRESSOR - PROBE FOR POSITECTOR
Mfg. item #: PRBBHI
DEFPRBBHI
Call for freight quote on this item or we will confirm freight charges before shipping.1
$920.00

14
SHDTEST30A
TEST BLOCK TYPE A 30 (BLACK) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST30A
DEFSHDTEST30A
Call for freight quote on this item or we will confirm freight charges before shipping.1
$25.00

14
SHDTEST50A
TEST BLOCK TYPE A 50 (GREY) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST50A
DEFSHDTEST50A
Call for freight quote on this item or we will confirm freight charges before shipping.1
$25.00

14
SHDTEST75A
TEST BLOCK TYPE A 75 (RED) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST75A
DEFSHDTEST75A
Call for freight quote on this item or we will confirm freight charges before shipping.1
$25.00

14
SHDTEST25D
TEST BLOCK TYPE D 25 (RED) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST25D
DEFSHDTEST25D
Call for freight quote on this item or we will confirm freight charges before shipping.1
$25.00

14
SHDTEST46D
TEST BLOCK TYPE D 46 (BLACK) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST46D
DEFSHDTEST46D
Call for freight quote on this item or we will confirm freight charges before shipping.1
$25.00

14
SHDTEST75D
TEST BLOCK TYPE D 75 (BLUE) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST75D
DEFSHDTEST75D
Call for freight quote on this item or we will confirm freight charges before shipping.1
$25.00

14
SHDSTANDA
TEST STAND TYPE A - FOR POSITECTOR SHD
Mfg. item #: SHDSTANDA
DEFSHDSTANDA
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,280.00

14
SHDSTANDD
TEST STAND TYPE D - FOR POSITECTOR SHD
Mfg. item #: SHDSTANDD
DEFSHDSTANDD
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,280.00

14
SHDPRBMNT
PROBE MOUNT FOR POSITECTOR SHD
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM
Mfg. item #: SHDPRBMNT
DEFSHDPRBMNT
Call for freight quote on this item or we will confirm freight charges before shipping.1
$540.00

14
