DeFelsko PosiTector SHD Shore Hardnesss Durometer

Click here to download product manual

Click here to download product literature



PosiTector SHD Shore Hardness Durometer
SHDA1 PosiTector SHD A1 Standard
SHDA3 PosiTector SHD A3 Advanced
SHDD1 PosiTector SHD D1 Standard
SHDD3 PosiTector SHD D3 Advanced
PRBSHDA PosiTector SHD Shore Hardness Durometer -A
PRBSHDD PosiTector SHD Shore Hardness Durometer -D

Shore Hardness Durometers for the indentation hardness of non-metallic materials

Handheld electronic instrument measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges Shore A and Shore D.

  • User-adjustable measurement time with on-screen countdown to conform to national and international standards
  • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant IP65-rated enclosure
  • PosiTector interchangeable platform attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ASTM D2240, ISO 868/7267/7619, and DIN 53505

Simple

  • Easy-to-read digital display
  • User-adjustable measurement time with on-screen countdown to conform to national and international standards
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Durable

  • NEW Weatherproof, dustproof, and water-resistant IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Hardened steel indentor
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST included
  • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
  • Hi-RES mode increases displayed resolution for precision applications
  • Includes test block to verify operation
  • Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505

Versatile

  • PosiTector body accepts all PosiTector SHD, BHI, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
  • Selectable display languages
  • NEW Auto rotating display with Flip Lock

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture save 100 screen images for record keeping and review
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Includes PosiSoft suite of software for viewing and reporting data
  • Software Updates via web keep your gage current

Standard Models

Includes ALL features as shown on left plus...

  • NEW Storage of 1,000 readings per probe stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

  • NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Auto Sub-Batch automatically create sub-batches after the required number of readings are taken
  • Live graphing of measurement data
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
  • Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches
Specifications
Measurement Range 0 – 100
Accuracy ± 1
Resolution 0.1
Body Size 127 x 66 x 25.4 mm (5" x 2.6" x 1")
Weight 137 g (4.9 oz.) without batteries



The PosiTector SHD Shore Hardnesss Durometer is a handheld electronic instrument that measures the indentation hardness of non-metallic materials. It consists of a PosiTector gage body (Standard or Advanced) and probe (Shore A or Shore D).

Step 1: Select a PosiTector Body (Standard or Advanced features)

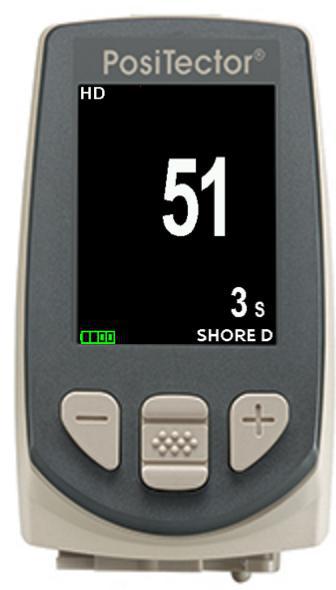

positector shd body

Standard Models

Includes ALL features as shown on the at a glance tab plus...

  • Storage of 250 readings – stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown onat a glance tabplus...

  • Storage of 100,000 readings in up to 1,000 batches and sub-batches
  • Auto Sub-Batch automatically create sub-batches after the required number of readings are taken
  • Live graphing of measurement data
  • Batch/Reading annotation add notes and change batch names with onscreen QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Data transfer via USB to a PC or via Bluetooth Wireless Technology to a mobile device, PC or printer
  • Store thickness, profile, environmental, wall thickness and hardness measurements in individual batches
  • smart-devicePosiTector App - Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device
    • Auto-pairing Bluetooth BLE connection
    • Easily create custom reports from your measurement data in seconds
    • Export readings to PosiSoft Desktop or synchronize readings with PosiSoft.net for further reporting and archival options

Compare Standard and Advanced: PosiTector Body Comparison Chart

Step 2: Select a Probe (Shore A or Shore D)


Two models are available for different hardness ranges - Shore A and Shore D

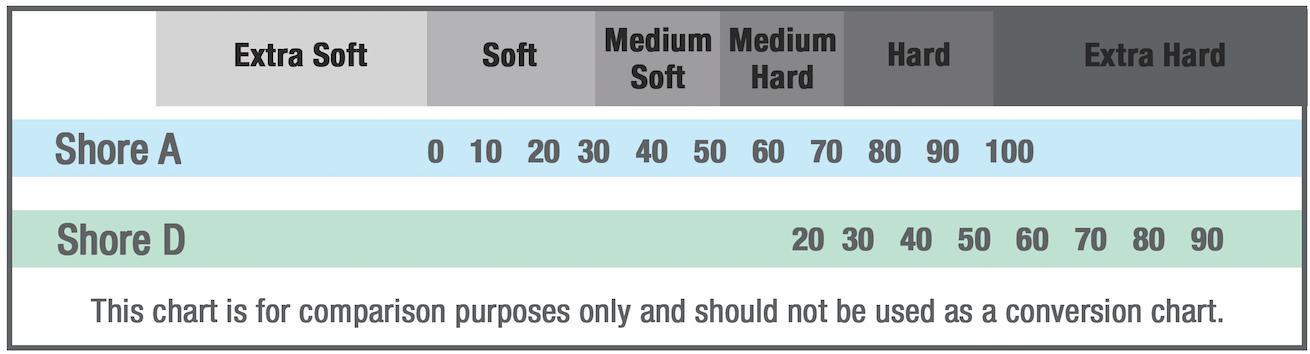

shore-comp-chart



Probe Shore A Shore D
 Order Code PRBSHDA PRBSHDD
 Typical Applications Soft to hard materials such as soft rubber, elastomers, neoprene, silicone, etc. Medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc.
 Measurement Range 0 - 100
 Accuracy + 1
 Resolution 0.1

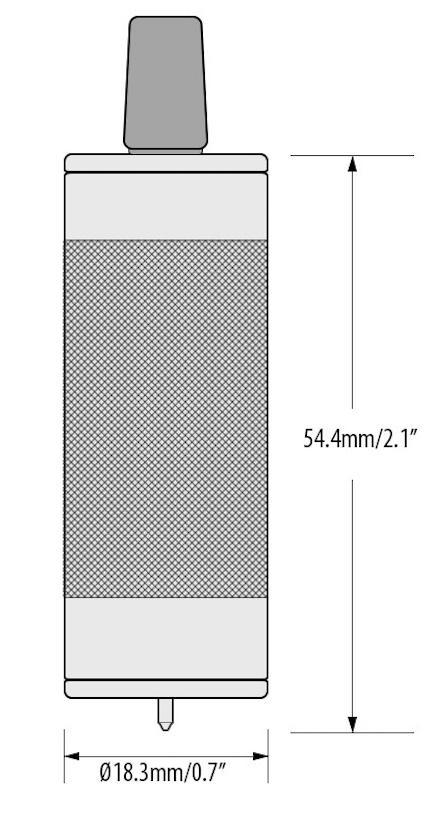

 Probe Dimensions shd-probe-dimensions

PosiTector SHD probes are compatible with PosiTector Advanced (serial numbers 730,000+) and PosiTector Standard gage bodies with a color display. A simple gage update may be required.

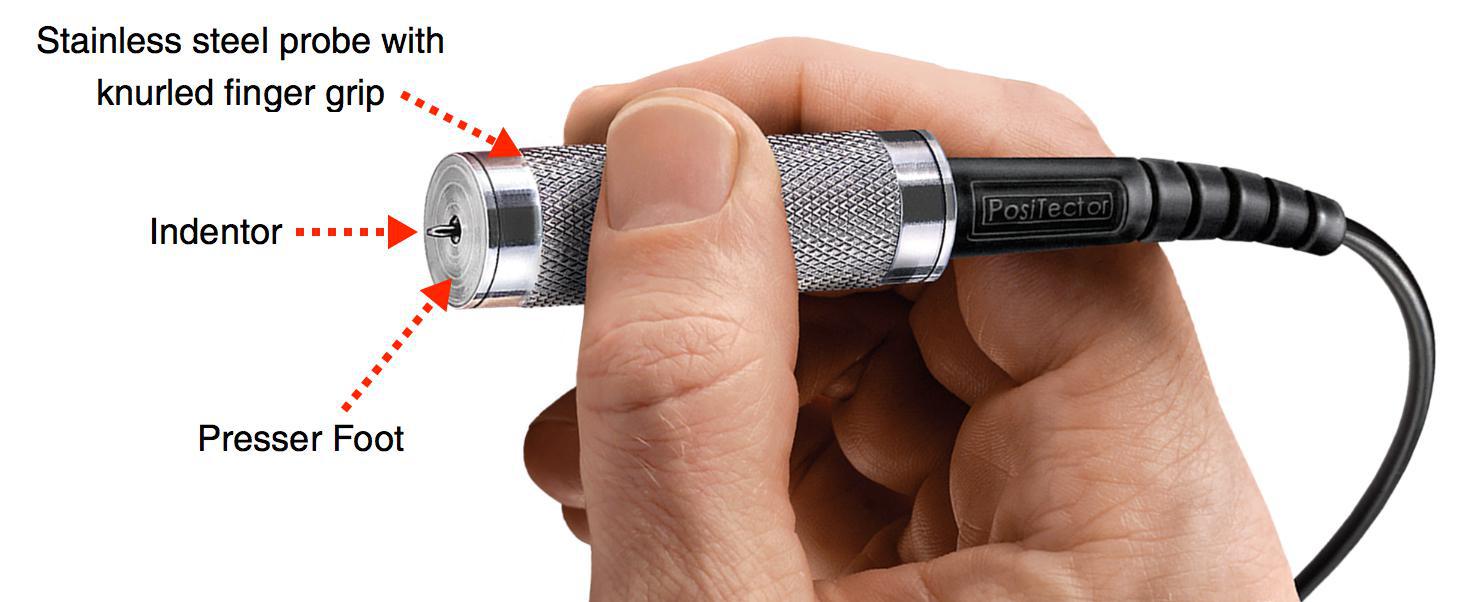

shd probe callout



  Shore A Shore D
  Order Code SHD A1 SHD A3 SHD D1 SHD D3
 Included Body Standard Advanced Standard Advanced
 Included Probe PRBSHDA PRBSHDD
 Typical Applications Soft to hard materials such as soft rubber, elastomers, neoprene, silicone, etc. Medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc.
 Measurement Range 0 - 100
 Accuracy + 1
 Resolution 0.1



All Gages Come Complete with test block, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, Long Form Certificate of Calibration traceable to NIST, protective lens shield, USB cable, PosiSoft Software, two (2) year warranty.

Body Size: 137 x 61 x 28 mm (5.4 x 2.4 x 1.1 inch)

Weight: 185 g (6.5 oz.) without batteries

Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505

PosiTector SHD Test Blocks

PosiTector SHD Test Blocks

Ideal for checking the operation of durometers.

Model (Order Code) Hardness
Shore A 30
Shore A 50
Shore A 75
Shore D 25
Shore D 46
Shore D 75
PosiTector SHD Test Stand

PosiTector SHD Test Stand

Helps reduce operator influence by ensuring the probe is placed perpendicular in a controlled, repeatable way.

Model (Order Code) For use with
Shore A
Shore D
PosiTector SHD Universal Adapter

PosiTector SHD Universal Adapter
Order Code:
SHDPRBMNT

For use with threaded mounts in other test stands and calibrators.

ir printer

Bluetooth Printer receives data from Advanced models

  • Receives data via Bluetooth wireless technology.
  • Prints readings and statistical summary
  • Battery-operated
  • Light weight
  • One year Warranty
AC Power Cable AC Power Cable for continuous operation or battery charging

This kit supplies several alternate power solutions for your battery-operated PosiTector. They allow the gage to operate continuously without the need for batteries.

Use the cable alone to connect a PosiTector to your PCs built-in USB port that acts as a continuous power source. Or connect the cable to the included power adaptor which plugs into any AC wall electrical outlet, 110 or 220V.

A selection of electrical plugs is included which are capable of dealing with most countrys outlets.

PosiTector Case

PosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes - including any of the PosiTector 6000 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes.

Case has compartments for Certificates of Calibration, instruction manuals and other accessories.

Protective Lens Shield

Protective Lens Shield

  • Pack of five thin plastic lens shields
  • Ideal for protecting the PosiTector display from paint overspray.

One lens shield is included with every PosiTector instrument



SHDA1
POSITECTOR SHD A1 STANDARD - SHORE HARDNESS DUROMETER
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM & THIS ITEM QUALIFIES FOR FREE 2ND DAY AIR
Mfg. item #: SHDA1
DEFSHDA1
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$880.00

31
SHDA3
POSITECTOR SHD A3 ADVANCED - SHORE HARDNESS DUROMETER
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM & THIS ITEM QUALIFIES FOR FREE 2ND DAY AIR
Mfg. item #: SHDA3
DEFSHDA3
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,330.00

31
SHDD1
POSITECTOR SHD D1 STANDARD - SHORE HARDNESS DUROMETER
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM & THIS ITEM QUALIFIES FOR FREE 2ND DAY AIR
Mfg. item #: SHDD1
DEFSHDD1
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$880.00

31
SHDD3
POSITECTOR SHD D3 ADVANCED - SHORE HARDNESS DUROMETER
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM & THIS ITEM QUALIFIES FOR FREE 2ND DAY AIR
Mfg. item #: SHDD3
DEFSHDD3
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,330.00

31

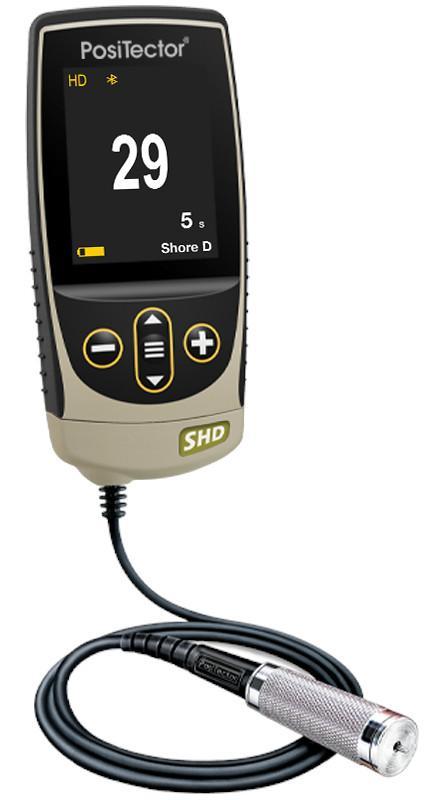

PRBSHDA
SHORE HARDNESS DUROMETER -A - PROBE FOR POSITECTOR
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM
Mfg. item #: PRBSHDA
DEFPRBSHDA
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$555.00

31
PRBSHDD
SHORE HARDNESS DUROMETER -D - PROBE FOR POSITECTOR
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM
Mfg. item #: PRBSHDD
DEFPRBSHDD
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$555.00

31
SHDTEST30A
TEST BLOCK TYPE A 30 (BLACK) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST30A
DEFSHDTEST30A
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$25.00

31
SHDTEST50A
TEST BLOCK TYPE A 50 (GREY) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST50A
DEFSHDTEST50A
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$25.00

31
SHDTEST75A
TEST BLOCK TYPE A 75 (RED) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST75A
DEFSHDTEST75A
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$25.00

31
SHDTEST25D
TEST BLOCK TYPE D 25 (RED) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST25D
DEFSHDTEST25D
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$25.00

31
SHDTEST46D
TEST BLOCK TYPE D 46 (BLACK) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST46D
DEFSHDTEST46D
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$25.00

31
SHDTEST75D
TEST BLOCK TYPE D 75 (BLUE) - FOR POSITECTOR SHD
Mfg. item #: SHDTEST75D
DEFSHDTEST75D
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$25.00

31
SHDSTANDA
TEST STAND TYPE A - FOR POSITECTOR SHD
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM & THIS ITEM QUALIFIES FOR FREE 2ND DAY AIR
Mfg. item #: SHDSTANDA
DEFSHDSTANDA
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,280.00

31
SHDSTANDD
TEST STAND TYPE D - FOR POSITECTOR SHD
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM & THIS ITEM QUALIFIES FOR FREE 2ND DAY AIR
Mfg. item #: SHDSTANDD
DEFSHDSTANDD
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$1,280.00

31
SHDPRBMNT
PROBE MOUNT FOR POSITECTOR SHD
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM
Mfg. item #: SHDPRBMNT
DEFSHDPRBMNT
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$540.00

31
