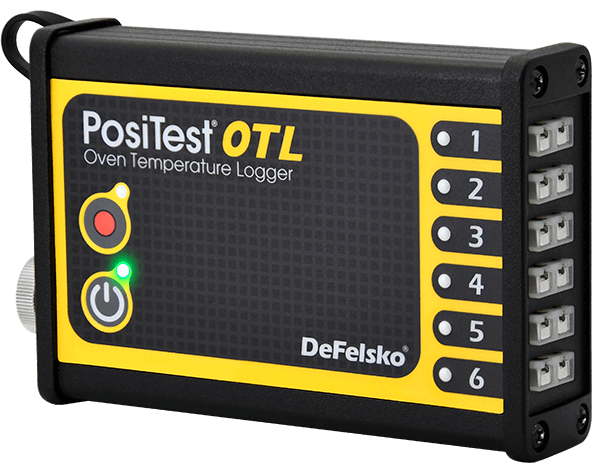

DeFelsko PosiTector OTL Oven Temperature Logger

PosiTest OTL Oven Temperature Logger

Measures and records oven temperature profiles

  • Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
  • High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
  • 6 K-type thermocouple ports (channels)
  • NEW Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure
  • Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
  • Wide variety of probes available with 1.8, 3.6, or 6 m (6', 12', or 20') stainless steel braided cables (sold separately)

Simple

  • Simple, easy-to-use interface
  • 6 K-type thermocouple ports (channels)
  • Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
  • Records measurements every 2 seconds for up to 22 hours of recording time
  • Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
  • NEW Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure
  • Bright LEDs indicate logger status at a glance
  • High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
  • Certificate of calibration showing traceability to NIST included
Specifications
Channels 6 K-type non-grounded thermocouples
Thermocouple Measurement Range -100 to 1000 deg C  -148 to 1832 deg F
Logger Operating Temperature Range PosiTest OTL without Holder or Barrier Box 0 to 70 deg C  32 to 158 deg F
Logger Accuracy + / - 0.5 deg C  + / - 0.9 deg F
Resolution 0.1 deg C  0.1 deg F
Memory 40,000 Datasets. Each Dataset consists of up to 6 channels.
Sample Interval 2 seconds (Fixed) Maximum recording time is 22 hours
Power Source 2 AAA batteries
Battery Life 30 hours (recording time)
Size 30.5 x 25.5 x 15 cm (12 x 10 x 6 inch)
Weight 9 kg (20 lbs.)

LOGGER KITS COME with temperature logger, stainless steel high temperature barrier box, choice of holder, 6 engraved probe ID tags, two AAA batteries, instructions, Long Form Certificate of Calibration traceable to NIST, carrying case, USB cable, PosiSoft Desktop software, and two year warranty.

Two PosiTest OTL Kits available...

The PosiTest OTL is available in two configurations. The PosiTest OTL XT features an enhanced holder with heatsink for greater endurance at high temperatures.

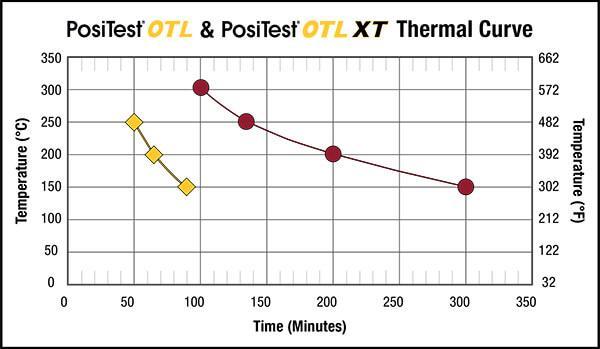

otl thermal curve

Temperature             PosiTest OTL (OTLKIT) PosiTest OTL XT (OTLKITXT)
150 deg C (302 deg F) 90 minutes 300 minutes
200 deg C (392 deg F) 65 minutes 200 minutes
250 deg C (482 deg F) 50 minutes 140 minutes
300 deg C (572 deg F) not recommended 100 minutes

The chart and table above represent the combined thermal characteristics of the PosiTest OTL, Barrier Box and choice of Holder/Holder XT.

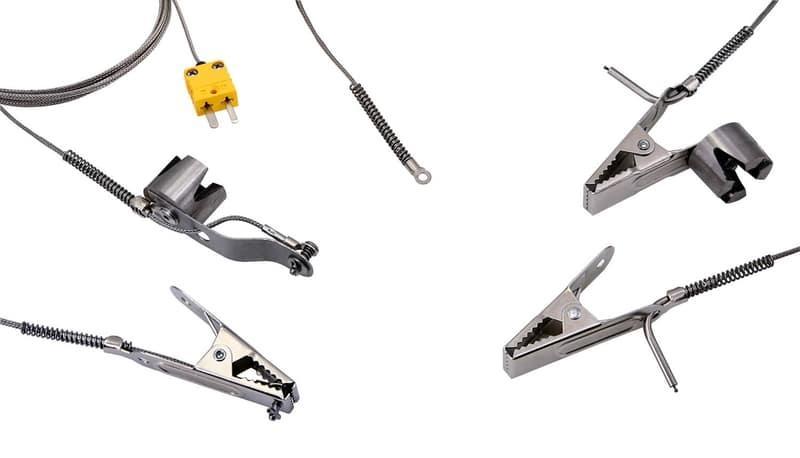

Temperature Probes

  • Wide variety of surface and air temperature probes available with 1.8, 3.6, or 6 m (6', 12', or 20') stainless steel braided cable (not included). See the Temperature Probes page for details.
  • Certificate of Calibration showing traceability to NIST included

temperature probes

Does the PosiTest OTL Oven Temperature Logger require any formal training for use? Do you offer ‘demo’ models?

  • No. The PosiTest OTL is designed for simple operation and features an easy-to-use interface.In lieu of demonstration models, we provide unlimited technical support via telephone and/or email.

Is the PosiTest OTL calibrated at the factory?

  • The PosiTest OTL arrives fully calibrated and ready to measure. A Long-Form Certificate of Calibration traceable to NIST is included, which documents actual readings taken by your instrument at our calibration laboratory on standards traceable to a national metrology institute. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.

How often should the PosiTest OTL be recalibrated?

  • The PosiTest OTL and K-type thermocouple Temperature Probes are calibrated at the factory - with no expiry or end date. They have no shelf life; therefore the length of time in use is not a good indicator for recalibration intervals.
  • Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data, and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.

Can PosiTest OTL temperature probes be re-certified?

  • No. Due to the lengthy calibration process, it is more economical for the PosiTest OTL temperature probes to be replaced if required.

What's the difference between the PosiTest OTL Kit and the PosiTest OTL XT Kit?

  • The PosiTest OTL is available in two configurations. The PosiTest OTL XT Kit features an enhanced holder with heatsink for greater endurance at high temperatures.

What types of temperature probes are available?

  • A wide variety of spring clamp and magnetic temperature probes are available with either 1.8, 3.6, or 6 m (6’, 12’, or 20') stainless steel braided cables for testing air or surface temperatures. Each temperature probe includes a Certificate of Calibration traceable to NIST.





PosiTector SST
PosiTest OTL Kit
OTLKITXT PosiTest OTL XT Kit
PRBOTLCS6
Spring Clamp - Surface Probe - 1.8 m (6')  -100 to 500 deg C (-148 to 930 deg F)
PRBOTLCS12
Spring Clamp - Surface Probe - 3.6 m (12')  -100 to 500 deg C (-148 to 930 deg F)
Spring Clamp - Surface Probe - 6 m (20')  -100 to 500 deg C (-148 to 930 deg F)
PRBOTLCA6
Spring Clamp - Air Probe - 1.8 m (6')  -100 to 500 deg C (-148 to 930 deg F)
PRBOTLCA12 Spring Clamp - Air Probe - 3.6 m (12')  -100 to 500 deg C (-148 to 930 deg F)
PRBOTLCA20 Spring Clamp - Air Probe - 6 m (20')  -100 to 500 deg C (-148 to 930 deg F)
PRBOTLMS6 Magnetic - Surface Probe - 1.8 m (6')  -100 to 300 deg C (-148 to 570 deg F)
PRBOTLMS12 Magnetic - Surface Probe - 3.6 m (12')  -100 to 300 deg C (-148 to 570 deg F)
PRBOTLMS20 Magnetic - Surface Probe - 6 m (20')  -100 to 300 deg C (-148 to 570 deg F)
PRBOTLMA6 Magnetic - Air Probe - 1.8 m (6')  -100 to 300 deg C (-148 to 570 deg F)
Magnetic - Air Probe - 3.6 m (12')  -100 to 300 deg C (-148 to 570 deg F)
Magnetic - Air Probe - 6 m (20')  -100 to 300 deg C (-148 to 570 deg F)
PRBOTLW6 Washer - Surface Probe - 1.8 m (6')  -100 to 500 deg C (-148 to 930 deg F)
PRBOTLW12 Washer - Surface Probe - 3.6 m (12')  -100 to 500 deg C (-148 to 930 deg F)
Washer - Surface Probe - 6 m (20')  -100 to 500 deg C (-148 to 930 deg F)



Replacement Patches

  PosiPatch (5 pack)

SSTPATCHP5

  PosiPatch (24 pack)

SSTPATCHP24

  Magnetic Ring for PosiPatch

SSTRING

  DeFelsko Adhesive Patch + needle (25 pack)

SSTPATCHD25

  Latex Adhesive Patch + needle (25 pack)

SSTPATCHL25

  Consumables

  Plastic Dispensing Tips (10 pack) — for use with the PosiPatch

SSTDISPTIP

  Needles (10 pack) — for use with adhesive patches

SSTNEEDLE

  3 ml syringes (10 pack) — for use with dispensing tips and/or needles

SSTSYRINGE3

  30 ml Cups (10 pack) — sterile, single-use cups ensure measurement accuracy

SSTCUP

  Certified Conductivity Standard (60 ml, 2 oz.) — to verify probe accuracy

SSTSLTN84

  Foam Swabs (5 pack) — for cleaning the probe’s test cell

SSTSWAB
PosiTector SHD Universal Adapter

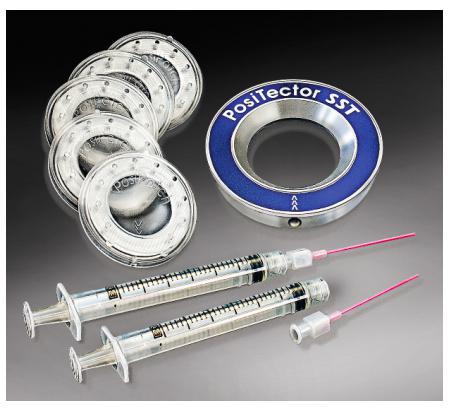

PosiPatch Starter Kit

Order Code: SSTKITPATCHP

For use with existing conductivity meters. Try the revolutionary, reusable PosiPatch with a low cost trial pack.

Includes: PosiPatch(5) syringes(2) dispensing tips(2) and magnetic ring

ir printer

Bluetooth Printer receives data from Advanced models

  • Receives data via Bluetooth wireless technology.
  • Prints readings and statistical summary
  • Battery-operated
  • Light weight
  • One year Warranty
AC Power Cable AC Power Cable for continuous operation or battery charging

This kit supplies several alternate power solutions for your battery-operated PosiTector. They allow the gage to operate continuously without the need for batteries.

Use the cable alone to connect a PosiTector to your PCs built-in USB port that acts as a continuous power source. Or connect the cable to the included power adaptor which plugs into any AC wall electrical outlet, 110 or 220V.

A selection of electrical plugs is included which are capable of dealing with most countrys outlets.

PosiTector Case

PosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes - including any of the PosiTector 6000 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes.

Case has compartments for Certificates of Calibration, instruction manuals and other accessories.

Protective Lens Shield

Protective Lens Shield

  • Pack of five thin plastic lens shields
  • Ideal for protecting the PosiTector display from paint overspray.

One lens shield is included with every PosiTector instrument



OTLKIT
POSITEST OTL (OTLKIT) POSITEST OTL KIT OVEN TEMPERATURE LOGGER
ADD TO CART NOW TO ACTIVATE YOUR BROTHER-IN-LAW PROMOTION OF FREE 2ND DAY AIR SHIPPING
Mfg. item #: OTLKIT
DEFOTLKIT
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$2,295.00

244
OTLKITXT
POSITEST OTL (OTLKITXT) POSITEST OTL HIGH TEMPERATURE KIT OVEN TEMPERATURE LOGGER
ADD TO CART NOW TO ACTIVATE YOUR BROTHER-IN-LAW PROMOTION OF FREE 2ND DAY AIR SHIPPING
Mfg. item #: OTLKITXT
DEFOTLKITXT
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$2,795.00

244
PRBOTLCS6
POSITEST OTL (PRBOTLCS6) CLAMP STYLE SURFACE PROBE, 1.8M/ 6 FOR POSITEST OTL
Mfg. item #: PRBOTLCS6
DEFPRBOTLCS6
Ships FREE via UPS to lower 48 states.5
$125.00

244
PRBOTLCS12
POSITEST OTL (PRBOTLCS12) CLAMP STYLE SURFACE PROBE, 3.6M/12 FOR POSITEST OTL
Mfg. item #: PRBOTLCS12
DEFPRBOTLCS12
Ships FREE via UPS to lower 48 states.5
$135.00

244
PRBOTLCS20
POSITEST OTL (PRBOTLCS20) CLAMP STYLE SURFACE PROBE, 6M/20 FOR POSITEST OTL
Mfg. item #: PRBOTLCS20
DEFPRBOTLCS20
Ships FREE via UPS to lower 48 states.5
$155.00

244
PRBOTLCA6
POSITEST OTL (PRBOTLCA6) CLAMP STYLE AIR PROBE, 1.8M/ 6 FOR POSITEST OTL
Mfg. item #: PRBOTLCA6
DEFPRBOTLCA6
Ships FREE via UPS to lower 48 states.5
$125.00

244
PRBOTLCA12
POSITEST OTL (PRBOTLCA12) CLAMP STYLE AIR PROBE, 3.6M/12 FOR POSITEST OTL
Mfg. item #: PRBOTLCA12
DEFPRBOTLCA12
Ships FREE via UPS to lower 48 states.5
$135.00

244
PRBOTLCA20
POSITEST OTL (PRBOTLCA20) CLAMP STYLE AIR PROBE, 6M/20 FOR POSITEST OTL
Mfg. item #: PRBOTLCA20
DEFPRBOTLCA20
Ships FREE via UPS to lower 48 states.5
$155.00

244
PRBOTLMS6
POSITEST OTL (PRBOTLMS6) MAGNETIC SURFACE PROBE, 1.8M/ 6 FOR POSITEST OTL
Mfg. item #: PRBOTLMS6
DEFPRBOTLMS6
Ships FREE via UPS to lower 48 states.5
$145.00

244
PRBOTLMS12
POSITEST OTL (PRBOTLMS12) MAGNETIC SURFACE PROBE, 3.6M/12 FOR POSITEST OTL
Mfg. item #: PRBOTLMS12
DEFPRBOTLMS12
Ships FREE via UPS to lower 48 states.5
$155.00

244
PRBOTLMS20
POSITEST OTL (PRBOTLMS20) MAGNETIC SURFACE PROBE, 6M/20 FOR POSITEST OTL
Mfg. item #: PRBOTLMS20
DEFPRBOTLMS20
Ships FREE via UPS to lower 48 states.5
$175.00

244
PRBOTLMA6
POSITEST OTL (PRBOTLMA6) MAGNETIC AIR PROBE, 1.8M/ 6 FOR POSITEST OTL
Mfg. item #: PRBOTLMA6
DEFPRBOTLMA6
Ships FREE via UPS to lower 48 states.5
$125.00

244
PRBOTLMA12
POSITEST OTL (PRBOTLMA12) MAGNETIC AIR PROBE, 3.6M/12 FOR POSITEST OTL
Mfg. item #: PRBOTLMA12
DEFPRBOTLMA12
Ships FREE via UPS to lower 48 states.5
$135.00

244
PRBOTLMA20
POSITEST OTL (PRBOTLMA20) MAGNETIC AIR PROBE, 6M/20 FOR POSITEST OTL
Mfg. item #: PRBOTLMA20
DEFPRBOTLMA20
Ships FREE via UPS to lower 48 states.5
$155.00

244
PRBOTLW6
POSITEST OTL (PRBOTLW6) WASHER SURFACE PROBE, 1.8M/ 6 FOR POSITEST OTL
Mfg. item #: PRBOTLW6
DEFPRBOTLW6
Ships FREE via UPS to lower 48 states.5
$125.00

244
PRBOTLW12
POSITEST OTL (PRBOTLW12) WASHER SURFACE PROBE, 3.6M/12 FOR POSITEST OTL
Mfg. item #: PRBOTLW12
DEFPRBOTLW12
Ships FREE via UPS to lower 48 states.5
$135.00

244
PRBOTLW20
POSITEST OTL (PRBOTLW20) WASHER SURFACE PROBE, 6M/20 FOR POSITEST OTL
Mfg. item #: PRBOTLW20
DEFPRBOTLW20
Ships FREE via UPS to lower 48 states.5
$155.00

244
SSTPATCHP5
SSTPATCHP5 - BRESLE METHOD POSIPATCH FOR POSITECTOR SST (5 PK) ACCESSORY
Mfg. item #: SSTPATCHP5
DEFSSTPATCHP5
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$85.00

244
SSTPATCHP24
SSTPATCHP24 - BRESLE METHOD POSIPATCH FOR POSITECTOR SST (24 PK) ACCESSORY
ADD TO CART NOW FOR FREE GROUND UPS
Mfg. item #: SSTPATCHP24
DEFSSTPATCHP24
Ships FREE via UPS to lower 48 states.5
$265.00

244
SSTRING
SSTRING - STANDARD MAGNETIC RING FOR POSITECTOR SST POSIPATCH ACCESSORY
Mfg. item #: SSTRING
DEFSSTRING
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$195.00

244
SSTPATCHD25
SSTPATCHD25 - BRESLE METHOD DEFELSKO PATCH FOR POSITECTOR SST (25 PK) ACCESSORY
Mfg. item #: SSTPATCHD25
DEFSSTPATCHD25
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$90.00

244
SSTPATCHL25
SSTPATCHL25 - LATEX ADHESIVE PATCH FOR POSITECTOR SST (25 PK) ACCESSORY
Mfg. item #: SSTPATCHL25
DEFSSTPATCHL25
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$140.00

244
SSTDISPTIP
SSTDISPTIP - PLASTIC DISPENSING TIP (10 PK) FOR POSITECTOR SST ACCESSORY
Mfg. item #: SSTDISPTIP
DEFSSTDISPTIP
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$40.00

244
SSTNEEDLE
SSTNEEDLE - NEEDLE FOR BRESLE PATCH (10PK) FOR POSITECTOR SST ACCESSORY
Mfg. item #: SSTNEEDLE
DEFSSTNEEDLE
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$10.00

244
SSTSYRINGE3
SSTSYRINGE3 - 3ML GRADUATED SYRINGE (10 PK) FOR POSITECTOR SST ACCESSORY
Mfg. item #: SSTSYRINGE3
DEFSSTSYRINGE3
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$10.00

244
SSTCUP
SSTCUP - 30ML GRADUATED CUP (10 PK) FOR POSITECTOR SST ACCESSORY
Mfg. item #: SSTCUP
DEFSSTCUP
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$20.00

244
SSTSLTN84
SSTSLTN84 - CONDUCTIVITY STANDARD 84 S/CM FOR POSITECTOR SST, 60 ML ACCESSORY
Mfg. item #: SSTSLTN84
DEFSSTSLTN84
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$35.00

244
SSTSWAB
SSTSWAB - FOAM TIPPED SWAB (5 PK) FOR POSITECTOR SST ACCESSORY
Mfg. item #: SSTSWAB
DEFSSTSWAB
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$10.00

244
SSTKITPATCHP
SSTKITPATCHP - POSIPATCH STD RING STARTER PACK FOR POSITECTOR SST ACCESSORY
ADD TO CART NOW FOR FREE GROUND UPS
Mfg. item #: SSTKITPATCHP
DEFSSTKITPATCHP
Ships FREE via UPS to lower 48 states.5
$295.00

244
Copyright © 2023 Smith-Hamilton, Inc
0.024 231025 07:03
